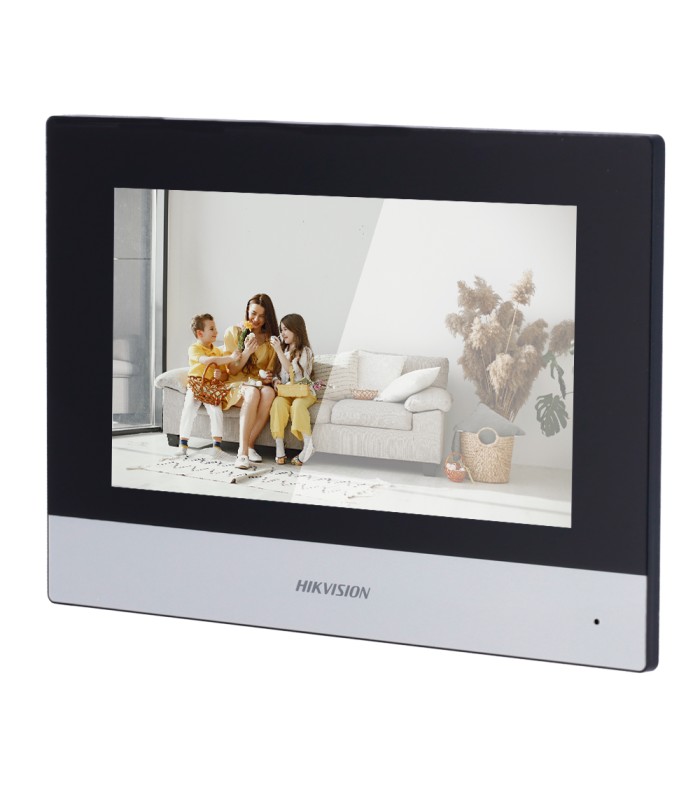

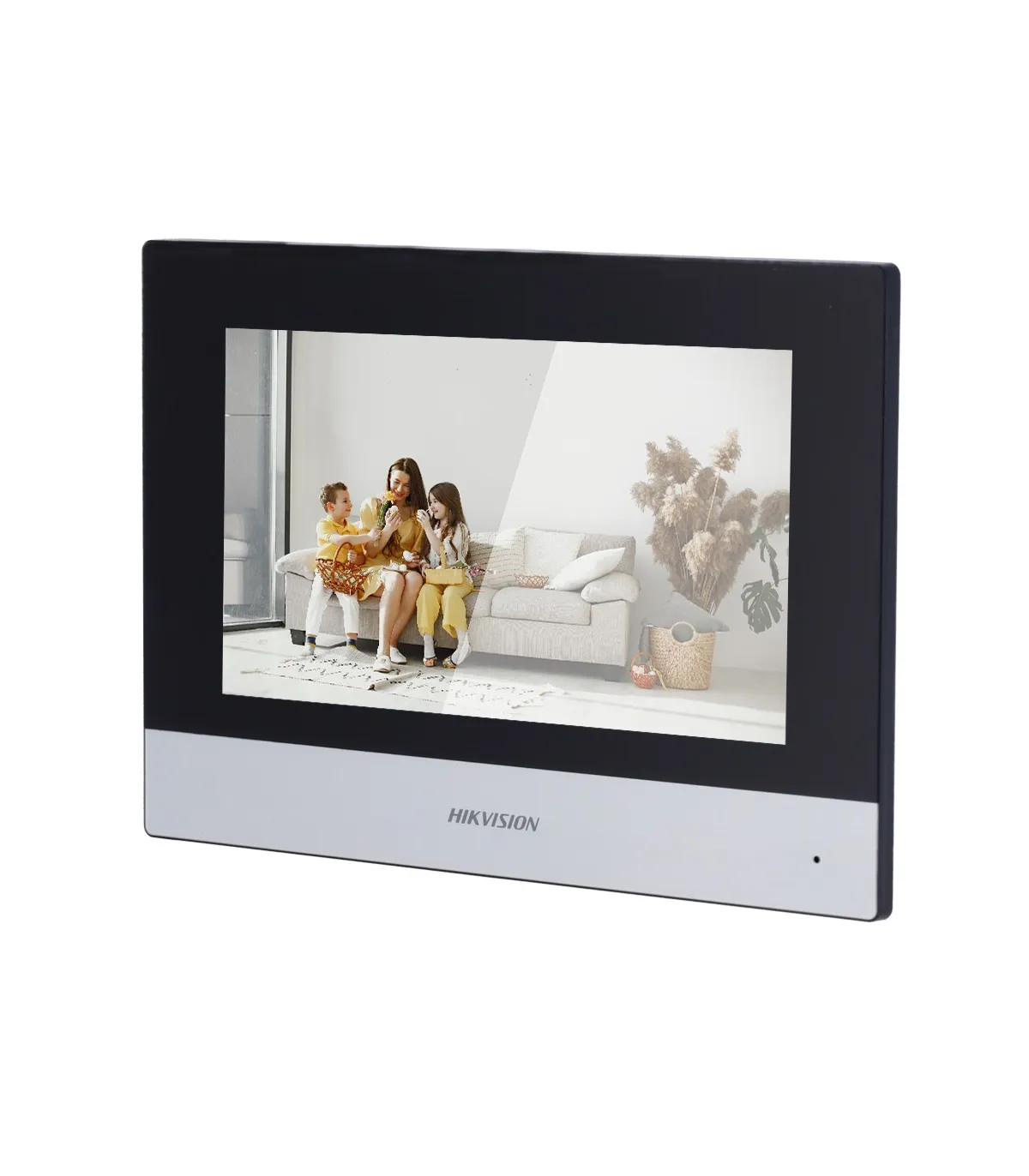

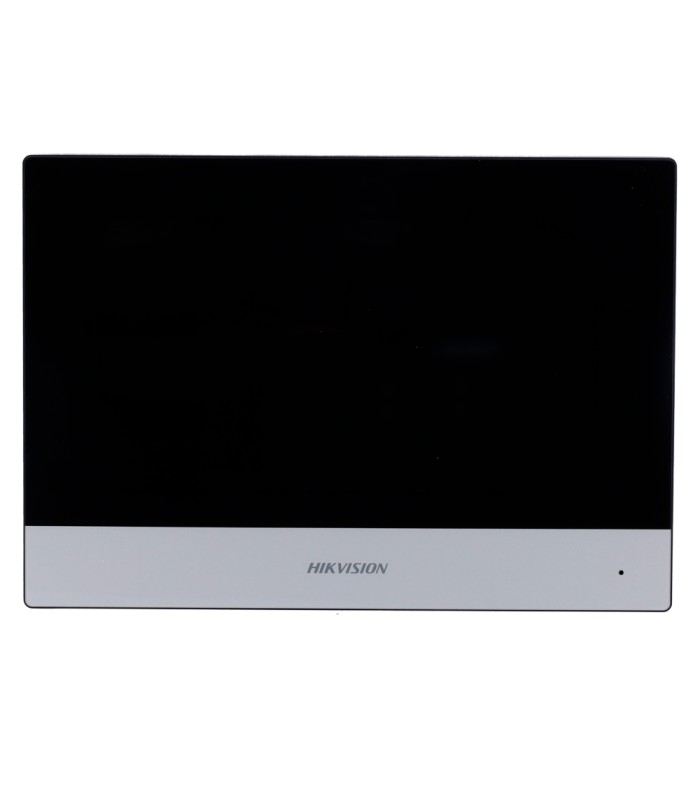

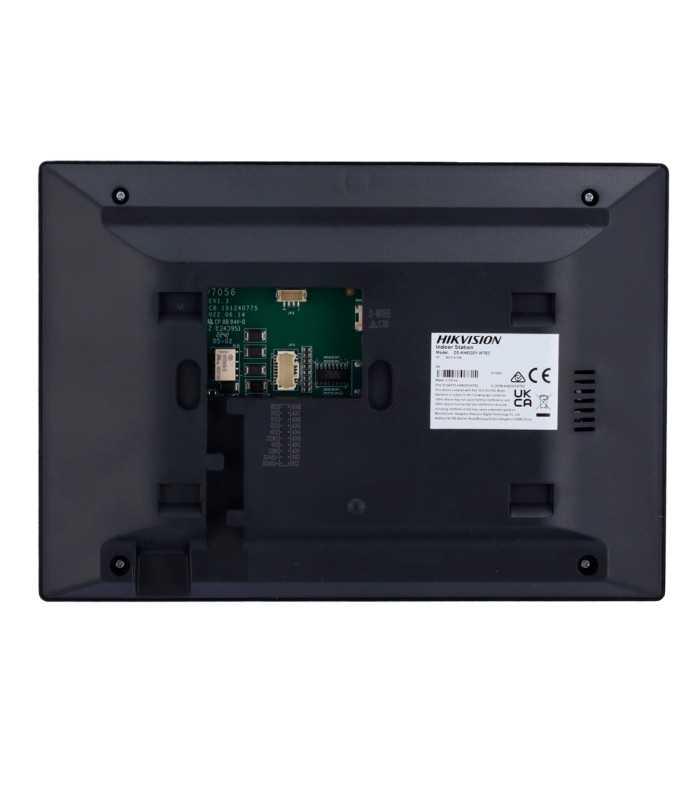

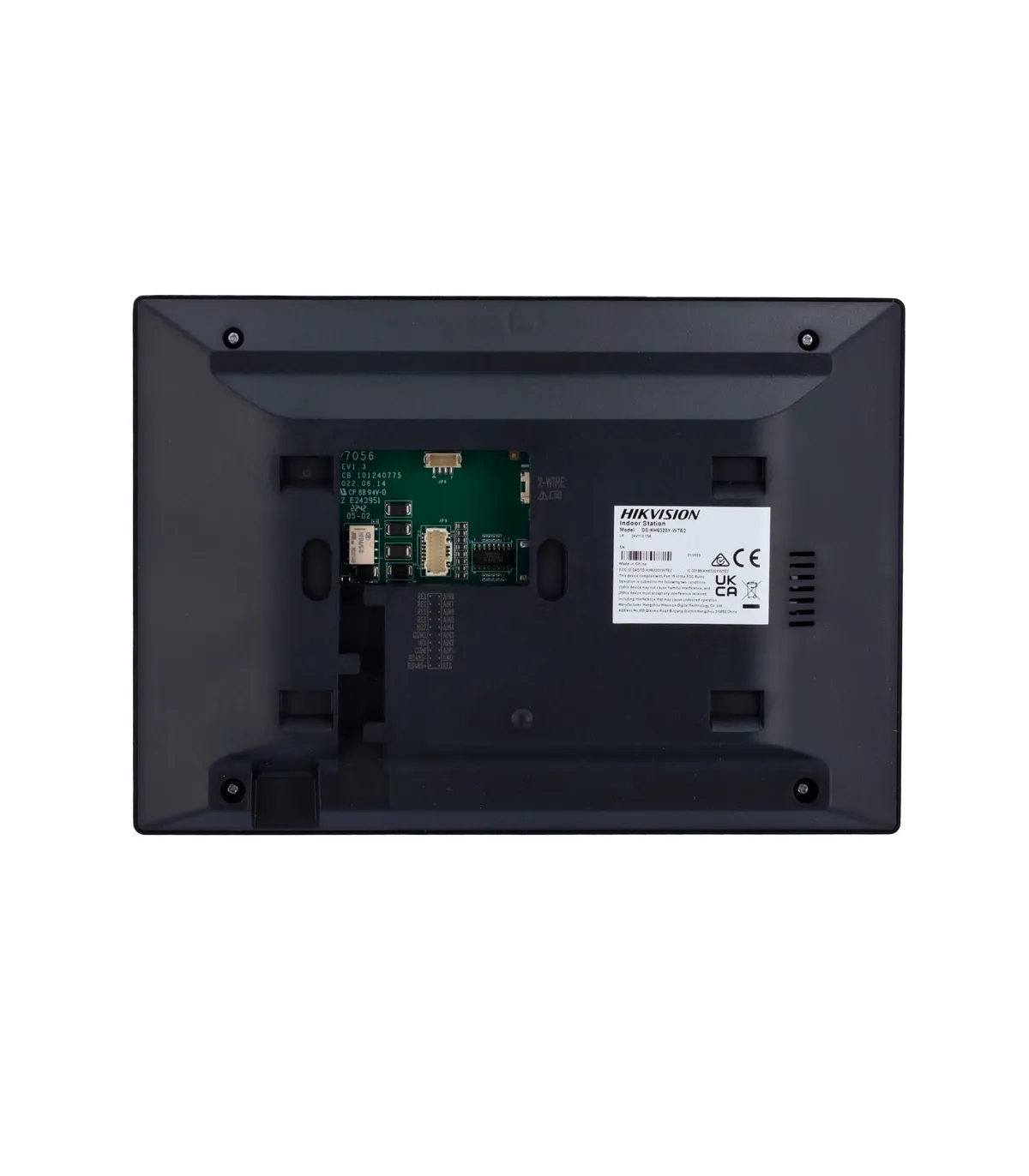

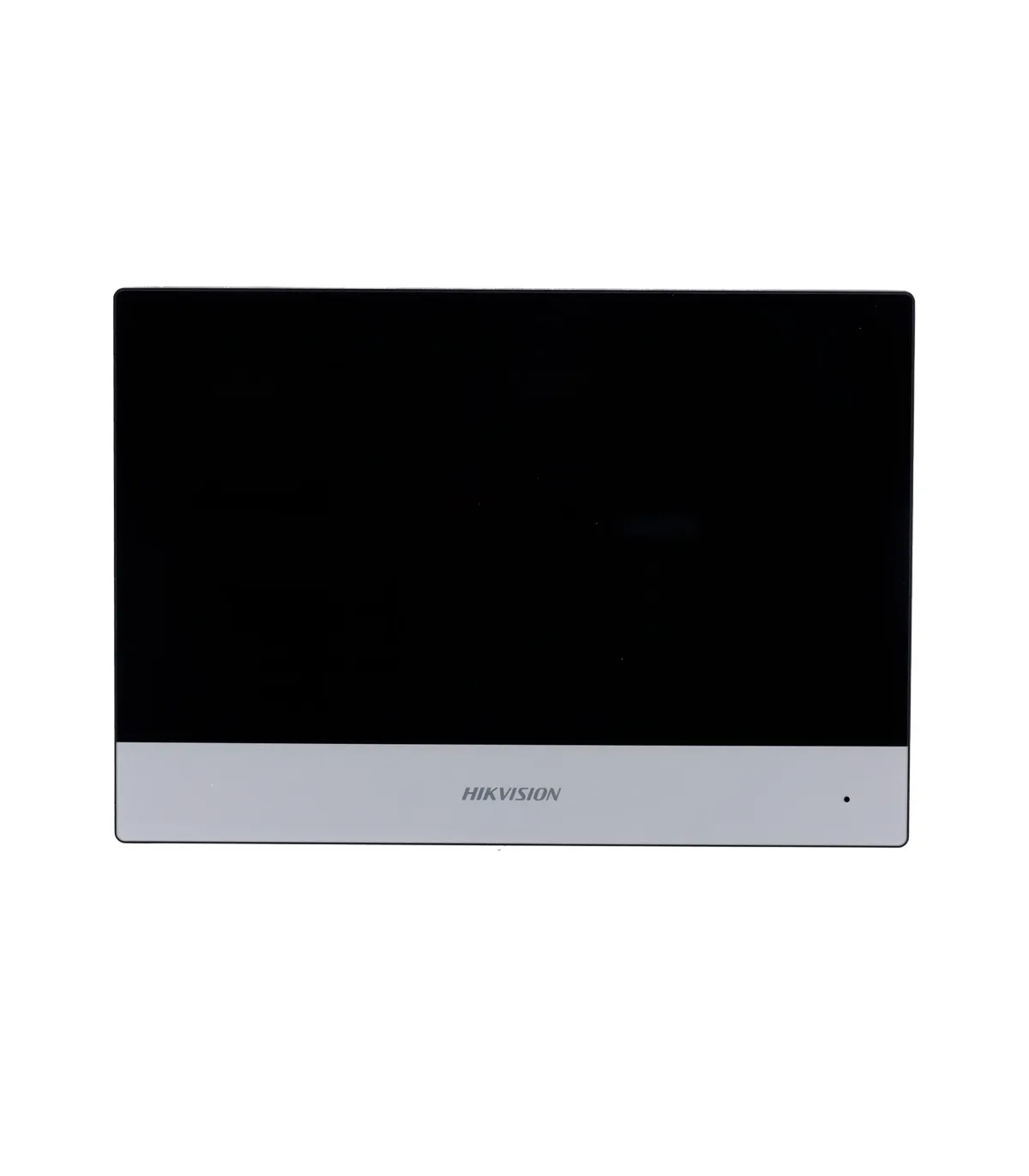

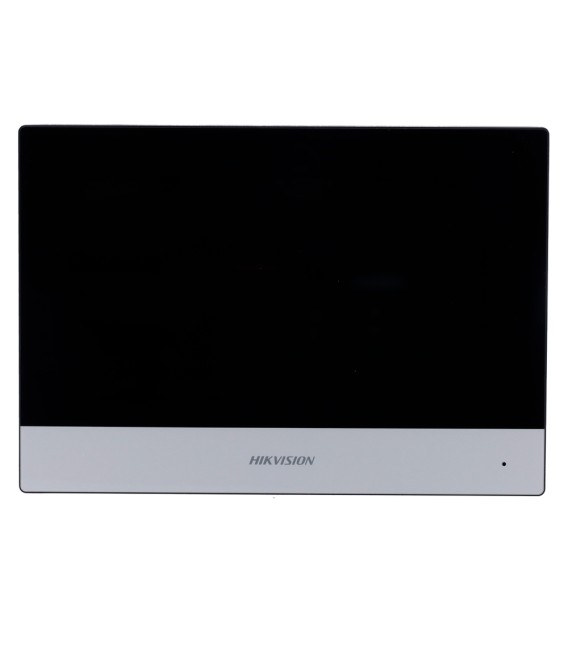

Monitor for Hikvision DS-KH6320Y-WTE2 video intercom
- Hikvision
- TFT touch screen for 7" 2-wire video intercom
- Built-in microphone and speaker
- Two-way audio
- 8 alarm inputs
- 2 alarm outputs relay
- microSD slot
- Recording and image capture
- Multiple screen extension
- TCP/IP connection through DS-KAD70xY and WiFi
- Internal calls between devices

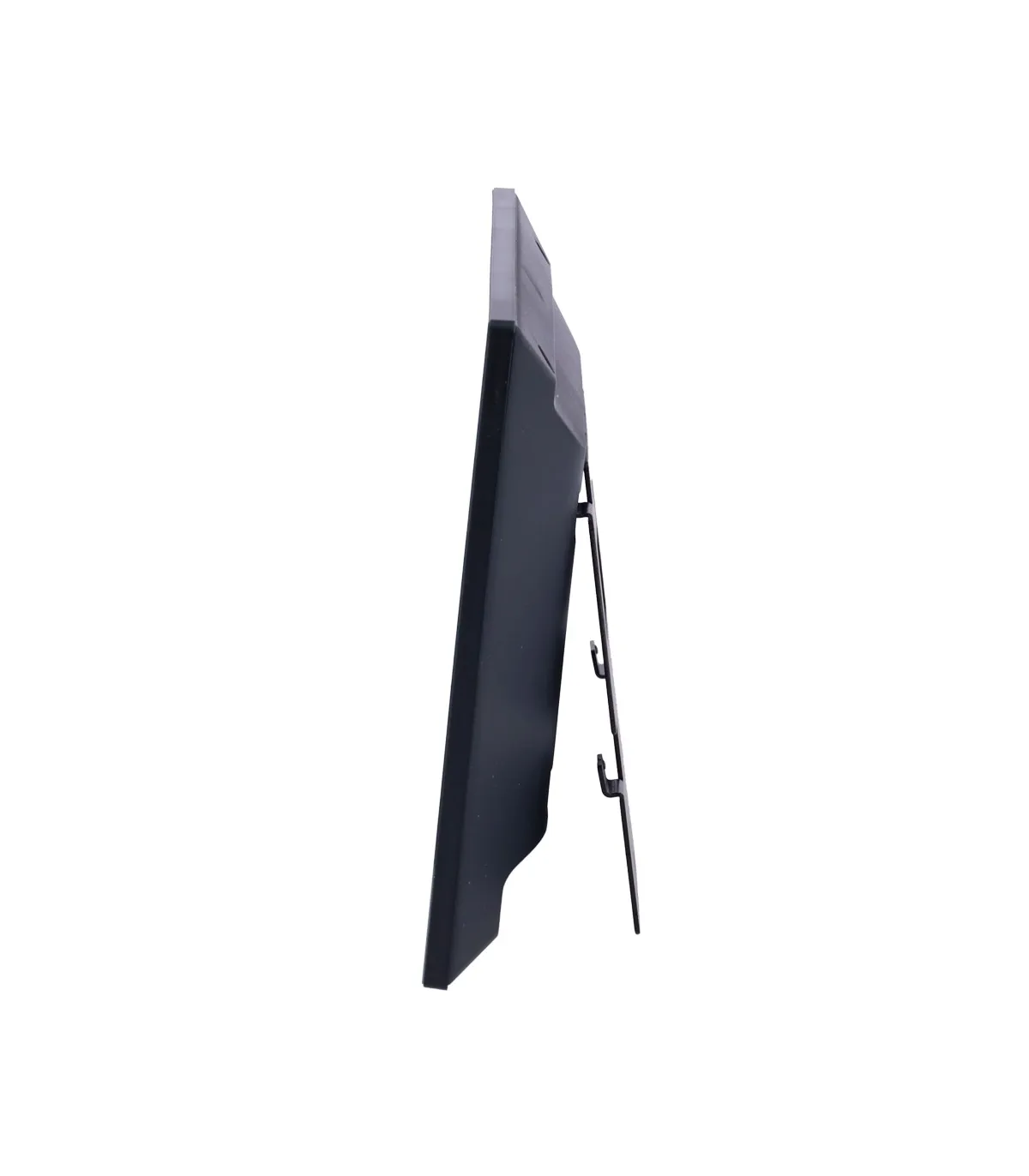

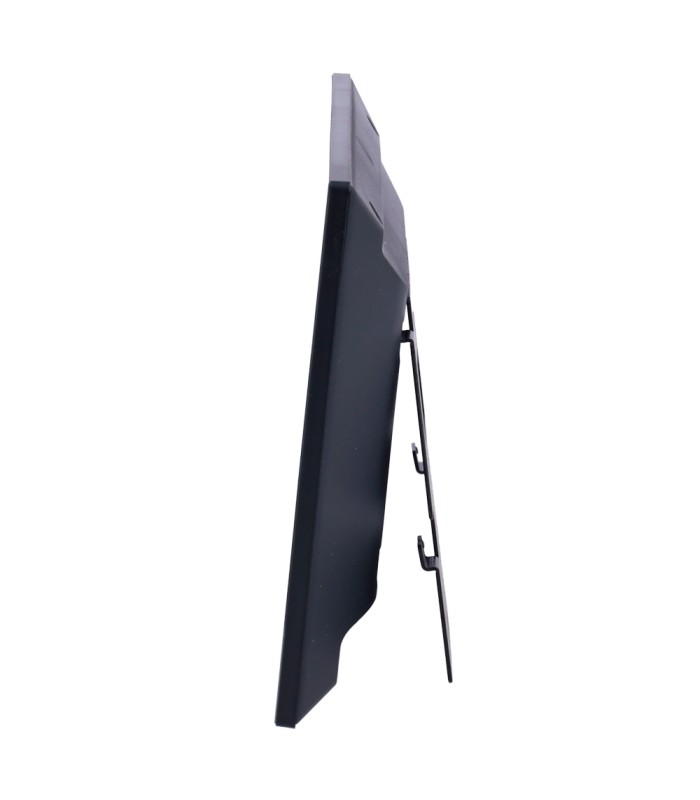

- Surface mounting
- Push notifications through the Hik-Connect app (when receiving a call from an entrance panel)
Specifications techniques
| Brand | Hikvision |
| Model | DS-KH6320Y-WTE2 |
| Operating system | Linux |
| LCD | 7" color touch TFT |
| Screen resolution | 1024 x 600 |
| Inputs | 8 x configurable alarm inputs, 1 x RS485 |
| Outputs | 2 x relay outputs |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | 2 wires / RTSP / SIP 2.0 protocol / WiFi 802.11b/g/n (only for connection to app via P2P) |
| Remote access | iVMS-4200 software Hik-Connect mobile application |
| Power | Through specific Hikvision hub for 2-wire video intercoms (6 W max.) |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 140 (H) x 200 (W) x 15 (D) mm |
| Weight | 327 g |
| Slave monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |
Contents
- Hikvision video intercom indoor monitor
- Installation material
- Instructions for use
