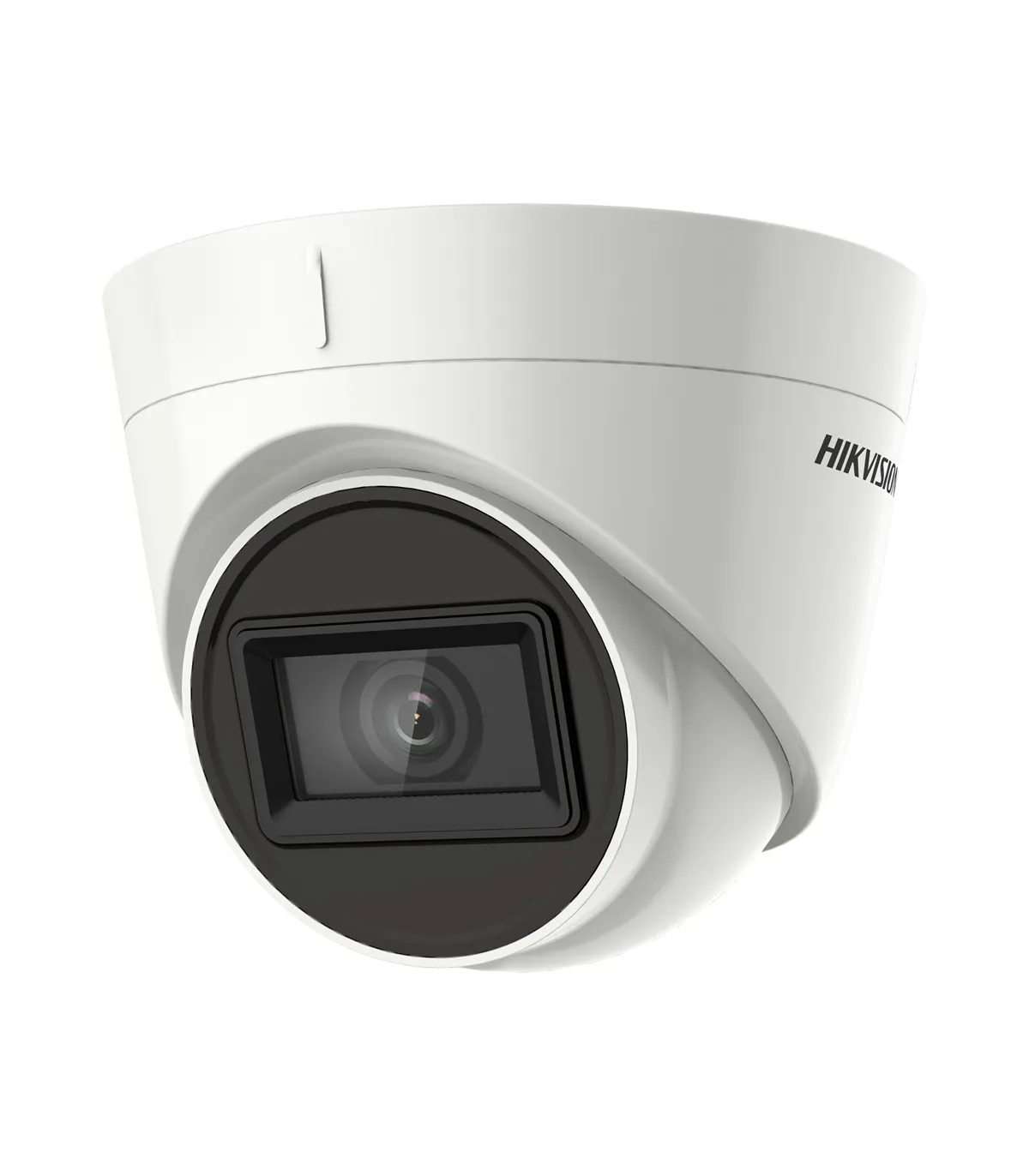

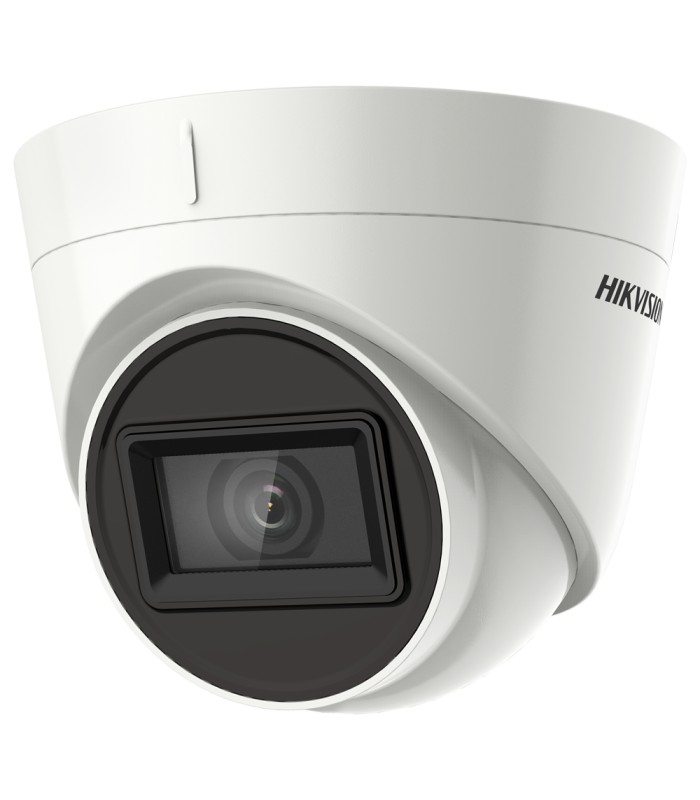

Hikvision DS-2CE78U1T-IT3F Value Range 4in1 Dome Camera (3.6mm)
- Hikvision
- 4-in-1 Value Range Dome Camera
- 8 Megapixel (3480 x 2160)
- 3.6mm Lens
- EXIR IR Range 60m
- IP67 Waterproof
€81.20
Reference:
DS-2CE78U1T-IT3F(3.6mm)
Brand:
Hikvision DS-2CE78U1T-IT3F(3.6mm) Value Range 4in1 Dome Camera
- Hikvision
- VALUE Range
- HDTVI, HDCVI, AHD and CVBS Dome Camera
- 8.29 megapixel progressive scan CMOS
- 8 Megapixel (3480x2160)
- 4 in 1 output
- 3.6 mm lens
- 0 Lux
- EXIR IR Range 60 m
- IR CUT
- Waterproof IP67
Technical specifications
| Brand | Hikvision |
| Range | Value |
| Image sensor | 8.29 megapixel progressive scan CMOS |
| Maximum resolution | 8 Megapixel (3480 x 2160) at 15 fps |
| Resolution | TVI: 8 Mpx (12.5~15 fps), 4 Mpx (25~30 fps), 2 Mpx (25~30 fps) CVI: 8 Mpx (12.5~15 fps) AHD: 8 Mpx (12.5~15 fps) CVBS: 960H PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 79º (H) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / Smart EXIR IR scope 60 m |
| Day / Night | Auto / Color / Black and White (ICR) |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR (105 dB), BLC, HLC, DNR, AGC, AWB, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 5.3 W max. |
| Protection degree | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Body: Metal Cover: Plastic |
| Dimensions | Ø 109.82 mm × 91.03 mm (H) |
| Base diameter | base Ø 109.82 mm / Ø between screws 85 mm / 3 screws |
| Weight | 320 g |
Contents
- Hikvision Value 4N1 Dome Camera
- Mounting material
- Instructions for use
DS-2CE78U1T-IT3F(3.6mm)
Data sheet
- Brand
- Hikvision
- Type of camera
- Dome
- Resolution
- 8 MP
- Technology
- HD-Coaxial
- WDR
- Sí
- IR Distance
- 60 m
- White light
- No
- Audio
- Sin audio
- SD Slot
- Ranura MicroSD
- IP Rating
- IP67
- Use
- Outdoor
- Range
- Pro Series
- Functions
- Auto seguimiento
- POE
- No
- Lens
- Fija
- Product type
- Camera
- Connectivity
- Ethernet
Specific References
- EAN13
- 6954273669690
