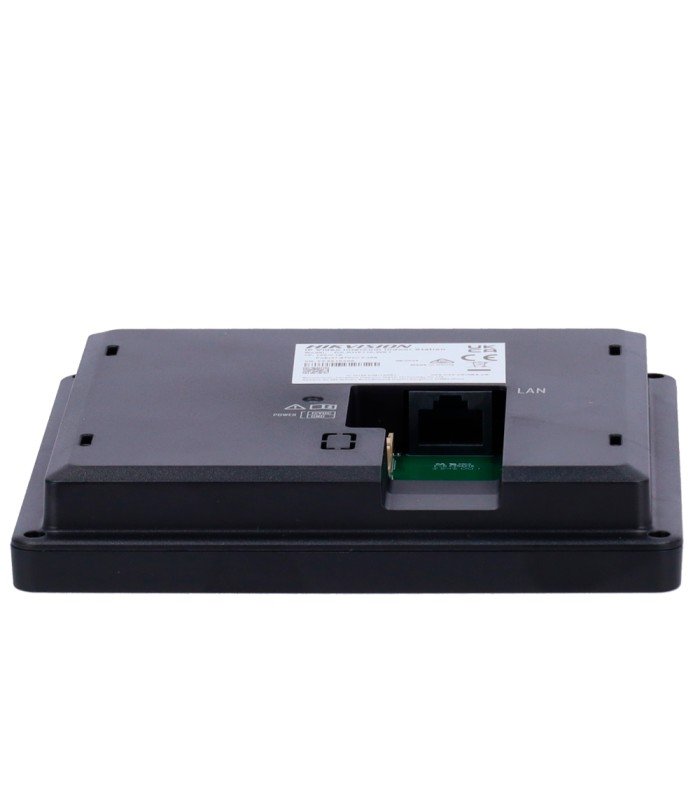

Hikvision DS-KH6110-WE1 video intercom monitor
- Hikvision
- 4.3" TFT touch screen for video intercom
- Built-in microphone and speaker
- Two-way audio
- Multiple screen extension
- TCP/IP and WiFi
- PoE IEEE802.3af
- Internal calls between devices
- Surface mounting
- Push notifications via Hik-Connect app
Technical specifications
| Brand | Hikvision |
| Model | DS-KH6110-WE1 |
| Operating system | Linux |

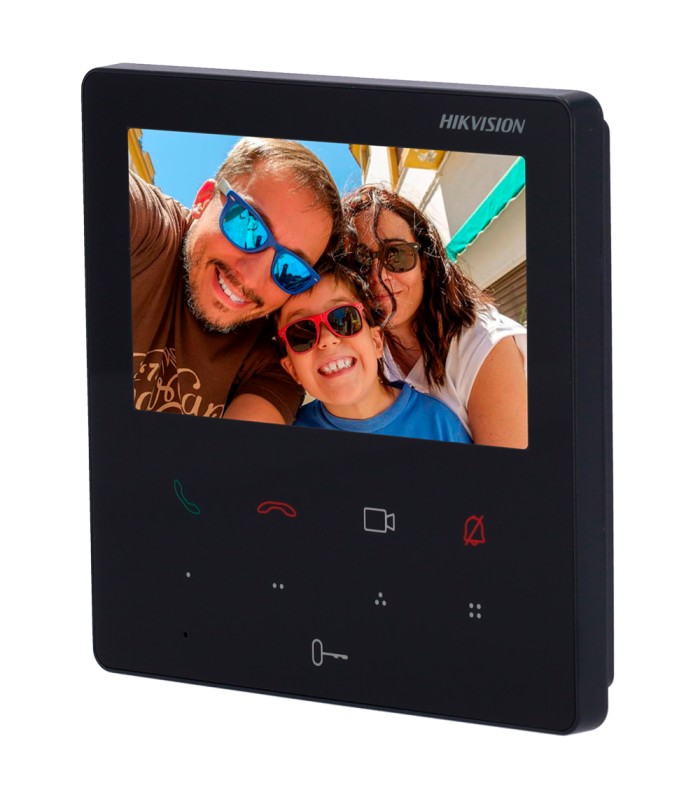

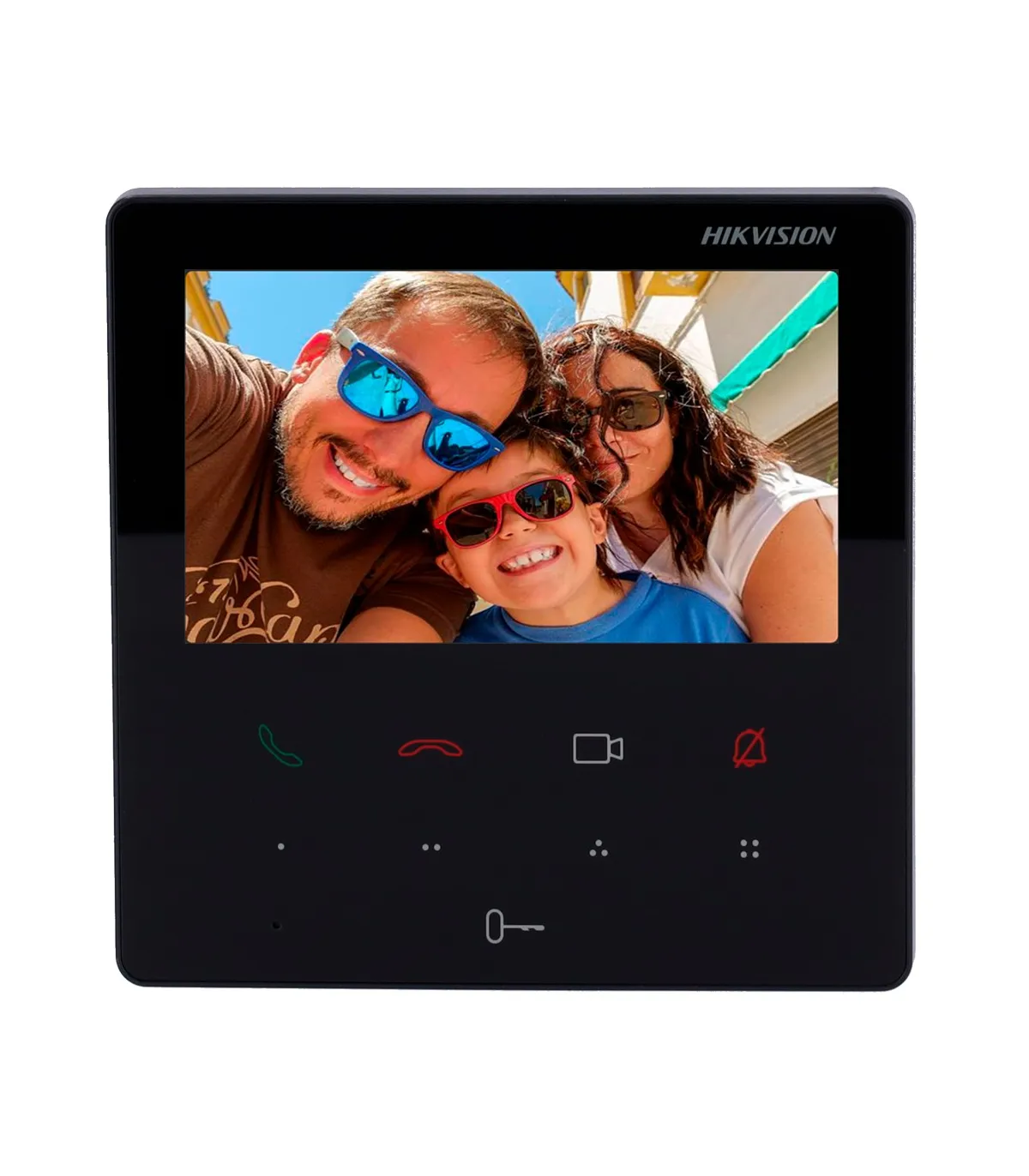

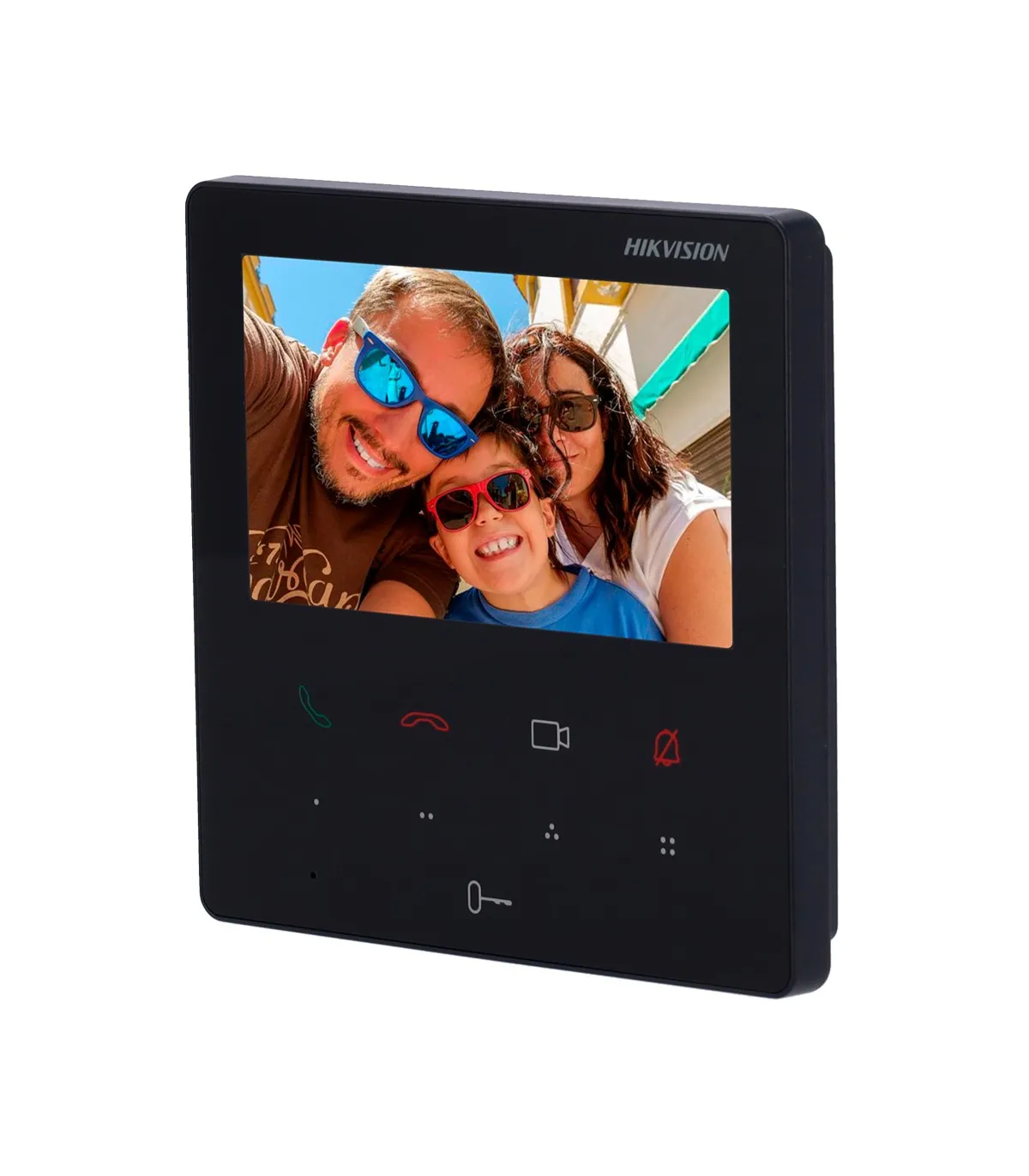

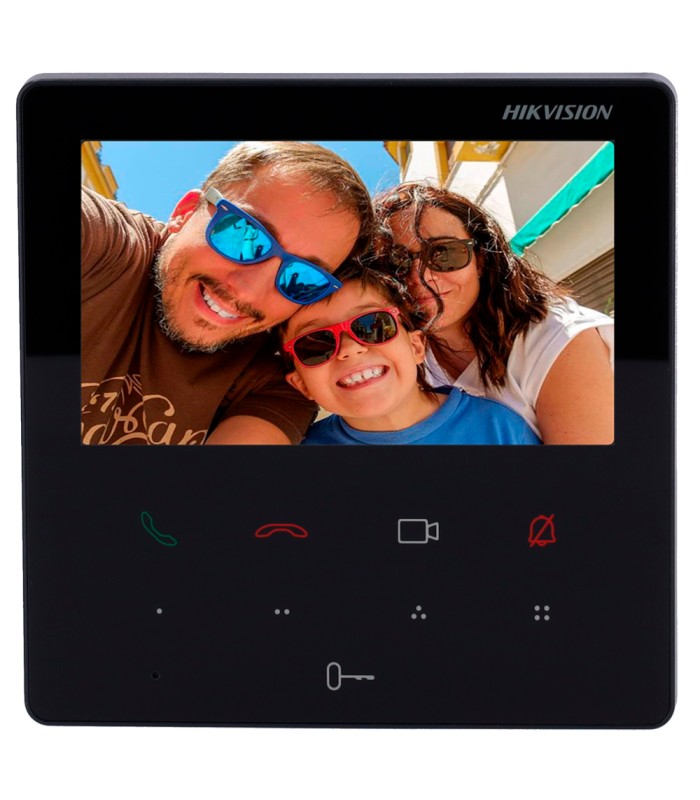

| Screen type | 4.3" color touch TFT |
| Screen resolution | 480 x 272 |
| Operation mode | 9 x Touch operation buttons (call functions, menu actions and door opening) |
| Inputs | Not available |
| Outputs | Not available |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Memory | Not available |

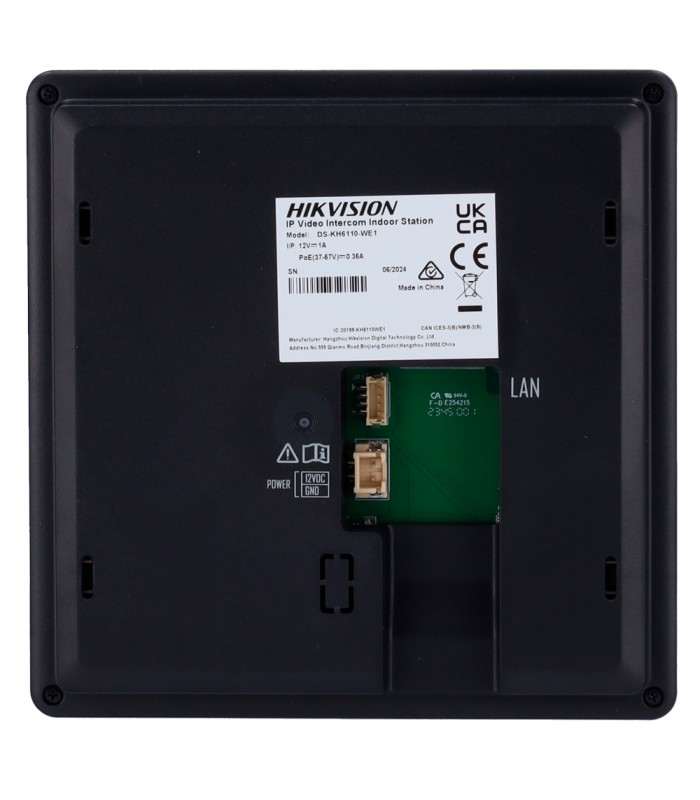

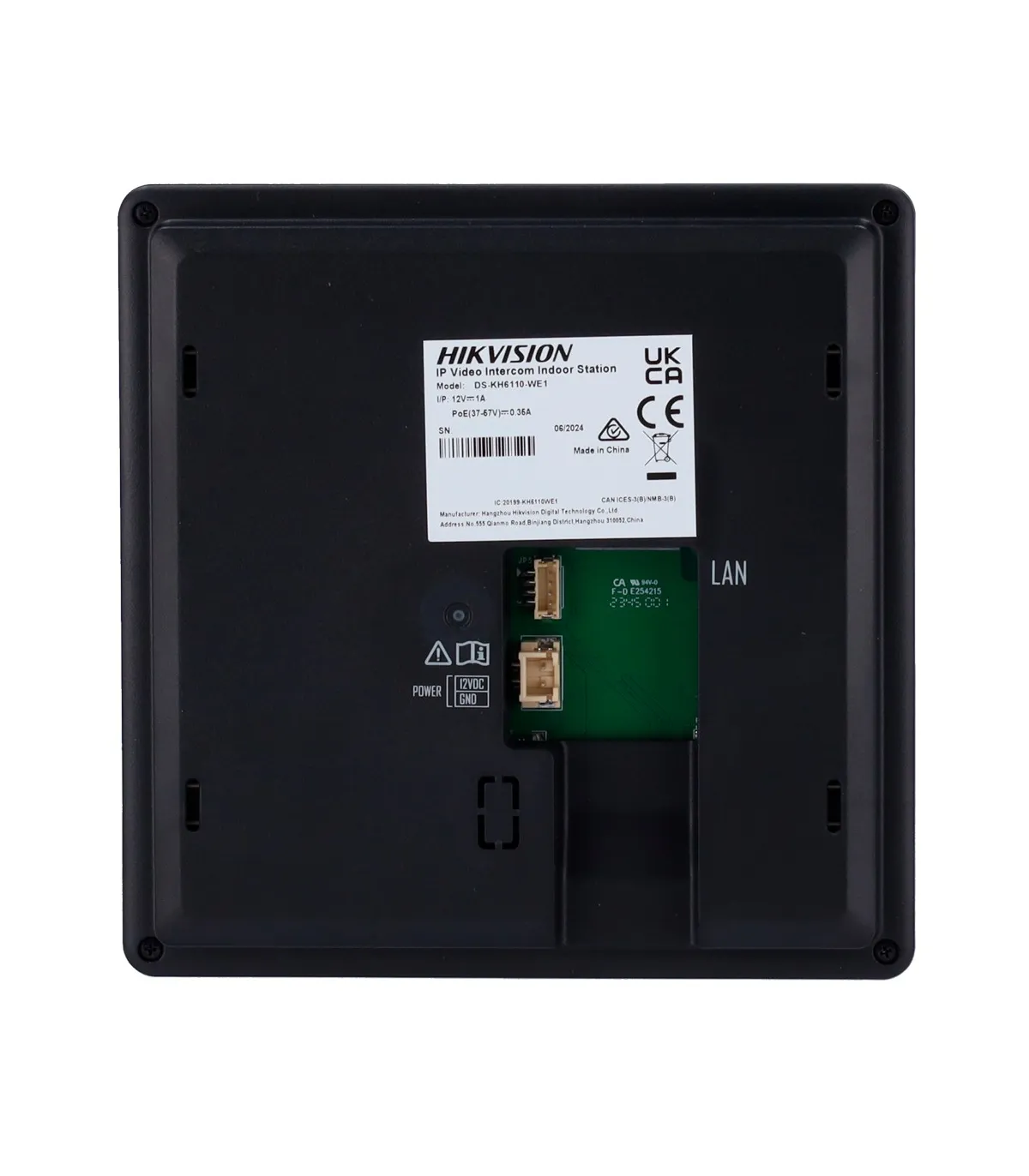

| Connection | Ethernet 10/100 BaseT / RTSP / SIP 2.0 Protocol / WiFi 802.11 b/g/n (only for connection to app via P2P) |
| Remote Access | iVMS-4200 Software Hik-Connect Mobile App |
| Power | DC 12 V / 1 A max. / PoE IEEE802.3af |
| Temp. operation | -10º C ~ +50º C |

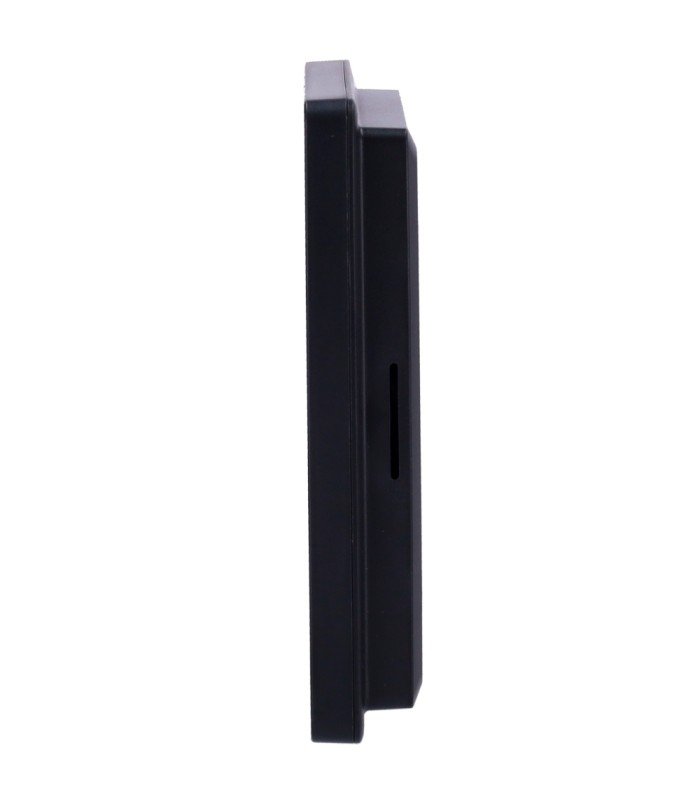

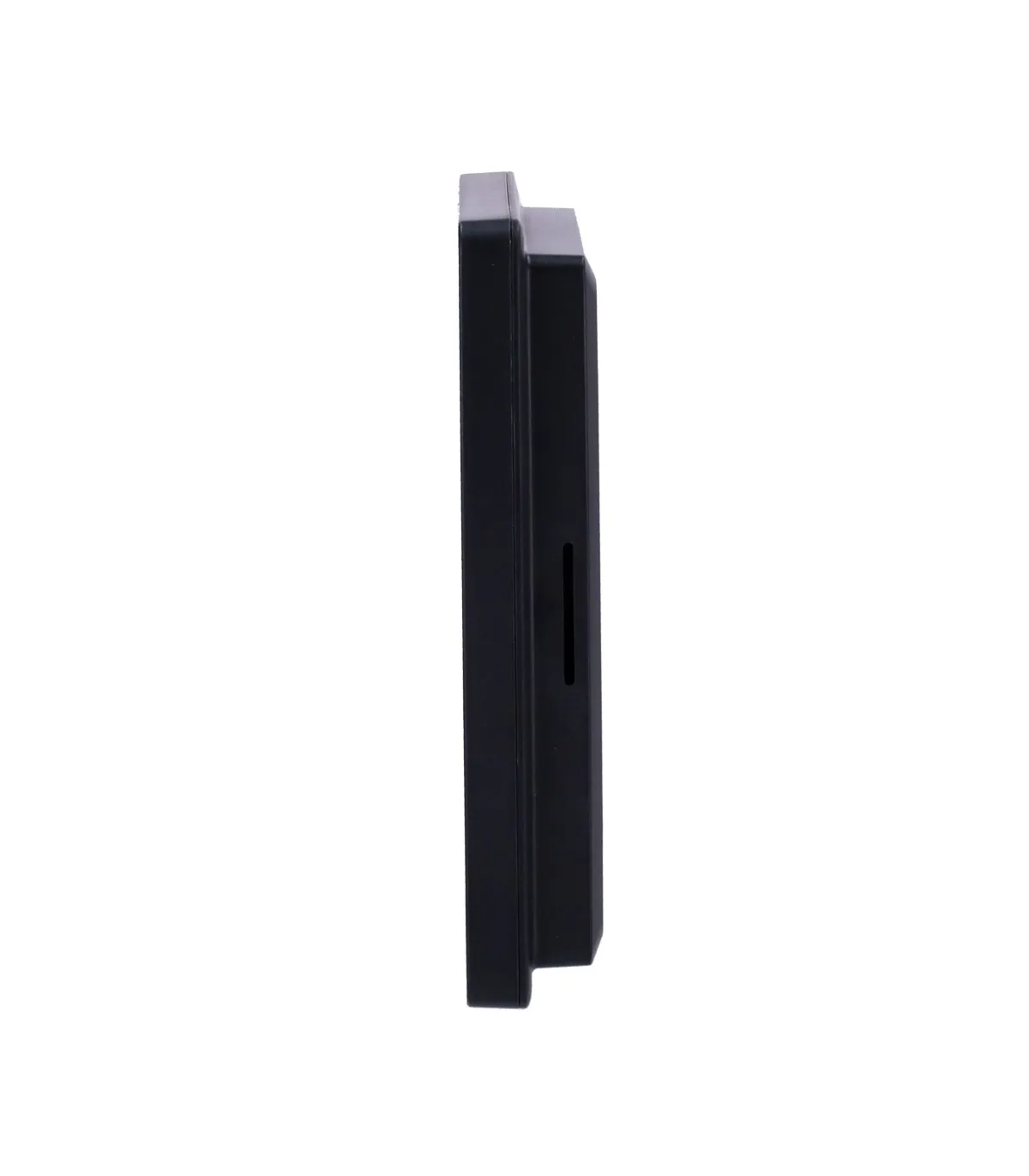

| Dimensions | 120 (H) x 120 (W) x 21 (D) mm |
| Weight | 198 g |
| Slave monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |
Contents
- Hikvision video intercom indoor monitor
- Installation material
- Instructions for use
