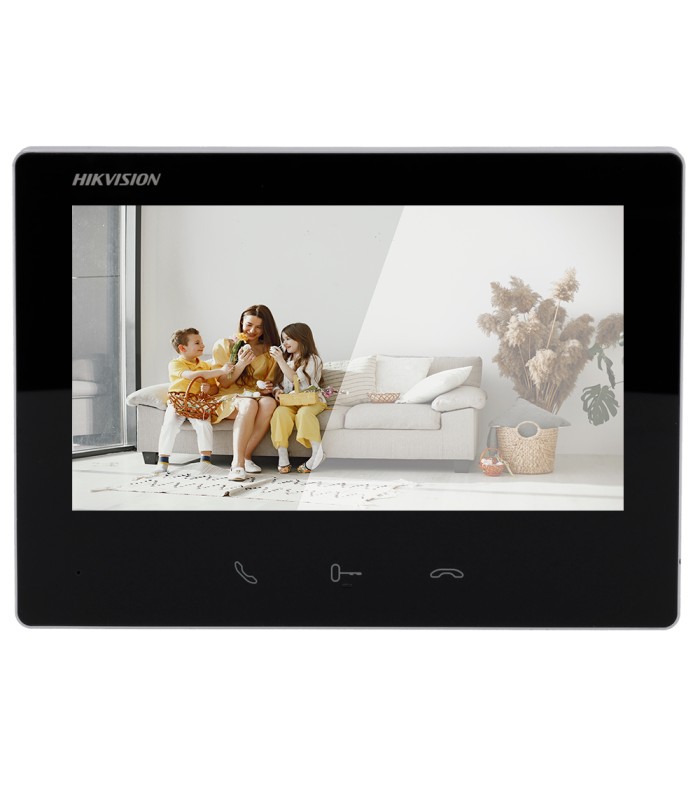

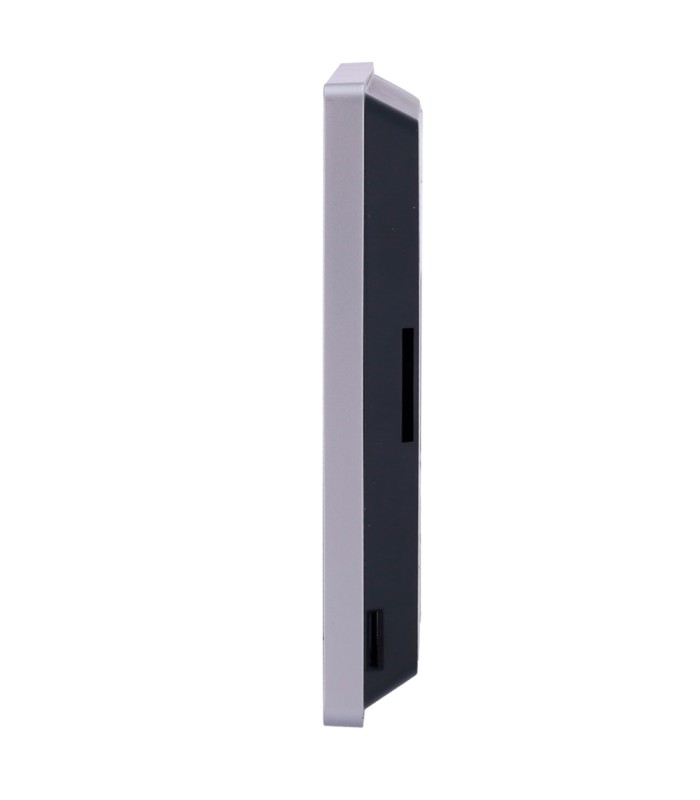

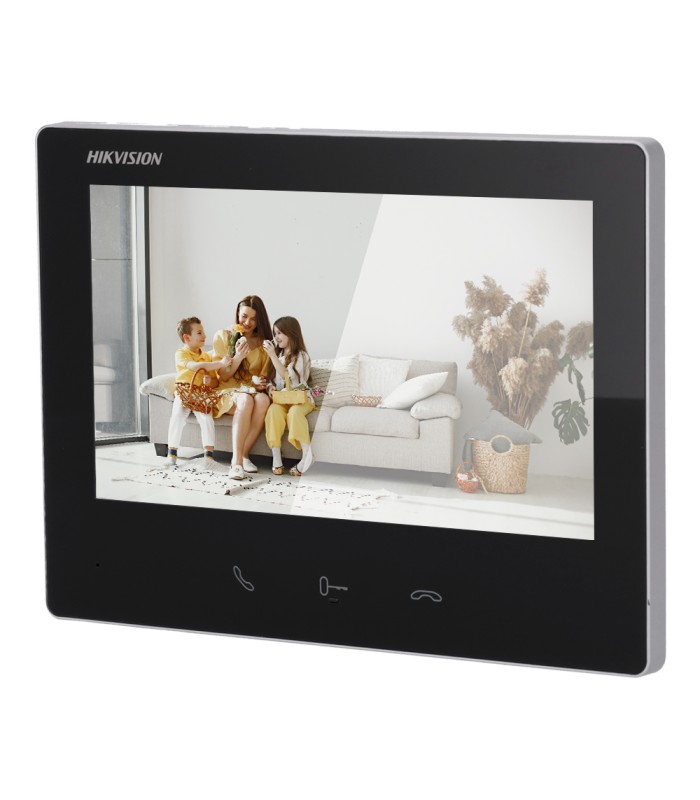

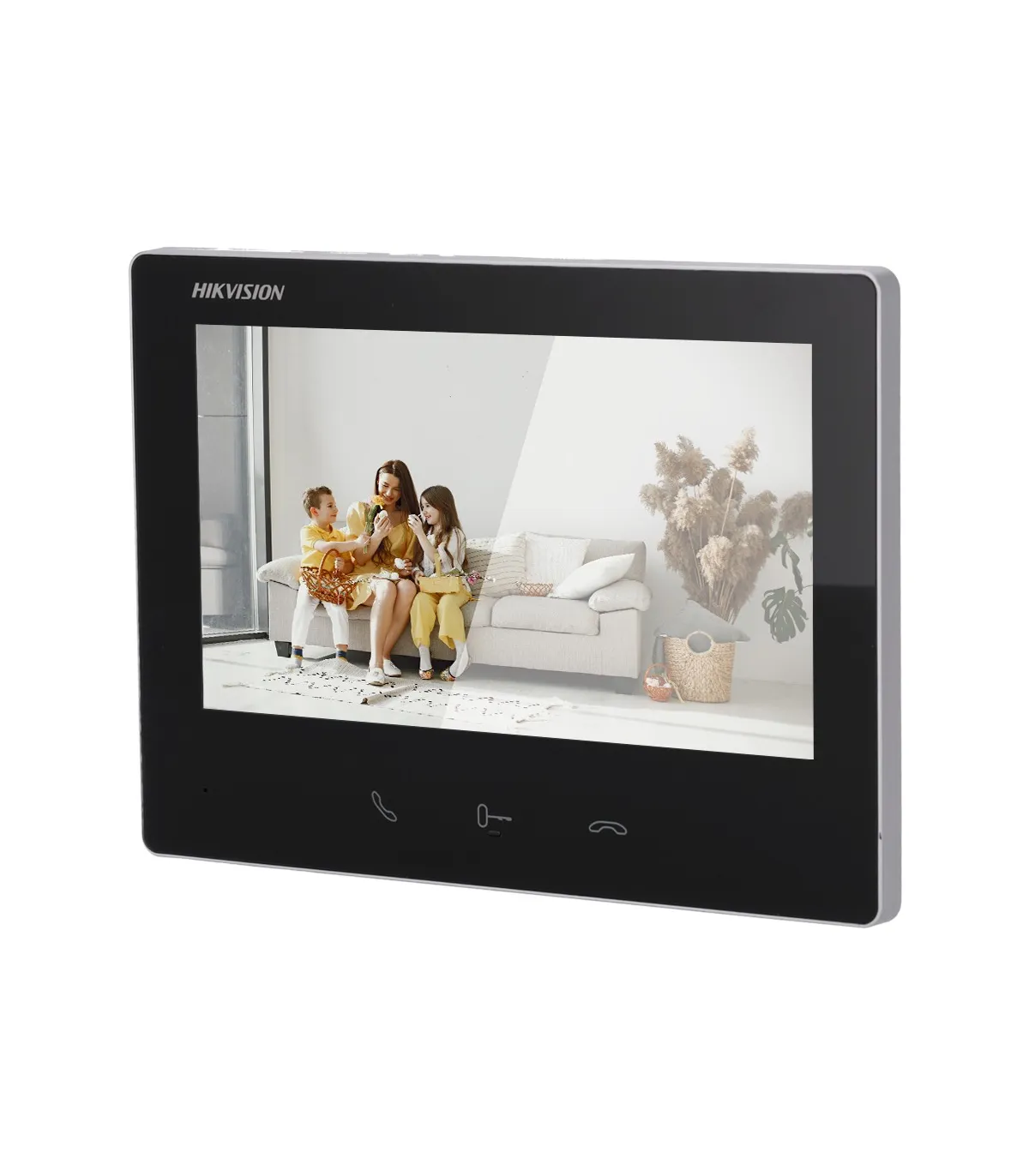

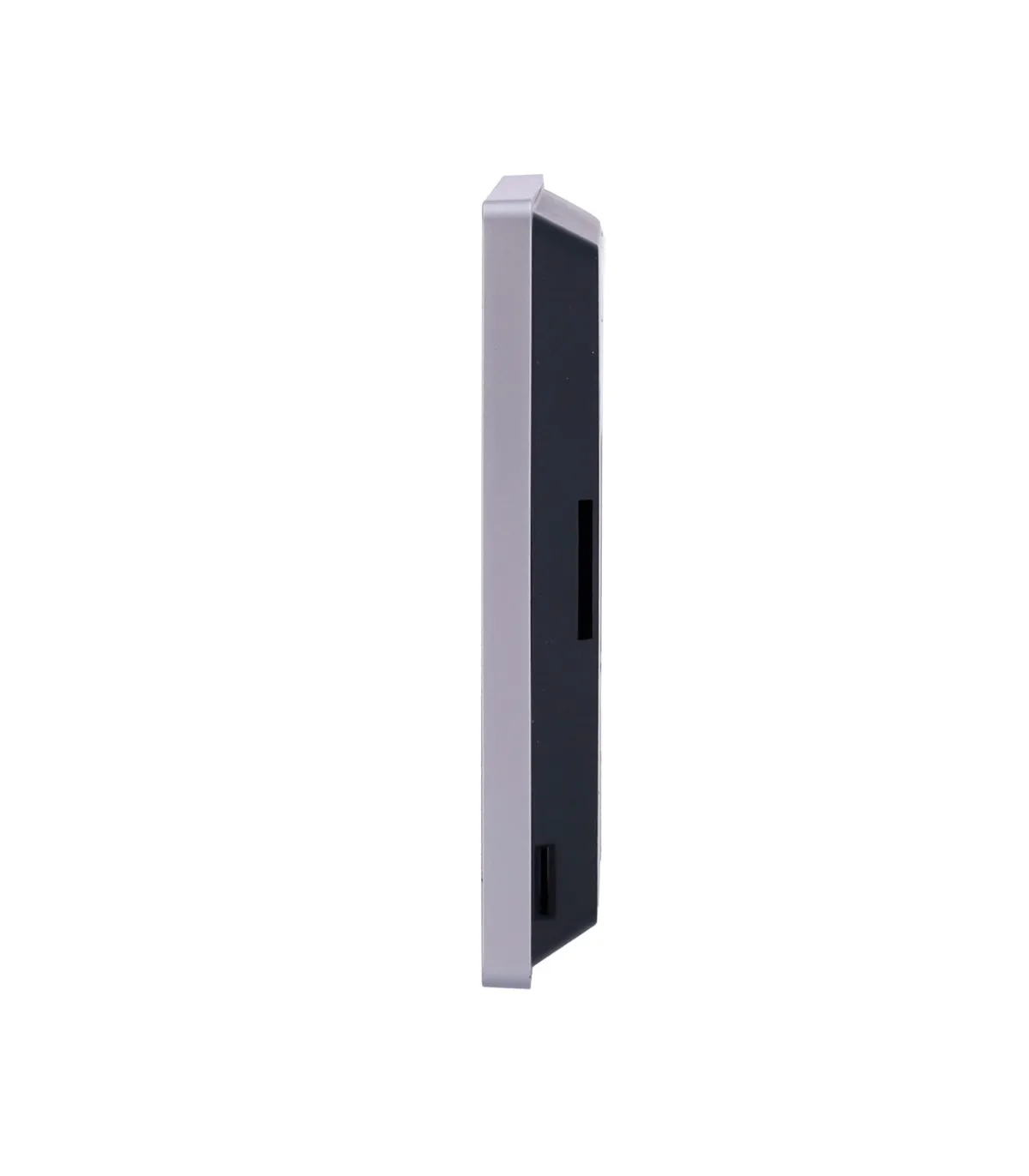

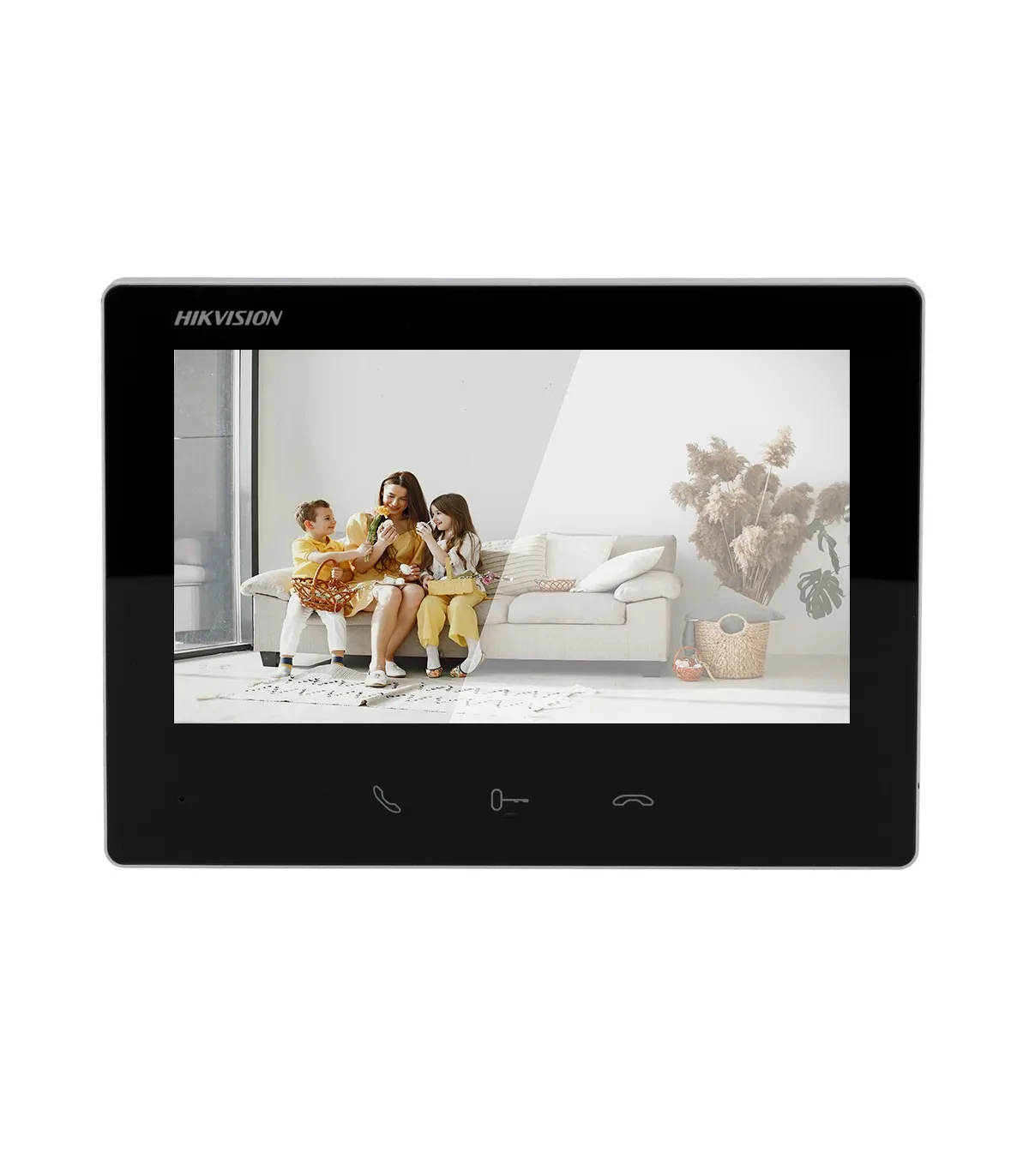

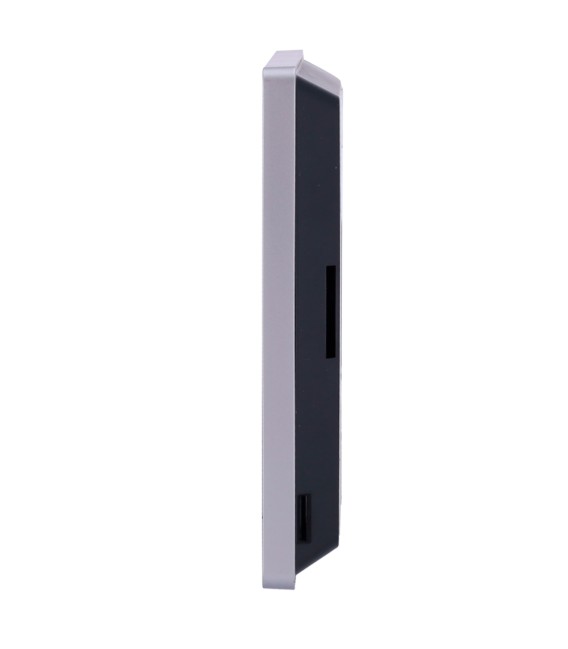

Hikvision DS-KH7300EY-WTE2 video intercom monitor
Brand: HIKVISION INTERCOM
- Video Doorbell Monitor
- 7" TFT Screen
- Two-way Audio | Status LED
- HD 2-wire, WiFi
- MicroSD card slot up to 128 GB
- Surface Mount
Monitor for Hikvision DS-KH7300EY-WTE2 video intercom
- Hikvision
- TFT screen for 7" 2-wire HD video intercom
- Built-in microphone and speaker
- Two-way audio
- microSD slot
- Recording and image capture
- LED status indicators

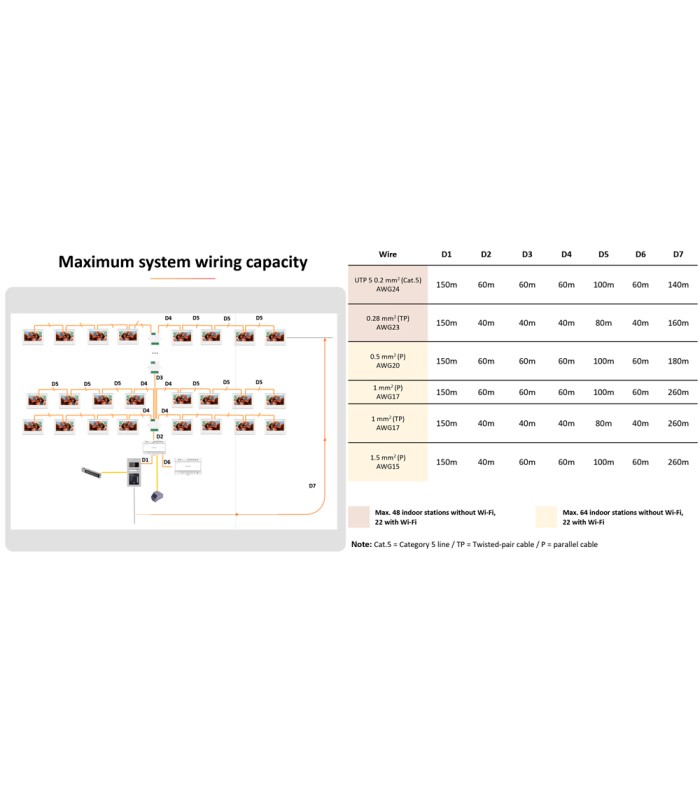

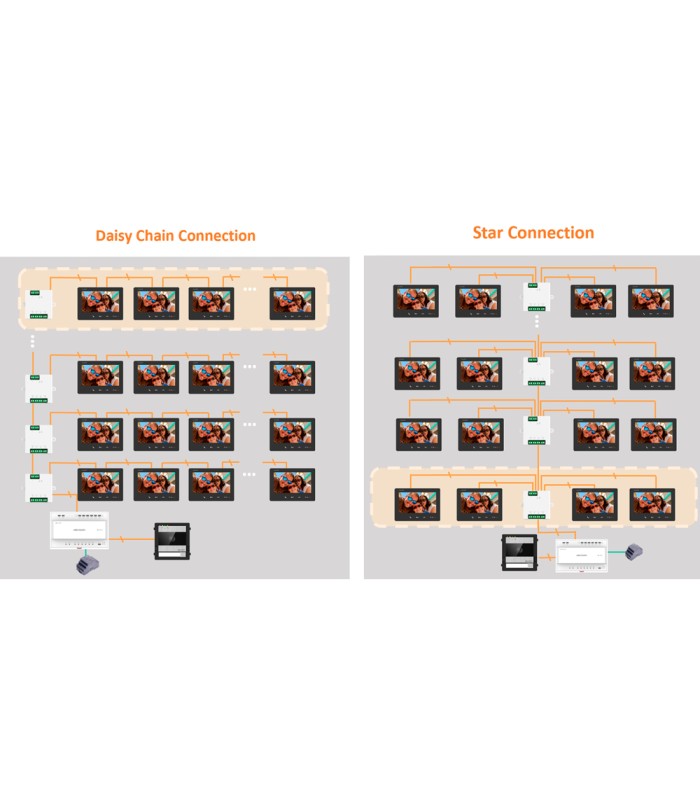

- Multiple screen extension: up to 4 monitors connected in series
- TCP/IP connection via WiFi
- Internal calls between devices
- Surface mounting
- Push notifications through the Hik-Connect app (when receiving a call from the entrance panel)
Technical specifications
| Brand | Hikvision | ||
| Model | Screen resolution | 1024 x 600 | |
| Operation mode | Additional touch buttons: call start, call end and door opening LED indicators status | ||

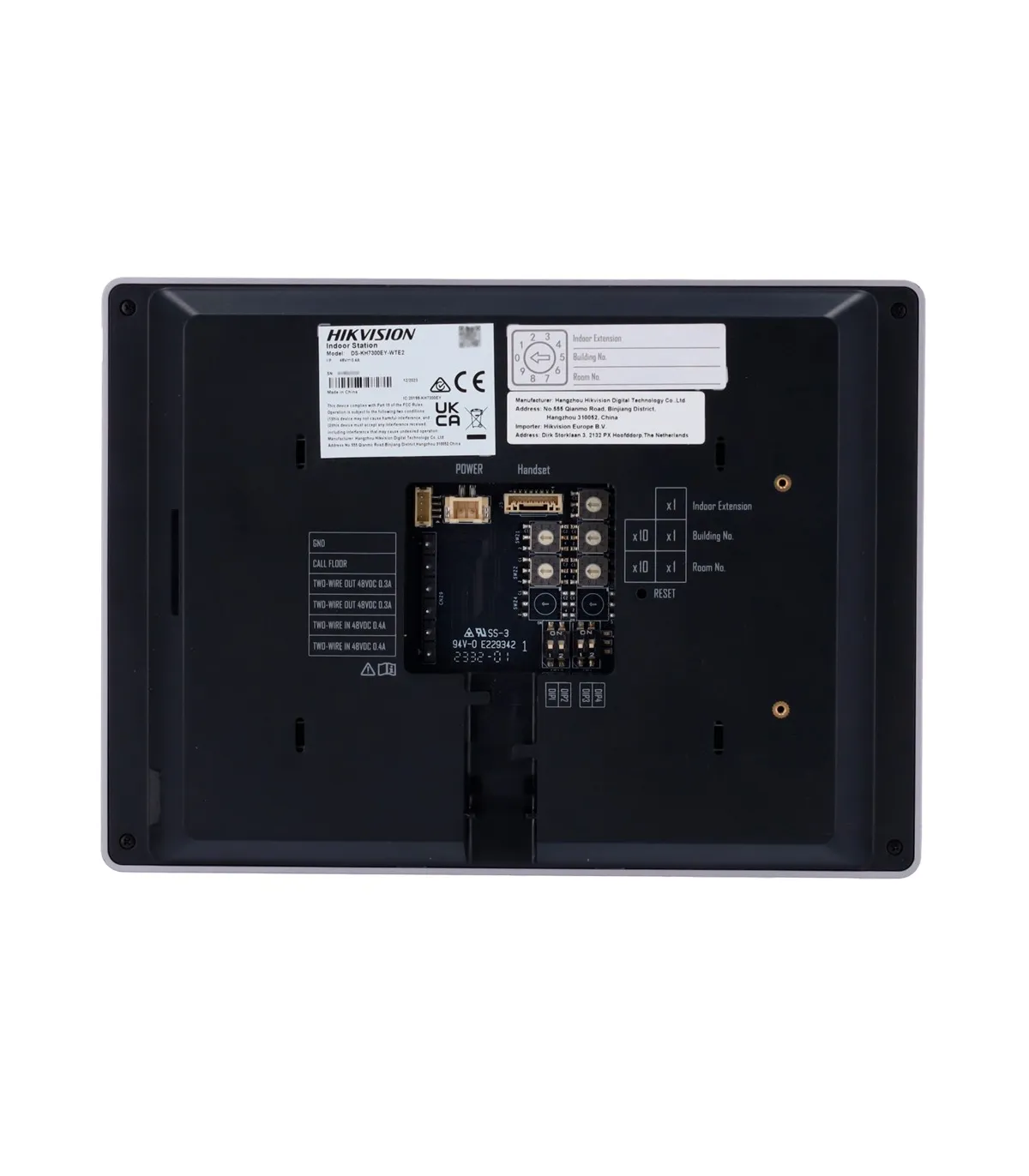

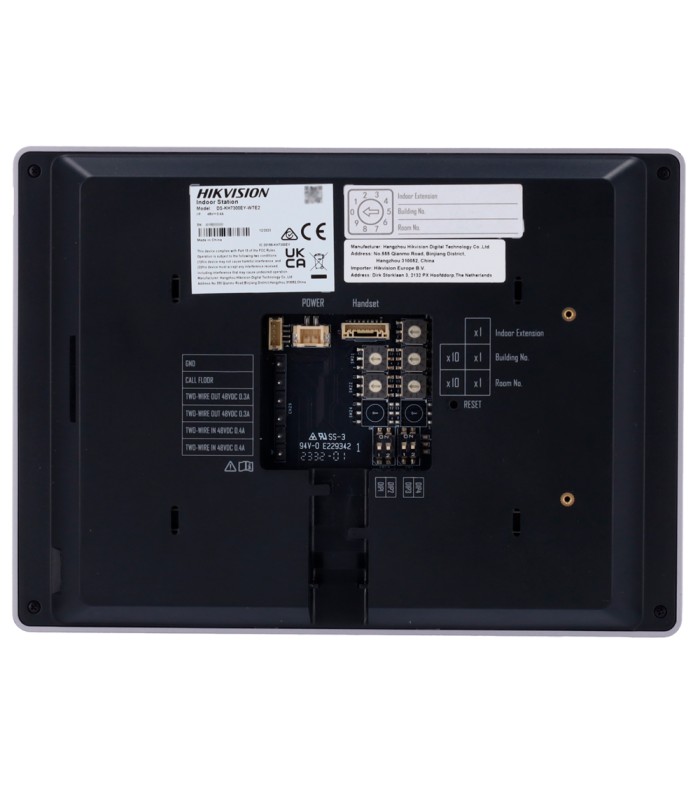

| Inputs | 1 x HD 2-wire input, 1 x handheld headset | ||
| Outputs | 1 x HD 2-wire output | ||
| Audio | Two-way audio with built-in microphone and speaker Noise reduction and echo cancellation | ||
| Memory | microSD card slot (up to 128 GB) | ||
| Connection | 2 wires HD / RTSP / WiFi 802.11b/g/n (only for connection to app via P2P) | ||
| Access remote | iVMS-4200 software Hik-Connect mobile application | ||
| Power | Through specific Hikvision hub for 2-wire HD video intercoms (4 W max.) | ||
| Temp. operation | -10º C ~ +50º C | ||
| Dimensions | 138 (H) x 190 (W) x 20 (D) mm | ||
| Weight | 350 g | ||
| Slave monitors | Monitors that do not belong to the 2-wire HD system cannot be used |
Contents
- Indoor monitor Hikvision video intercom

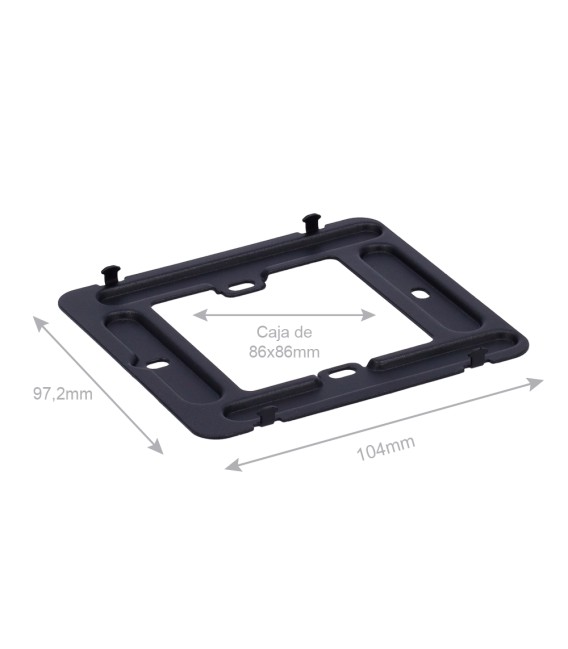

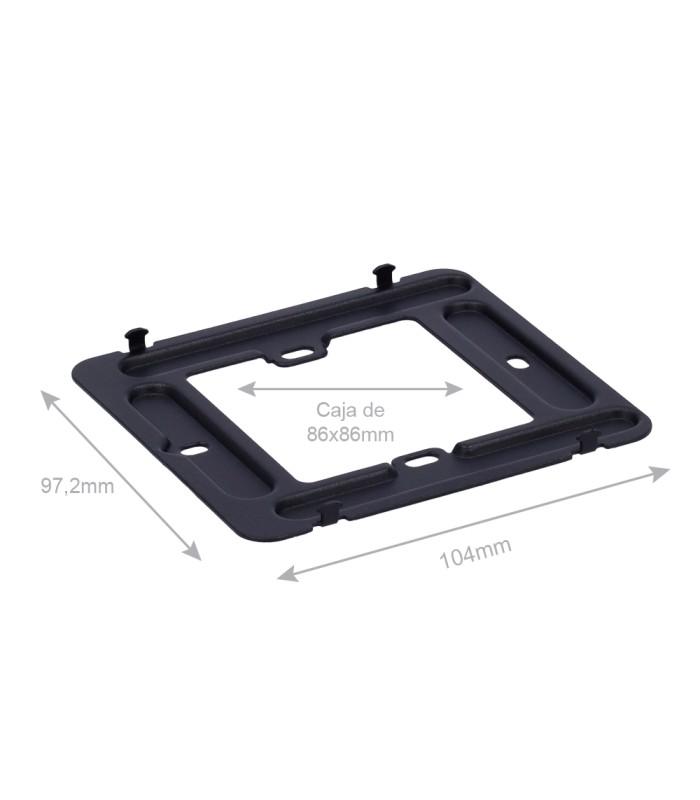

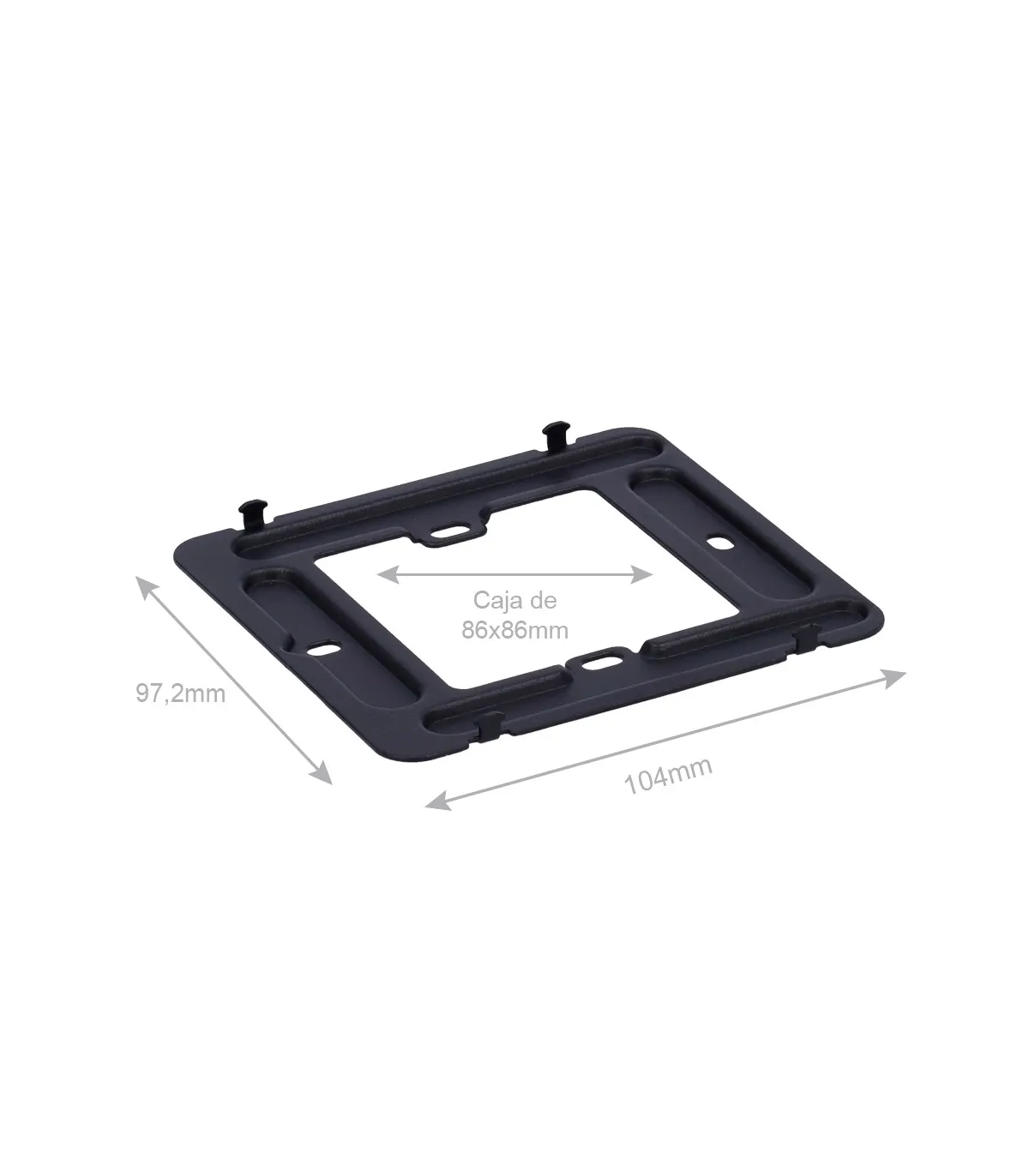

- Installation material
- Instructions for use
