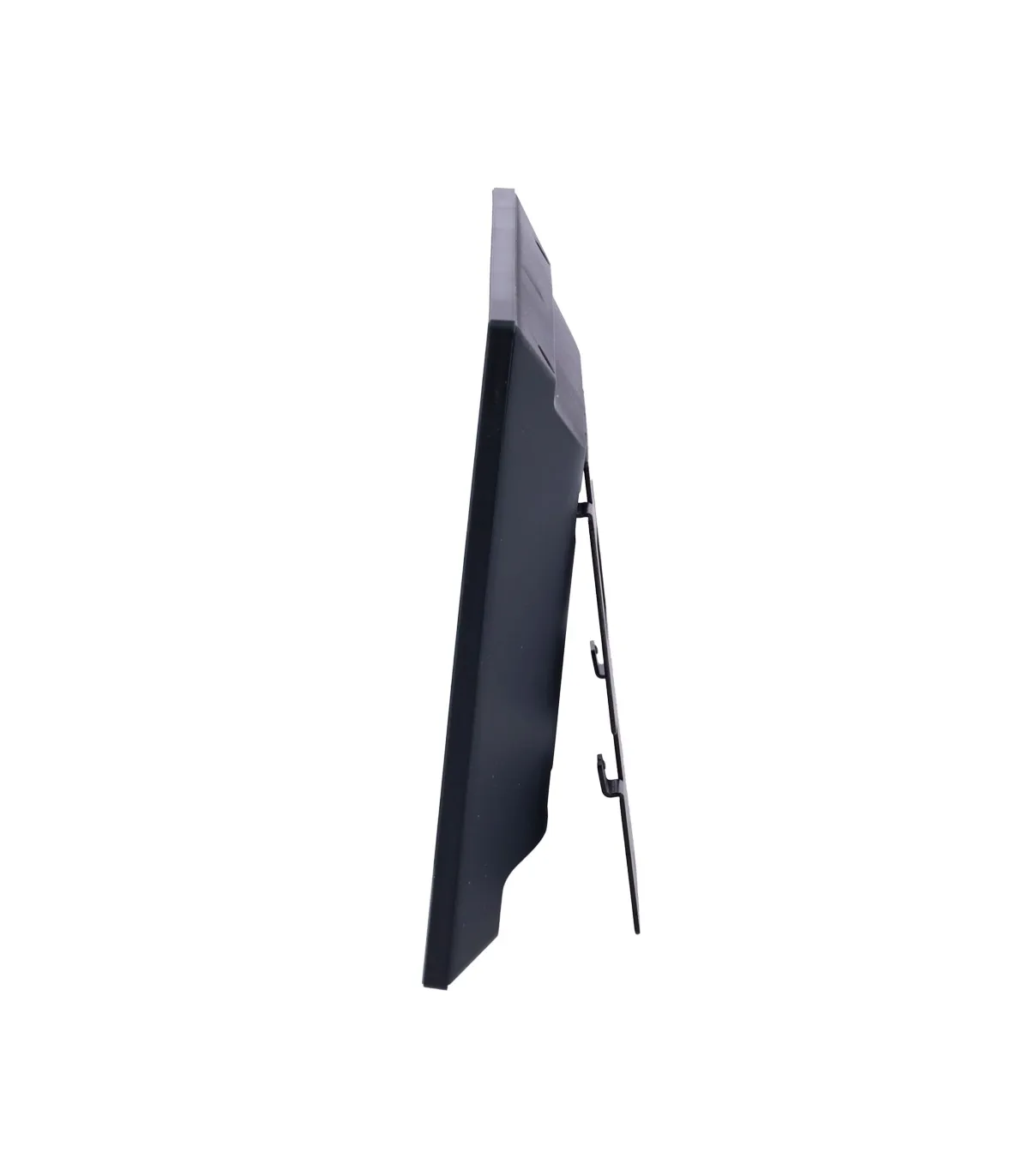

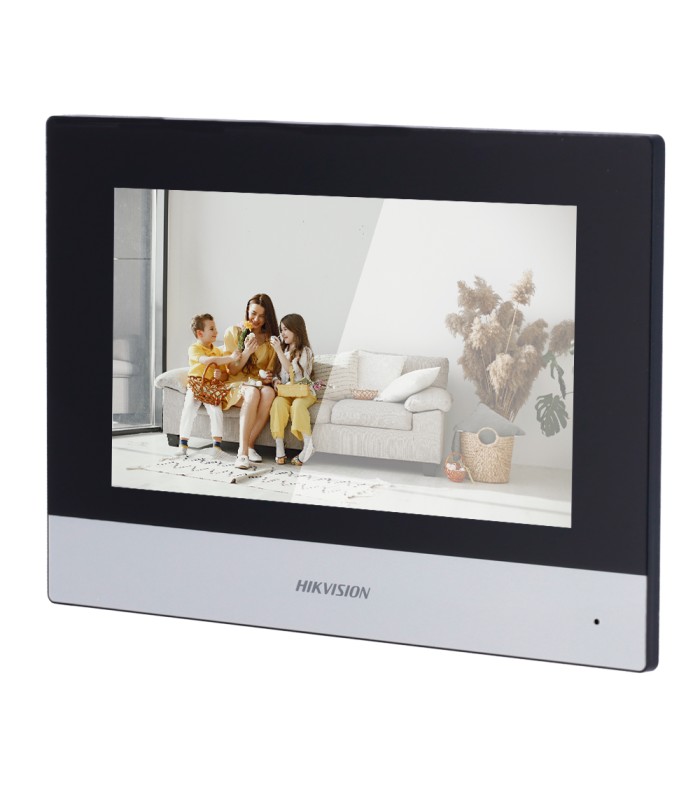

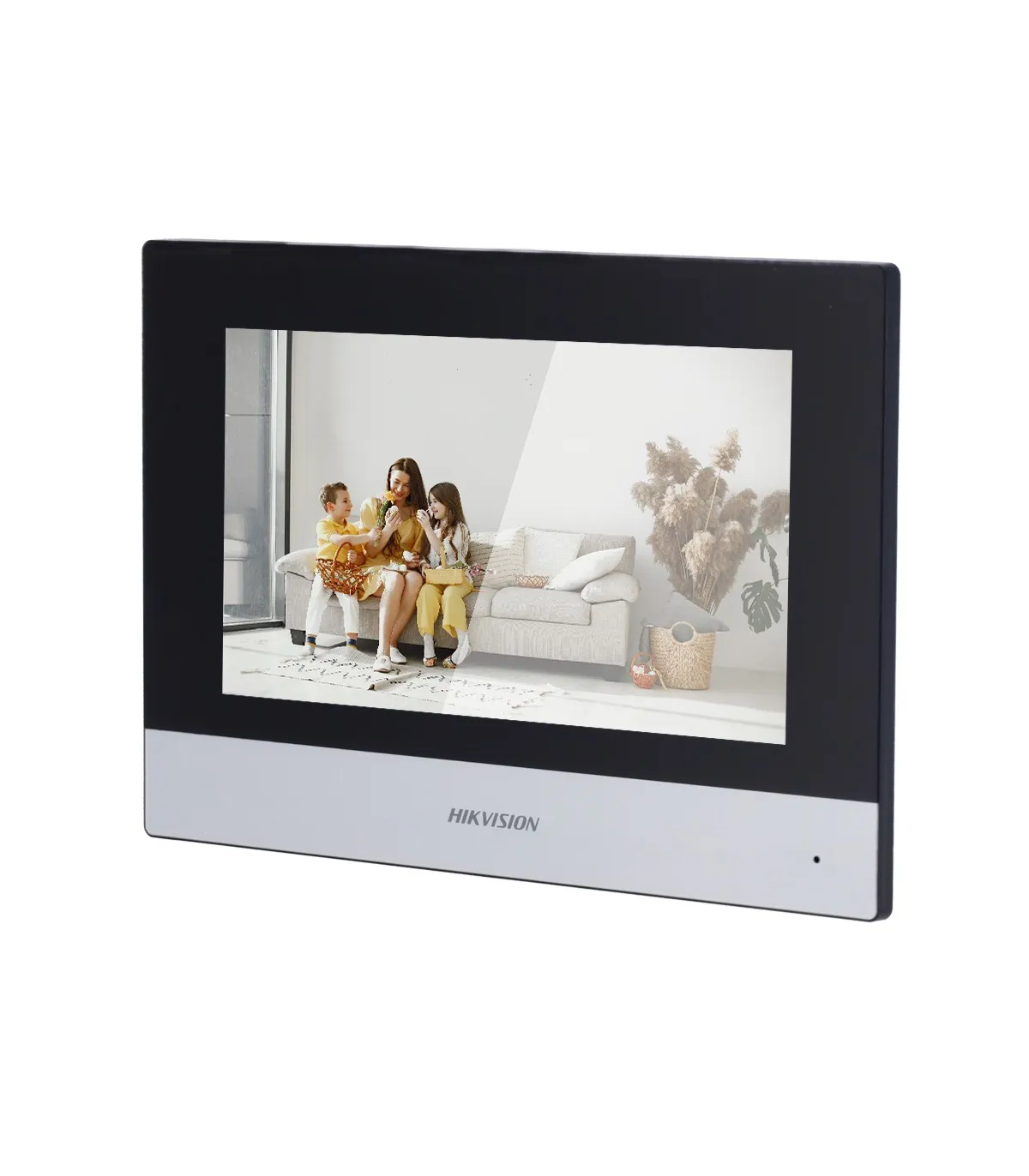

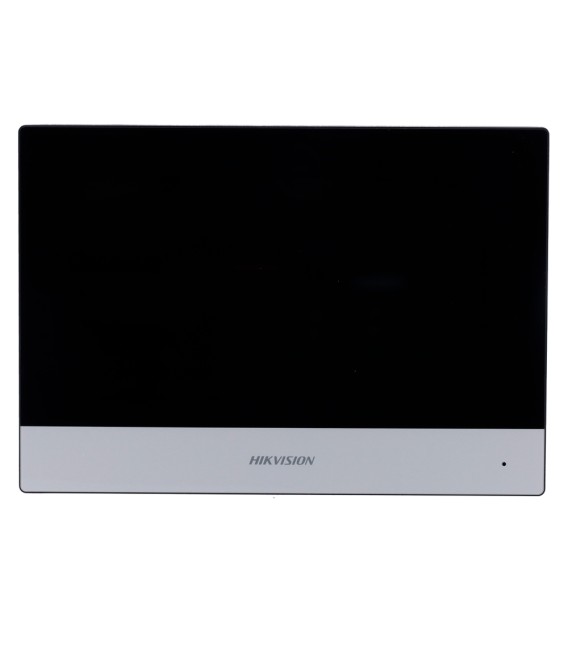

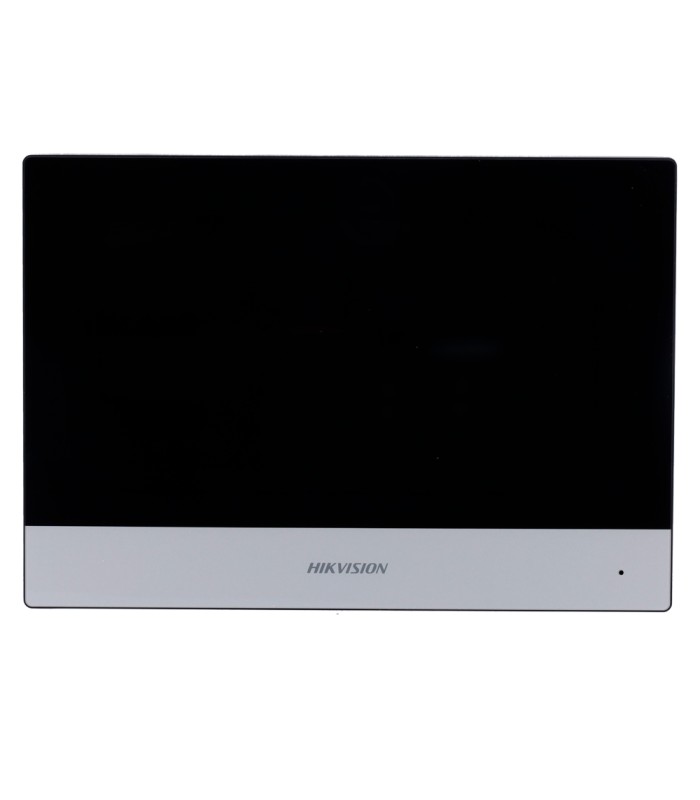

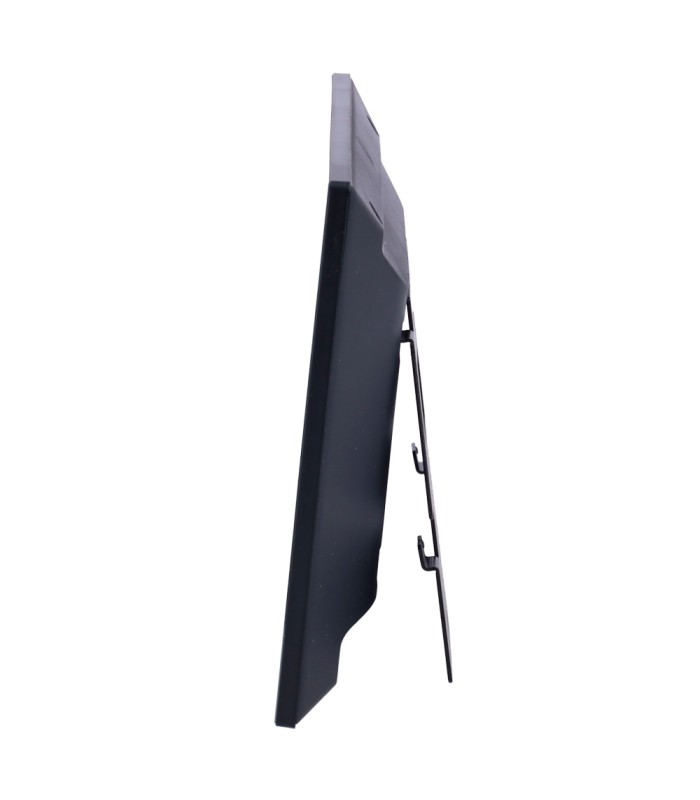

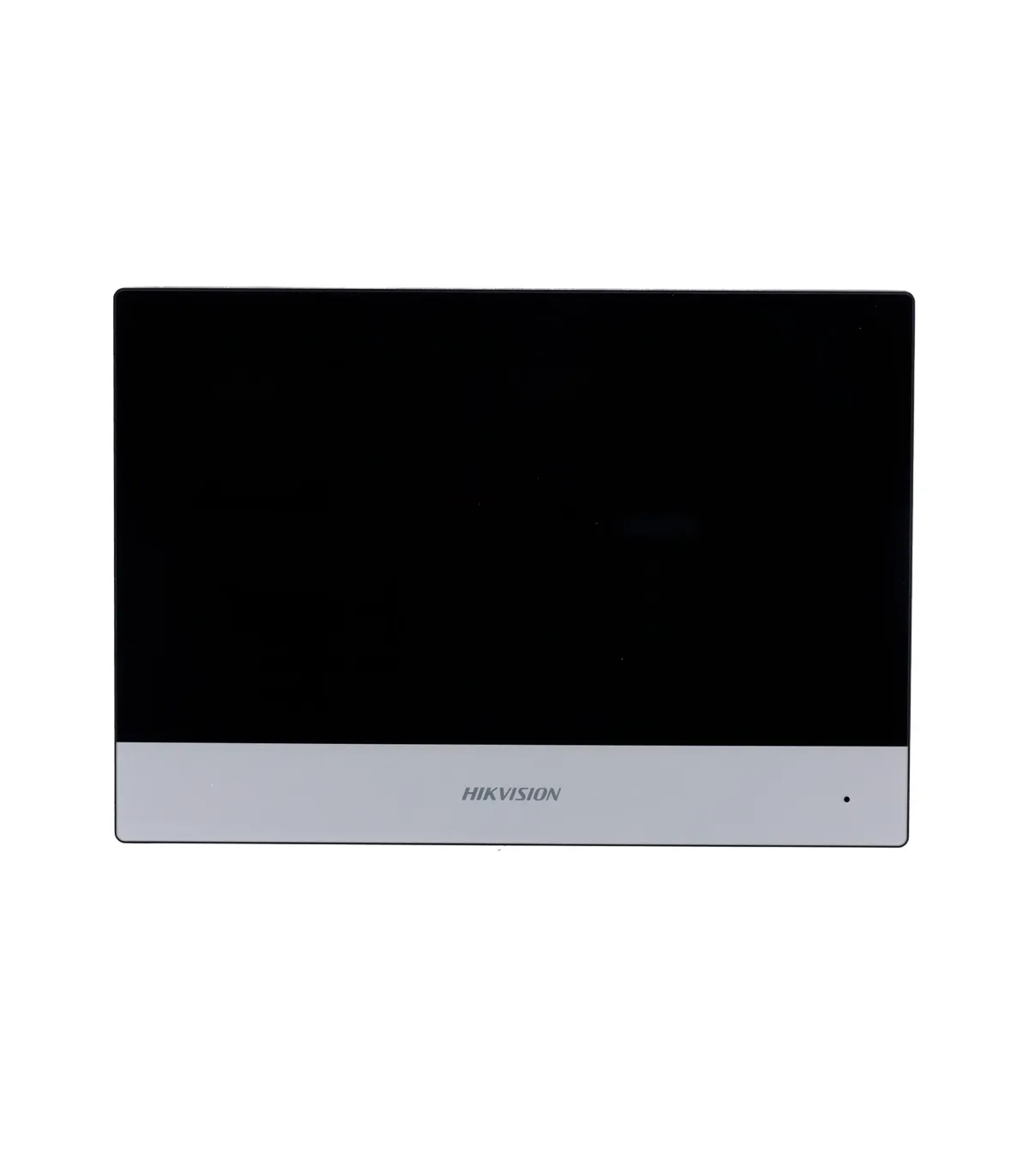

Hikvision DS-KH6320-TE1 video intercom monitor
- Hikvision
- 7" TFT touch screen for video intercom
- Built-in microphone and speaker
- Two-way audio
- 8 alarm inputs
- Slot microSD
- Recording and image capture
- Multiple screen extension
- TCP/IP
- PoE IEEE802.3af
- Internal calls between devices
- Surface mounting
- Push notifications through the Hik-Connect app (when receiving a call from the entrance panel)
Technical specifications
| Brand | Hikvision |
| Model | DS-KH6320-TE1 |
| Operating system | Linux |
| Display type | 7" color touch TFT |
| Screen resolution | 1024 x 600 |
| Inputs | 8 x configurable alarm inputs |
| Audio | Two-way audio with built-in microphone and speaker Noise reduction and echo cancellation |
| Memory | microSD card slot (up to 128 GB) |
| Connection | Ethernet 10/100 BaseT / RTSP / SIP 2.0 Protocol |
| Remote Access | iVMS-4200 Software Mobile App Hik-Connect |
| Power | DC 12 V / 1 A max. / PoE IEEE802.3af |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 140 (H) x 200 (W) x 15 (D) mm |
| Weight | 355 g |
| Slave monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |
Contents
- Hikvision video intercom indoor monitor
- Installation material
- Instructions for use
