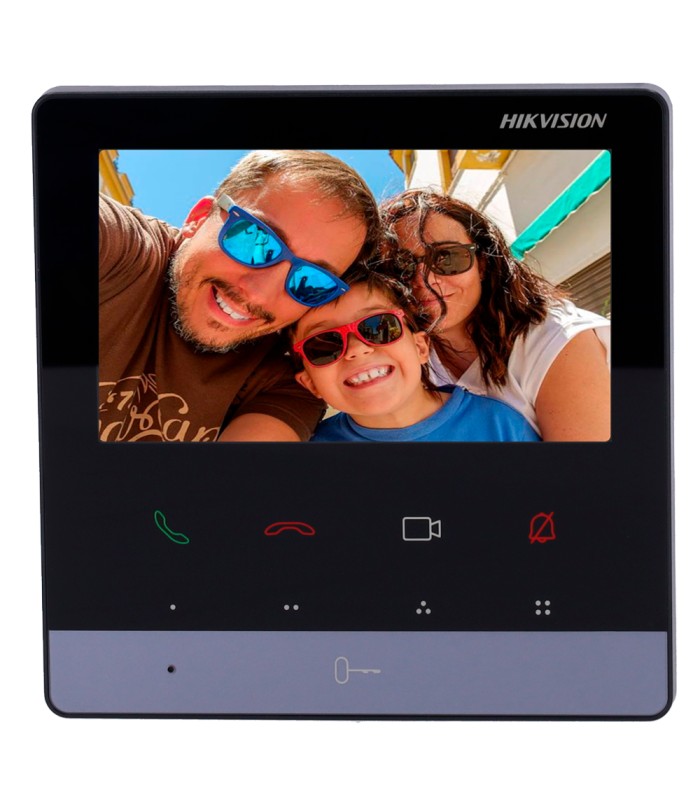

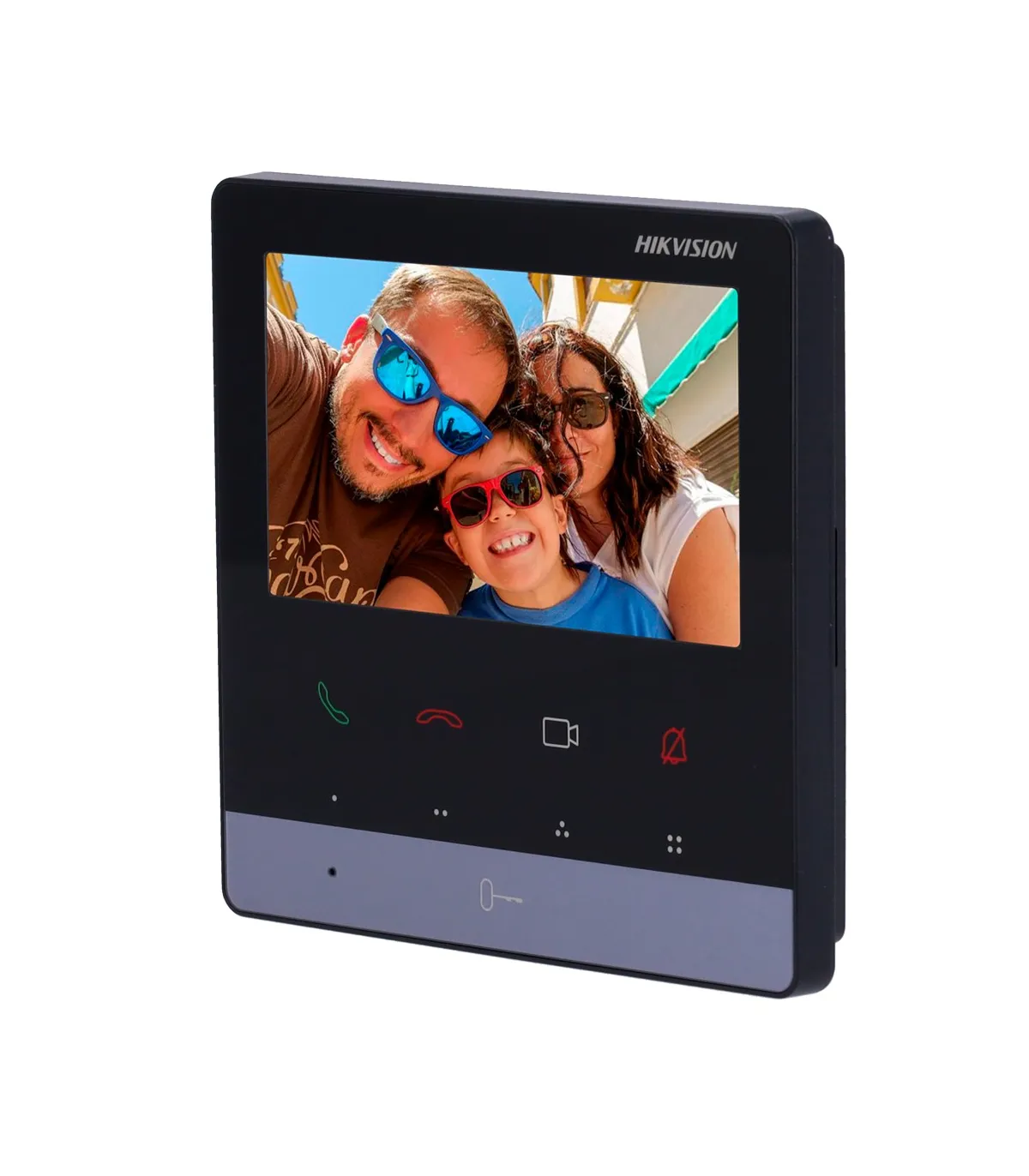

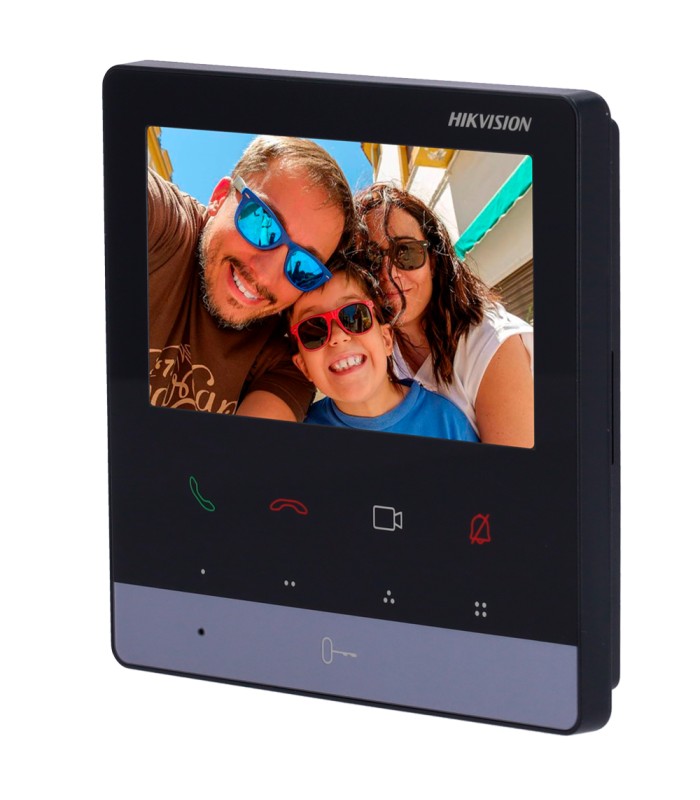

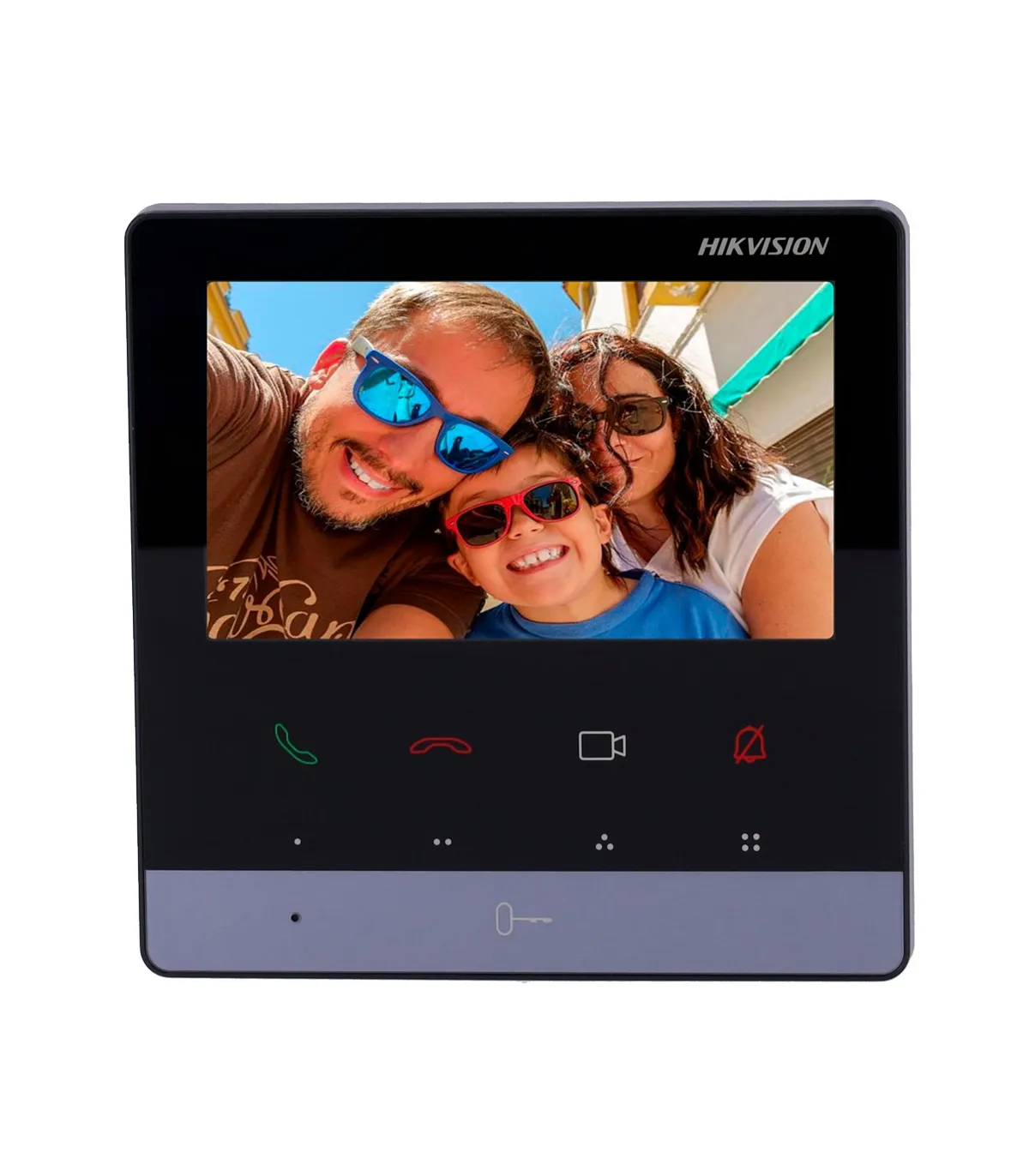

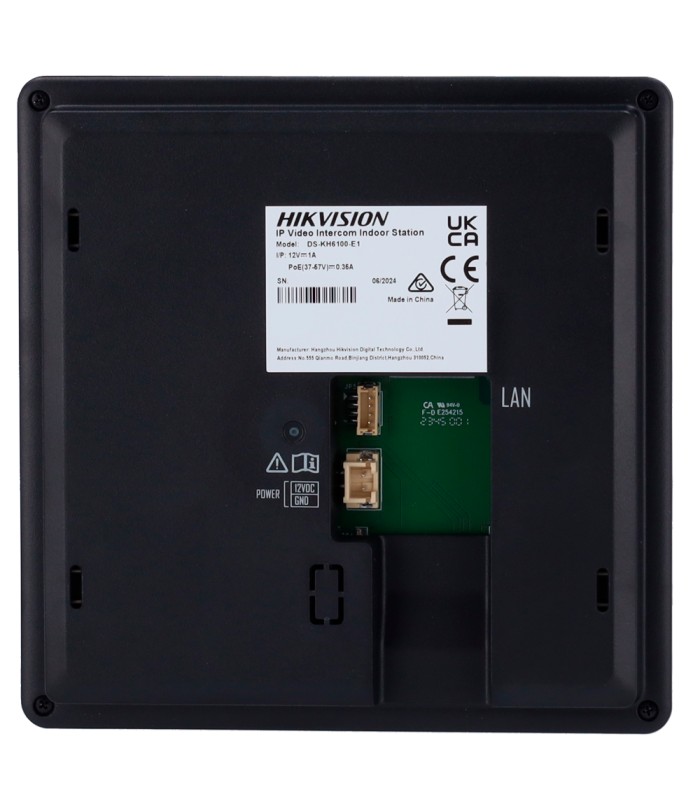

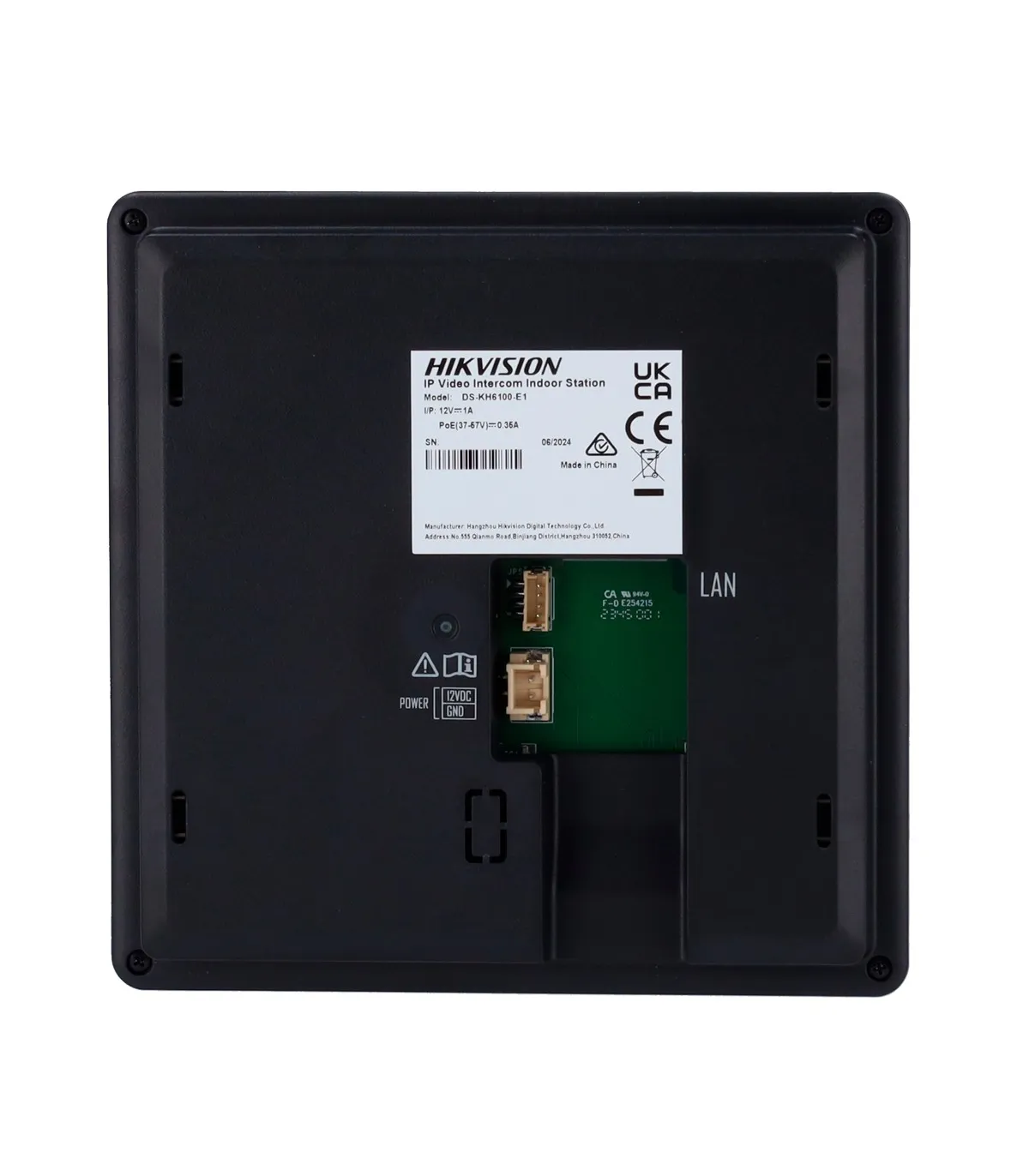

Hikvision DS-KH6100-E1 video intercom monitor
- Hikvision
- 4.3" TFT screen for video intercom
- Built-in microphone and speaker
- Two-way audio
- Multiple extension of screens
- TCP/IP
- PoE IEEE802.3af
- Internal calls between devices
- Surface mounting
- Push notifications through the Hik-Connect app (when receiving a call from the entrance panel)
Technical specifications
| Brand | Hikvision |
| Model | DS-KH6100-E1 |
| Operating system | Linux |
| Display type | 4.3" color TFT |
| Screen resolution | |
| Outputs | Not available |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Memory | Not available |
| Connection | Ethernet 10/100 BaseT / RTSP / SIP 2.0 Protocol |
| Remote Access | iVMS-4200 Software Hik-Connect Mobile App |
| Power | DC 12 V / 1 A max. / PoE (IEEE802.3af) |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 120 (H) x 120 (W) x 21 (D) mm |
| Weight | 192 g |
| Slave monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |
Contents
- Hikvision video intercom indoor monitor
- Installation material
- Instructions for use
