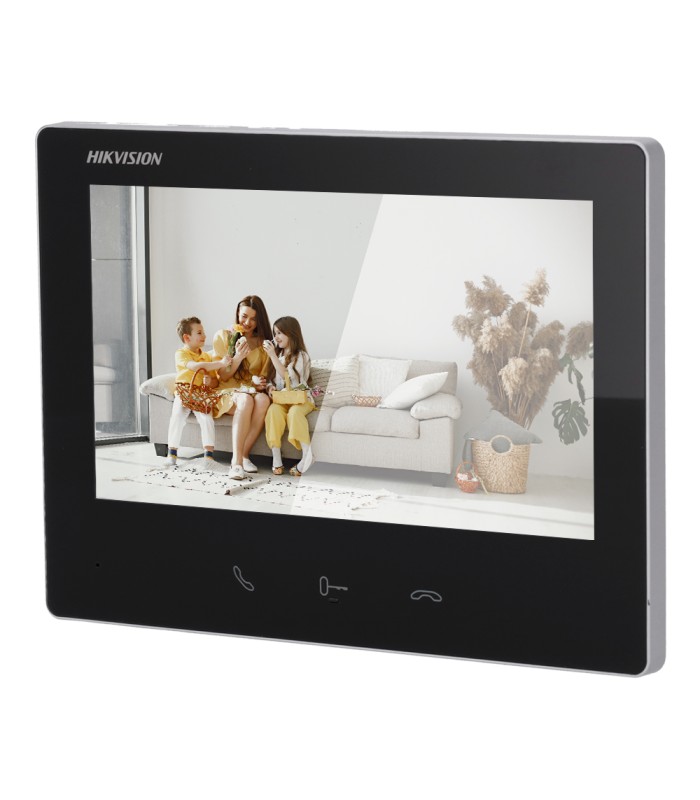

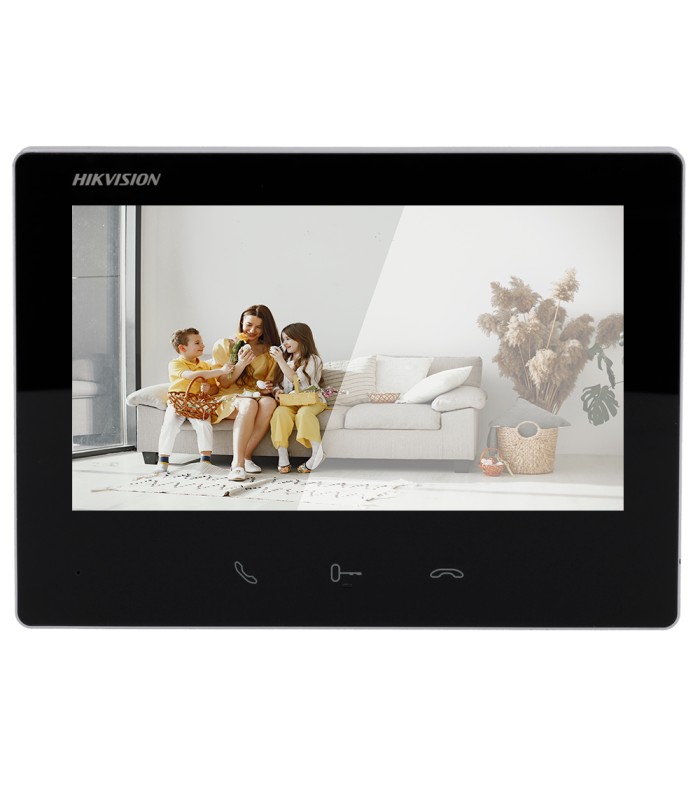

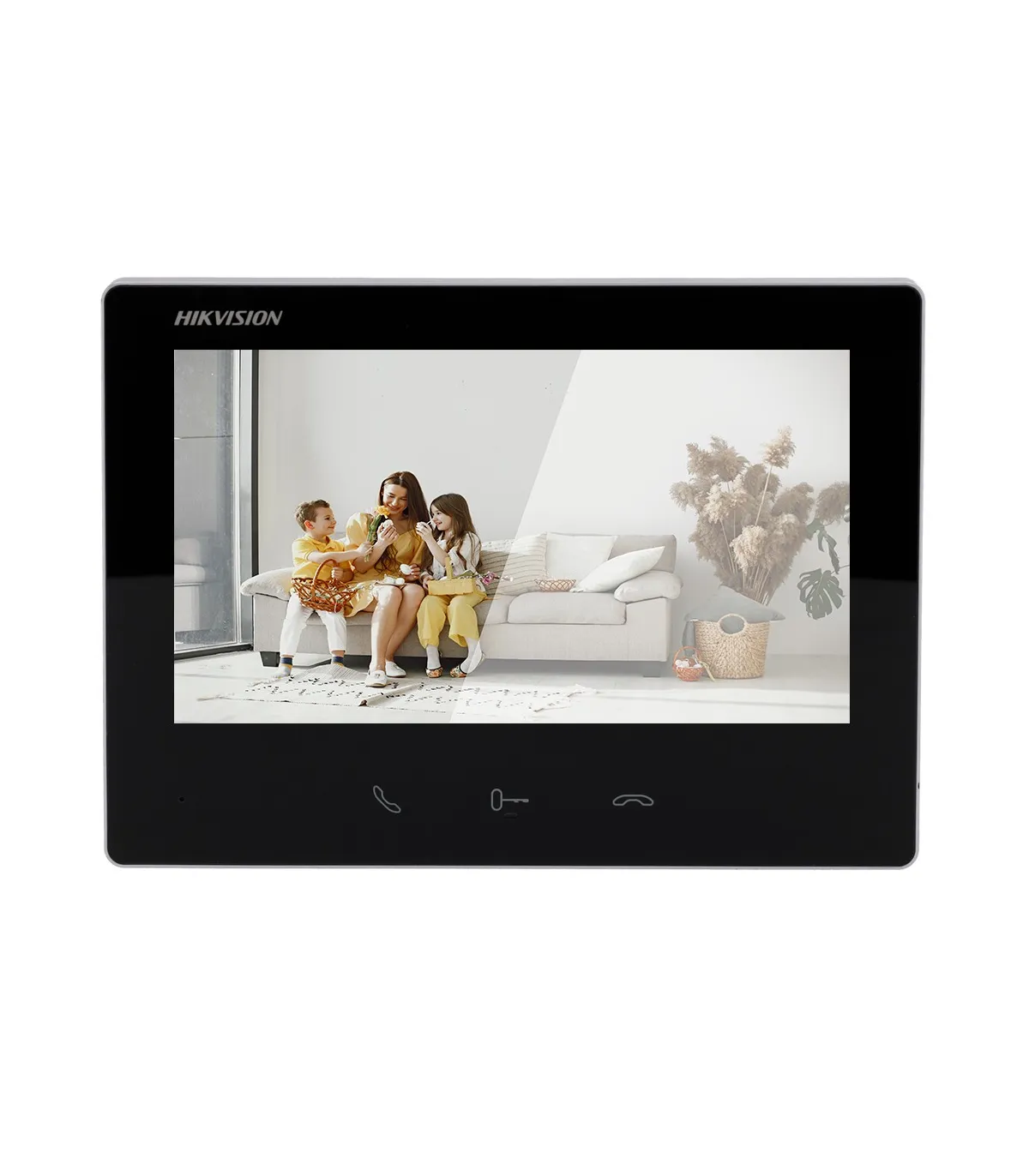

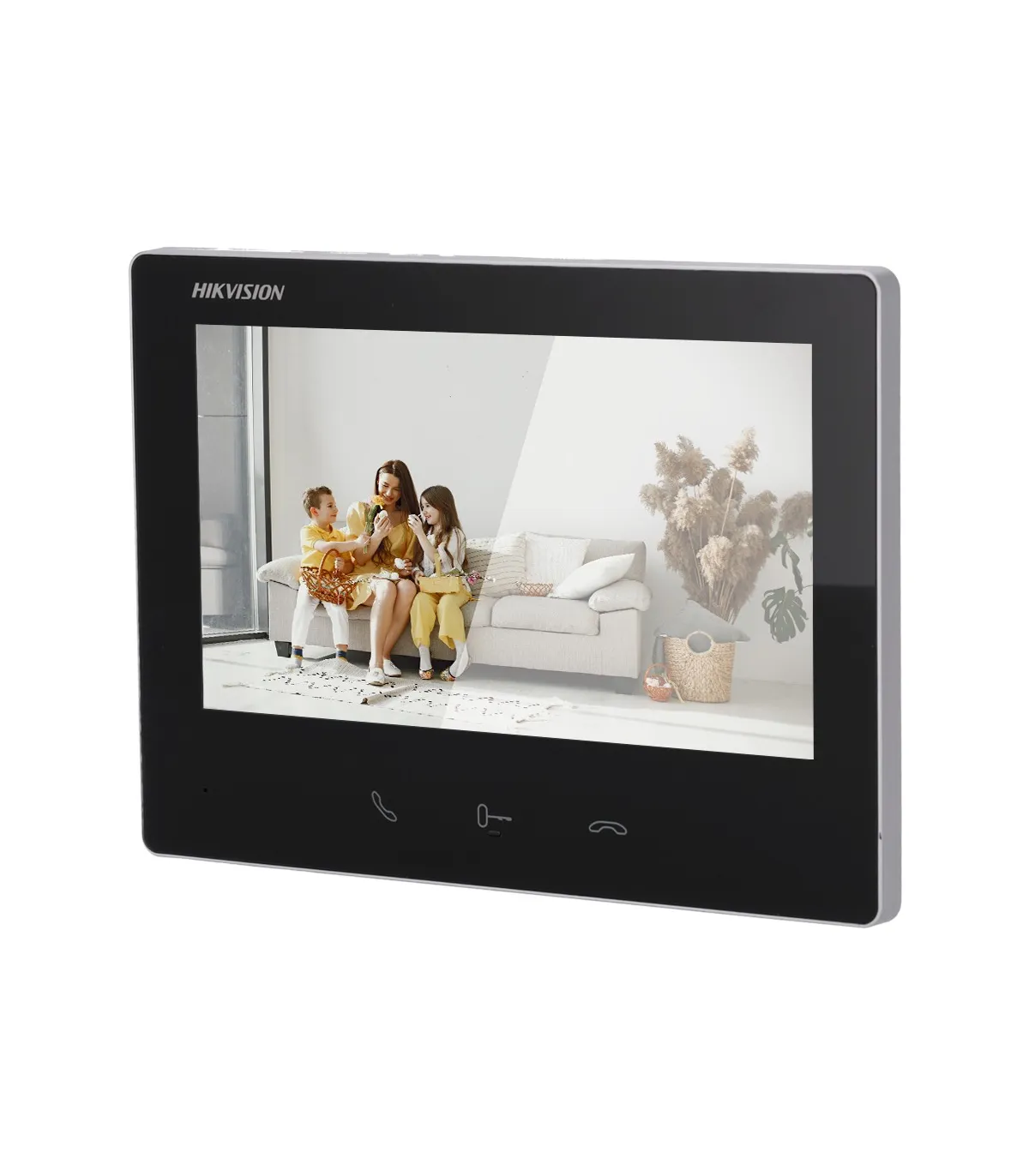

Hikvision DS-KH7300EY-TE2 video intercom monitor
Brand: HIKVISION INTERCOM
- Video Doorbell Monitor
- 7" TFT Screen
- Two-way Audio | Status LED
- HD 2-wire system
- MicroSD card slot up to 128 GB
- Surface Mount
Monitor for Hikvision DS-KH7300EY-TE2 video intercom
- Hikvision
- TFT screen for 7" 2-wire HD video intercom
- Built-in microphone and speaker
- Two-way audio
- microSD slot
- Recording and image capture
- LED status indicators

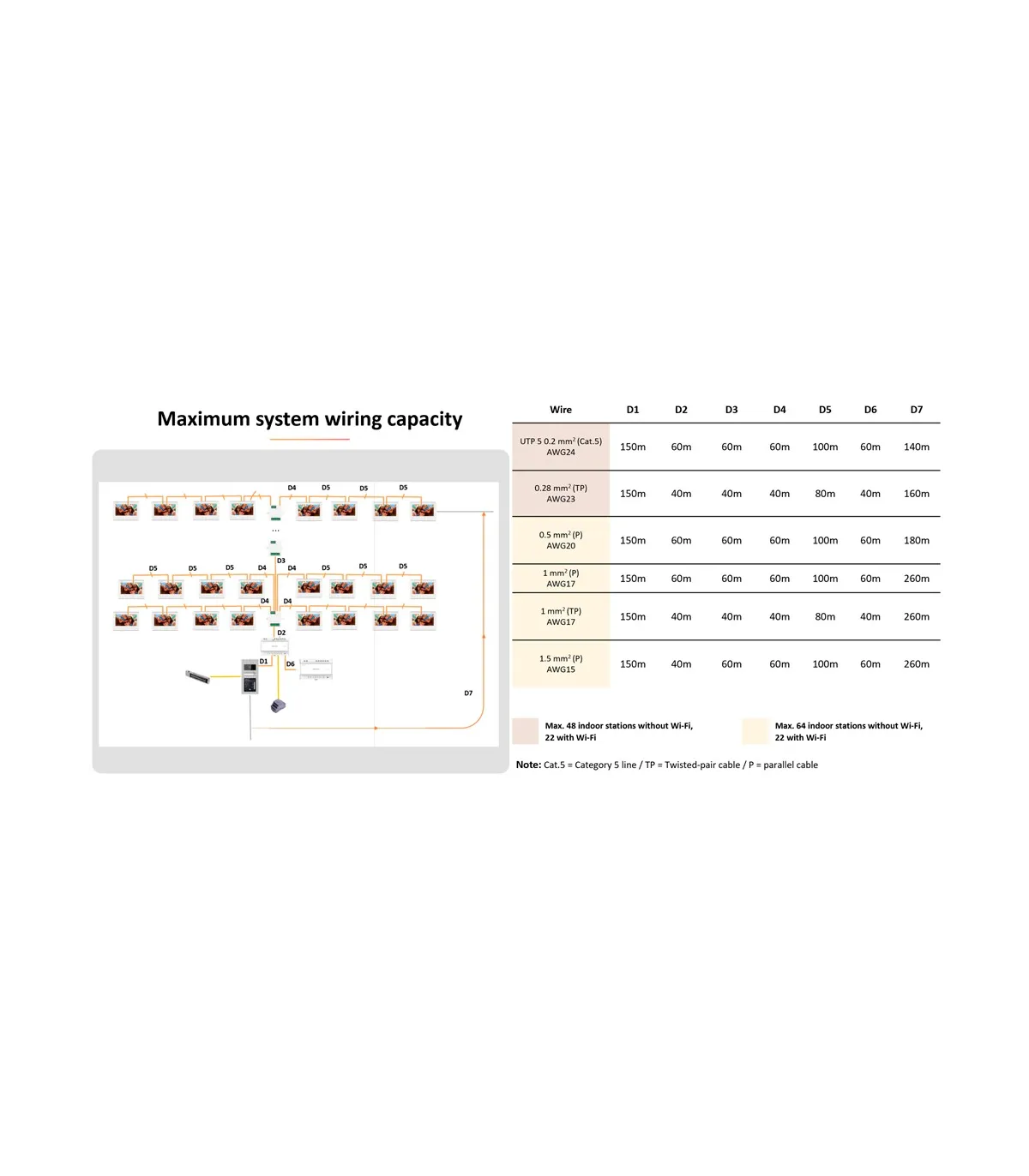

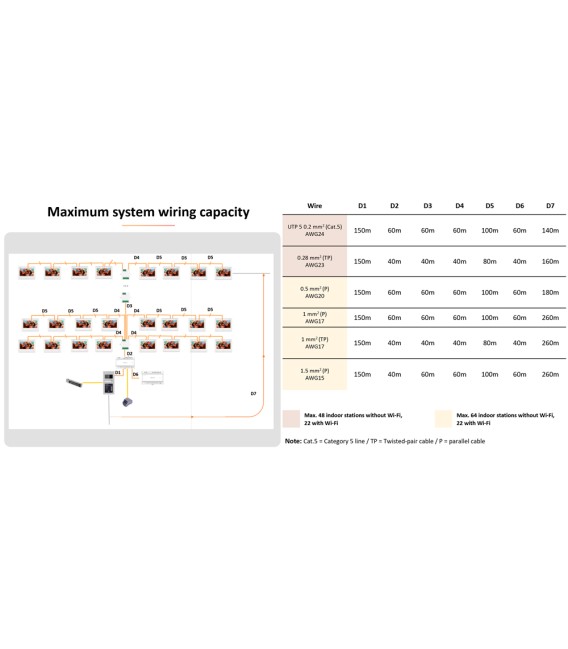

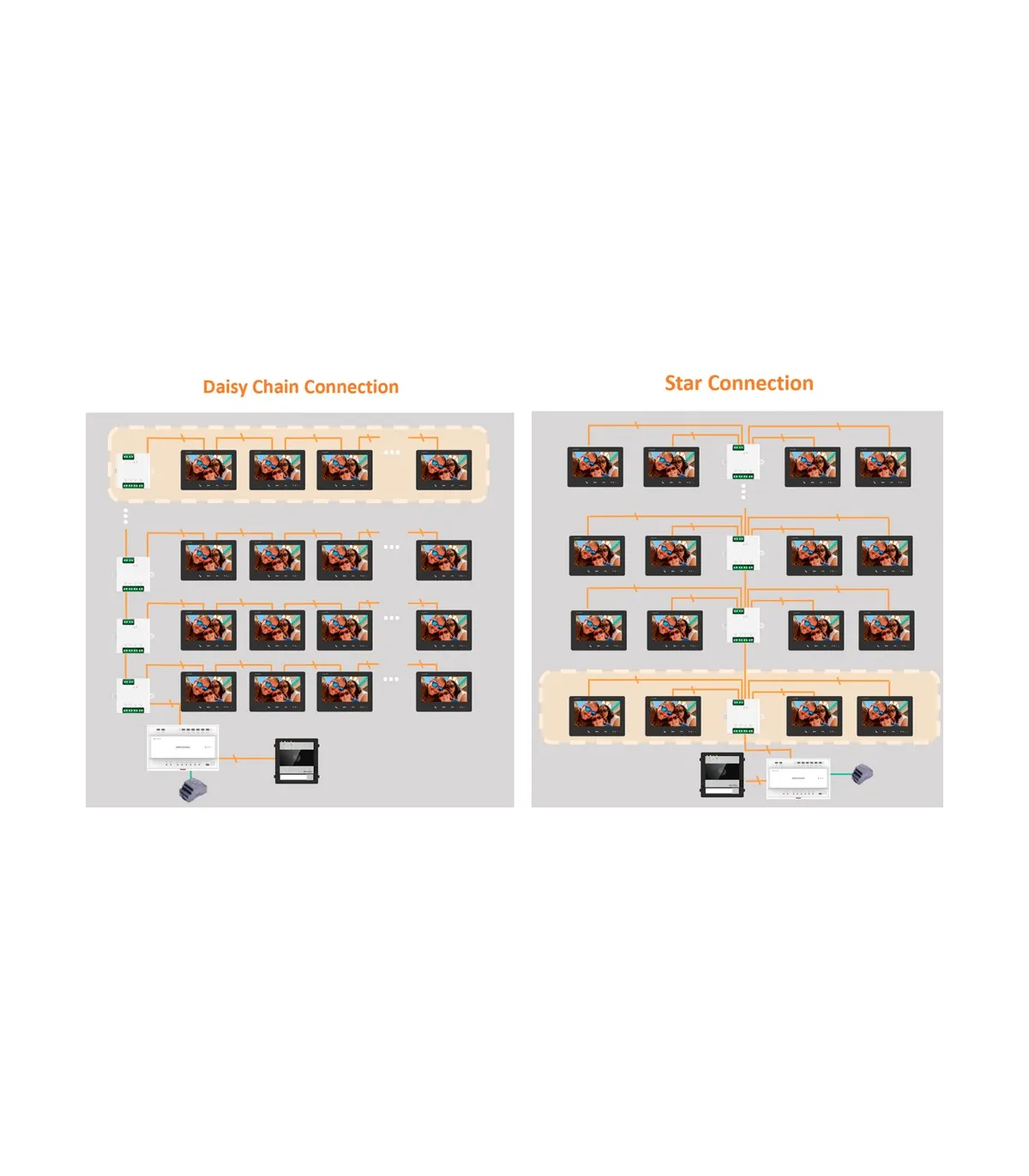

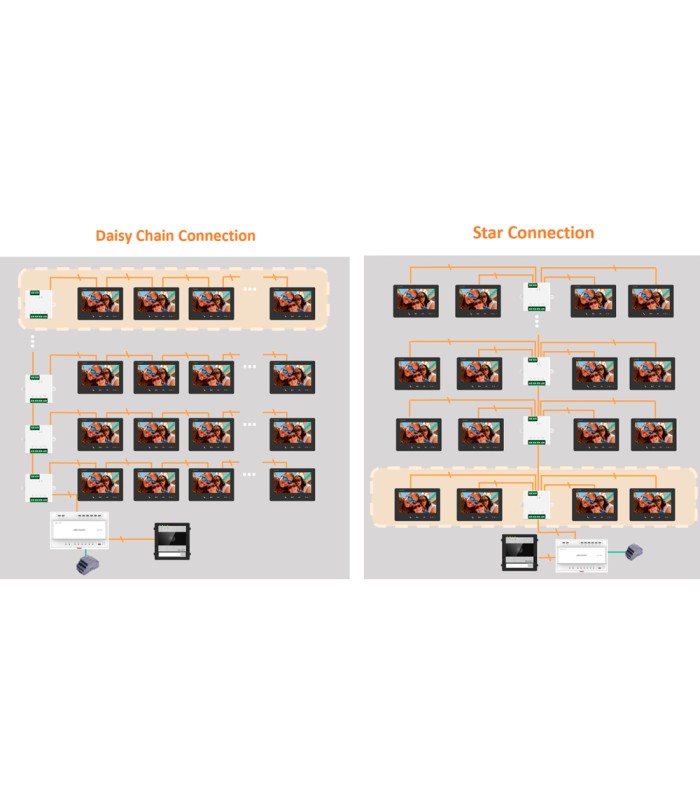

- Multiple display extension: up to 4 monitors connected in series
- Internal calls between devices
- Surface mounting
Technical specifications
| Brand | Hikvision |
| Model | DS-KH7300EY-TE2 |
| System operating | Linux |
| LCD | 7" TFT color touchscreen |
| Screen resolution | 1024 x 1 x 2-wire HD input, 1 x handheld headset |
| Outputs | 1 x 2-wire HD output |
| Audio | Two-way audio with microphone and speaker integrated Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | 2 wires HD / RTSP |
| Remote Access | iVMS-4200 Software |
| Power | Through specific Hikvision hub for 2-wire HD video intercoms (4 W max) |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 138 (H) x 190 (W) x 20 (D) mm |
| Weight | 350 g |
| Slave monitors | Monitors that do not belong to the 2-wire HD system cannot be used |
Contents
- Indoor monitor Hikvision video intercom

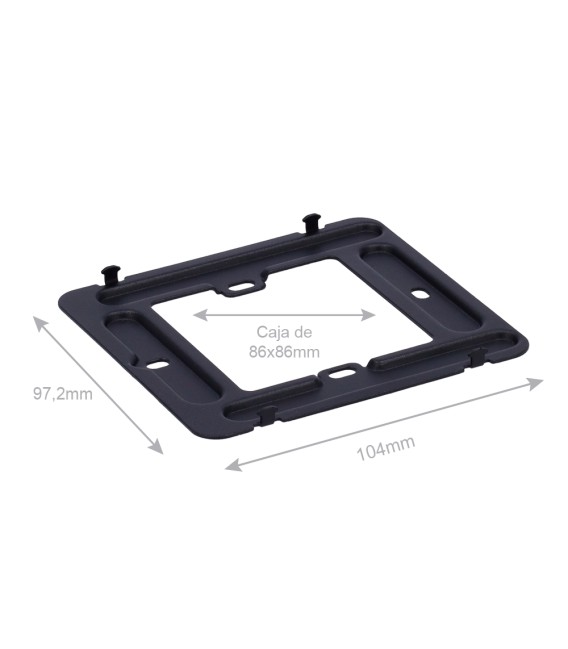

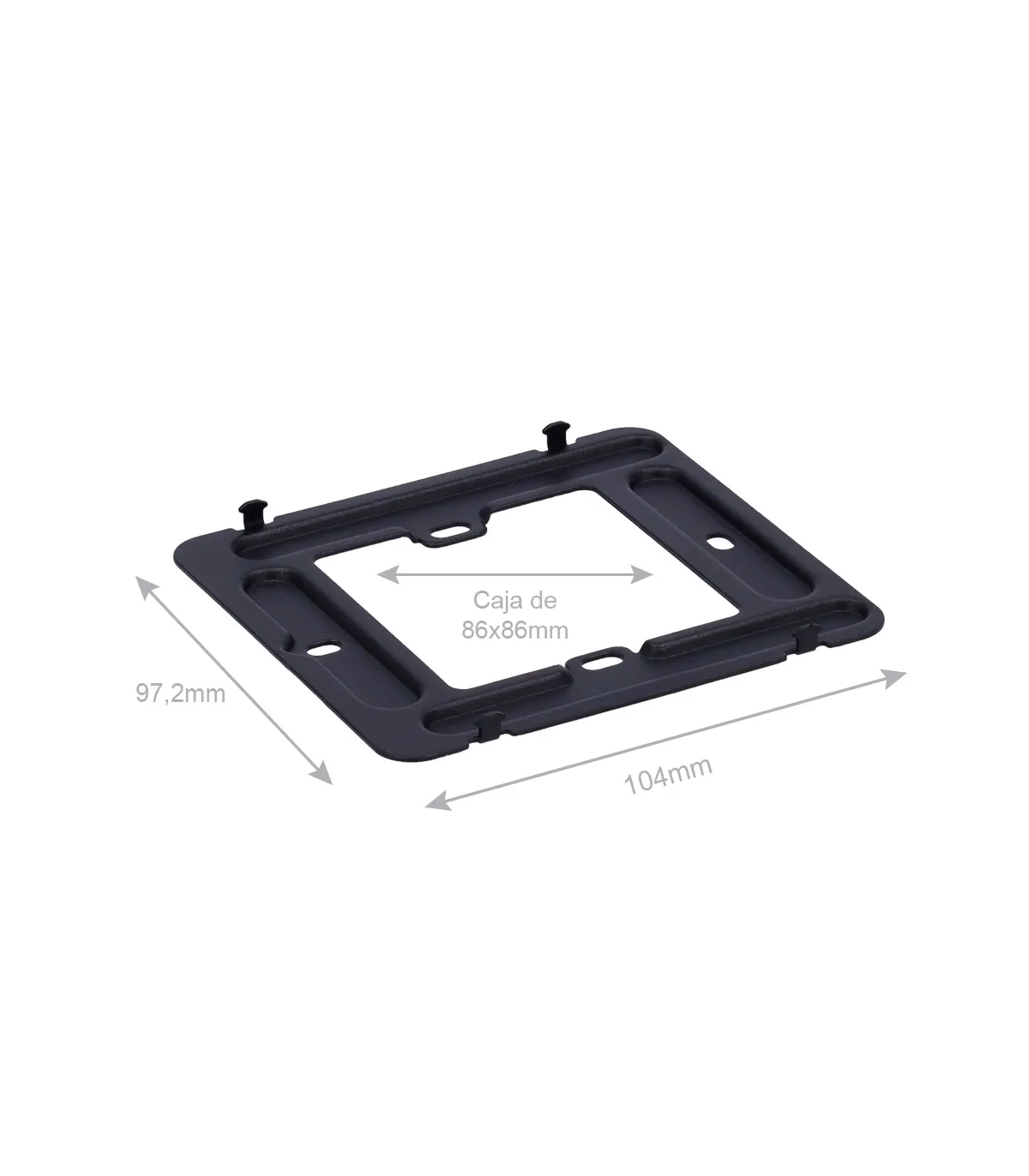

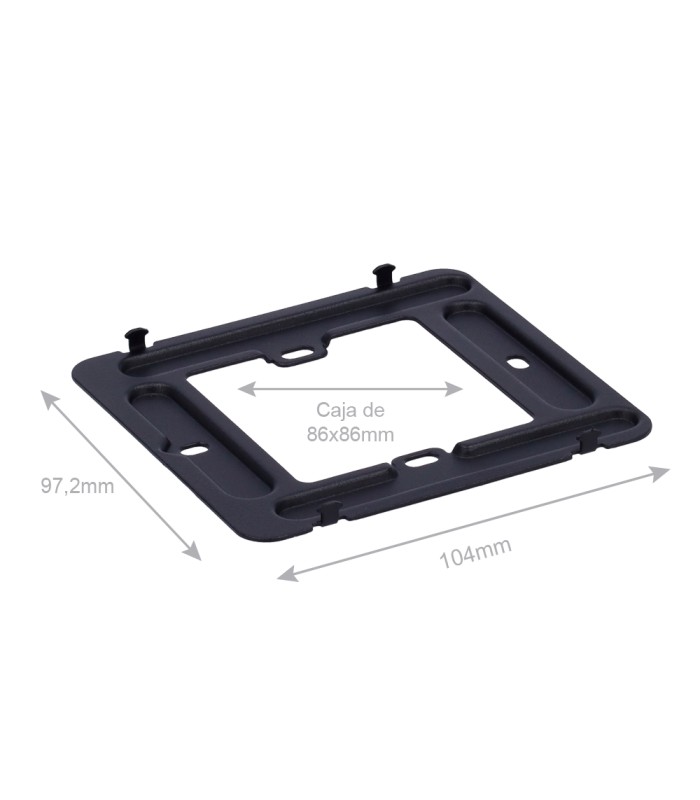

- Installation material
- Instructions for use
