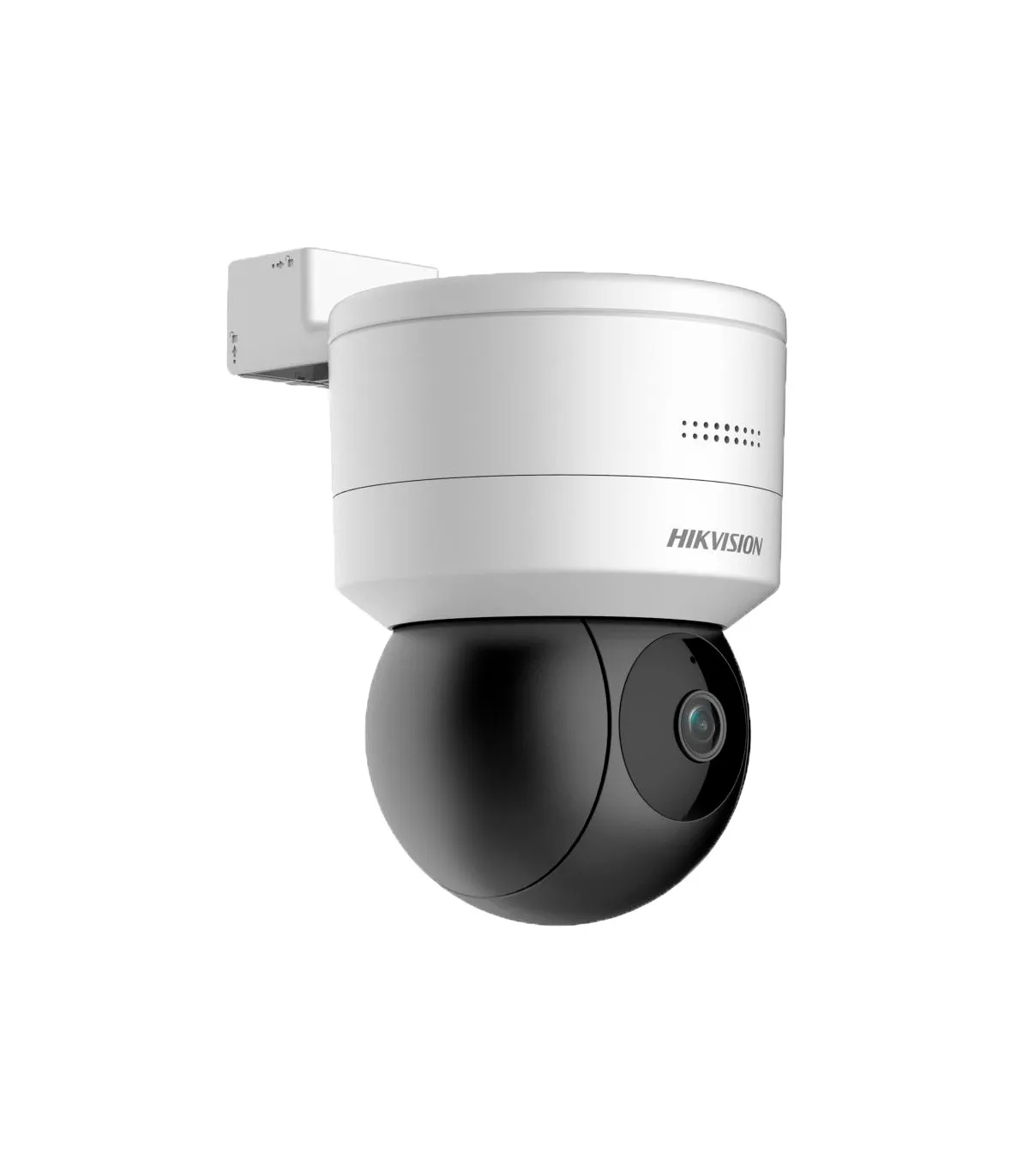

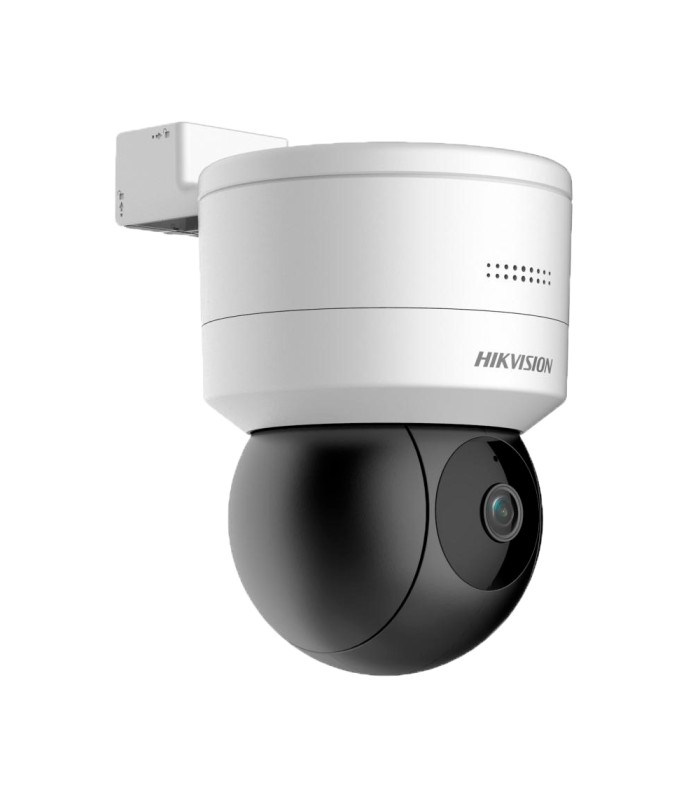

Hikvision DS-2DE1C200IW-D3/W(F1)(S7) IP Motorized Dome
Brand: HIKVISION VALUE
- Hikvision Motorized IP Dome
- Value Range | microSD 256 GB
- 2 MP | 4.0 mm Lens | Pan and Tilt
- IR 15 m | DWDR | Wi-Fi | 2 antennas
- H.265+| IP54 | Microphone and Speaker
- WEB, CMS Software, Smartphone, and NVR
Hikvision DS-2DE1C200IW-D3/W(F1)(S7) IP Motorized Dome
- Hikvision
- Value Range
- PT IP Camera
- 1/2.7" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- 4 mm fixed lens
- IR range 15 m
- Color 0.01 Lux@(F2.0, AGC ON)
- Compression H.265/H.264
- RJ-45 10/100 BaseT
- IR CUT
- DWDR
- 3D-DNR
- MicroSD card slot up to 256GB
- Integrated microphone
- Integrated speaker
- Wi-Fi IEEE802.11b/g/n
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- Waterproof IP54
Technical specifications
| Brand | HIKVISION |
| Range | VALUE |
| Image Sensor | 1/2.7“ Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Main stream rate | 25 fps (1920x1080, 1280x720) |
| Extra rate stream | 25 fps (640x480, 640x360) |
| Minimum Illumination | Color: 0.01 Lux @ (F2.0, AGC ON) Black and white: 0 Lux with IR |
| Lighting | IR LEDs range 15 m |
| Day / Night | Removable ICR mechanical filter |
| Compression | H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 4 mm fixed lens |
| Angle of view (FOV) | 90º (H), 48º (V), 107º (D) |
| DORI | 50 m (R), 20 m (W), 10 m (R), 5 m (L) |
| Image enhancements | DWDR, BLC, HLC, 3D-DNR, Mirror function |
| ANR | No |
| Motion Detection | Yes |
| Range Pan/Tilt | Horizontal: 0~350°, Vertical: -15°~100° |
| Manual speed | Horizontal: up to 20°/s, Vertical: up to 15°/s |
| Internal storage | MicroSD card slot up to 256 GB |
| Audio | Built-in microphone and speaker |
| Audio compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM |
| Audio bit rate | AAC: 16 Kbps, 32Kbps, 64Kbps; MP2L2: 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 144Kbps, 160Kbps; G.711alaw: 64 Kbps |
| Alarms | Not available |
| PTZ control | Through network access |
| Network interface | Ethernet 10 / 100 BaseT WiFi IEEE802.11b, 802.11g, 802.11n, 2.4 GHz ~ 2.4835 GHz |
| Frequency | 2.4 GHz ~ 2.4835 GHz |
| Encryption mode | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Wi-Fi Modulation | 802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK 802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK |
| Remote Access | With wired connection: Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software With Wi-Fi connection: Web Browser, iVMS-4200 PC Software * With a Wi-Fi connection it is not possible to connect directly to Hik-Connect |
| Interoperability | ONVIF, ISAPI |
| Power | DC 5 V / 5.5 W max. |
| Temp. operation | -10º C ~ +40º C |
| Protection degree | IP54 |
| Dimensions (without support) | 143 (H) mm x 93.5 mm (W) x 127 mm (D) |
| Weight (without stand) | 275 g |
Contents
- Hikvision motorized dome IP camera
- Installation material
- Installation template
