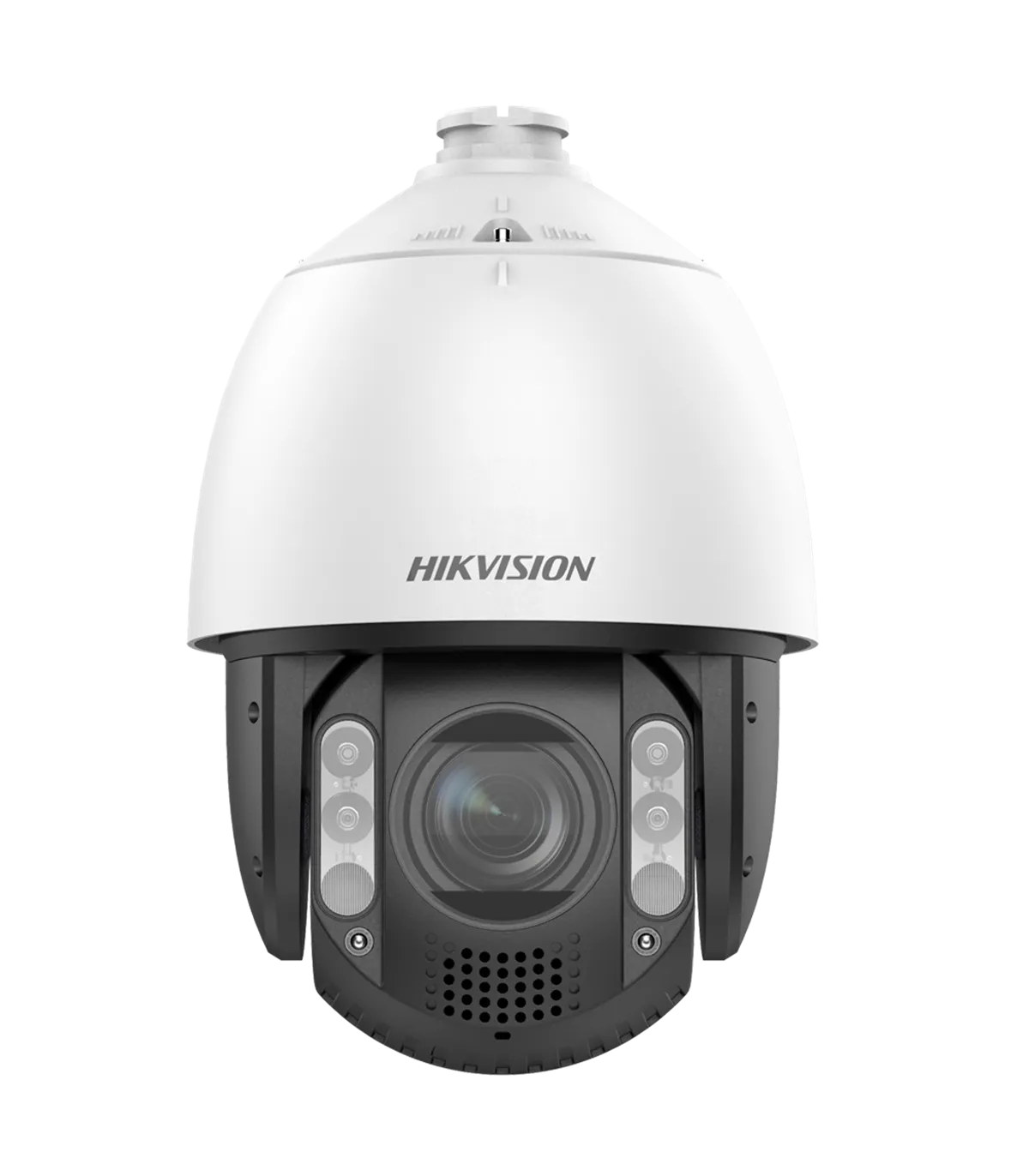

The DS-2DE7A412MCG-EB is a high-performance IP PTZ camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in providing detailed monitoring with its 4 Megapixel resolution and advanced features. With a powerful 12X optical zoom and a wide range of functionalities, it is perfect for securing large areas while ensuring high-quality video capture.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8“ Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra Stream Rate | 25 fps (704x576, 640x480, 352x288) |
| Third Stream Rate | 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) |
| Bitrate | 32 kbps ~ 16384 kbps |
| Minimum Illumination | Color: 0.005 Lux @ (F1.5, AGC ON) Black and white: 0.001 Lux @ (F1.5, AGC ON) / 0 lux with IR LEDs range 150 m 0 lux with White Light range 100 m |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Optics | Motorized varifocal 6.7~80.4 mm (12X optical zoom) |
| Field of View (FOV) | 51.5~7.9º (H), 30.3~4.4º (V), 57.9~9.0º (D) |
| DORI | 744.8 m (D), 295.6 m (O), 149.0 m (R), 74.5 m (I) |
| Digital Zoom | 16X |
| Electronic Shutter | 1/1s~1/30,000 s |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, Privacy Masking, ROI |
| ANR | Yes |
| Motion Detection | Yes |
| Auto-Tracking | Yes |
| Video Analytics | VCA: Line Crossing | Area Intrusion | Audio Exception |
| Advanced Features | AcuSense with false alarm filter for vehicles and people applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. Face Capture. Automatic selection of the best photo. Capable of capturing up to 5 faces simultaneously. * AcuSense and face capture cannot be enabled at the same time. |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -15°~90° (auto flip) |
| Manual Speed | Horizontal: 0.1~160 °/s, Vertical: 0.1~120 °/s |
| Speed Between Presets | Horizontal: 240°/s, Vertical: 200°/s |
| Preset Positions | 300 presets, 4 auto patterns, 8 auto tours, auto pan, auto scan |
| Internal Storage | MicroSD card slot up to 256 GB |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC) |
| Alarms | 2 inputs / 1 relay |
| PTZ Control | Via network access |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | AC 24 V / 42 W max. Hi-PoE |
| Operating Temperature | -30º C ~ +65º C |
| Protection Grade | IP66 waterproof / IK10 vandal-proof / Surge protection 6000 V |
| Material | ADC12 |
| Dimensions (without mount) | Ø 220 mm x 357.3 mm (H) |
| Weight (without mount) | 5500 g |
The DS-2DE7A412MCG-EB is ideally suited for large-scale surveillance in environments such as shopping malls, parking lots, and industrial sites. With its 360° pan and 90° tilt capabilities, this camera can cover extensive areas, ensuring comprehensive monitoring. The 12X optical zoom allows security personnel to focus on specific incidents or individuals, enhancing situational awareness. Additionally, the AcuSense technology minimizes false alarms by accurately detecting vehicles and people, making it a reliable choice for busy environments. The camera's IP66 rating ensures durability against harsh weather conditions, while the remote access feature enables real-time monitoring from anywhere, providing peace of mind to users. This combination of features makes the DS-2DE7A412MCG-EB an excellent investment for effective security management.
