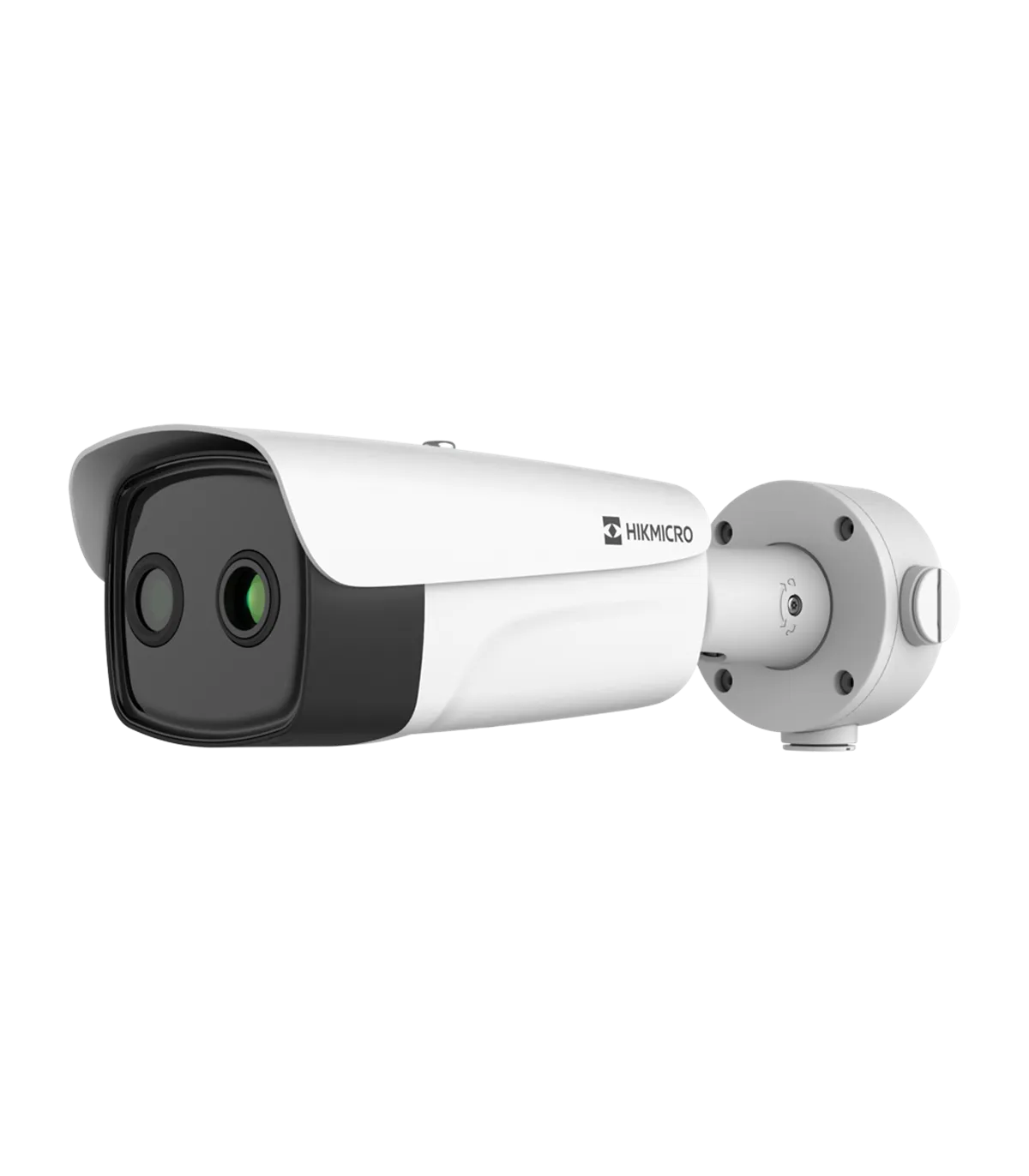

The HM-TD2638-8/G0/T1Y is a state-of-the-art dual-spectrum thermal camera designed for advanced security applications. Ideal for both indoor and outdoor environments, this device excels in fire detection and intrusion prevention, making it a perfect fit for commercial and industrial settings. With its high-resolution thermal and visible sensors, it provides comprehensive surveillance capabilities, ensuring safety and security in critical areas.
| Brand | Hikmicro |
| Series | TD2638 |
| Thermal Sensor | VOx uncooled FPA |
| Thermal Sensor Resolution | 384 x 288 |
| Pixel Pitch | 12μm |
| Thermal Lens | 7.6mm |
| Thermal Sensitivity | ≤25mK |
| Thermal Measurement Range | -20~150ºC / ±8ºC |
| Spectral Range | LWIR 8~14μm |
| Thermal Field of View | 35° (H) x 26.1° (V) |
| Visible Sensor | 1/2.7" CMOS |
| Visible Sensor Resolution | 2688 x 1520 (4Mpx) |
| Visible Lens | 4.3mm |
| Visible Field of View | 83.7° (H) x 43° (V) |
| Infrared Illuminator | Up to 30m |
| Bi-Spectrum Vision Parameters | Fusion / Picture in Picture |
| Main Stream Rate | Thermal: 1280×720, 704x576, 352x288, 384×288 @25fps Visible: 2688×1520, 1920×1080, 1280×720 @25fps |
| Sub Stream Rate | Thermal: 704x576, 352x288, 384x288 @25fps Visible: 704x576, 352x288 @25fps |
| Compression | H.265 / H.264 |
| VCA | Temperature measurement, intrusion detection |
| Intelligent Analysis | Intrusion, line crossing, area entry, area exit (up to 8 rules) |
| Advanced Intelligent Analysis | Smoker detection, fire detection |
| Temperature Rules | 10 points, 10 areas, and 1 line |
| DRI | Person: 317m (D), 79m (R), 40m (I) Vehicle: 971m (D), 243m (R), 121m (I) |
| Smart Analysis Ranges | Person: 104m Vehicle: 240m Temperature Measurement (object 0.2x0.2m): 22.8m Temperature Measurement (object 0.5x0.5m): 57m Fire Detection (object 0.5x0.5m): 25.8m Smoker Detection: 11.4m |
| Alarms | 2 inputs / 2 relays |
| Audio | 1 input / 1 output |
| Internal Storage | SD card slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Communication | RS-485 |
| Remote Access | Web Browser, PC VMS Software (HikCentral/iVMS4200) |
| Interoperability | ONVIF, API, SDK |
| Power Supply | 24 VAC ± 25% 12 VDC ± 25% 24 VDC PoE (802.3af, class 3) |
| Power Consumption | 24 VAC ± 25%: 0.33A to 0.55A, max. 12.1W 12 VDC ± 25%: 0.8A to 1.33A, max. 11.3W PoE (802.3af, class 3): 36V to 57V, 0.33A to 0.21A, max. 11.8W |
| Operating Temperature | -40ºC~+70ºC, <95% RH |
| Protection Rating | IP67 waterproof NEMA 4X IK10 |
| Dimensions | 376.1mm ×119.1mm × 118.1mm |
| Weight | 1.82Kg |
The HM-TD2638-8/G0/T1Y thermal camera is ideally suited for deployment in high-security environments such as warehouses, factories, and critical infrastructure sites. In a typical installation, the camera can be mounted at strategic locations to provide comprehensive surveillance coverage. With its dual-spectrum technology, users can benefit from both thermal and visible imaging, allowing for enhanced situational awareness. The camera's fire detection capabilities enable early warning of potential hazards, while the intrusion detection feature ensures that unauthorized access is promptly identified. Additionally, the camera supports remote monitoring through web interfaces and VMS software, making it easy for security personnel to manage and respond to incidents in real-time. The robust design, featuring an IP67 waterproof rating and IK10 vandal resistance, ensures reliable operation in various environmental conditions, making it a valuable asset for any security system.
