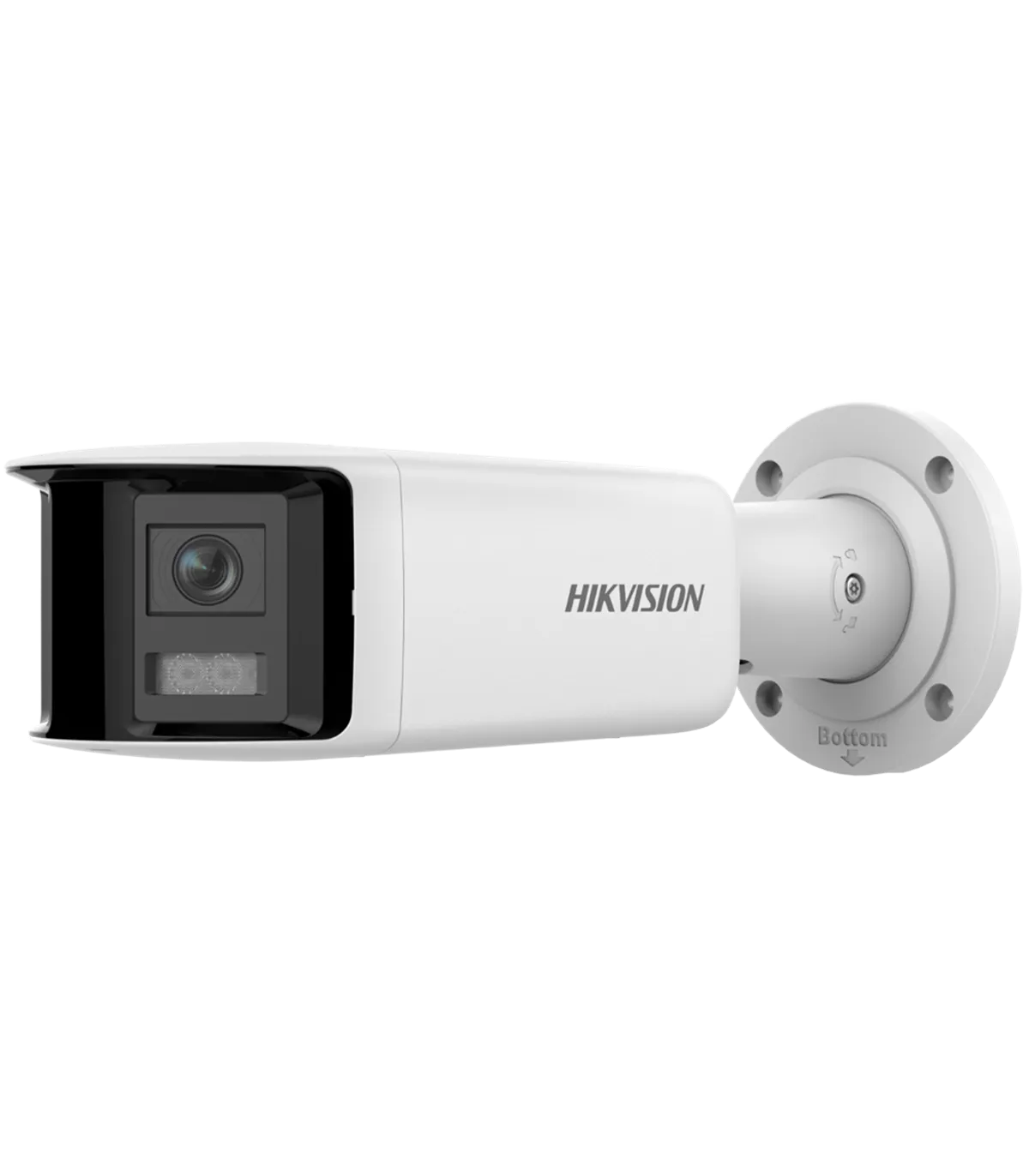

The DS-2CD2T46G2P-ISU/SL(2.8mm)(C) is a high-performance IP bullet camera designed for comprehensive surveillance in various environments. With its 180º panoramic view and advanced low-light capabilities powered by DarkFighter technology, this camera excels in capturing clear images even in challenging lighting conditions. Ideal for both residential and commercial applications, it features smart detection capabilities, including AcuSense technology for reducing false alarms, making it a reliable choice for security professionals.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 2 x 1/2.5" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (3040x1368) |
| Main Stream Rate | 25 fps (3040x1368) |
| Extra Stream Rate | 25 fps (1200x536, 960x432) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 180°, V: 81° |
| DORI | 37 m (D), 15 m (O), 7 m (R), 3.5 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.003 Lux @(F1.6, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AWB, ROI Mirror Function |
| ANR | Yes |
| Alarms | 1 Input / 1 Relay |
| Deterrent Alarm | Integrated Siren and Strobe Flash in the Camera |
| Audio | 1 Input / 1 Output Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 880 mA / 10.5 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 105.1 mm (H) x 118.6 mm (W) x 306.5 mm (D) |
| Base Dimensions | Ø base 105.1 mm / 4 screws |
| Weight | 1400 g |
In a typical deployment scenario, the DS-2CD2T46G2P-ISU/SL(2.8mm)(C) can be installed in a retail environment to enhance security and monitor customer activity. With its 180º panoramic view, the camera can cover wide areas, reducing blind spots and ensuring comprehensive surveillance. The low-light capabilities allow for effective monitoring even during nighttime, while the integrated audio features enable two-way communication, enhancing customer service and security response. The AcuSense technology minimizes false alarms by accurately distinguishing between human and vehicle movements, making it ideal for busy retail spaces. Additionally, the camera's remote access capabilities allow store managers to monitor live feeds from anywhere, ensuring peace of mind and proactive security management.
