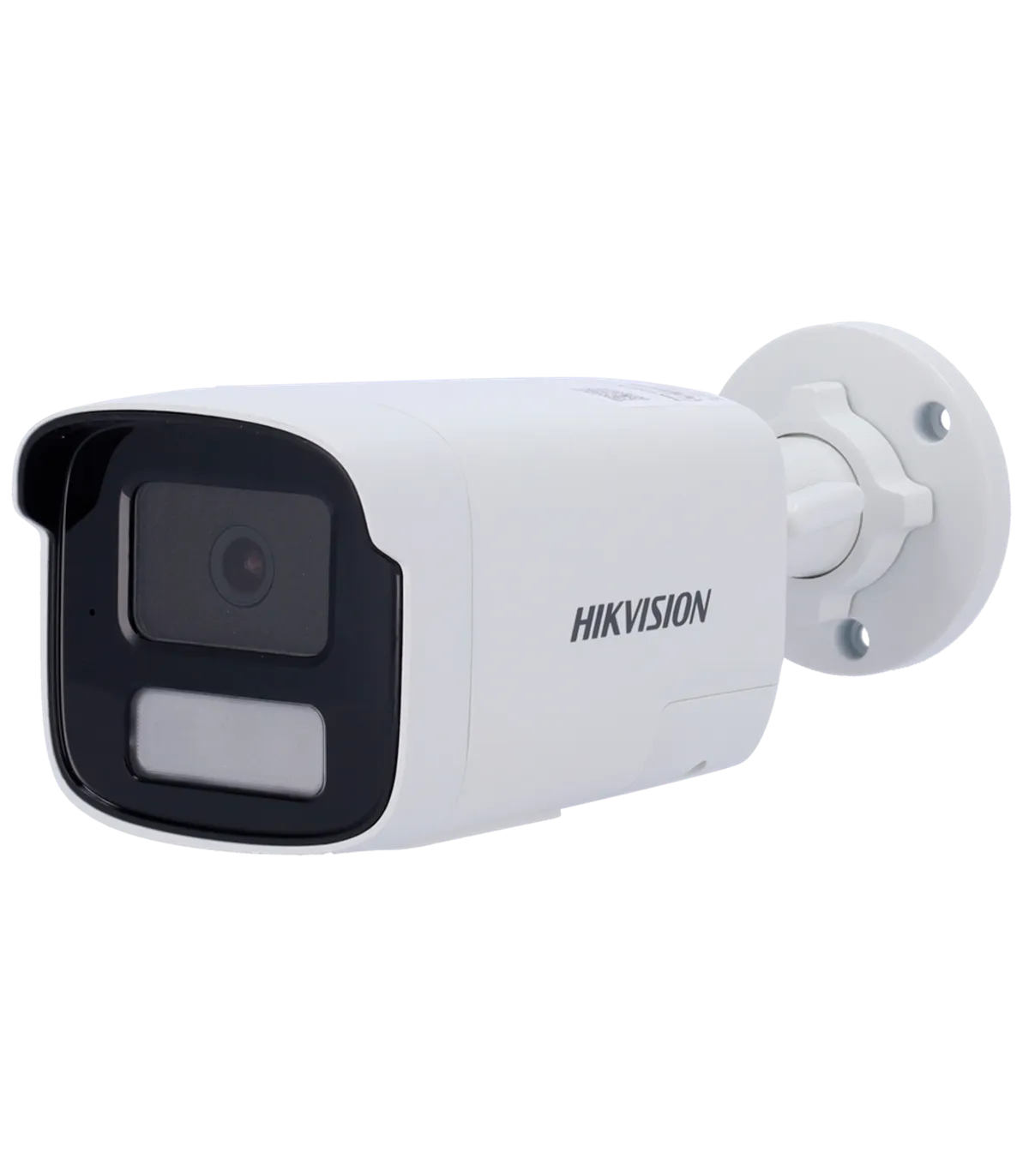

The DS-2CD1T83G2-LIUF/SL(6mm) is a high-performance IP bullet camera designed for outdoor surveillance applications. With its 8 Megapixel resolution, this camera provides exceptional image clarity, making it ideal for monitoring large areas such as parking lots, building perimeters, and public spaces. The device features a hybrid light system that combines infrared and white light, ensuring visibility even in complete darkness up to 50 meters. Its robust construction with an IP67 waterproof rating guarantees reliable performance in various weather conditions.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 12.5 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 12.5 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 6 mm |
| Field of View (FOV) | H: 56°, V: 30°, D: 65° |
| DORI | 170m (D), 67 m (O), 34 m (R), 17 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR range 50 m |
| Supplementary Lighting | Hybrid Light: IR range 50 m White light range 50 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Deterrent Alarm | Integrated siren and strobe light in the camera |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | 1 RJ45 Ethernet 10 M/100 M self-adaptive |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (profiles S, T, and G), ISAPI, SDK |
| Power Supply | DC 12 V / 750 mA / 9 W max. PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 80.7 mm (H) x 83.7 mm (W) x 221.1 mm (D) |
| Weight | 669 g |
The DS-2CD1T83G2-LIUF/SL(6mm) is ideally suited for a variety of surveillance environments, including retail stores, warehouses, and outdoor facilities. For instance, a retail store can deploy this camera at the entrance to monitor customer traffic and deter theft. With its high-resolution imaging and advanced motion detection capabilities, the camera can accurately identify potential threats, providing peace of mind to store owners. Additionally, the integrated audio features allow for two-way communication, enhancing customer service and security response. The remote access feature enables store managers to monitor live feeds from anywhere, ensuring that they can respond promptly to any incidents. Furthermore, the camera's IP67 waterproof rating ensures reliable operation in various weather conditions, making it a versatile choice for both indoor and outdoor applications.
