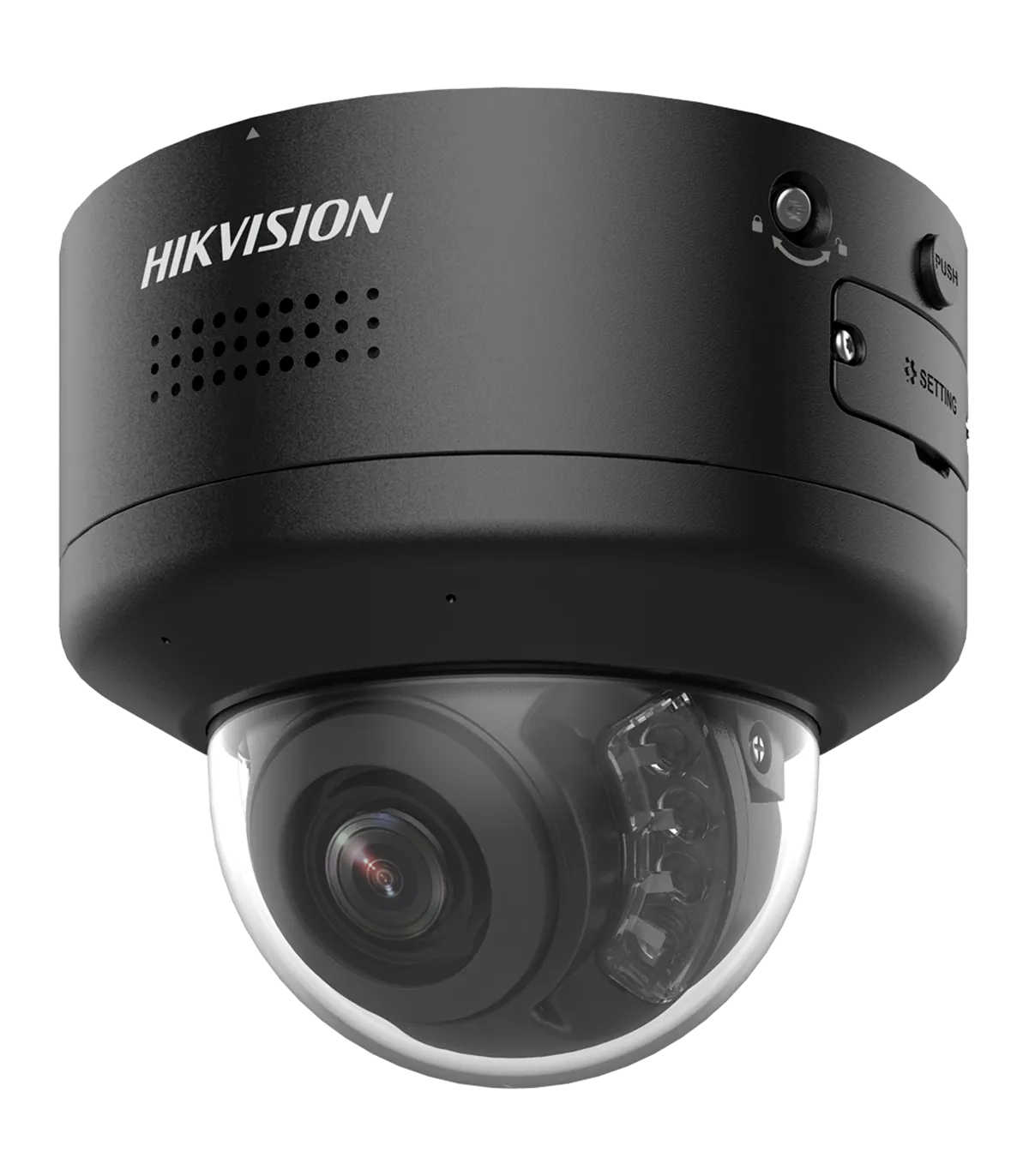

- Hikvision PRO Series 4 MPx IP Dome Camera
- Motorized Varifocal Lens 2.8~12 mm
- Siren and Strobe Light | Dual Array Microphone
- PoE+ | Audio | Alarms | ColorVu | MicroSD
- Hybrid Light 40m | Motion Detection 2.0
- AcuSense | Facial Recognition | IP67, IK10
Description & Key Features: DS-2CD2747G2H-LIPTRZS2U/SL(2812)BLK
The DS-2CD2747G2H-LIPTRZS2U/SL(2812)BLK is a high-performance IP dome camera designed for comprehensive surveillance in various environments. With its advanced 4 Megapixel resolution and ColorVu technology, this camera delivers exceptional image quality both day and night. Ideal for commercial and residential applications, it features a motorized varifocal lens that allows for flexible installation and precise field of view adjustments. The camera is equipped with smart detection capabilities such as AcuSense, which minimizes false alarms by distinguishing between humans and vehicles, making it a reliable choice for security professionals.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/1.8" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- Motorized varifocal lens 2.8~12 mm
- 0 Lux
- Hybrid light: IR and white light
- White light range 40 m
- Compression H.265+ / H.265 / H.264+ / H.264
- ColorVu: color image 24 hours
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (in Line Crossing, Area Intrusion, Entry Region, Exit Region)
- Face Capture
- Alarms
- Audio
- Dual microphone in integrated array
- Integrated deterrent siren and flash
- WDR (130 dB)
- 3D-DNR
- MicroSD card slot up to 512 GB
- WEB interface, CMS, Smartphone, and NVR
- ONVIF compatible
- PoE+ (IEEE802.3at)
- IP66 waterproof
- IK10 vandal-proof
- Black color
Specifications: DS-2CD2747G2H-LIPTRZS2U/SL(2812)BLK
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 114.6~41.8°, V: 59.3~23.6°, D: 141.3~48.1° |
| DORI | 61.5~151.7 m (D), 24.4~60.2 m (O), 12.3~30.3 m (R), 6.2~15.1 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0028 Lux @(F1.2, AGC ON) 0 Lux with white light |
| Supplementary Illumination | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | ColorVu: color image 24 hours |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and deterrent flash in the camera |
| Audio | 1 input / 1 output Dual microphone in integrated array Integrated speaker |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Ambient Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 1350 mA / 16 W max. PoE+ IEEE802.3at |
| Protection Grade | IP66 waterproof IK10 vandal-proof |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 155 mm x 140.4 mm (H) |
| Base Dimensions | Ø base 155 mm / Ø between screws 96 mm / 4 screws |
| Weight | 820 g |
| Color | Black |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User instructions
Use Case
The DS-2CD2747G2H-LIPTRZS2U/SL(2812)BLK is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and office buildings. For instance, in a retail environment, the camera can be strategically placed at entry points to provide 24/7 monitoring with its ColorVu technology, ensuring that high-quality color images are captured even in low-light conditions. The motorized varifocal lens allows installers to easily adjust the field of view to cover critical areas, enhancing security coverage. Additionally, the AcuSense technology significantly reduces false alarms by accurately detecting human and vehicle movements, making it an efficient choice for busy locations. With its remote access capabilities via web browsers and mobile applications, security personnel can monitor live feeds from anywhere, ensuring prompt responses to any incidents. This camera's robust design, featuring IP66 and IK10 ratings, guarantees durability in various environmental conditions, making it a reliable solution for comprehensive security needs.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (130 dB)
- IR Distance
- 40 m
- Audio
- 1 Entrada / 1 Salida
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE+ (IEEE802.3at)
- Lens
- 2.8 ~ 12 mm Motorizada
- Compatible models
- DS-1476ZJ-SUS,DS-1476ZJ-SUS,DS-1475ZJ-SUS,DS-1475ZJ-SUS,DS-1473ZJ-155,DS-1473ZJ-155,DS-1471ZJ-155,DS-1471ZJ-155,DS-1250ZJ,DS-1250ZJ
Specific References
- EAN13
- 6942160489964
