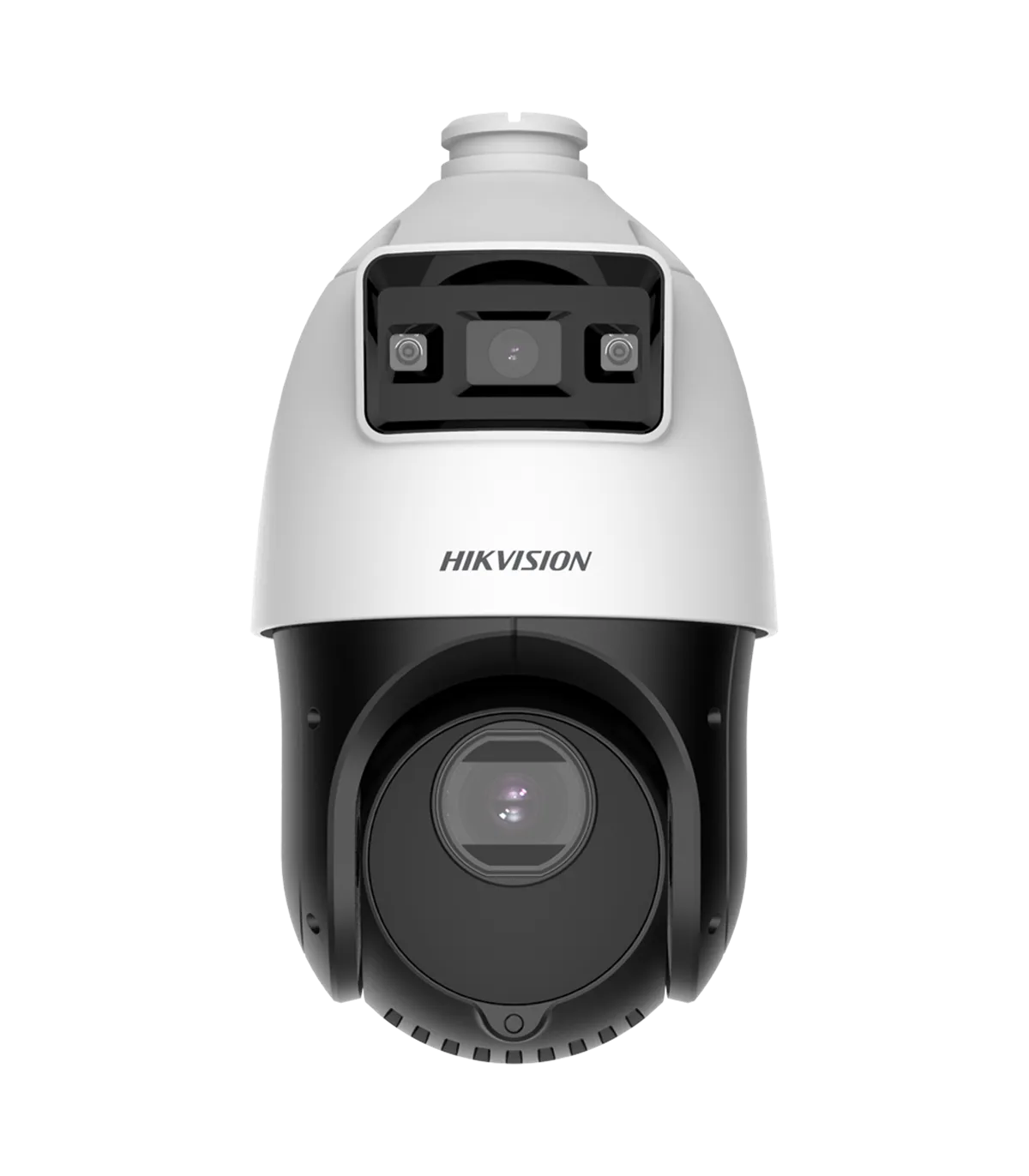

The DS-2SE4C425MWG-E(14F0) is a high-performance PTZ IP camera designed for comprehensive surveillance in various environments. This device is ideal for large areas requiring detailed monitoring, such as parking lots, shopping malls, and public spaces. With its advanced features, including 4 Megapixel resolution and 25X optical zoom, it ensures clear image capture day and night, making it a reliable choice for security systems.
| Brand | Hikvision |
| Series | SOLUTIONS |
| Image Sensor | PTZ: 1/2.8“ Progressive Scan CMOS Panoramic: 1/3“ Progressive Scan CMOS |
| Resolution | PTZ: 4 Megapixel (2560×1440) Panoramic: 4 Megapixel (2560×1440) |
| Main Stream Rate | PTZ: 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) Panoramic: 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra Stream Rate | PTZ: 25 fps (704x576, 640x480, 352x288) Panoramic: 25 fps (704x576, 640x480, 352x288) |
| Third Stream Rate | PTZ: 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) Panoramic: 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) |
| Minimum Illumination | PTZ: 0.005 Lux Color@(F1.6, AGC ON) / IR: 0 Lux, range 100 m Panoramic: 0.0005 Lux Color@(F1.0, AGC ON) / White light: 0 Lux, range 30 m |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Bitrate | 32 Kbps ~ 16384 kbps |
| Optics | PTZ: Varifocal 4.2~120 mm (Optical Zoom 25X) Panoramic: 2.8 mm |
| Field of View (FOV) | PTZ: 55~2.4º (H), 33~1.4º (V), 61.5~2.8º (D) Panoramic: 96.1º (H), 52.1º (V), 113.3º (D) |
| Digital Zoom | 16X |
| DORI | 2200 m (D), 873 (O), 440 (R), 220 (I) |
| Day/Night | Removable ICR mechanical filter ColorVu: Color image 24 hours |
| Electronic Shutter | 1~1/30.000 s |
| Auto Focus | Semi-auto, Manual or Auto |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, Mirror function, Privacy Masking, ROI |
| ANR | Yes |
| EIS (Image Stabilizer) | Yes |
| Video Analytics | VCA: Line crossing | Area intrusion | Audio exception |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion |
| Face Capture | For the PTZ channel. |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -15°~90° (auto flip) |
| Manual Speed | Horizontal: 0.1~ 80°/s, Vertical: 0.1~80°/s |
| Speed Between Presets | Horizontal: 80°/s, Vertical: 80°/s |
| Preset Positions | 300 presets, 4 auto patterns, 8 auto tours, auto pan, auto scan |
| Internal Storage | MicroSD card slot up to 256 GB |
| Alarms | 1 Input / 1 Output |
| Audio | 1 Input / 1 Output |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC |
| Audio Bit Rate | 32 to 160 Kbps (MP2L2), 16 to 64Kbps (AAC-LC) |
| PTZ Control | Via network access |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V, max. 24 W / PoE+ (IEEE802.3at) |
| Operating Temperature | -30º C ~ +65º C |
| Protection Grade | Waterproof IP66, surge protection 6000 V |
| Material | ADC12 |
| Dimensions (without mount) | 166 (Ø) mm x 375 mm (H) |
| Weight (without mount) | 2.4 kg |
The DS-2SE4C425MWG-E(14F0) is perfect for deployment in environments such as shopping centers and large outdoor areas where comprehensive surveillance is essential. Installers can leverage its 25X optical zoom and 4 Megapixel resolution to monitor extensive spaces effectively. The camera's ColorVu technology allows for vibrant color images even in low-light conditions, ensuring that critical details are captured at all times. Additionally, the integration of AcuSense technology significantly reduces false alarms by accurately distinguishing between vehicles and pedestrians. This feature is particularly beneficial in high-traffic areas, enhancing the overall efficiency of security operations. With its remote monitoring capabilities via web browsers and mobile applications, users can access live feeds and recorded footage from anywhere, providing peace of mind and ensuring that security personnel can respond promptly to incidents.
Data sheet
