- Hikvision Value Series Bullet IP Camera
- Resolution 2 MP (1920x1080)
- 2.8 mm Lens
- Hybrid Light 30 m | DWDR
- Motion Detection 2.0
- Integrated Microphone | PoE | IP67
Description & Key Features: DS-2CD1023G2-LIU(2.8mm)
The DS-2CD1023G2-LIU(2.8mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its 2 Megapixel resolution and advanced features, this camera is ideal for both indoor and outdoor applications, providing clear images even in low-light conditions. Its hybrid light technology ensures visibility up to 30 meters, making it suitable for monitoring large areas. The camera's compatibility with ONVIF standards allows for seamless integration into existing security systems.
- Hikvision
- Value Series
- IP Bullet Camera
- 1/2.9" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and White Light
- Hybrid Light Range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- DWDR
- 3D-DNR
- Integrated Microphone
- WEB, CMS, Smartphone, and NVR Interface
- Compatible with ONVIF
- PoE (IEEE802.3af)
- IP67 Waterproof
Specifications: DS-2CD1023G2-LIU(2.8mm)
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 103°, V: 56°, D: 121° |
| DORI | 45 m (D), 18 m (O), 9 m (R), 4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 30 m White Light Range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T), ISAPI, SDK |
| Power Supply | DC 12 V / 400 mA / 5 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 66 mm (H) x 69.1 mm (W) x 170.8 mm (D) |

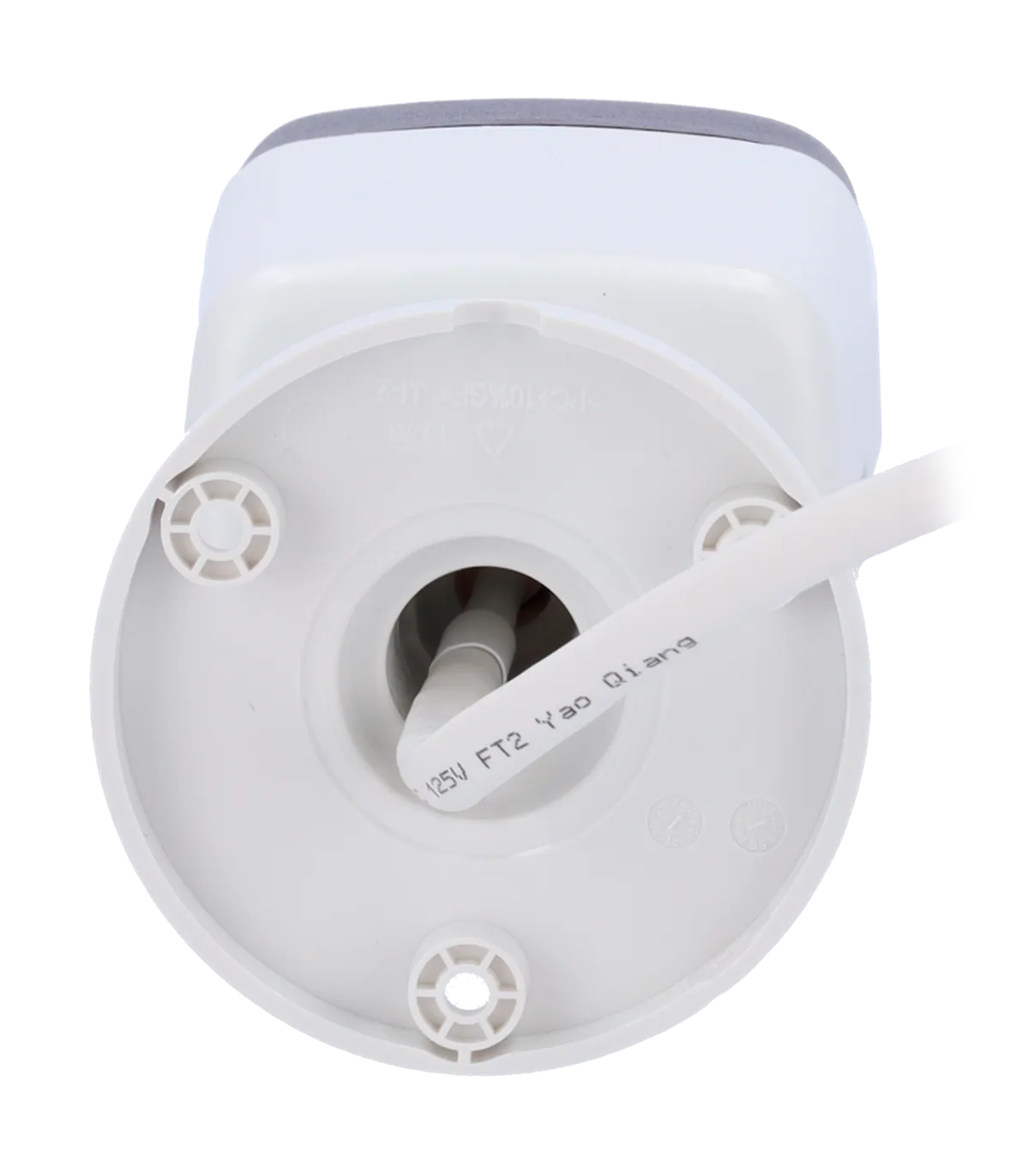

| Base Dimensions | Ø base 70 mm / Ø screw spacing 55 mm / 3 screws |
| Weight | 265 g |
Package Contents
- Hikvision Value IP Bullet Camera
- Installation Materials
- User Instructions
Use Case
The DS-2CD1023G2-LIU(2.8mm) is an excellent choice for both residential and commercial security installations. For instance, a retail store can deploy this camera at entry points to ensure comprehensive surveillance. With its high-resolution imaging and motion detection capabilities, store owners can monitor customer activity and prevent theft effectively. The camera's remote monitoring feature allows users to access live feeds via a smartphone app, providing peace of mind while away from the premises. Additionally, the IP67 waterproof rating ensures durability in various weather conditions, making it suitable for outdoor use. The integrated microphone enhances security by allowing audio monitoring, which can be crucial in high-traffic areas. Overall, the DS-2CD1023G2-LIU(2.8mm) offers a robust solution for enhancing security in diverse environments.
Data sheet
- Brand
- HIKVISION
- Resolution
- 2 Mpx
- Technology
- IP
- WDR
- DWDR
- IR Distance
- 30 m
- Audio
- Micrófono integrado
- SD Slot
- No dispone
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- No dispone
- Series
- VALUE
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-XS,DS-1280ZJ-XS
Specific References
- EAN13
- 6931847189105
