| Brand | HIKVISION |
| Gamma | CORE |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Rate Stream | 25 fps (640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Angle of view (FOV) | H: 102.4~31.2°, V: 54.4~17.5°, D: 121.8~35.7° |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with EXIR IR range 30 m |
| Day/night | Removable ICR mechanical filter |
| Image enhancements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror function, Privacy masking |
| Motion Detection | Motion Detection 2.0 with classification of humans and vehicles applied in motion detection. |
| Alarms | 1 entry / 1 relay |
| Audio | 1 input / 1 output |
| Audio compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bit rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Internal storage | MicroSD card slot up to 256 GB |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 750 mA / 9 W max. / PoE IEEE802.3af |
| Protection degree | Waterproof IP67 |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 129.4 mm x 116.4 mm (H) |

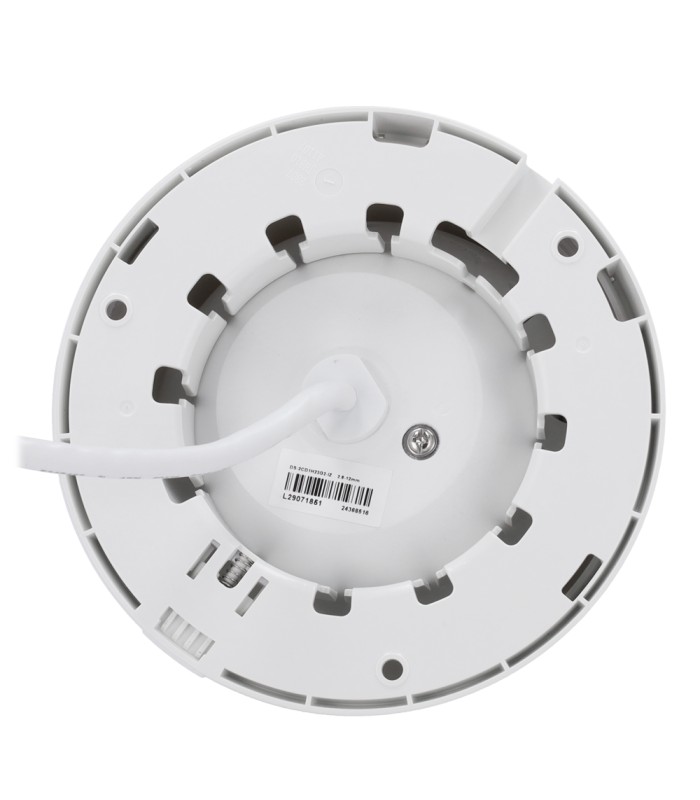

| Dimensions of the base | Ø base 129.4 mm / Ø between screws 112.4 mm / 3 screws |
| Weight | 605 g |
