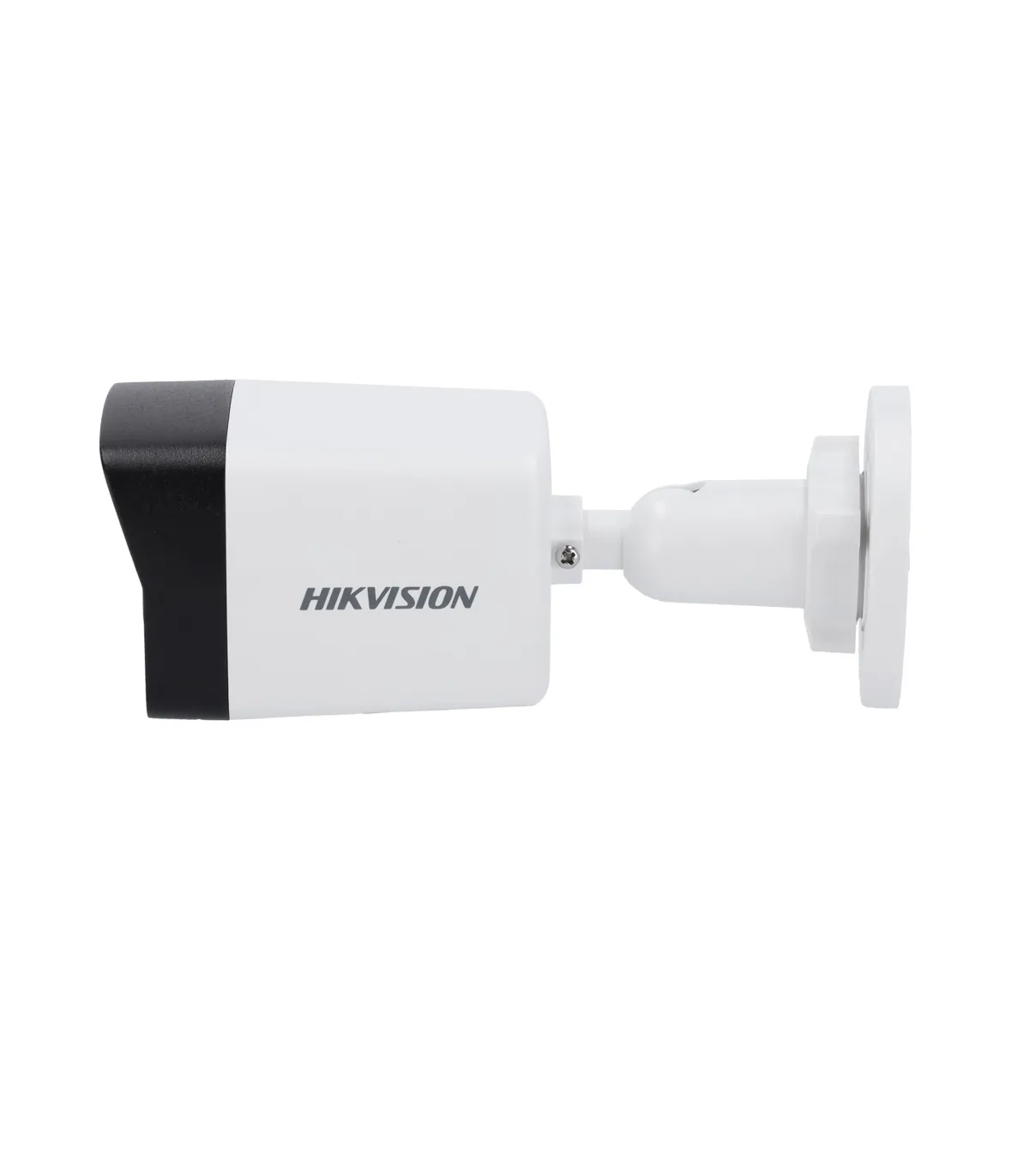

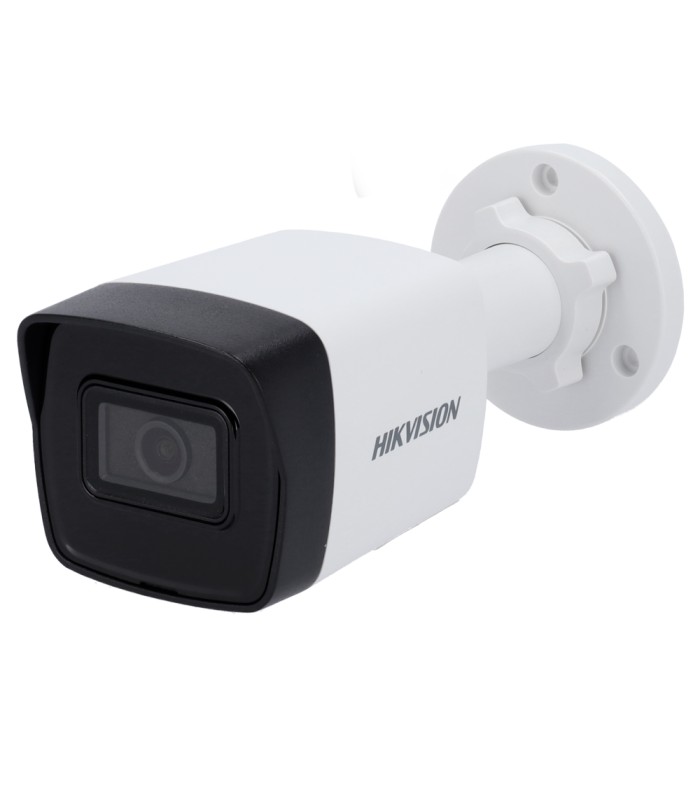

| Brand | HIKVISION |
| Range | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |

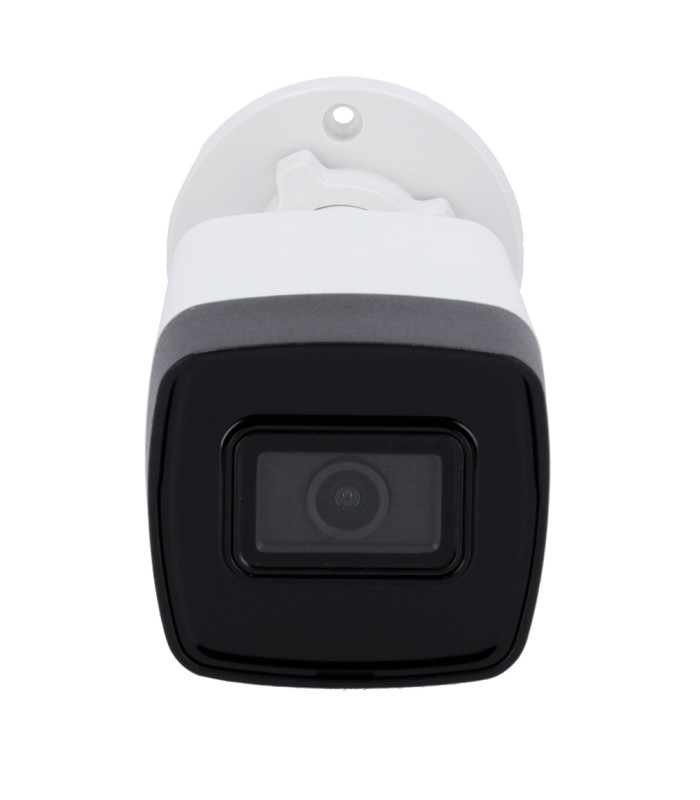

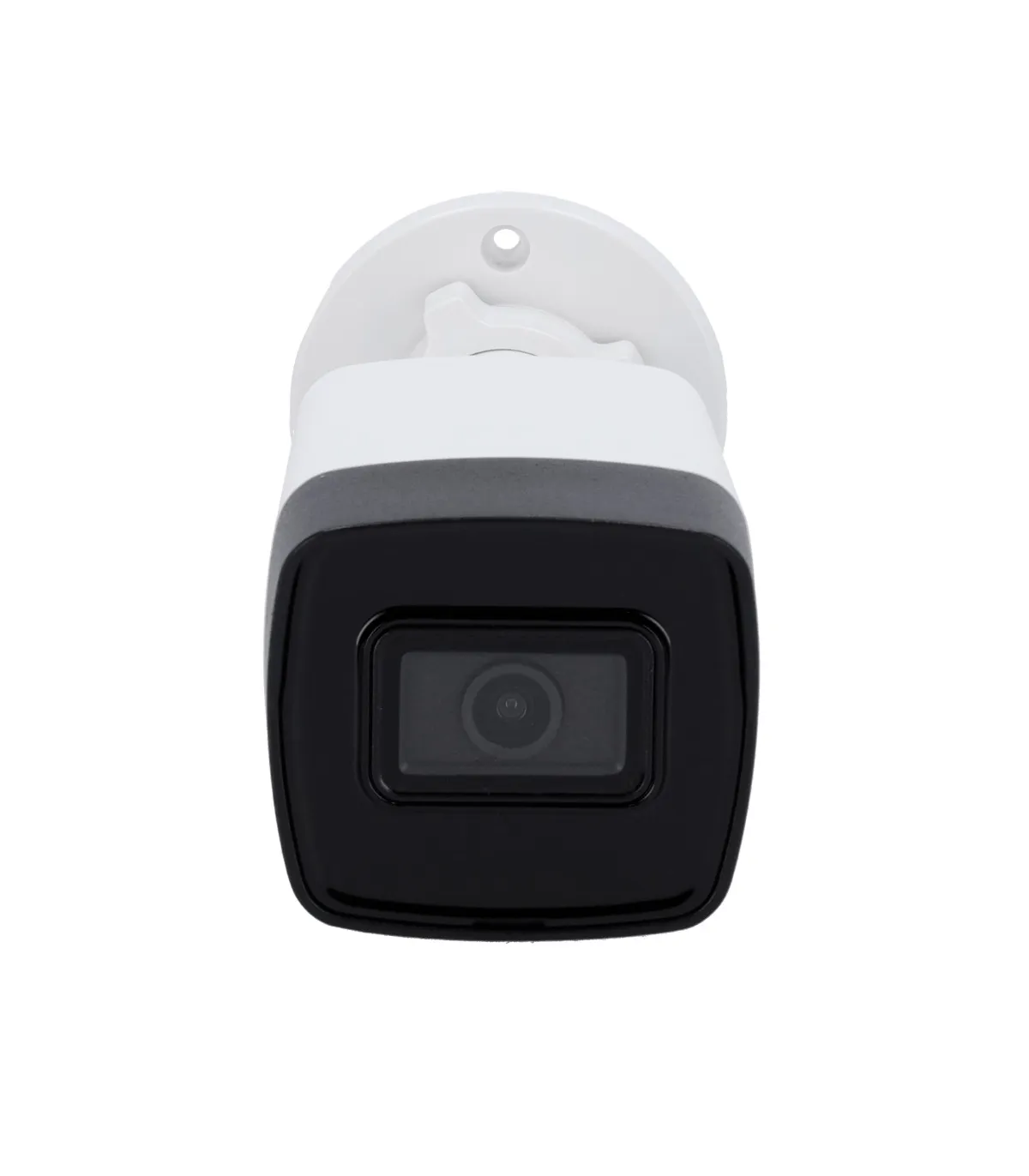

| Optics | 2.8 mm |
| Angle of view (FOV) | H: 99°, V: 55°, D: 116° |
| DORI | 59 m (D), 23 m (W), 11 m (R), 5 m (L) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum illumination | Color: 0.01 Lux @(F2.0, AGC ON) 0 Lux with EXIR IR range 30 m |
| Day/night | Mechanical filter Removable ICR |
| Image enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking |
| Improvement detection movement | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |

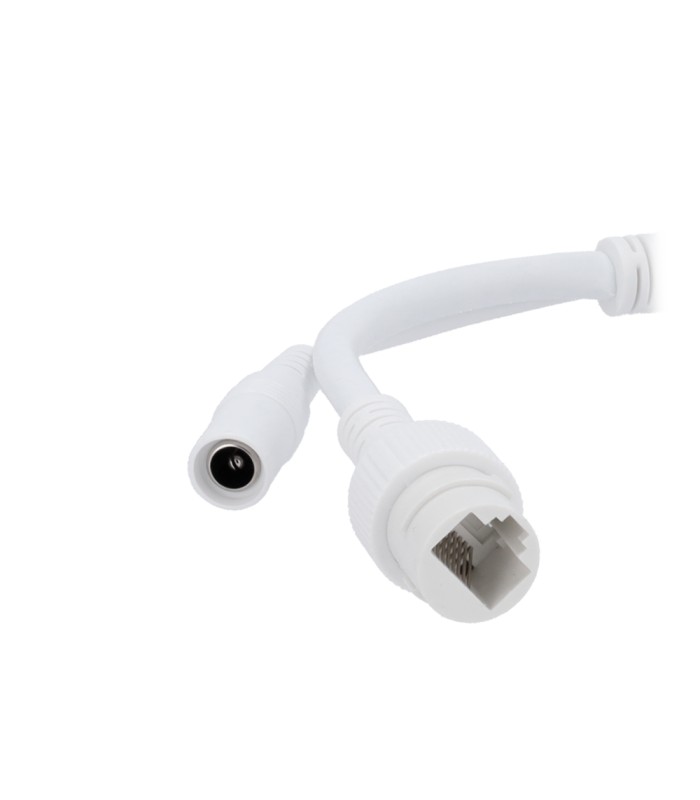

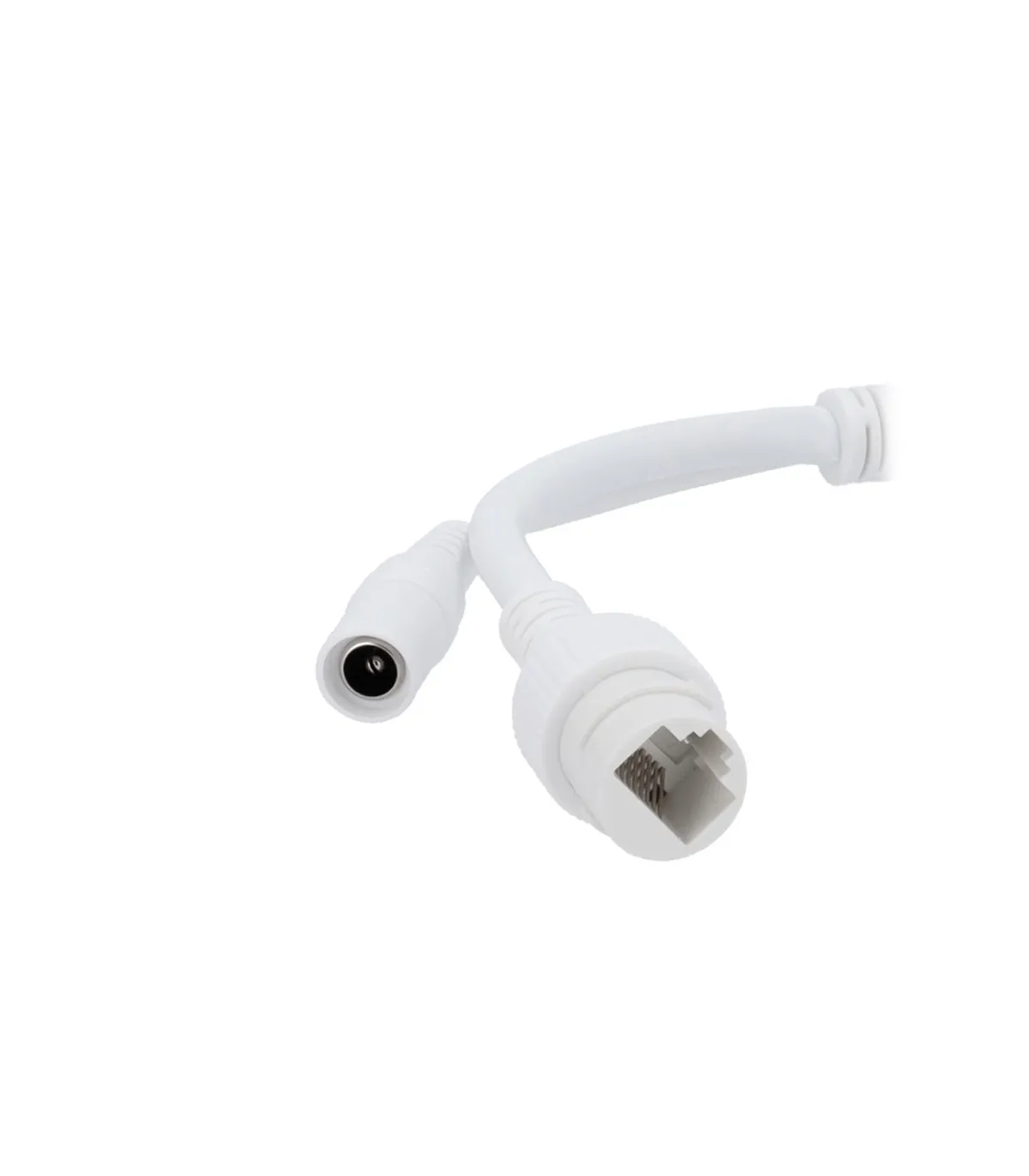

| Power | DC 12 V / 400 mA / 5 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |

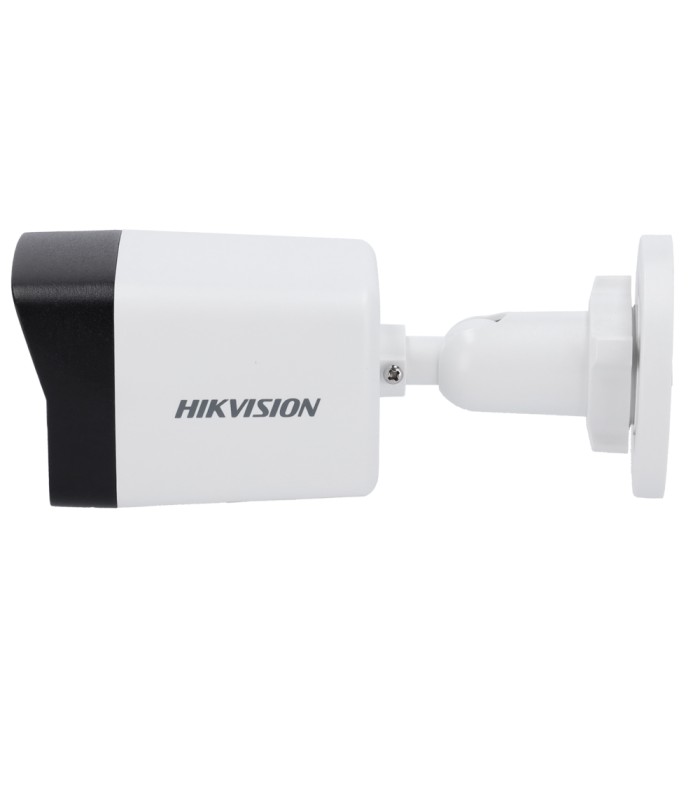

| Dimensions | 66 mm (H) x 69.1 mm (W) x 170.8 mm (D) |

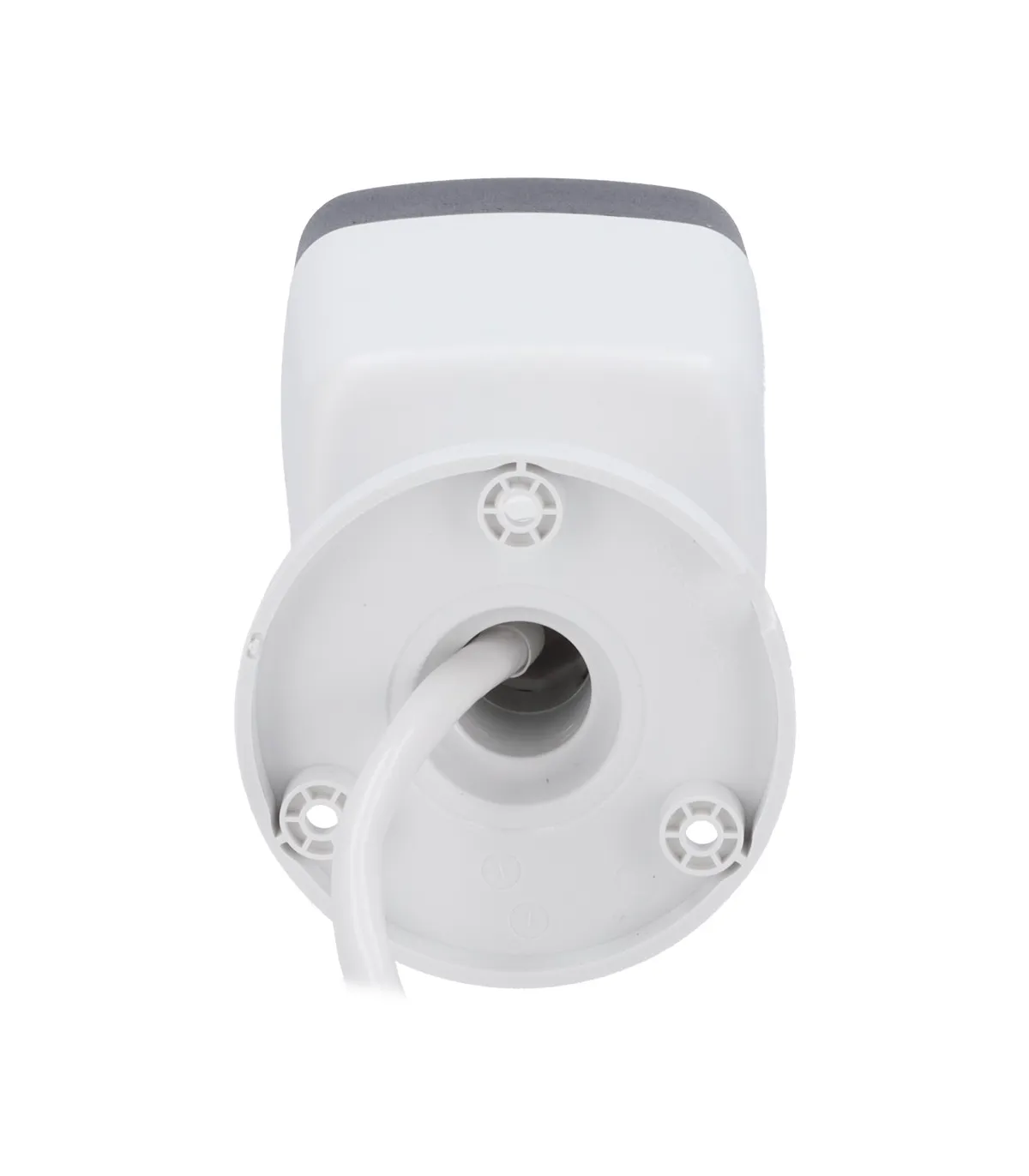

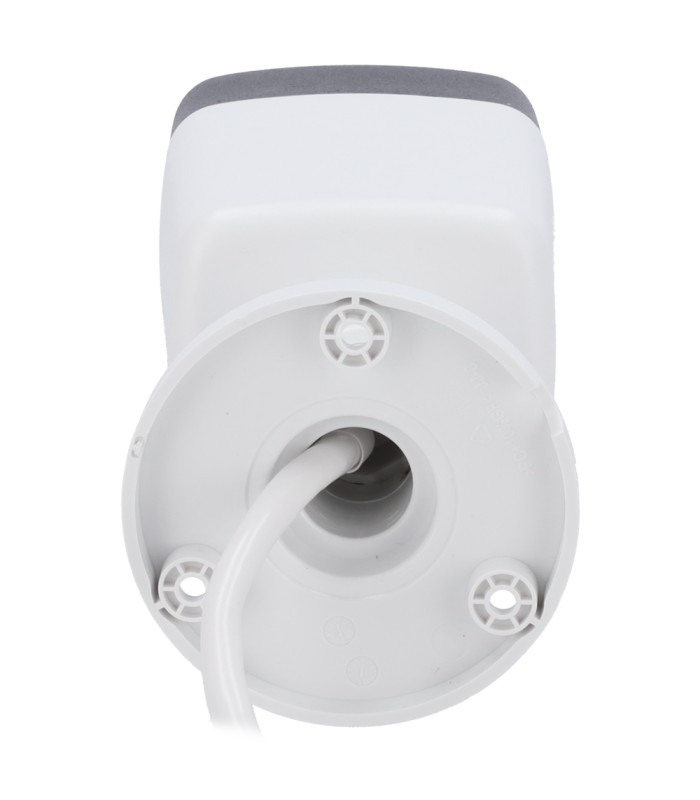

| Base dimensions | base Ø 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 270 g |
Data sheet
