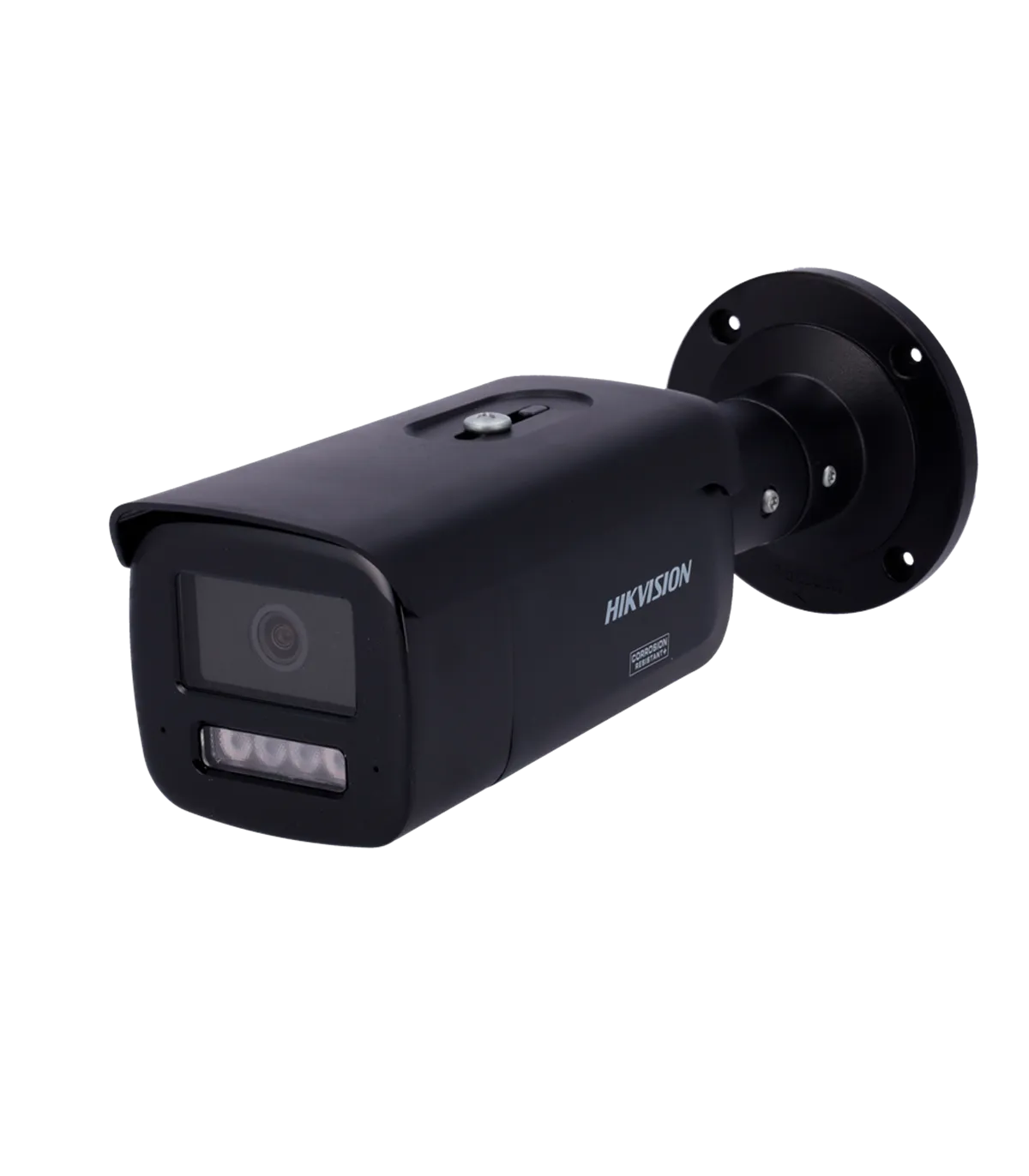

The DS-2CD2T43G2-4LIZ2UY is a high-performance IP Bullet Camera designed for advanced surveillance applications. With its 4 Megapixel resolution and dual lens options of 2.8mm and 4mm, this camera is ideal for both indoor and outdoor environments, providing exceptional image clarity and detail. Its hybrid illumination technology, featuring both IR and white light, ensures reliable performance even in low-light conditions, making it suitable for 24/7 monitoring.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720) 60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 50 Hz: 25 fps (1280×720, 640×480, 640×360) 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) 60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) *Third stream supported only under certain conditions |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Dual lens options: 2.8/4 mm |
| Field of View (FOV) | 2.8 mm: H: 99.3°, V: 54.8°, D: 120.2° 4 mm: H: 80.0°, V: 44.1°, D: 94.0° |
| DORI | 2.8mm: D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m 4mm: D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m |
| Electronic Shutter | 1~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Illumination | Hybrid light: IR range 80 m White light range 80 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Capture | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Power Supply | DC 12 V / 910 mA / 11 W max. PoE IEEE802.3af, class 3, 12.5 W max. |
| Protection Grade | IP67 waterproof NEMA 4X corrosion-resistant |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 88.7 mm (W) x 91.2 mm (H) x 287.2 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø screw spacing 89 mm / 4 screws |
| Weight | 1165 g |
| Color | Black |
The DS-2CD2T43G2-4LIZ2UY is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. Its high-resolution imaging allows for clear identification of individuals and vehicles, enhancing security measures. The camera's remote monitoring capabilities enable users to access live feeds via a smartphone app or web browser, providing flexibility and convenience. Additionally, the AcuSense technology significantly reduces false alarms by accurately classifying detected objects, ensuring that security personnel can focus on genuine threats. With its robust IP67 waterproof rating, this camera is built to withstand harsh weather conditions, making it a reliable choice for outdoor installations. The easy installation process, combined with PoE support, simplifies setup, allowing for quick deployment in various environments.
Data sheet
