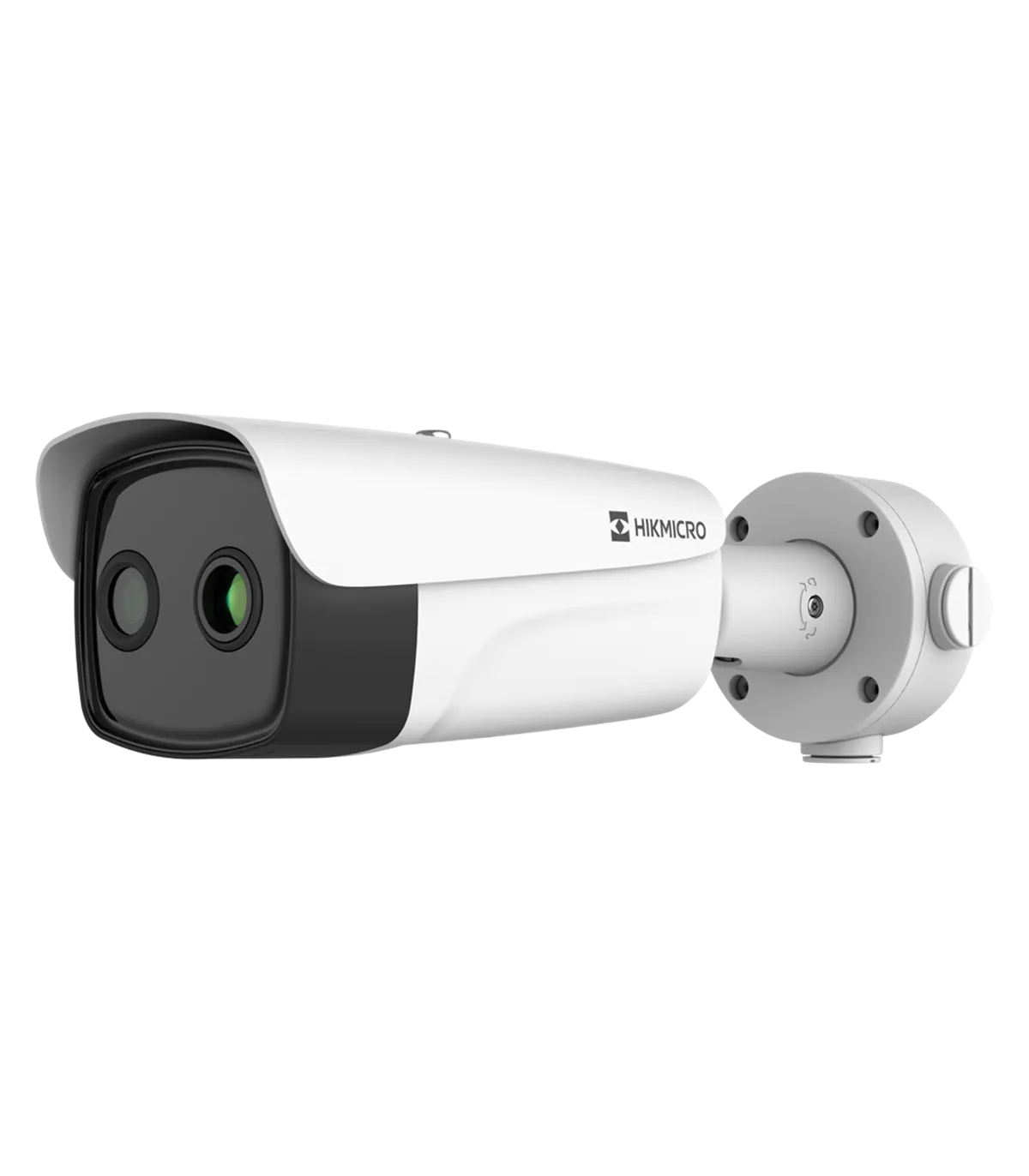

The HM-TD2638-25/G0/T1Y is a state-of-the-art dual-spectrum thermal camera designed for advanced surveillance applications. This device is ideal for environments requiring both thermal imaging and visible light capabilities, making it suitable for fire detection and intrusion prevention. With its robust features, it ensures reliable monitoring in various conditions.
| Brand | Hikmicro |
| Series | TD2638 |
| Thermal Sensor | Uncooled VOx FPA |
| Thermal Sensor Resolution | 384 x 288 |
| Pixel Pitch | 12μm |
| Thermal Lens | 25mm |
| Thermal Sensitivity | ≤25mK |
| Temperature Measurement Range | -20~150ºC / ±8ºC |
| Spectral Range | LWIR 8~14μm |
| Thermal Field of View | 10.5° (H) x 7.9º (V) |
| Visible Sensor | 1/2.7" CMOS |
| Visible Sensor Resolution | 2688 x 1520 (4Mpx) |
| Visible Lens | 12.4mm |
| Visible Field of View | 24.6° (H) x 14° (V) |
| Infrared Illuminator | Up to 100m |
| Bi-Spectrum Vision Parameters | Fusion / Picture in picture |
| Main Stream Rate | Thermal: 1280×720, 704x576, 352x288, 384×288 @25fps Visible: 2688×1520, 1920×1080, 1280×720 @25fps |
| Sub Stream Rate | Thermal: 704x576, 352x288, 384x288 @25fps Visible: 704x576, 352x288 @25fps |
| Compression | H.265 / H.264 |
| VCA | Temperature measurement, intrusion detection |
| Intelligent Analysis | Intrusion, line crossing, area entry, area exit (up to 8 rules) |
| Advanced Intelligent Analysis | Smoker detection, fire detection |
| Temperature Rules | 10 points, 10 areas, and 1 line |
| DRI | Person: 1042m (D), 260m (R), 130m (I) Vehicle: 3194m (D), 799m (R), 399m (I) |
| Smart Analysis Ranges | Person: 325m Vehicle: 750m Temperature Measurement (object 0.2x0.2m): 82.5m Temperature Measurement (object 0.5x0.5m): 206m Fire Detection (object 0.5x0.5m): 74.4m |
| Alarms | 2 inputs / 2 relays |
| Audio | 1 input / 1 output |
| Internal Storage | SD card slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Communication | RS-485 |
| Remote Access | Web browser, PC VMS software (HikCentral/iVMS4200) |
| Interoperability | ONVIF, API, SDK |
| Power Supply | 24 VAC ± 25% 12 VDC ± 25% 24 VDC PoE (802.3af, class 3) |
| Power Consumption | 24 VAC ± 25%: 0.33A to 0.55A, max. 12.1W 12 VDC ± 25%: 0.8A to 1.33A, max. 11.3W PoE (802.3af, class 3): 36V to 57V, 0.33A to 0.21A, max. 11.8W |
| Operating Temperature | -40ºC~+70ºC, <95% RH |
| Protection Rating | IP67 waterproof NEMA 4X IK10 |
| Dimensions | 376.1mm ×119.1mm × 118.1mm |
| Weight | 1.82Kg |
The HM-TD2638-25/G0/T1Y thermal camera is perfect for deployment in industrial settings, such as warehouses or manufacturing plants, where monitoring for fire hazards and unauthorized access is critical. With its dual-spectrum capabilities, the camera can seamlessly switch between thermal and visible light modes, providing comprehensive surveillance coverage. Installers can easily set up the camera using the included connection box and configure it for remote monitoring via web interfaces or VMS software. The advanced intelligent analysis features allow for real-time alerts on temperature anomalies and intrusion detection, enhancing security measures. This camera's robust design, rated IP67 and IK10, ensures durability in harsh environments, making it an ideal choice for reliable security solutions.
Data sheet
