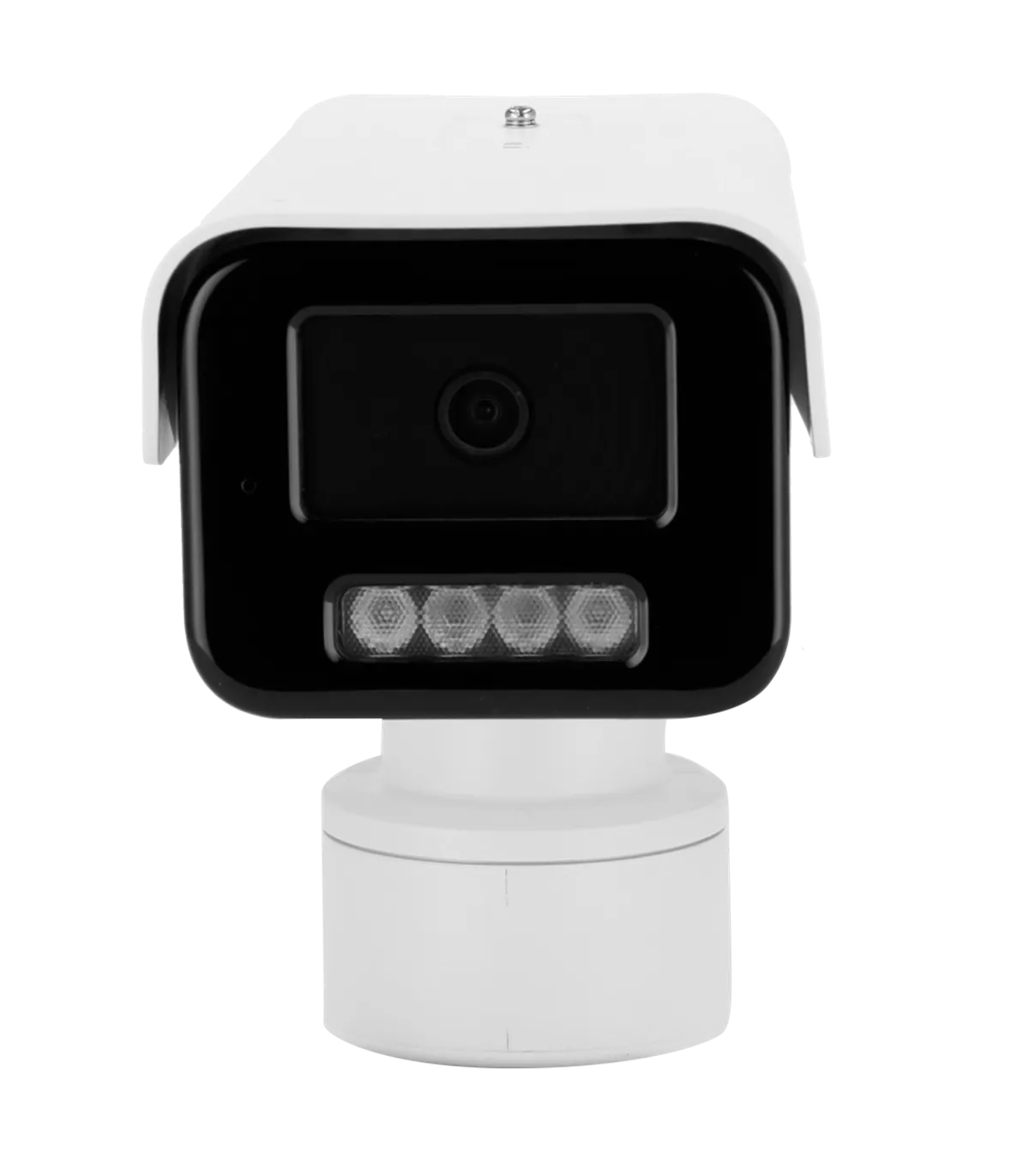

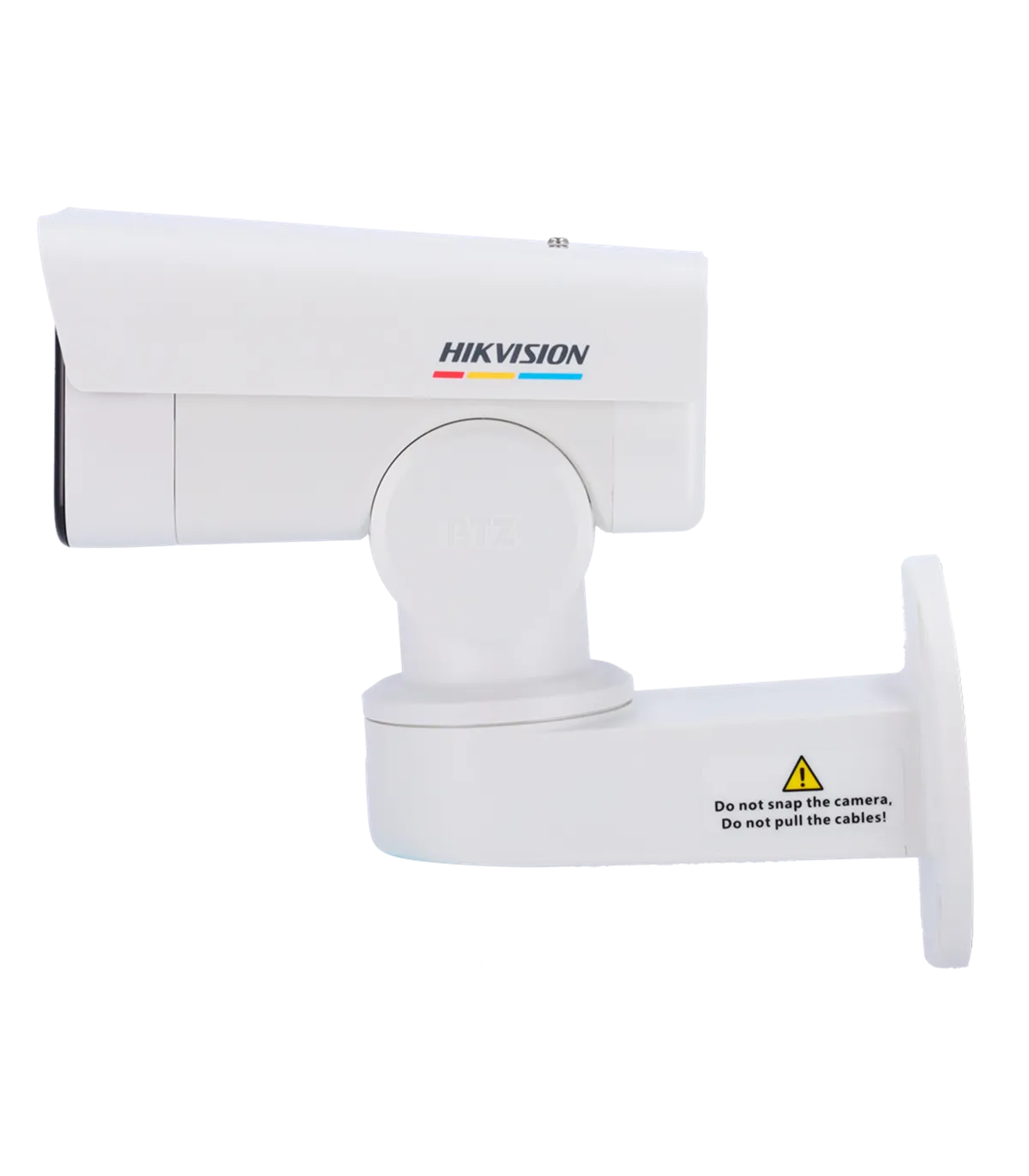

- Hikvision IP Bullet Camera
- Value Range
- 4 MP | 2.8 mm Lens | Pan and Tilt
- 30 m White Light | WDR 120 dB | Full Color Night Vision
- PoE | H.265+ | IP66 | Motion Detection 2.0
- WEB, CMS Software, Smartphone, and NVR
Description & Key Features: DS-2CD1P47G2-L(2.8mm)
The DS-2CD1P47G2-L(2.8mm) is a high-performance bullet IP camera designed for effective surveillance in various environments. With its advanced ColorVu technology, this camera provides vibrant color images even in low-light conditions, making it ideal for 24/7 monitoring. The device is equipped with a 4 Megapixel resolution, ensuring clear and detailed footage. Its robust features, including motion detection and WDR (Wide Dynamic Range), enhance its capability to capture critical details in challenging lighting situations.
- Hikvision
- Value Series
- Bullet PT IP Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- 2.8 mm Lens
- 0 Lux
- White light range 30 m
- ColorVu: color image 24 hours
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- WDR (120 dB)
- 3D-DNR
- WEB, CMS, Smartphone, and NVR interface
- ONVIF compatible
- PoE (IEEE802.3af)
- IP66 waterproof
Specifications: DS-2CD1P47G2-L(2.8mm)
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 96°, V: 52°, D: 113° |
| DORI | 64 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | ColorVu: color image 24 hours Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with white light range 30 m |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AWB, ROI, Privacy masking |
| Pan-Tilt Movement | Pan: -100° to 100° Tilt: -20° to 45° |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 910 mA / 11 W max. / PoE IEEE802.3af |
| Protection Rating | IP66 waterproof |
| Material | Front cover: Metal Body: Plastic Bracket: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 197.1 mm (H) x 105 mm (W) x 225.4 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 900 g |
Package Contents
- Hikvision Value IP Bullet Camera
- Installation materials
- User manual
Use Case
The DS-2CD1P47G2-L(2.8mm) is ideally suited for installation in retail stores, parking lots, and residential areas where continuous surveillance is essential. With its remote monitoring capabilities, users can access live feeds via a web browser or smartphone app, ensuring peace of mind from anywhere. The camera's motion detection feature, enhanced by human and vehicle classification, allows for precise alerts, reducing false alarms. Additionally, the IP66 waterproof rating ensures durability in various weather conditions, making it a reliable choice for outdoor applications. The ColorVu technology guarantees clear color images even at night, while the WDR functionality effectively manages challenging lighting scenarios. This combination of features makes the DS-2CD1P47G2-L(2.8mm) an excellent solution for comprehensive security needs.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- No dispone
- SD Slot
- No dispone
- Wi-Fi
- No dispone
- IP Rating
- IP66
- IK Rating
- No dispone
- Series
- VALUE
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
Specific References
- EAN13
- 6931847179687
