Hikvision 4X IP Motorized Dome DS-2DE2A404IW-DE3(C0)(S6)(C)

Brand: HIKVISION VALUE

DS-2DE2A404IW-DE3(C0)(S6)(C)

New product

  • Hikvision 4X Motorized IP Dome
  • Value Range
  • 4 MP | Motorized Lens 2.8~12 mm | Pan & Tilt
  • IR 20 m | WDR 120 dB | Built-in Microphone
  • PoE | H.265+| IP66 | IK10 | Audio and Alarm
  • WEB, CMS Software, Smartphone, and NVR

More details

212,80 €

- +


Overview

Hikvision 4X IP Motorized Dome DS-2DE2A404IW-DE3(C0)(S6)(C)

  • Hikvision
  • Value Range
  • Ultra Low Light PTZ IP Camera Powered by DarkFighter
  • Half speed 100º/second
  • Optical zoom 4X
  • 1/2.8" Progressive Scan CMOS
  • 4 Megapixel (2560x1440)
  • Motorized varifocal lens 2.8~12 mm
  • IR Range 20 m
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100 BaseT
  • Face Detection
  • IR CUT
  • WDR (120 dB)
  • 3D-DNR
  • microSD card slot up to 256GB
  • Audio
  • PoE 802.3af
  • WEB interface, CMS, Smartphone and NVR
  • Compatible with ONVIF
  • Waterproof IP66
  • Vandal-resistant IK10
  • Surge protection

Technical specifications

BrandHIKVISION
RangeValue
Image Sensor1/2.8“ Progressive Scan CMOS
Maximum resolution4 Megapixel (2560x1440)
Main stream rate25 fps (2560x1440, 1920x1080, 1280x960, 1280x720)
Extra stream rate25 fps (704x576, 640x480, 352x288)
Third Stream Rate25 fps (704x576, 640x480, 352x288)
Minimum IlluminationUltra Low Light (Powered by DarkFighter)
Color: 0.005 Lux @ (F1.5, AGC ON)
Black and white: 0.001 Lux @ (F1.5, AGC ON) / 0 lux with IR LEDs range 20 m
CompressionH.265+/ H.265 / H.264+/ H.264
OpticsMotorized varifocal 2.8~12 mm (4X optical zoom)
Angle of view (FOV)96.7~31.6º (H), 51.1~17.7º (V), 115.1~36.3º (D)
DORI180 m (D), 71.4 m (W), 36 m (R), 18 m (L)
Digital zoom16X
Electronic shutter1/1s~1/30,000 s
Day / NightRemovable ICR mechanical filter
Image improvementsWDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, Mirror Function, Privacy Masking, ROI
ANRYes
Motion DetectionYes
Smart FeaturesFace Detection
Pan/Tilt RangeHorizontal: 0~355°, Vertical: 0°~90°
Manual speedHorizontal: 0.1~100 °/s, Vertical: 0.1~100 °/s
Speed ​​between PresetsHorizontal: 100°/s, Vertical: 100°/s
Preset positions300 preset
Storage internal MicroSD card slot up to 256 GB
Audio1 input (Line In) / 1 output (Line Out)
Compression audioG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio bit rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
AlarmsNot available
PTZ controlThrough network access
Remote accessWeb browser, Smartphone App Hik-Connect, iVMS-4200 PC Software and Hik-Central
InteroperabilityONVIF, ISAPI
PowerDC 12 V / 9.2W max / PoE IEEE802.3af
Temp. operation-20º C ~ +60º C
Degree of protectionWaterproof IP66 / Vandal-proof IK10 / Surge 4000 V
Dimensions (without support)Ø 130.7 mm x 101.7 mm (H)

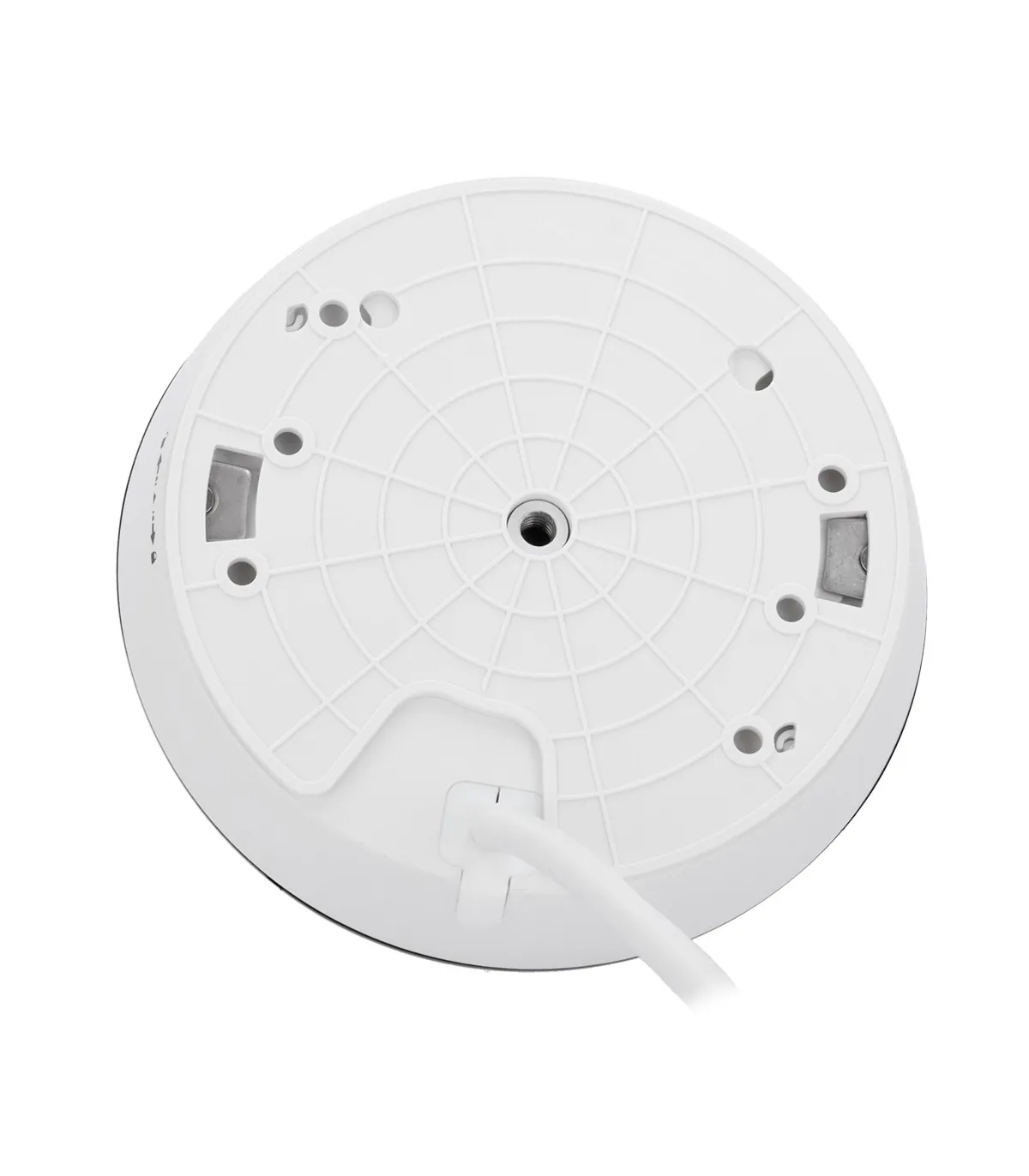

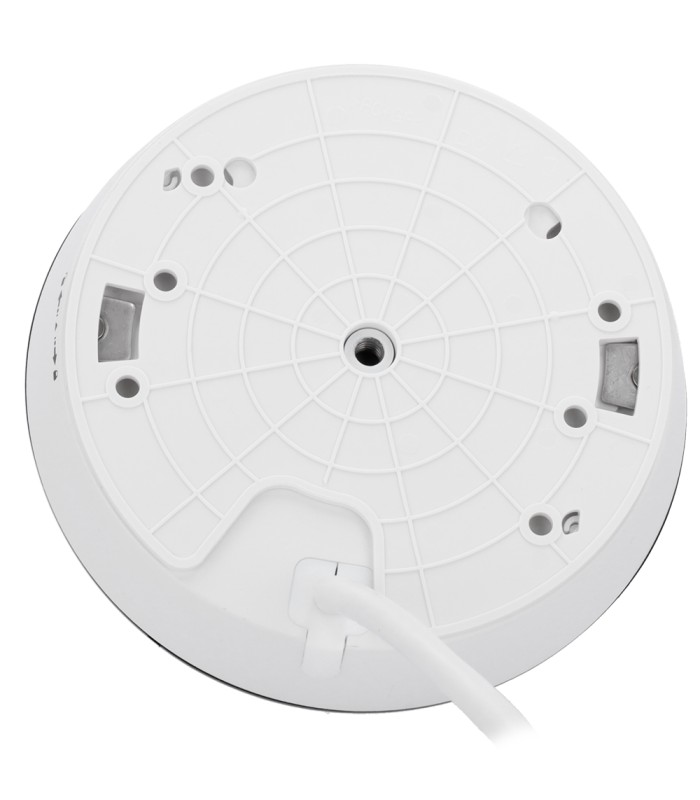

Base dimensionsbase Ø 120 mm / Ø between screws 96 mm / 4 screws
Weight (without stand)530 g

Contents

  • Hikvision motorized dome IP camera
  • Installation material
  • Installation template

Data sheet
Brand Hikvision
Type of camera Dome
Max. Resolution 4 Megapixel
Technology IP
PoE powered PoE
