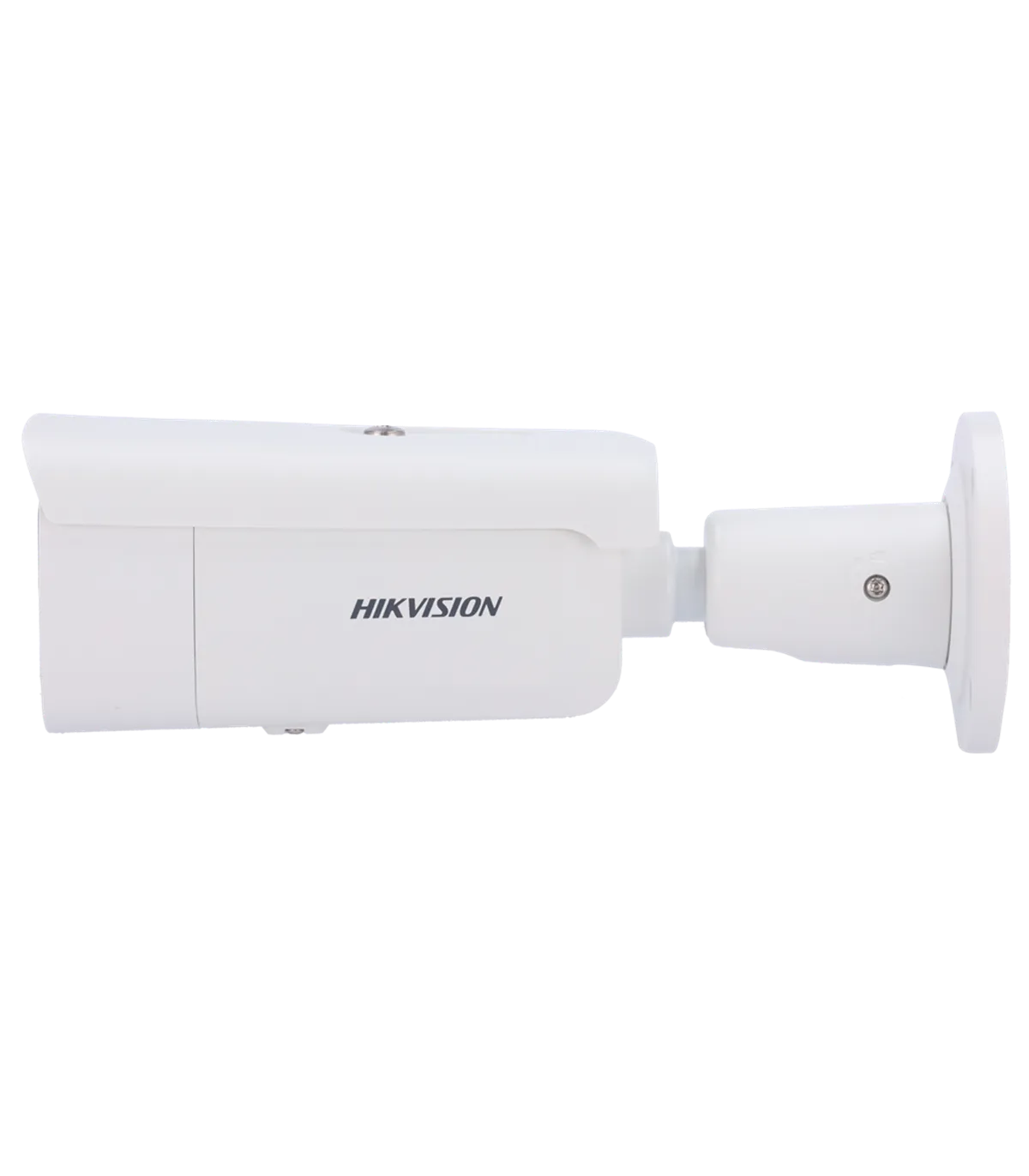

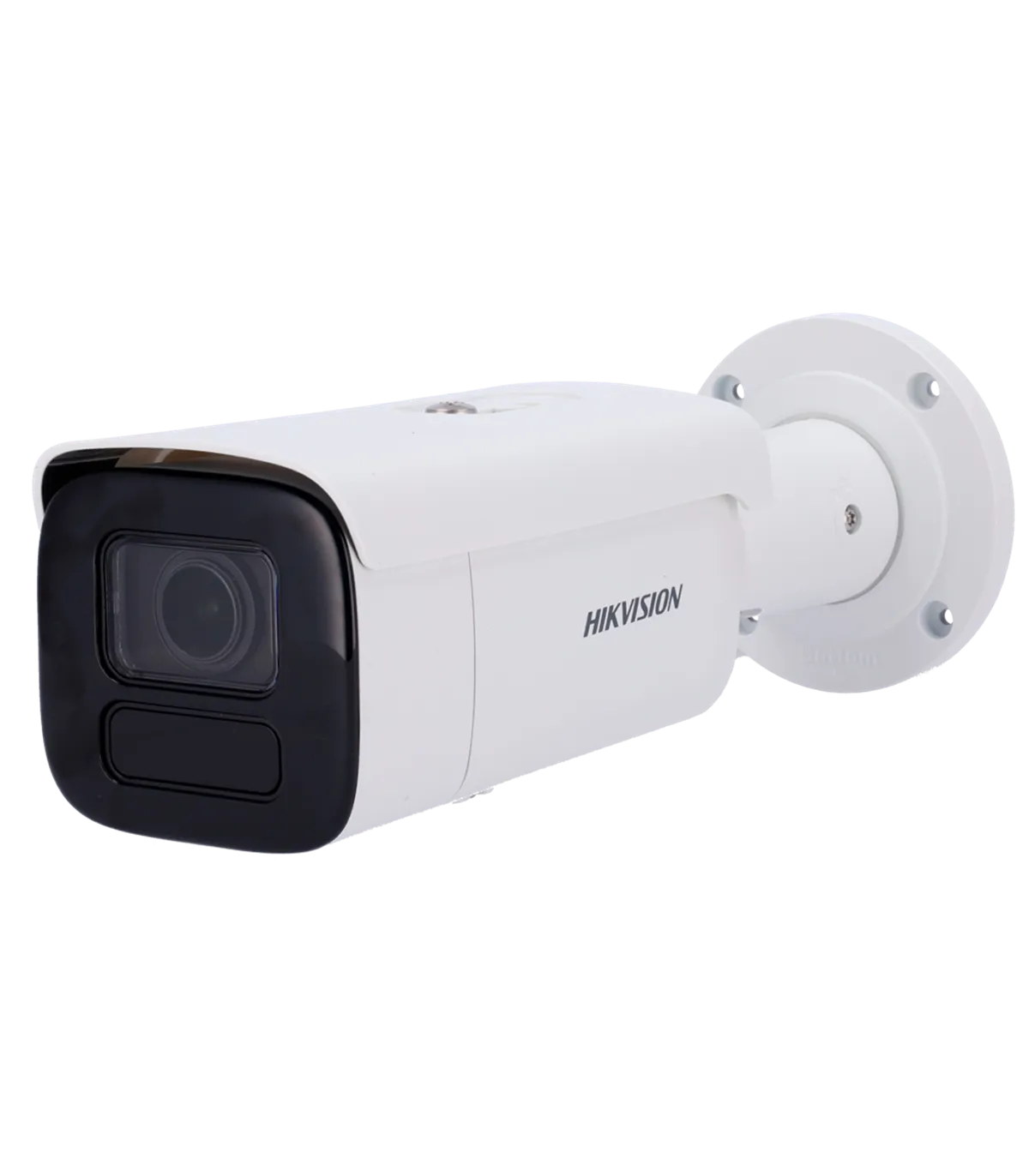

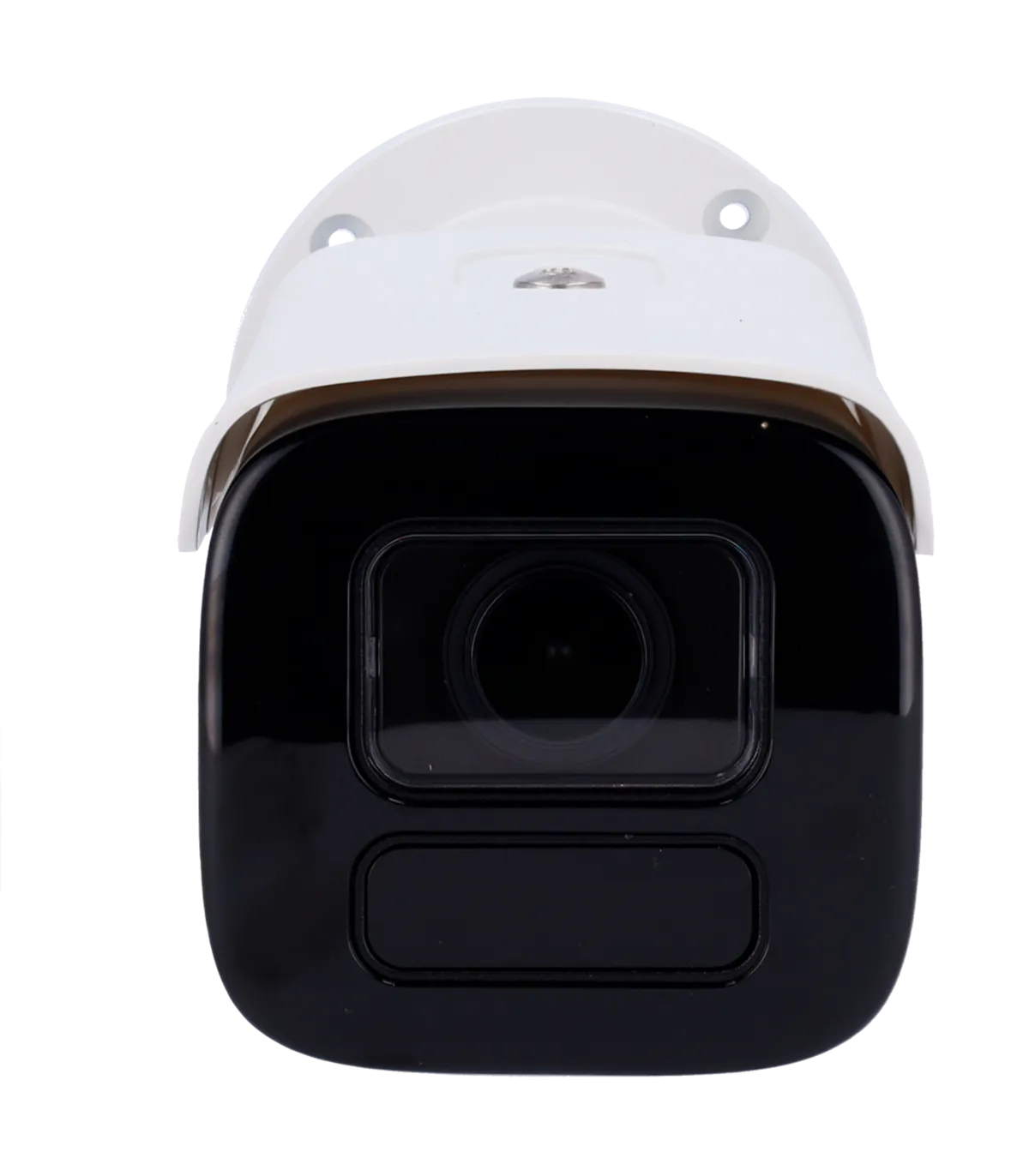

The DS-2CD2646G2T-IZSY(2.8-12mm)(C) is a high-performance IP Bullet Camera designed for outdoor surveillance. It excels in low-light conditions, making it ideal for monitoring areas such as parking lots, building perimeters, and other critical locations. This camera features advanced motion detection capabilities and is equipped with a varifocal motorized lens, allowing for flexible installation and precise field of view adjustments. With its robust construction and weatherproof design, it ensures reliable performance in various environmental conditions.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 108~30°, V: 56~17°, D: 131~35° |
| DORI | 64~190 m (D), 25.4~75.4 m (O), 12.8~38 m (R), 6.4~19 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.003 Lux @(F1.4, AGC ON) 0 Lux with IR range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror function, Privacy masking |
| ANR | Yes |

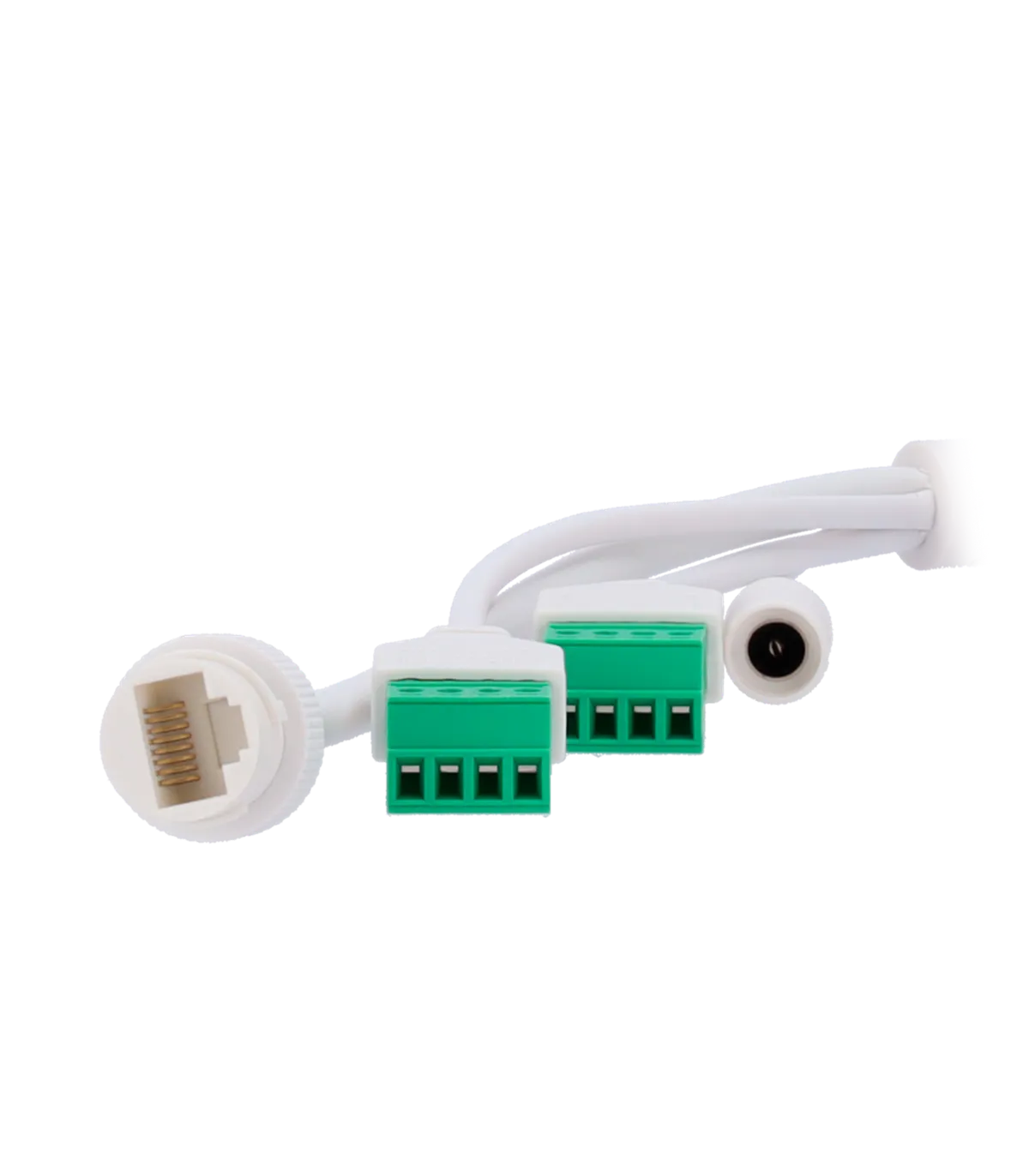

| Alarms | 1 input / 1 relay |
| Audio | 1 input / 1 output |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |

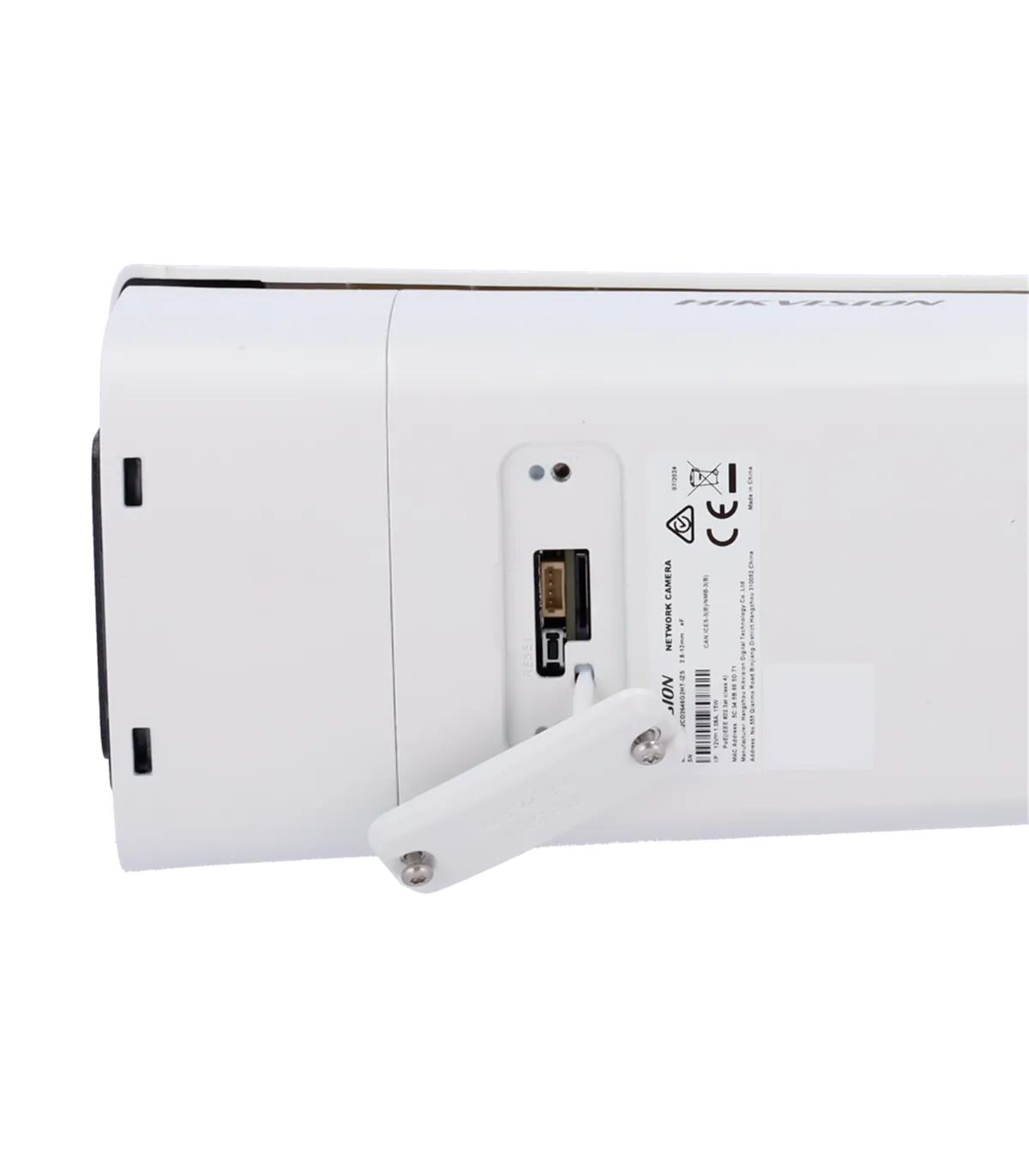

| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 1080 mA / 13 W max. / PoE+ IEEE802.3at |
| Protection Rating | IP67 waterproof, IK10 vandal-proof, corrosion protection |
| Material | Japanese aluminum alloy |
| Corrosion Protection | NEMA 4X (NEMA 250-2018) |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 105 mm (H) x 105 mm (W) x 297.9 mm (D) |

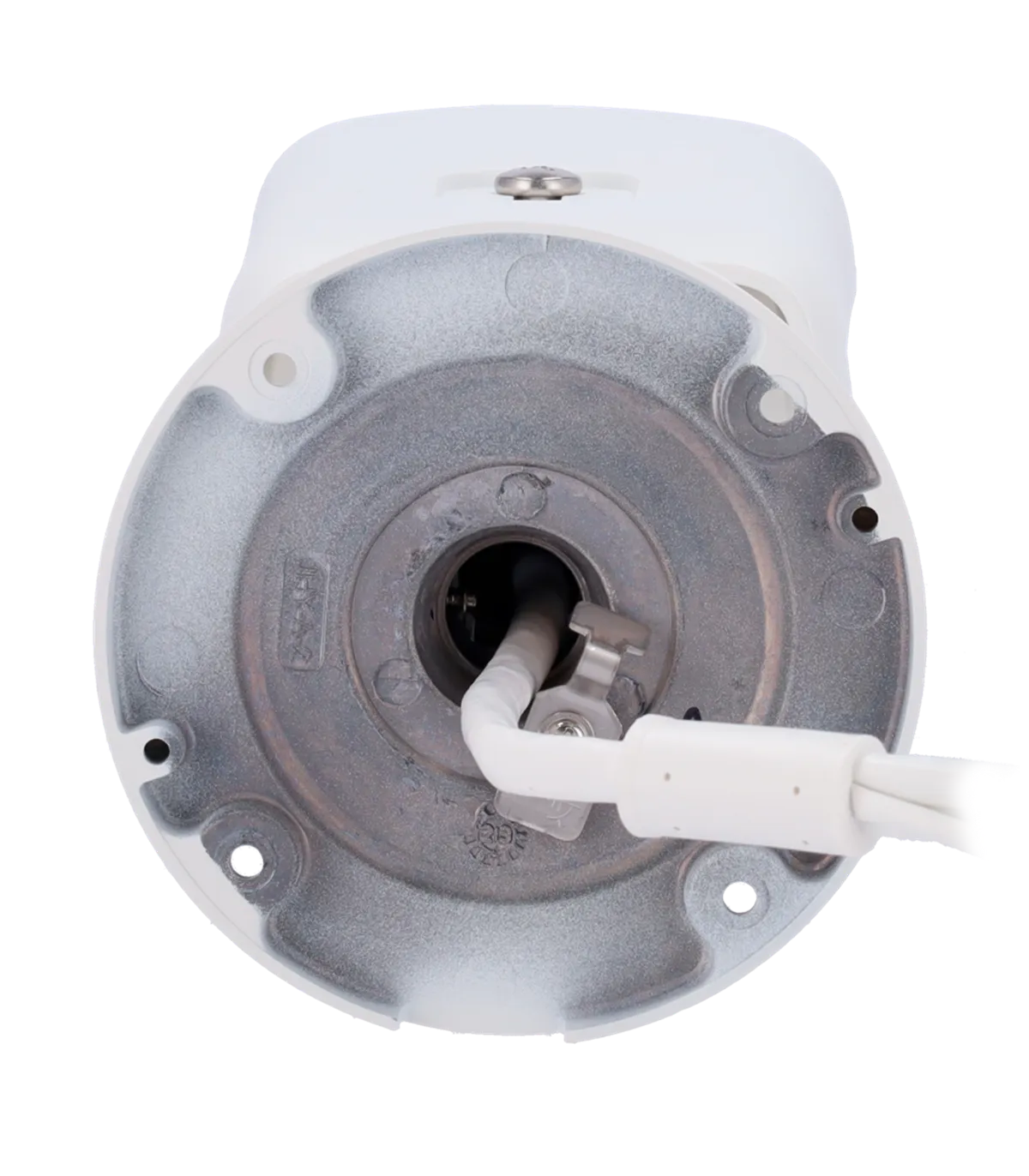

| Base Dimensions | Ø base 105 mm / Ø screw spacing 89 mm / 4 screws |
| Weight | 1355 g |
The DS-2CD2646G2T-IZSY(2.8-12mm)(C) is ideally suited for a variety of surveillance applications, particularly in commercial and industrial settings. For instance, a retail store can deploy this camera at entry points to enhance security monitoring and deter theft. With its low-light capabilities, the camera can effectively capture clear images even in dimly lit environments, ensuring comprehensive coverage around the clock. The motorized varifocal lens allows installers to easily adjust the field of view, providing flexibility in positioning the camera to cover critical areas. Additionally, the integration of AcuSense technology significantly reduces false alarms by accurately distinguishing between human and vehicle movements, making it an excellent choice for busy locations. Furthermore, the camera's remote access features enable users to monitor live feeds from anywhere, enhancing overall situational awareness and response times.
