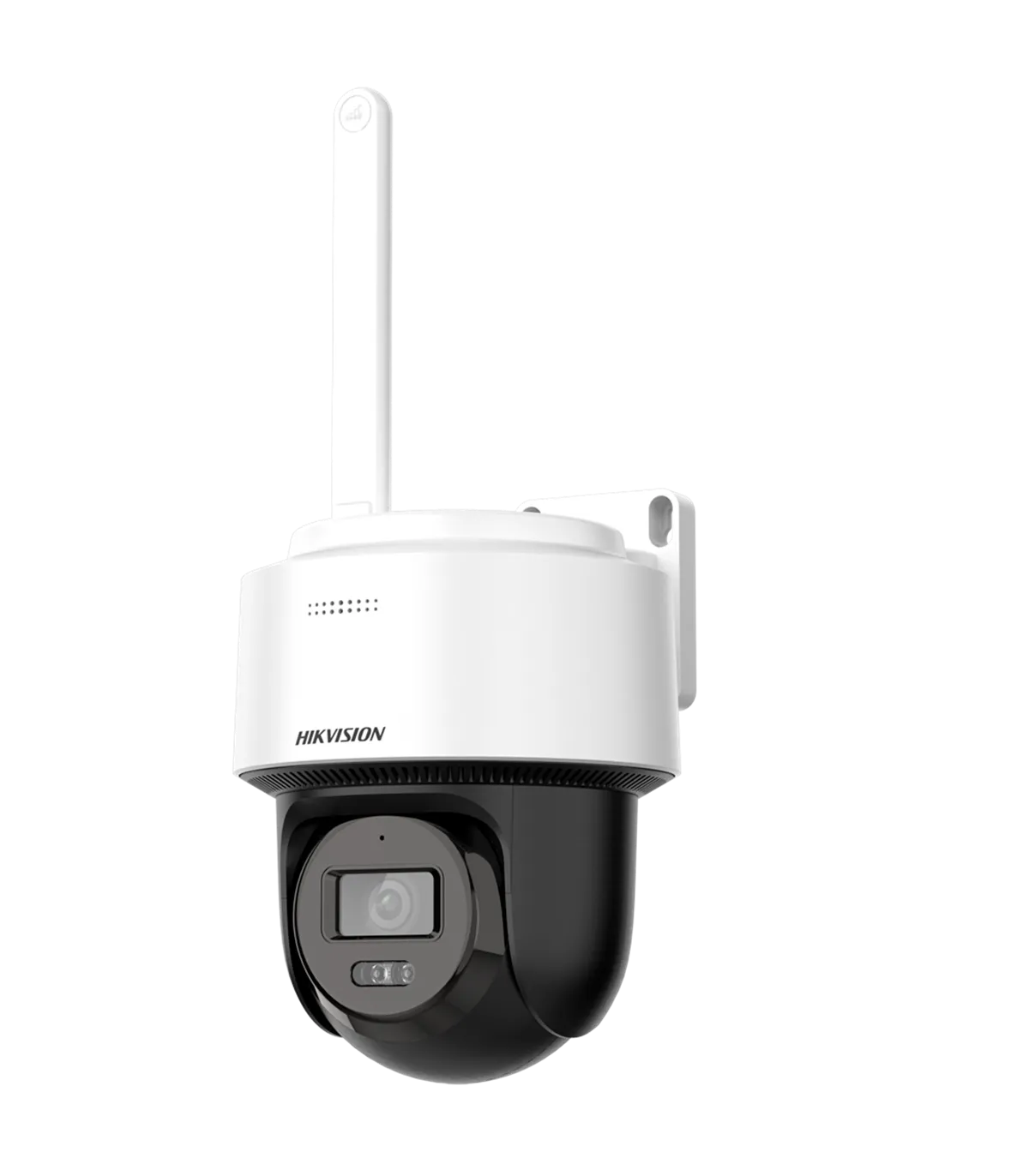

The DS-2DE2C400MWG-4G(2.8mm) is a high-performance IP PTZ camera designed for versatile surveillance applications. With its 4 Megapixel resolution and hybrid lighting capabilities, this camera is ideal for both indoor and outdoor environments, providing clear images in various lighting conditions. The device supports remote monitoring through web interfaces and mobile applications, making it suitable for users seeking advanced security solutions. Its robust features, including motion detection and ONVIF compatibility, ensure seamless integration into existing security systems.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/2.9“ Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 25 fps (2560x1440, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (768x432) |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) 0 lux with IR |
| Supplementary Lighting | Hybrid light: IR and white light IR range: 30 m White light range: 30 m |
| Compression | H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Fixed lens 2.8 mm |
| Field of View (FOV) | 94º (H), 49º (V), 114º (D) |
| DORI | 68~100 m (D), 27~39 m (O), 13~20 m (R), 6~10 m (I) |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror effect, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Pan/Tilt Range | Horizontal: 0~345°, Vertical: 0~80° |
| Manual Speed | Horizontal: up to 25 °/s, Vertical: up to 20 °/s |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated microphone and speaker |
| Audio Type | Mono |
| Audio Compression | G.711/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Alarms | Not available |
| PTZ Control | Via network access |
| Network Interface | Ethernet 10 / 100 BaseT |
| Communication Interface | Nano SIM 4G (LTE-FDD, LTE-TDD) |
| 4G Frequency | LTE-FDD: B1/3/5/7/8/20/28 |
| Upload and Download Data Rate | Upload: 5.1 Mbps Download: 10.3 Mbps |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 750 mA / 9 W max. |
| Operating Temperature | -30º C ~ +40º C |
| Material | Plastic |
| Protection Grade | IP66 |
| Dimensions (without mount) | 164 (L) mm x 131.9 mm (W) x 312.6 mm (H) |
| Weight (without mount) | 600 g |
The DS-2DE2C400MWG-4G(2.8mm) is particularly well-suited for deployment in urban environments where comprehensive surveillance is essential. For instance, a shopping mall can utilize this camera to monitor entrances and exits, ensuring the safety of patrons and staff. With its 4 Megapixel resolution, the camera captures detailed images, even in low-light conditions, thanks to its hybrid lighting feature. The remote monitoring capability allows security personnel to access live feeds from their smartphones or computers, enhancing situational awareness. Additionally, the motion detection technology can alert security teams to potential threats, allowing for rapid response. The camera's IP66 waterproof rating ensures durability in various weather conditions, making it an ideal choice for outdoor installations. Overall, the DS-2DE2C400MWG-4G(2.8mm) provides a reliable and efficient solution for modern security needs.
