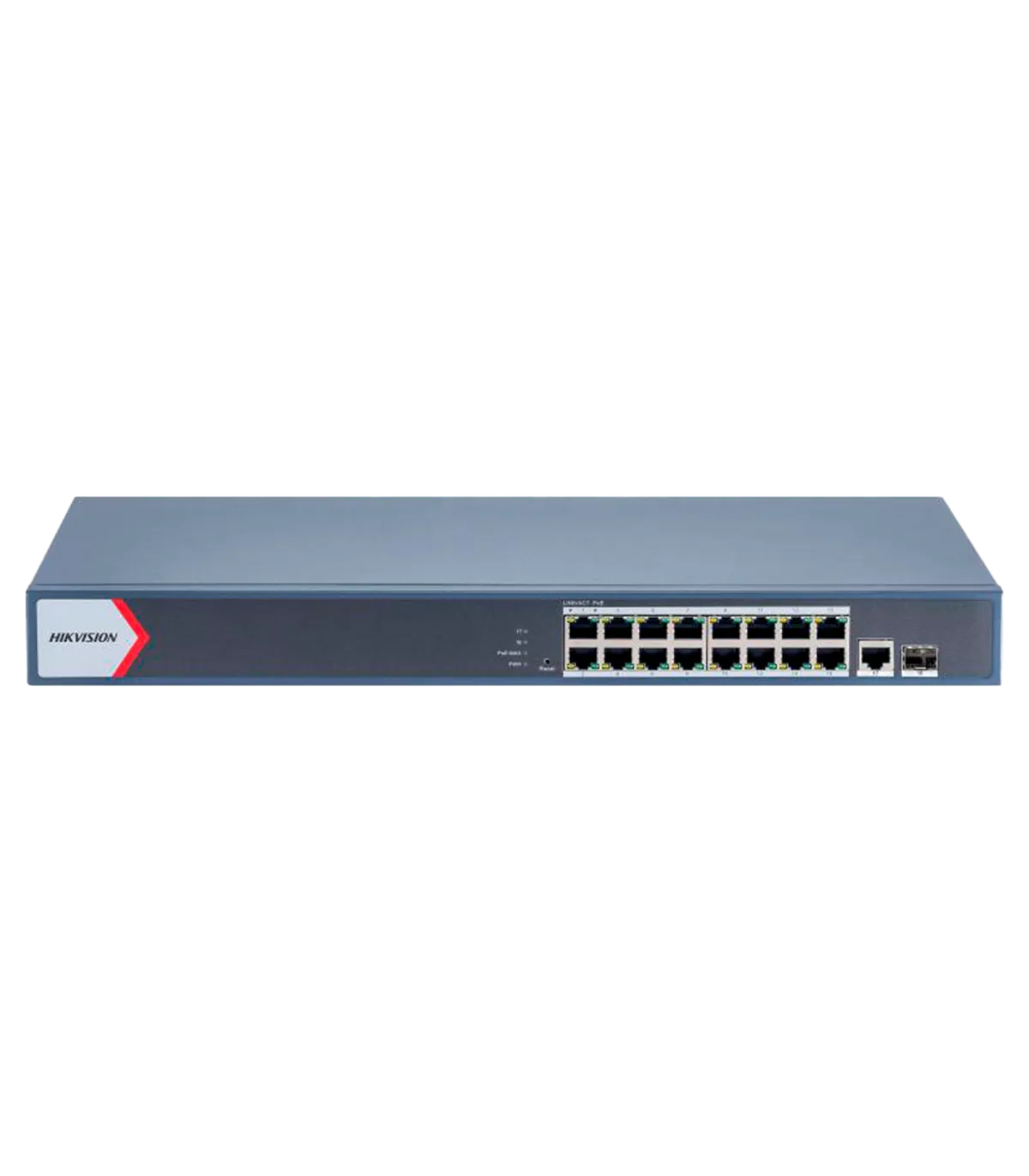

The DS-3E1518P-EI/M is a sophisticated managed switch designed for seamless integration into modern electronic security systems. Ideal for environments requiring robust Power over Ethernet (PoE) capabilities, this device supports up to 16 PoE+ ports, making it perfect for powering IP cameras and other network devices. With features like PoE watchdog and intelligent PoE management, it ensures reliable operation and minimizes downtime.
| Interfaces | 16 PoE RJ45 10/100/1000 Mbps + 1 Gigabit RJ45/SFP combo port |
| PoE Features | Up to 30W on ports 1-16 802.3af/at Up to 130W total PoE power Pinout ports 1-16 1,2,7,8- / 3,6,4,5+ |
| PoE Functionalities | Extended PoE ports 1-16 up to 300 meters at 10Mbps Port Isolation for ports 1-16 PoE Watchdog for ports 1-16 resets cameras if unresponsive VIP ports 1-8 prioritize these ports when bandwidth is insufficient |
| L2 Functionalities | Static link aggregation (1 group) Loop prevention protocols (802.1D STP and 802.1w RSTP) VLAN (Max. 4094) 802.1Q Tag 802.1ab LLDP DHCP Client Port Mirroring |
| HikPartner Pro Functionalities | Supports one-click remote management via Hik Partner Pro (Supported functions) 1. View port speed. 2. View port bandwidth utilization rate. 3. Display PoE power usage. 4. Show network topology information. 5. View alarm status. 6. Restart ports and devices. 7. Enable extended mode for ports. 8. Remotely update the device. |
| Management | Web management Management via Hik-Central Pro Management via Hik-Partner Pro. |
| MAC Table | 16K |
| Bandwidth | 9.2Gbps |
| Forwarding Rate | 6.84Mbps |
| Internal Cache | 4 Mbits |
| Installation | Rack, Desktop, Wall-mounted |
| Surge Protection | 6kV |
| Power Supply | AC 100 ~240, 50/60Hz, Max 4A |
| Operating Temperature | 0º C ~ 45º C |
| Consumption | Standby 20W / With PoE 250W |
| Dimensions | 220 (L) x 44.5 (H) x 440 (W) mm |
| Weight | 2.59Kg |
The DS-3E1518P-EI/M is ideally suited for deployment in surveillance systems within commercial buildings, educational institutions, and industrial facilities. For instance, in a corporate office, this managed switch can connect multiple IP cameras, ensuring that each camera receives adequate power through its PoE+ ports. The PoE watchdog feature automatically resets any unresponsive cameras, maintaining continuous surveillance without manual intervention. Additionally, the extended PoE functionality allows for camera placement up to 300 meters away, providing flexibility in installation. With remote management capabilities via Hik Partner Pro, network administrators can monitor bandwidth utilization and energy consumption in real-time, optimizing network performance. This switch not only enhances security but also simplifies network management, making it an essential component for any modern security infrastructure.
