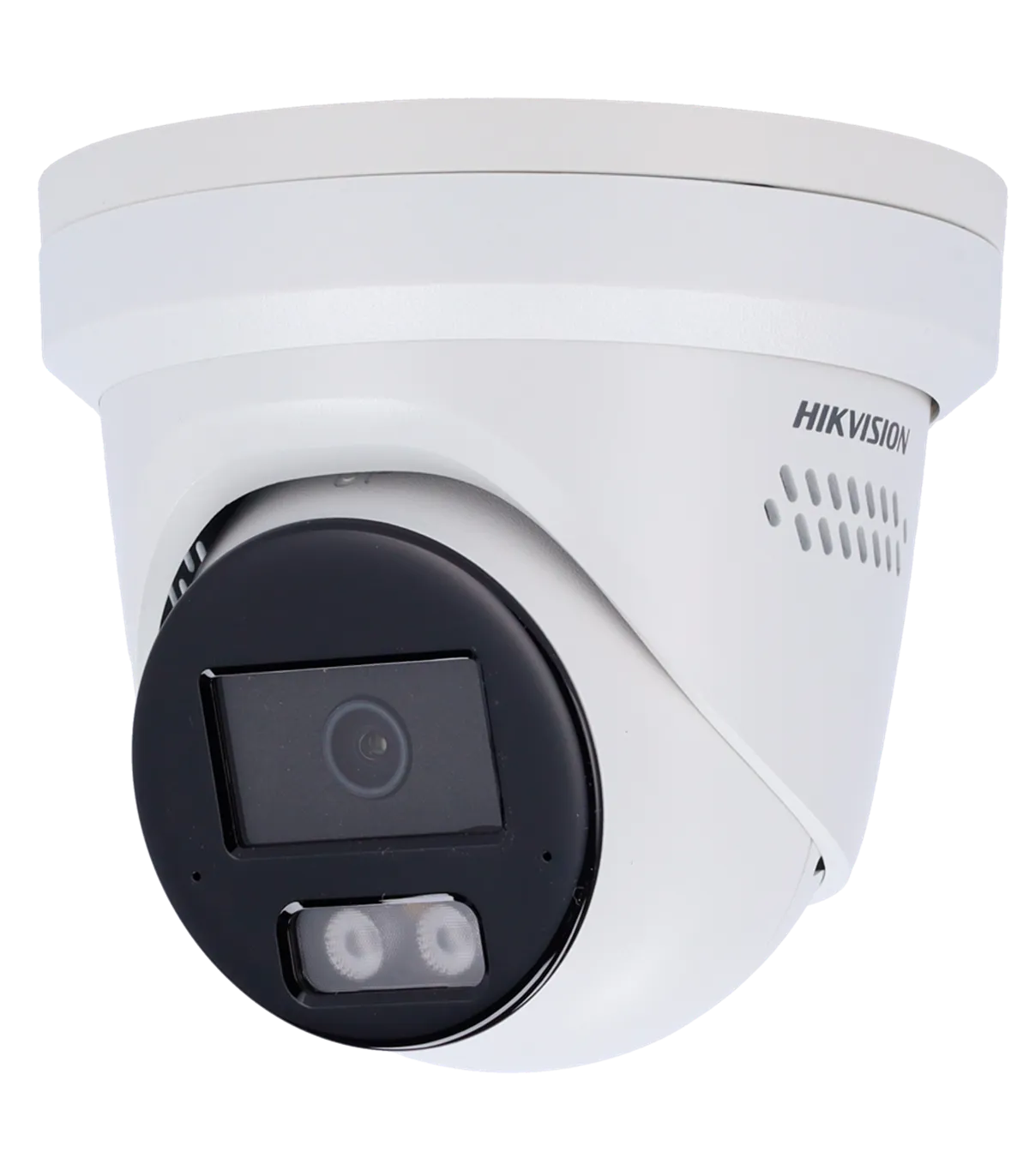

The DS-2CD2346G2H-IS2U/SL(2.8mm)(eF) is a high-performance IP turret camera designed for advanced surveillance applications. With its 4 Megapixel resolution and 30m IR range, this camera is ideal for monitoring both indoor and outdoor environments. It features intelligent detection capabilities, including motion detection and AcuSense technology, which significantly reduces false alarms. This makes it a perfect fit for security installations in commercial and residential settings.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640x360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 100°, V: 55°, D: 120° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and white light flash in the camera |
| Audio | 1 input / 1 output 2 Integrated microphones and speaker |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0 and AcuSense cannot be enabled simultaneously. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0 and AcuSense cannot be enabled simultaneously. |
| Facial Recognition | Face Capture * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1340 mA / 16 W max. PoE+ IEEE802.3at |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm x 115.4 mm (H) |
| Base Dimensions | Ø base 138.3 mm / Ø between screws 96 mm / 4 screws |
| Weight | 780 g |
The DS-2CD2346G2H-IS2U/SL(2.8mm)(eF) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its high-resolution imaging and 30m IR range, it ensures clear visibility even in low-light conditions. The motion detection feature, enhanced by AcuSense technology, allows for precise monitoring of customer movements while minimizing false alarms. Additionally, the integrated audio capabilities enable two-way communication, enhancing security measures. This camera's remote access functionality allows security personnel to monitor live feeds from anywhere, ensuring a proactive approach to security management. Overall, the DS-2CD2346G2H-IS2U/SL(2.8mm)(eF) provides a robust solution for effective surveillance and security management.
