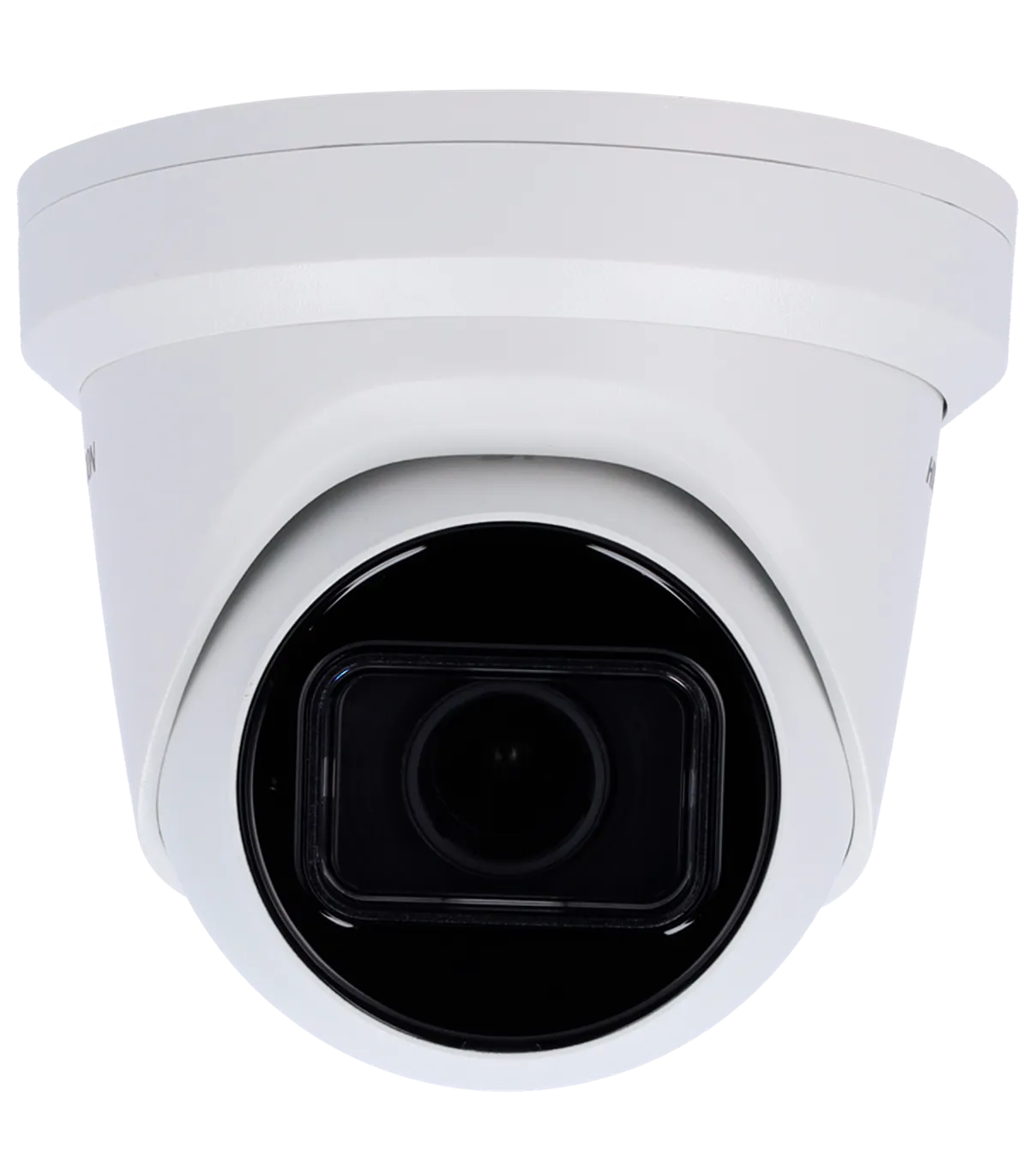

The DS-2CD2H83G2-IZS(2.8-12mm) is a high-performance IP turret camera designed for advanced surveillance applications. With its 8 Megapixel resolution, this camera is ideal for environments requiring detailed monitoring, such as retail stores, parking lots, and public spaces. The device features a motorized varifocal lens, allowing for flexible installation and precise field of view adjustments. Its robust design includes IP67 weatherproofing and IK10 vandal resistance, making it suitable for both indoor and outdoor use. The camera also incorporates AcuSense technology for enhanced motion detection, significantly reducing false alarms.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 108~30°, V: 56~17°, D: 131~35° |
| DORI | 97~290 m (D), 38~115 m (O), 19~58 m (R), 9~29 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 256 GB |
| Alarms | 1 input / 1 relay |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 920 mA / 11.04 W max. / PoE IEEE802.3af |
| Protection Grade | Weatherproof IP67, vandal-proof IK10 |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm x 126 mm (H) |
| Base Dimensions | Ø base 13803 mm / Ø between screws 96 mm / 4 screws |
| Weight | 830 g |
The DS-2CD2H83G2-IZS(2.8-12mm) is perfectly suited for deployment in various environments, such as shopping malls, schools, and transportation hubs. Installers can leverage its motorized varifocal lens to easily adjust the field of view during installation, ensuring optimal coverage of critical areas. The camera's high-resolution imaging capabilities allow for clear identification of individuals and vehicles, enhancing security measures. With features like remote monitoring through the Hik-Connect app, users can access live feeds and recorded footage from anywhere, providing peace of mind. The AcuSense technology significantly reduces false alarms, allowing security personnel to focus on genuine threats. Additionally, the camera's robust IP67 rating ensures reliable performance in harsh weather conditions, making it a versatile choice for outdoor surveillance.
