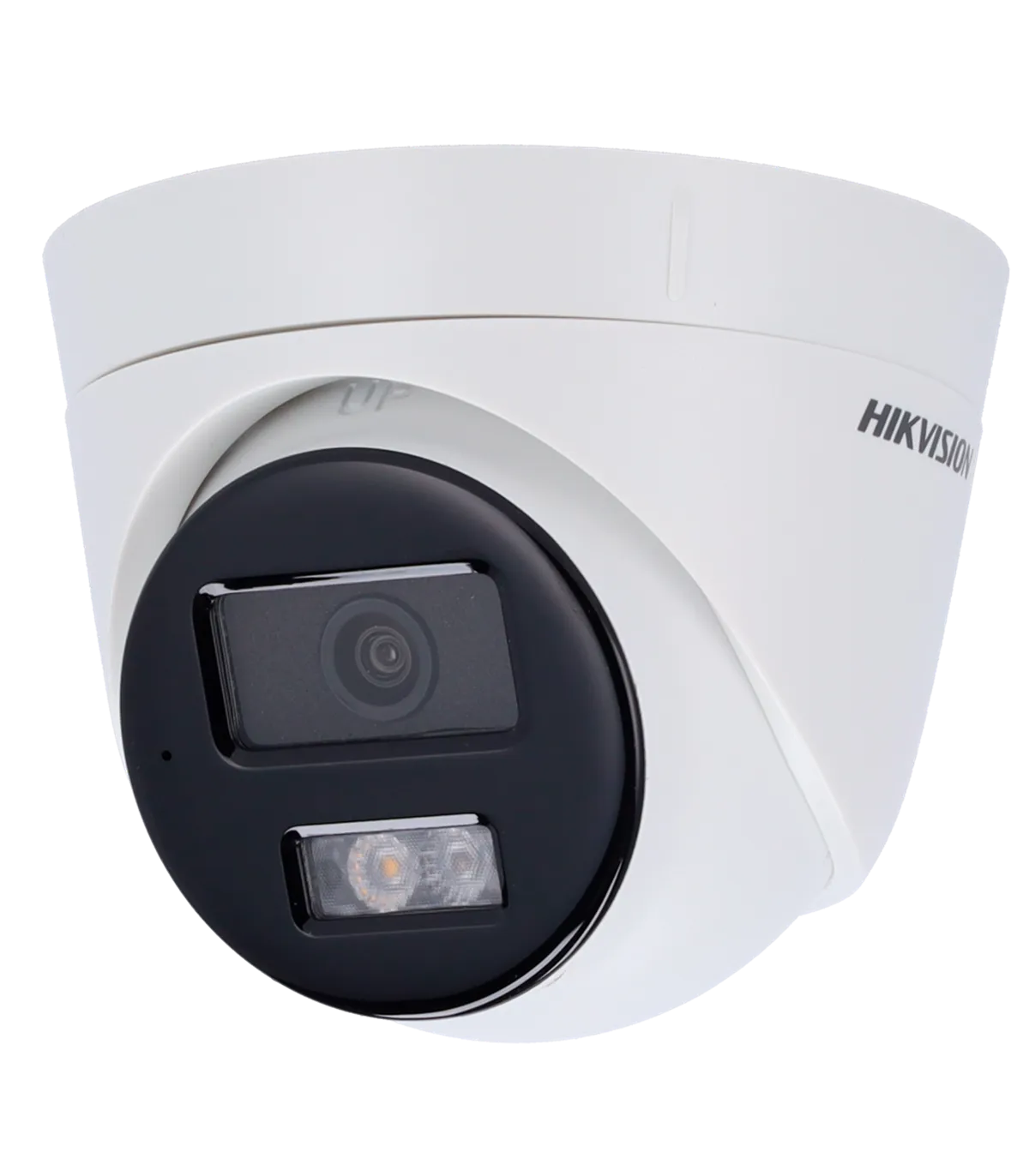

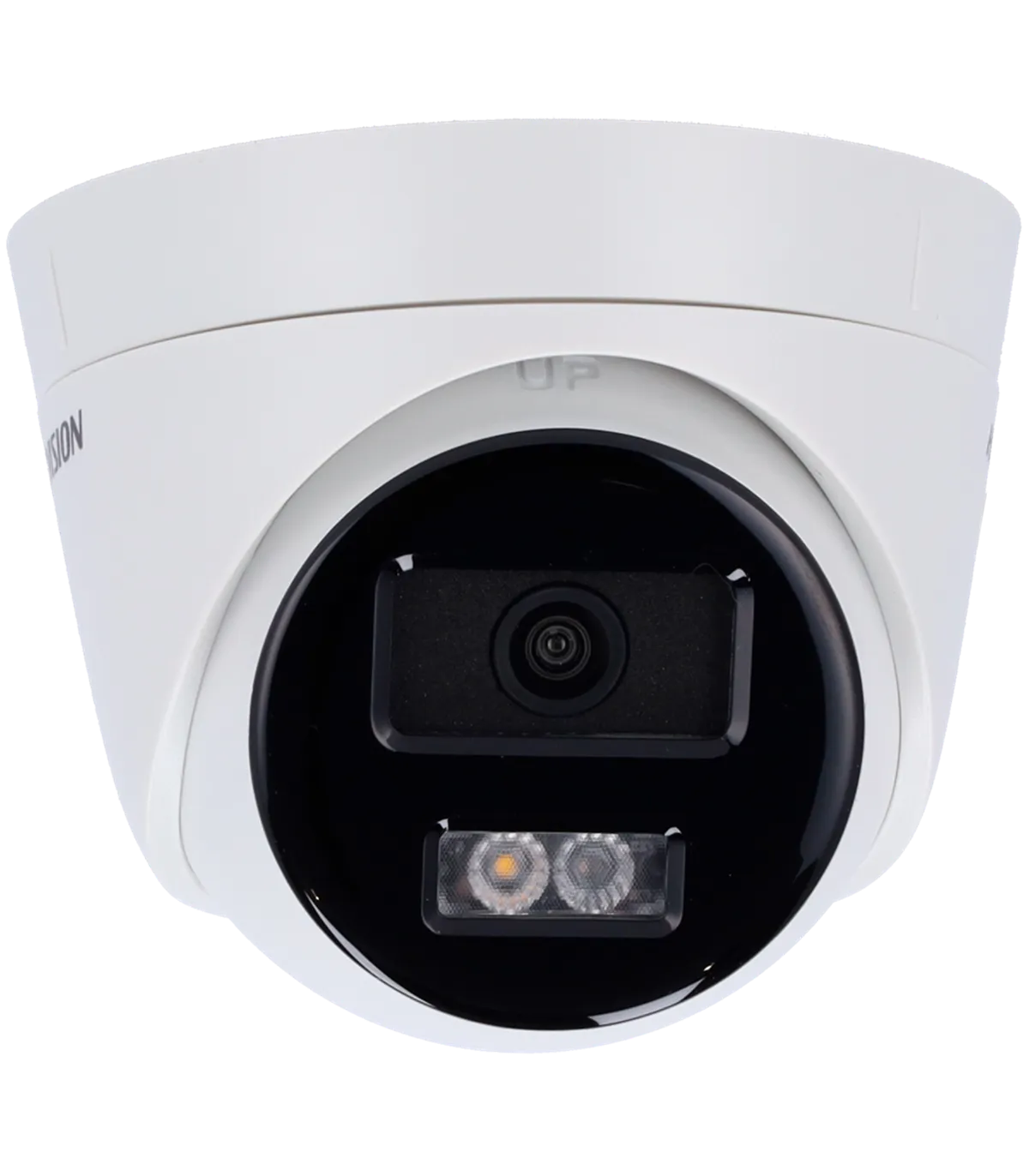

The DS-2CD1323G2-LIU(2.8mm) is a high-performance IP turret camera designed for effective surveillance in various environments. With its 2 Megapixel resolution and advanced features, it is ideal for both indoor and outdoor applications, providing clear images even in low-light conditions. This camera is equipped with a hybrid light system that combines infrared and white light, ensuring visibility up to 30 meters. Its compatibility with ONVIF standards allows for seamless integration into existing security systems, making it a versatile choice for enhancing security.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 103°, V: 56°, D: 121° |
| DORI | 45 m (D), 18 m (O), 9 m (R), 4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 30 m White Light Range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T), ISAPI, SDK |
| Power Supply | DC 12 V / 400 mA / 5 W max. PoE IEEE802.3af, Class 3, 6.5 W max. |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 x 89.2 mm (H) |

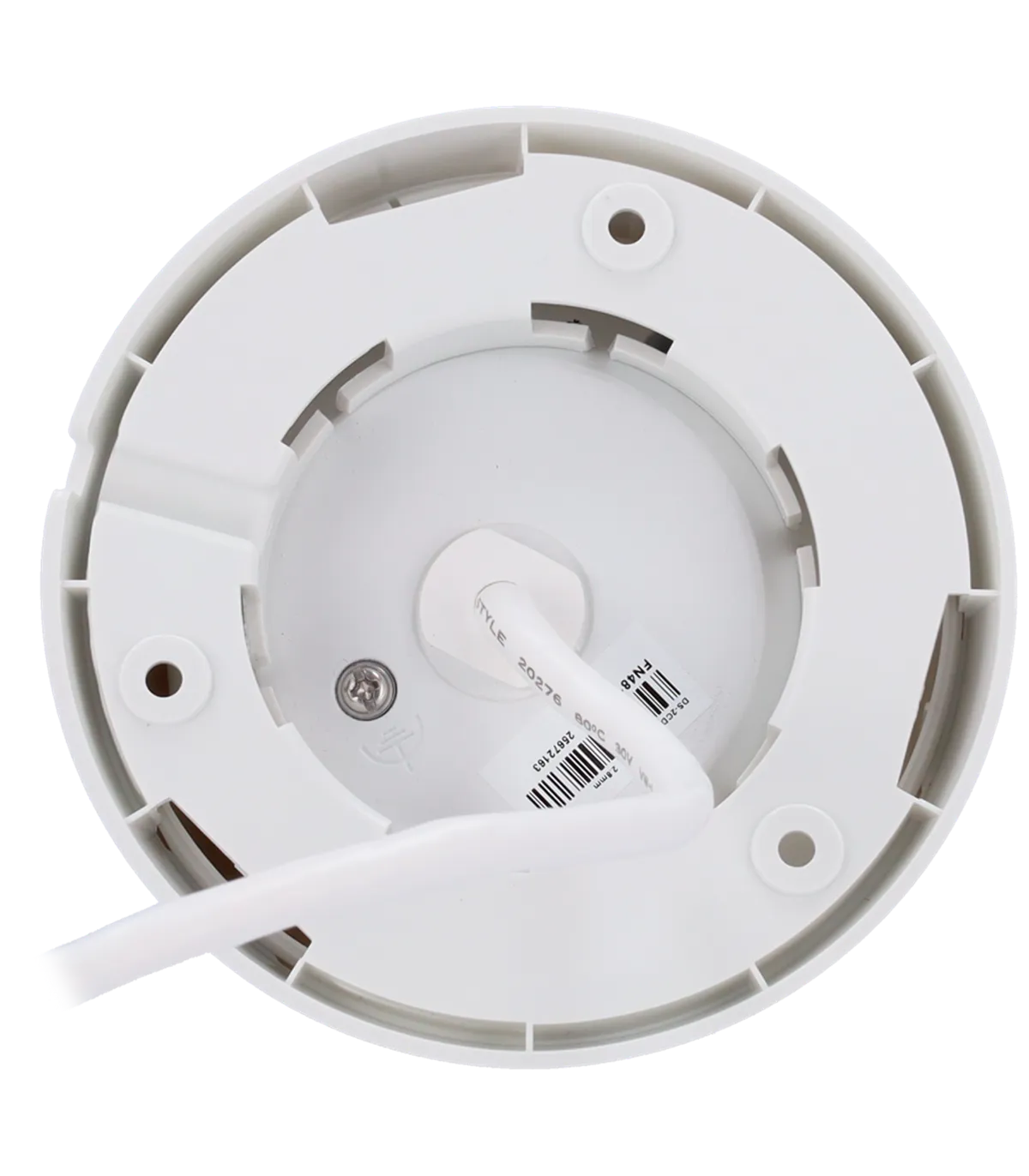

| Base Dimensions | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 340 g |
The DS-2CD1323G2-LIU(2.8mm) is an excellent choice for both residential and commercial security installations. For instance, a retail store can utilize this camera to monitor entrances and exits, ensuring a secure environment for customers and staff. With its remote monitoring capabilities, store managers can access live feeds via the Hik-Connect app, allowing for real-time surveillance from anywhere. The camera's motion detection feature, enhanced with human and vehicle classification, minimizes false alarms and ensures that only relevant events are flagged. Additionally, the IP67 waterproof rating makes it suitable for outdoor use, providing reliable performance in various weather conditions. The integrated microphone allows for audio monitoring, adding another layer of security. Overall, this camera is a robust solution for enhancing safety and security in any setting.
