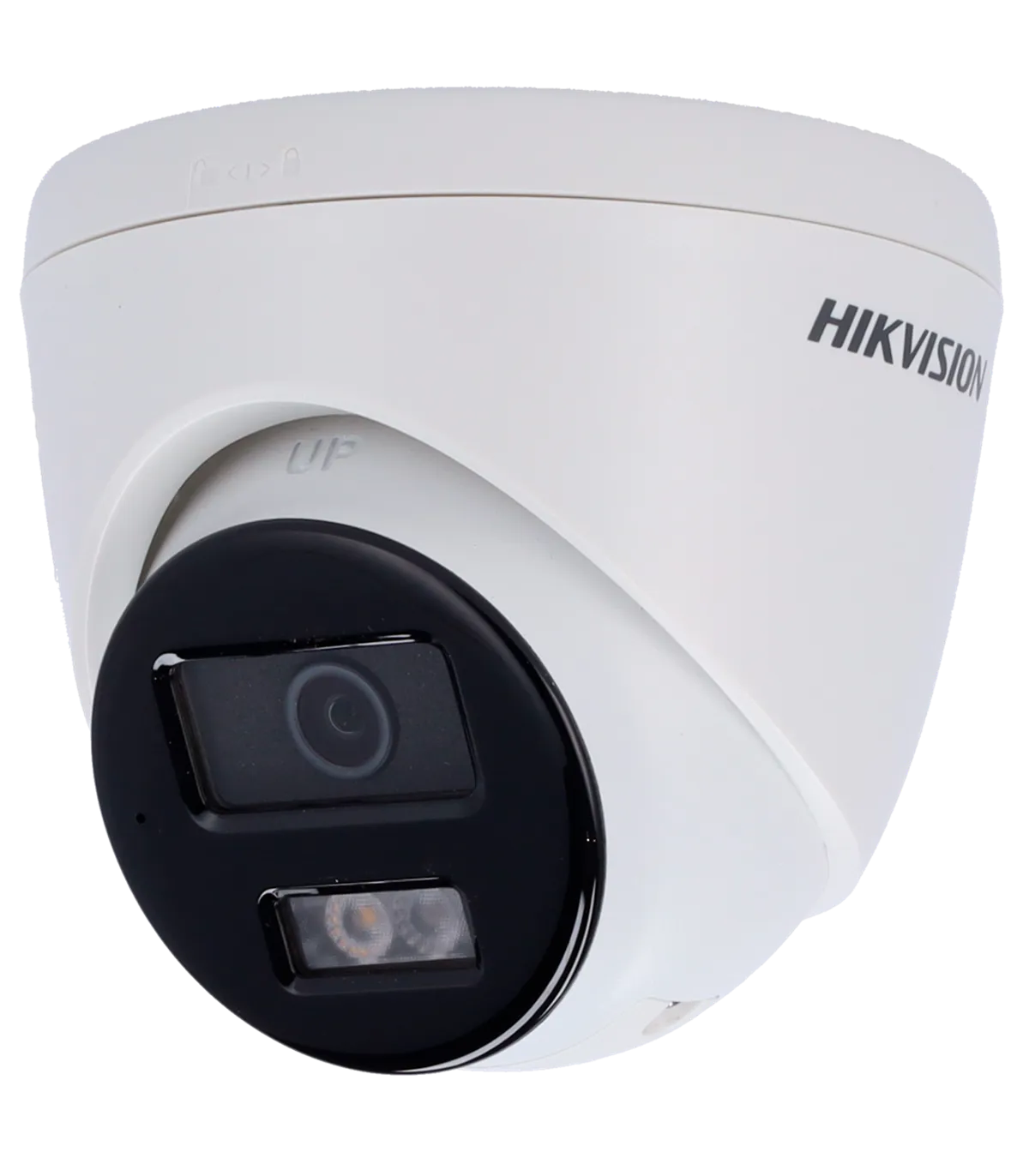

The DS-2CD1363G2-LIUF/SL(2.8mm) is a high-performance IP turret camera designed for effective surveillance in various environments. With its advanced features, this device is ideal for both residential and commercial applications, providing enhanced security through its 6 Megapixel resolution and hybrid lighting capabilities. The camera's 0 Lux performance ensures clear visibility even in complete darkness, making it a reliable choice for 24/7 monitoring.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 20 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 105°, V: 55°, D: 127° |
| DORI | 76 m (D), 30 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Deterrent Alarm | Integrated siren and strobe light in the camera |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 660 mA / 8 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 x 102.7 mm (H) |
| Base Dimensions | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 340 g |
The DS-2CD1363G2-LIUF/SL(2.8mm) is perfectly suited for deployment in retail environments, where security is paramount. Installers can leverage its motion detection capabilities to monitor customer activity and deter theft effectively. The camera's integrated microphone and speaker allow for two-way audio communication, enhancing customer service and security responses. With its IP67 waterproof rating, it can be installed both indoors and outdoors, ensuring reliable performance in various weather conditions. The remote access feature enables business owners to monitor their premises in real-time via a smartphone app, providing peace of mind. Additionally, the hybrid lighting feature ensures clear images day and night, making it an ideal choice for comprehensive surveillance solutions.
