| Brand | HIKVISION |
| Gamma | Value |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optical | 2.8 mm |
| Angle of view (FOV) | H: 104°, V: 58°, D: 123° |
| DORI | 42 m (D), 16 m (W), 8 m (R), 4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Lighting minimum | Color: 0.01 Lux @(F2.0, AGC ON) 0 Lux with EXIR IR range 30 m |
| Day/night | Removable ICR mechanical filter |
| Image enhancements | DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, Software PC iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 400 mA / 5W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 66 mm (H) x 69.1 mm (W) x 170.8 mm (D) |

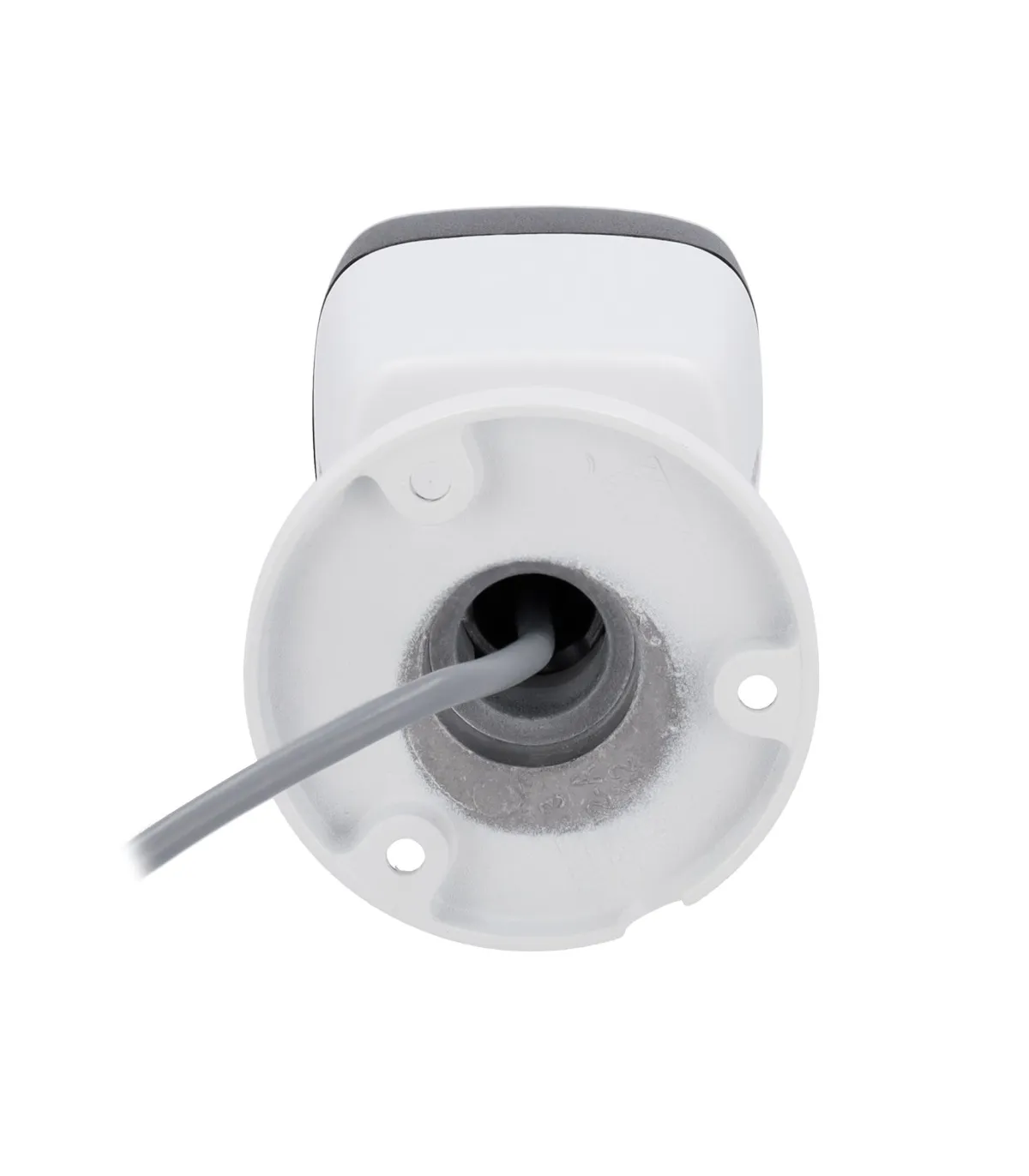

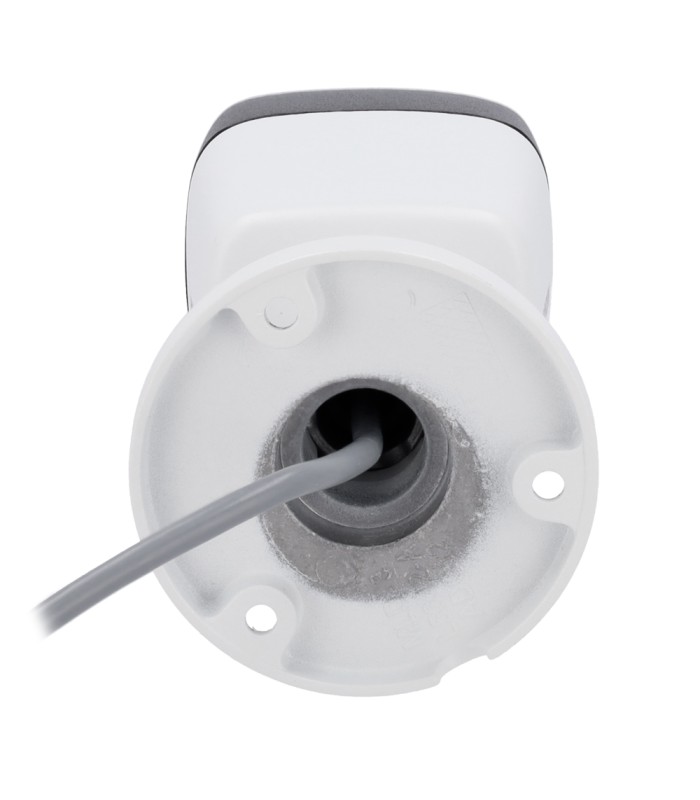

| Base dimensions | base Ø 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 265 g |
Data sheet
