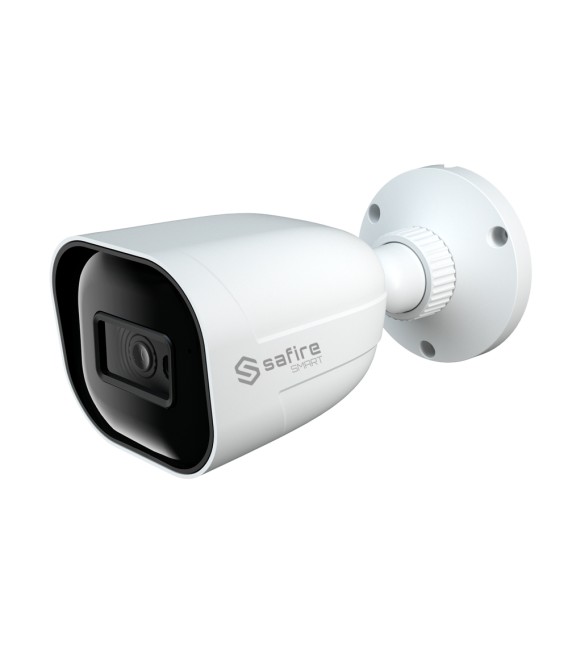

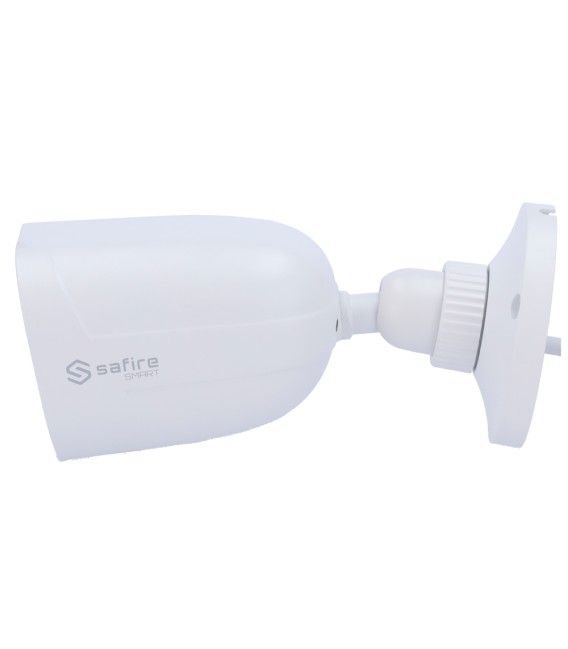

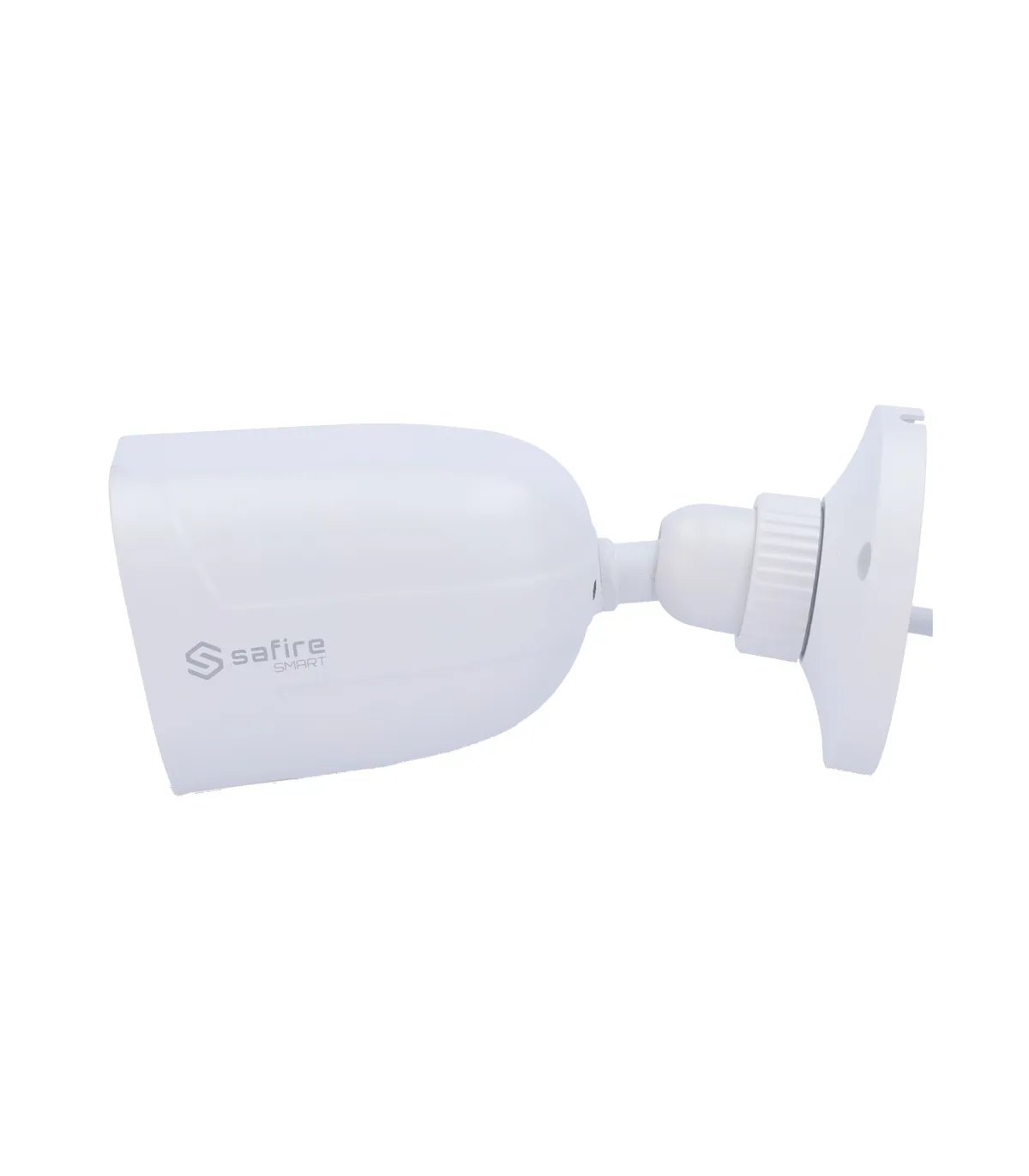

IP Bullet Camera range I1 AI Advanced SF-IPB080A-4I1
Brand: SAFIRE SMART
- Safire Smart
- Advanced I1 AI range IP Bullet Camera
- Resolution 4 Megapixel (2592x1520)
- 2.8 mm lens | Audio | IR 30m
- Advanced AI: Perimeter, Facial, Counting, Metadata
- IP67 waterproofing | PoE (IEEE802.3af)
Advanced I1 AI range IP Bullet Camera SF-IPB080A-4I1
- Safire Smart
- I1 range with Advanced Artificial Intelligence - IP Bullet Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2592x1520)
- 2.8 Lens mm
- 0 Lux
- IR range 30 m
- H.265+ / H.264+ Compression
- WDR
- 3DNR
- Audio
- Advanced Artificial Intelligence: human, vehicle and non-motorized vehicle detection
- Face Capture
- Video metadata
- Counting of humans, vehicles and non-motorized vehicles motorized
- WEB interface, CMS, Smartphone and NVR
- microSD card up to 256GB
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | Safire Smart |
| Range | I1 |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2592x1520) |
| Lighting minimum | Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 30 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Rate Main Stream | 25 FPS (4Mpx, 2K, 3Mpx, 1080P, 720P) HFR Mode: 60 FPS (1080P / 720P) |
| Extra Stream Rate | 25 FPS (720P, D1, CIF, 480x240) |
| Third Stream Rate | 25 FPS (D1, 480x240, CIF) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Angle of view (FOV) | H: 95.3°, V: 53.2°, D: 100.7° |
| DORI | 61 m (R), 24 m (W), 12 m (R), 6 m (L) |
| Image enhancements | WDR 120dB, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion Detection | Yes |
| Smart Features | Advanced Artificial Intelligence based on human classification, vehicle and non-motorized vehicle about: Area intrusion, Line crossing, entry region, exit region Facial detection and face capture Counting of people, vehicles and non-motorized vehicles Feature extraction: - Human: up to 13 features - Vehicle: up to 5 features - Non-motorized vehicle: Up to 1 features Other smart events: object abandoned, object removed |
| Exceptions | Scene change, blur detection and abnormal color detection |
| Audio | 1 Input |
| Audio compression | G711A / U |
| Internal storage | microSD card up to 256GB |
| Network interface | Ethernet 10 / 100M BaseT |
| Remote access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / 702 mA / 8.5 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 74.5 (H) x 74.5 (W) x 167.50 (D) mm |
| Weight | 423 g |
Contents
- Safire Smart I1 IP Bullet Camera
- Installation material
- Quick installation guide
