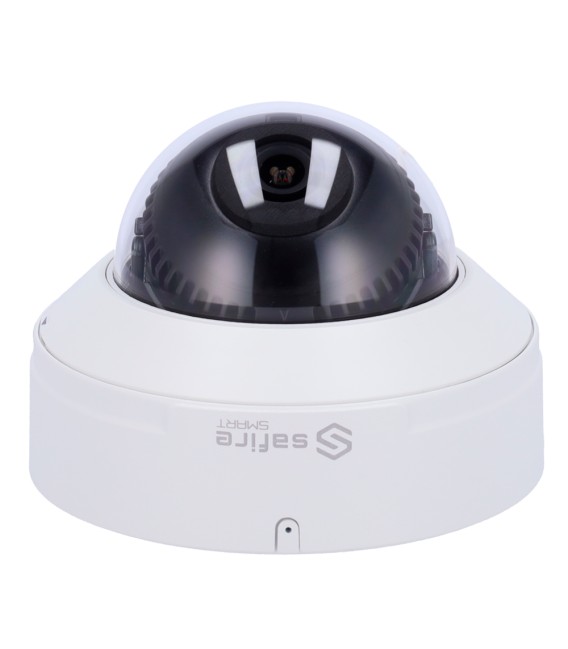

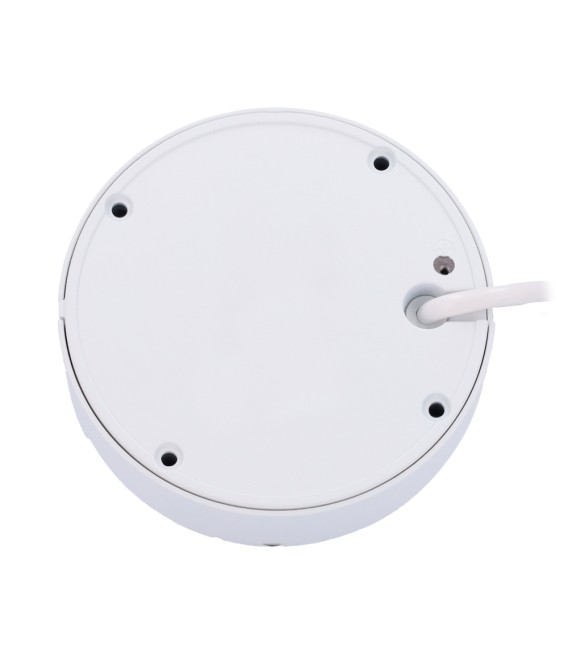

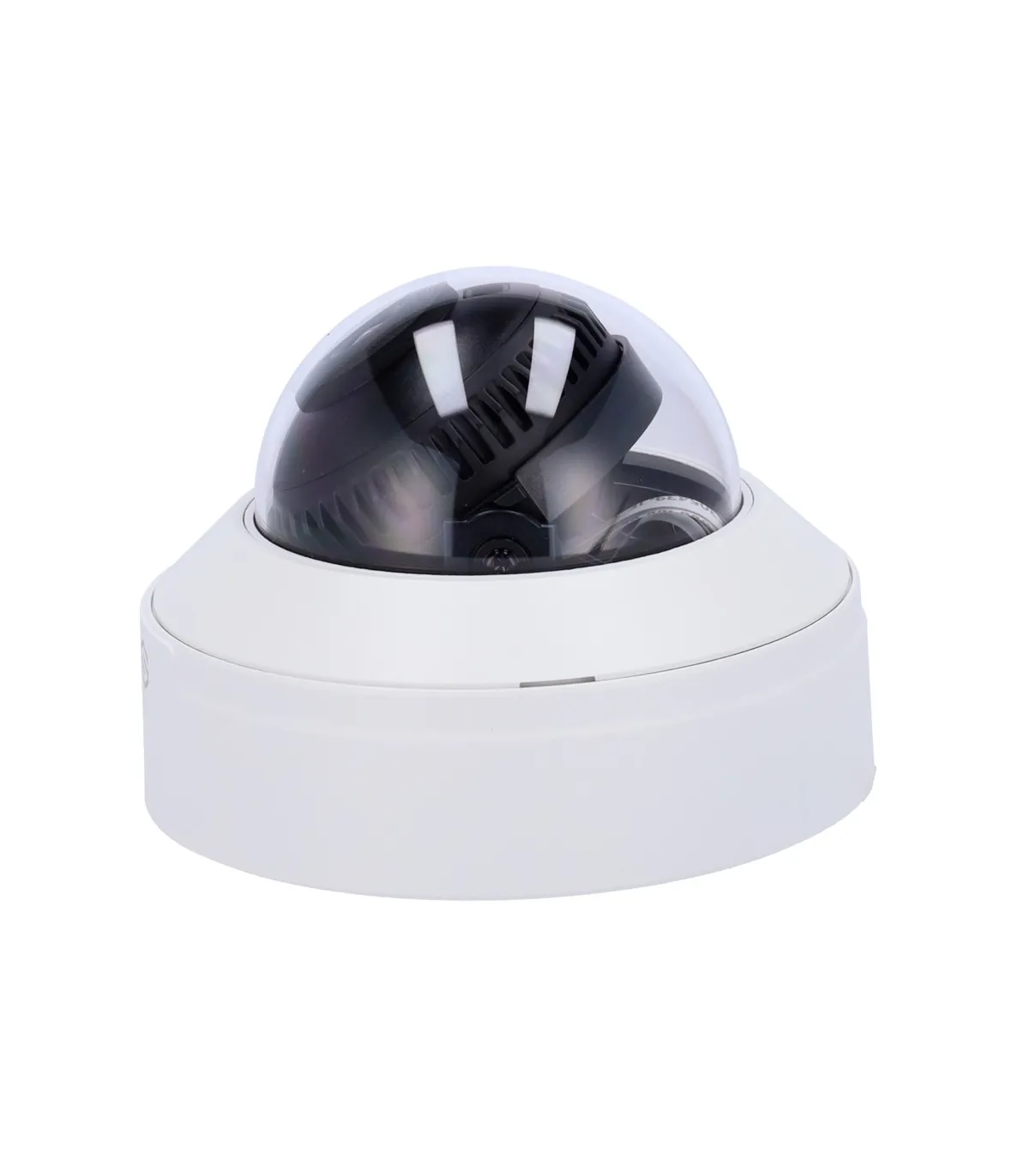

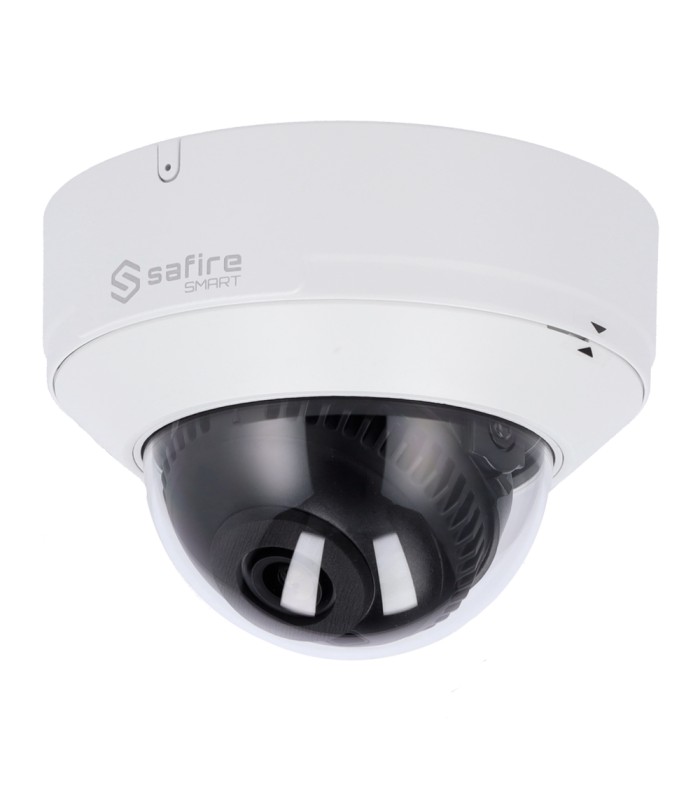

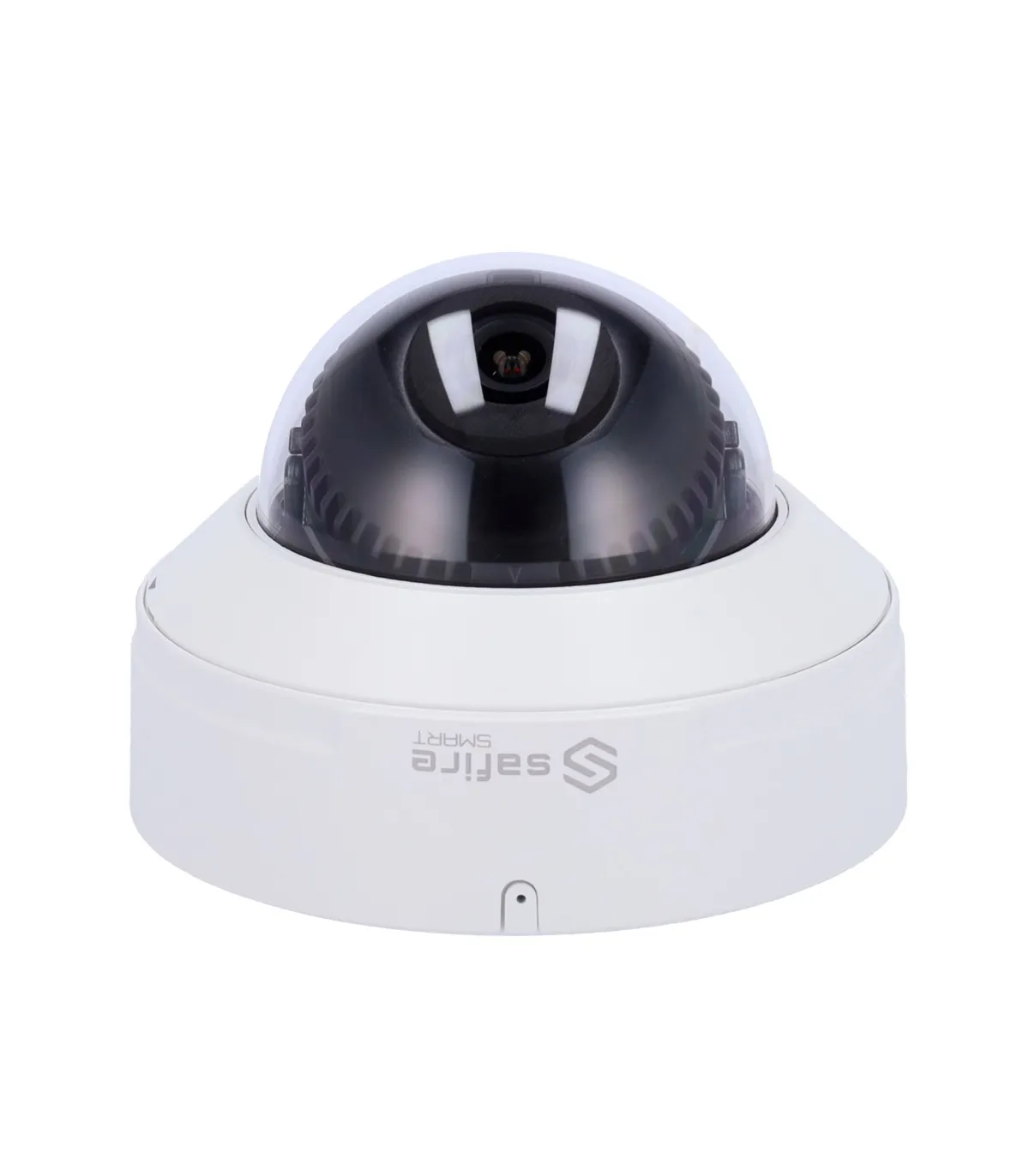

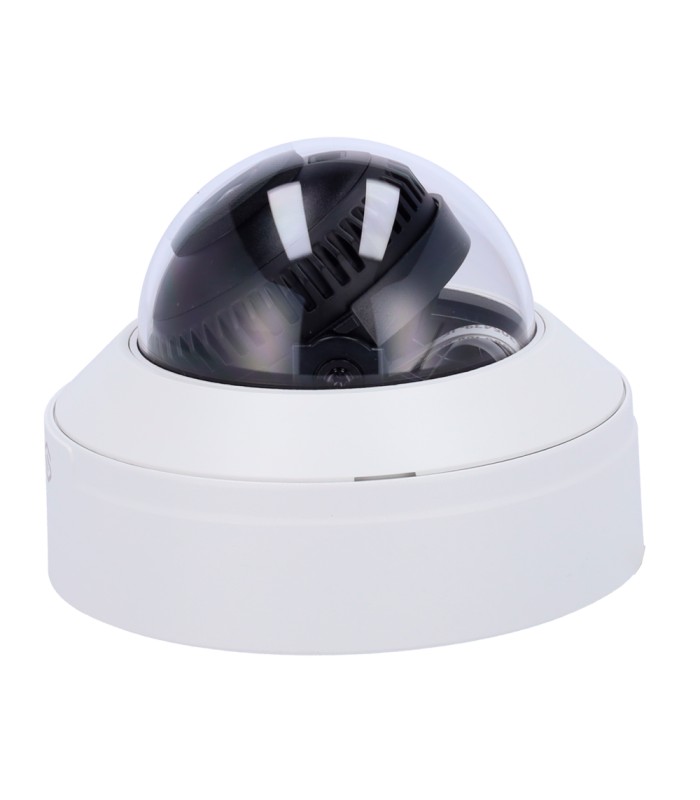

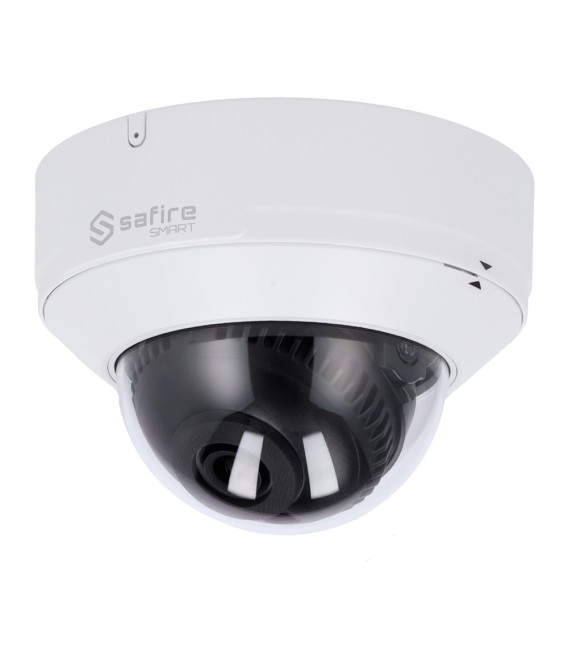

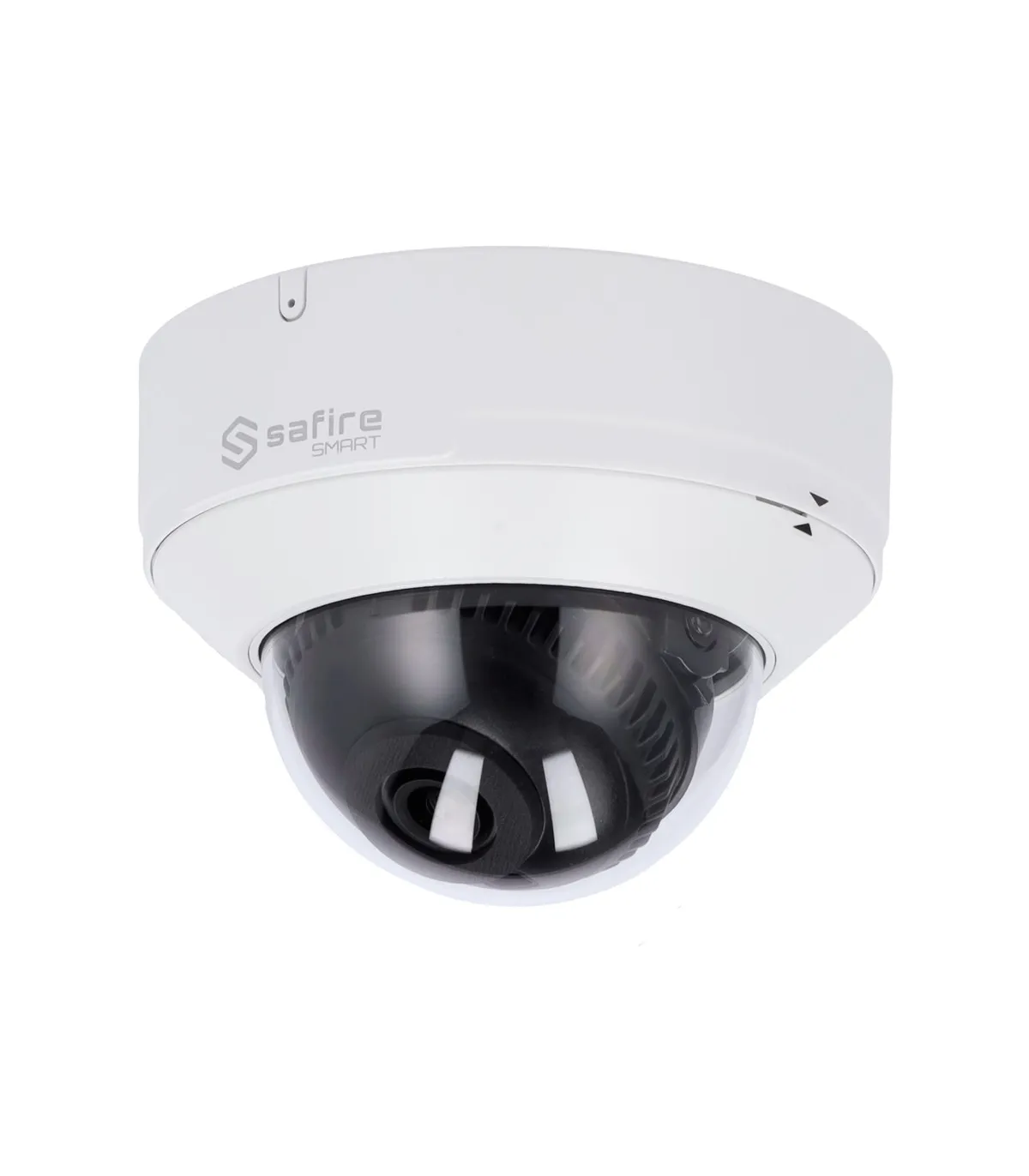

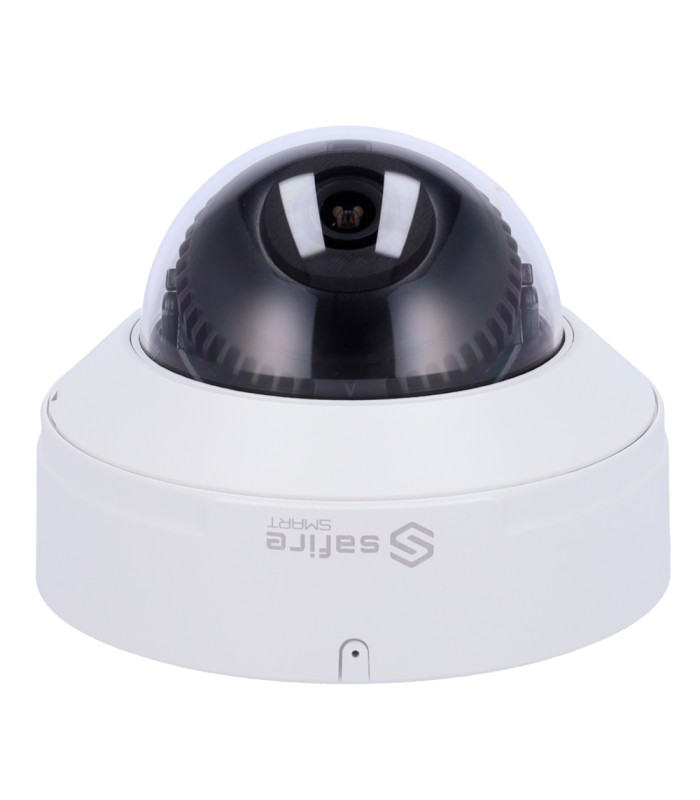

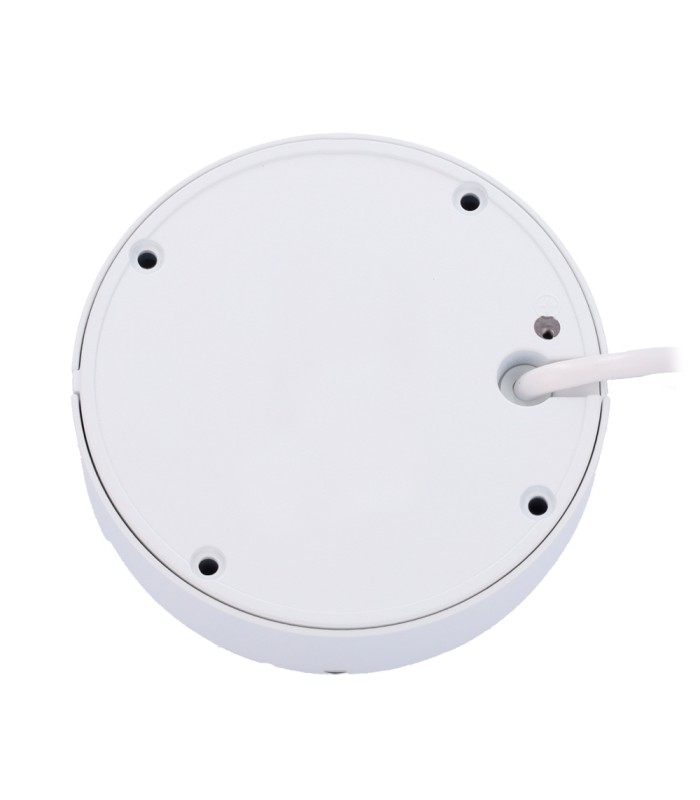

Advanced I1 AI range IP Dome Camera SF-IPD040A-8I1
Brand: SAFIRE SMART
- Safire Smart
- Advanced I1 AI range IP Dome Camera
- Resolution 8 Megapixel (3840x2160)
- 2.8 mm lens | Microphone | IR 30m
- Advanced AI: Human, vehicle and 2-wheeled vehicle
- IP67 waterproof & IK10 | PoE (IEEE802.3af)
IP Dome Camera I1 AI range Advanced SF-IPD040A-8I1
- Safire Smart
- I1 range
- IP Dome Camera
- 1/2.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- Lens 2.8 mm
- 0 Lux
- IR range 30 m
- H.265+ / H.264+ compression
- WDR
- 3DNR
- Built-in microphone
- Audio
- TrueSense: Human and vehicle classification
- WEB interface, CMS, Smartphone and NVR
- Compatible with ONVIF
- PoE (IEEE802.3af)
- 3 Axis
- Waterproof IP67
- Anti-vandal IK10
Technical specifications
| Brand | Safire Smart |
| Range | I1 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Minimum illumination | Color: 0.02 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 30 m |
| Day/night | Mechanical ICR filter removable |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 20 FPS (8Mpx) 25 FPS (6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P) |
| Extra Stream Rate | 25 FPS (720P, D1, 480x240) |
| Third Stream Rate | 25 FPS (720P, D1, CIF, 480x240) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 12 Mbps |
| Optics | 2.8 mm |
| Angle of view (FOV) | H: 101°, V: 53°, D: 120° |
| DORI | 87 m (R), 35 m (W), 17 m (R), 9 m (L) |
| Image enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy mask, ROI |
| Motion Detection | Yes |
| Smart Features | Advanced artificial intelligence based on human, vehicle and two-wheeler classification on: Area intrusion, Line crossing, input region, output region Other smart events: object abandoned, object removed, Video exceptions (scene change, video loss, ...) |
| Audio | Built-in microphone / 1 Input |
| Audio compression | G711A / U |

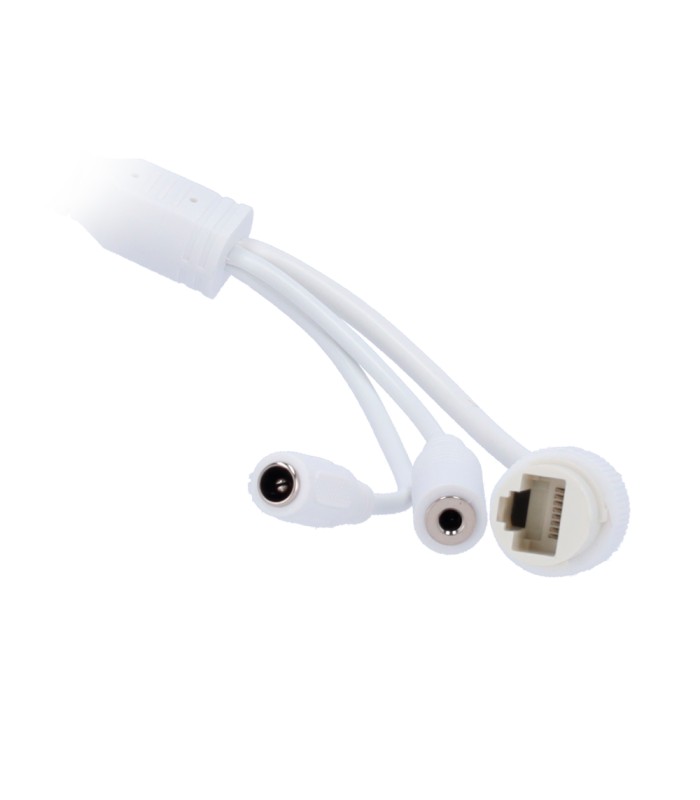

| Network interface | Ethernet 10 / 100M BaseT |
| Internal storage | MicroSD card up to 256GB |
| Remote access | Web browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| 3 Axis | Yes |
| Power | DC 12 V / 583 mA / 7W max / PoE IEEE802.3af |
| Protection degree | Waterproof IP67, Vandal-resistant IK10 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 119 (Ø) x 87.80 (H) mm |
| Weight | 640 g |
Contents
- Safire Smart I1 IP Dome Camera
- Installation material
- Quick installation guide
