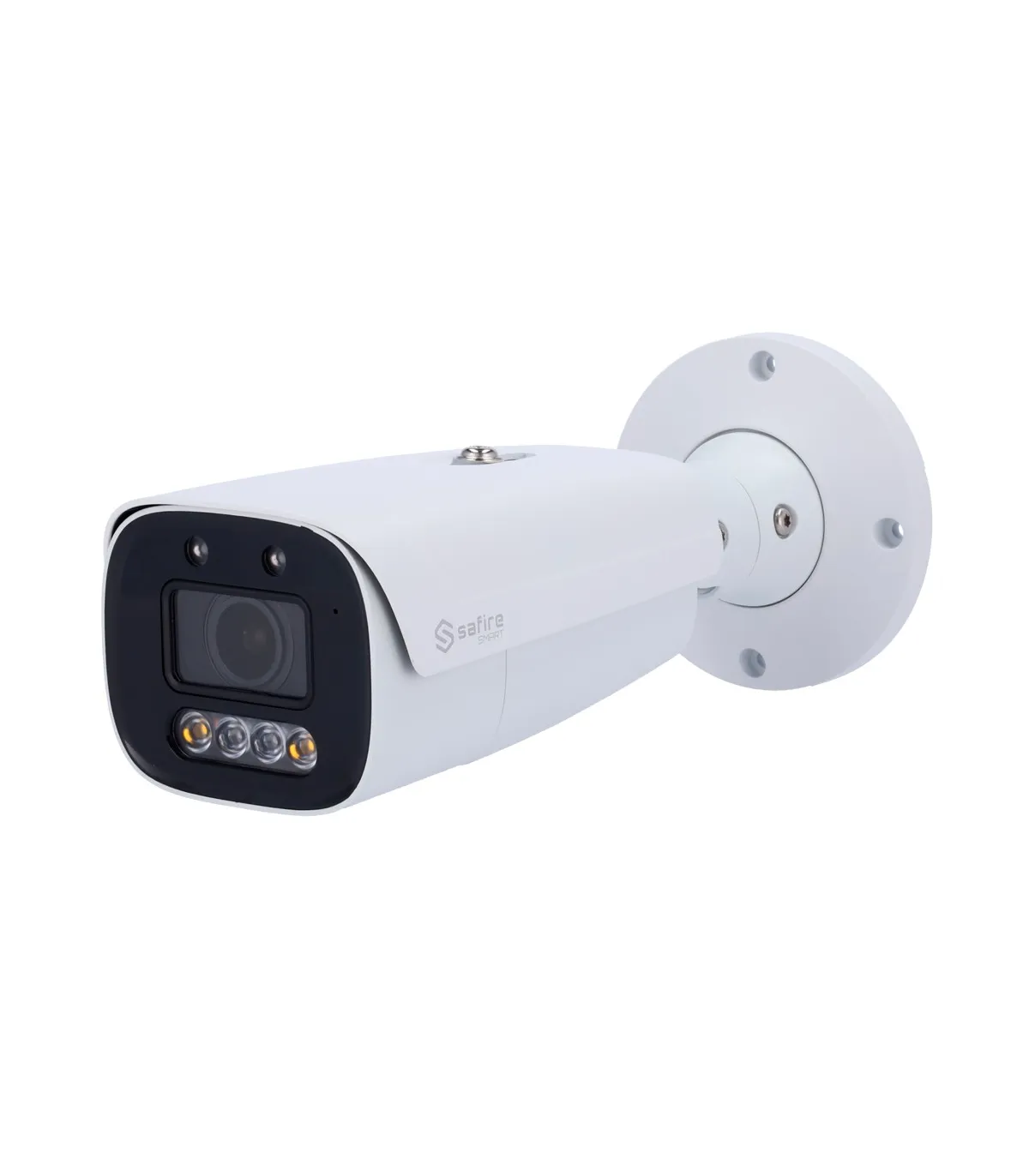

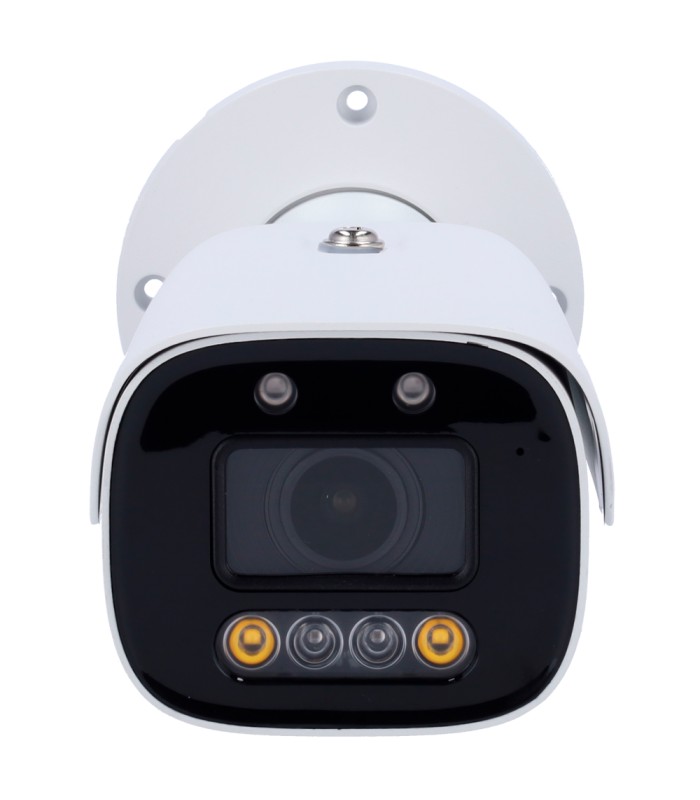

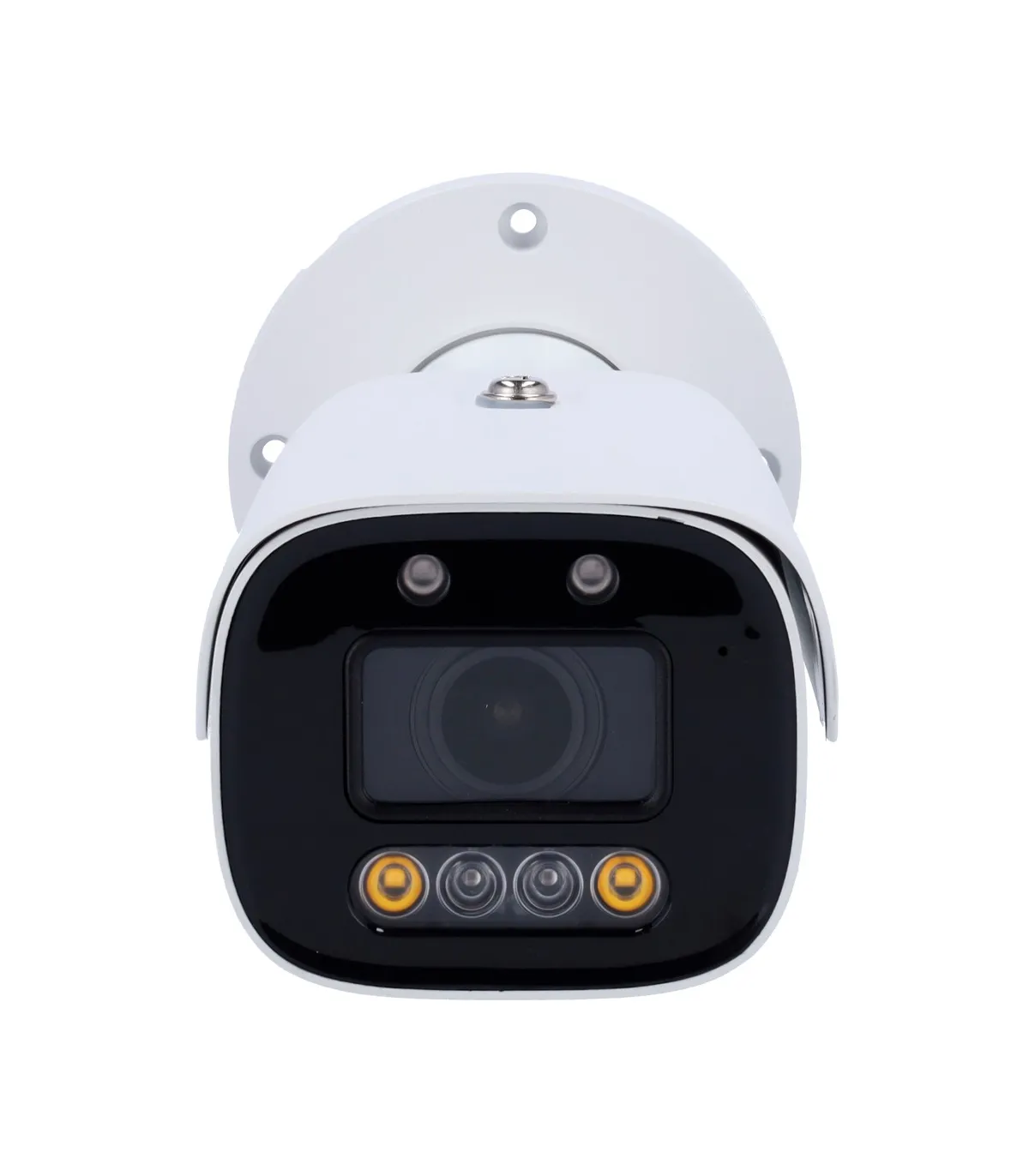

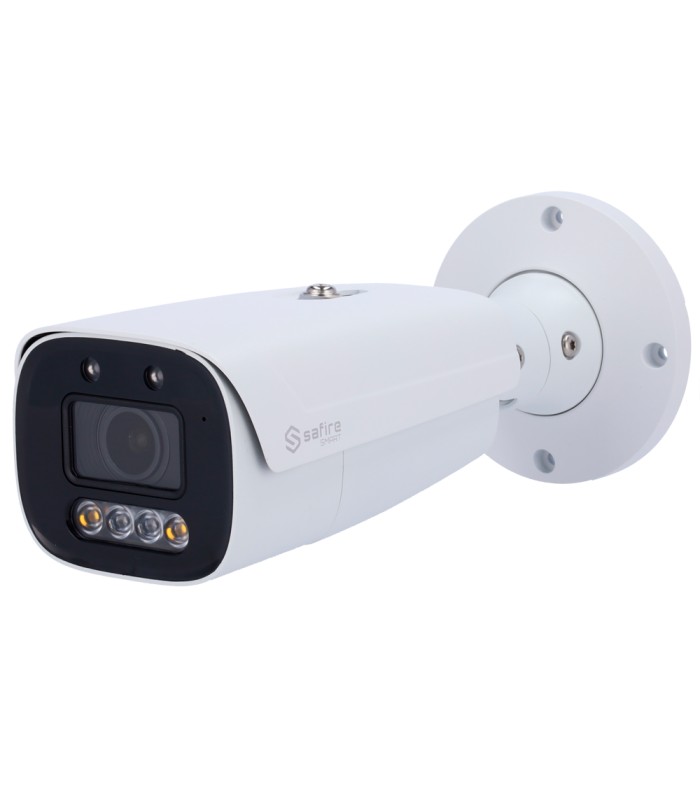

I1 range IP Bullet Camera with Active Deterrence SF-IPB580ZCA-4I1-SL
Brand: SAFIRE SMART
- Safire Smart
- I1 range IP Bullet Camera with Active Deterrence
- Resolution 4 Megapixel (2566x1440)
- 2.8-12 mm lens | MIC & Speaker | Duallight 40m
- AI: Human and Vehicle Rating
- IP67 Waterproof | PoE (IEEE802.3af)
I1 range IP Bullet Camera with Active Deterrence SF-IPB580ZCA-4I1-SL
- Safire Smart
- I1 range with Artificial Intelligence
- IP Bullet Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- Motorized lens 2.8-12 mm
- 0 Lux
- Dual light: IR and white LED range 40 m
- H.265+ / H.264+ compression
- WDR
- 3DNR
- Microphone and speaker integrated
- Audio
- Alarms
- Advanced Artificial Intelligence: human, vehicle and non-motorized vehicle detection
- Facial Capture
- Human, vehicle and non-motorized vehicle counting
- Active deterrence: Red and blue flash with personalized audio message
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | Safire Smart |
| Range | I1 with Active Deterrence |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Minimum illumination | Color: 0.03 Lux @(F1.6, AGC ON), 0 Lux with LED |
| Lighting range | IR: 40m White LED: 40m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 25 FPS (4Mpx, 2K, 3Mpx, 1080P, 720P) HFR Mode: 60 FPS (1080P / 720P) |
| Extra Stream Rate | 25 FPS (720P, D1, CIF) |
| Rate Third Stream | 25 FPS (D1, 480x240, CIF) |
| Compression | H.265+, H.264+, H.265, H.264 |
| Bitrate | 64 Kbps ~ 8 Mbps |
| Optical | Motorized 2.8 ~ 12 mm |
| Angle of view (FOV) | H: 96-32.33°, V: 53.67-19.63°, D: 114.17-36.33° |
| DORI | W: 60 m (D), 24 m (W), 12 m (R), 6 m (L) T: 175 m (D), 70 m (W), 35 m (R), 18 m (L) |
| Image enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion Detection | Yes |
| Smart Features | Advanced Artificial Intelligence based on human, vehicle and vehicle classification non-motorized about: Area intrusion, Line crossing, entry region, exit region Face detection and face capture Counting of people, vehicles and non-motorized vehicles Other intelligent events: object abandoned, object removed, Video exceptions (scene change, video loss, ...) |
| Active Deterrence | Red and blue LED flash / Customized sound warning Activated from an artificial intelligence event *Message customization from web interface or Safire Smart APP |

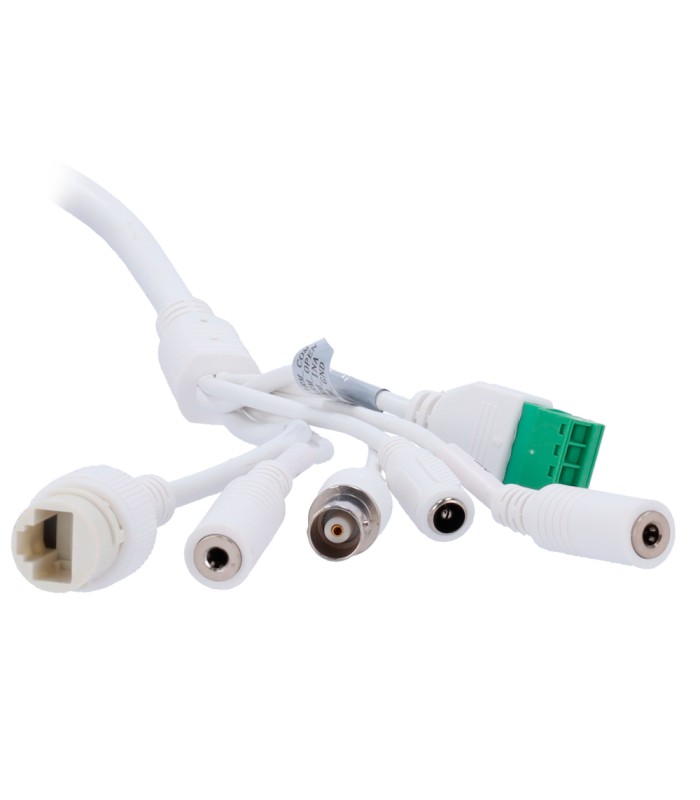

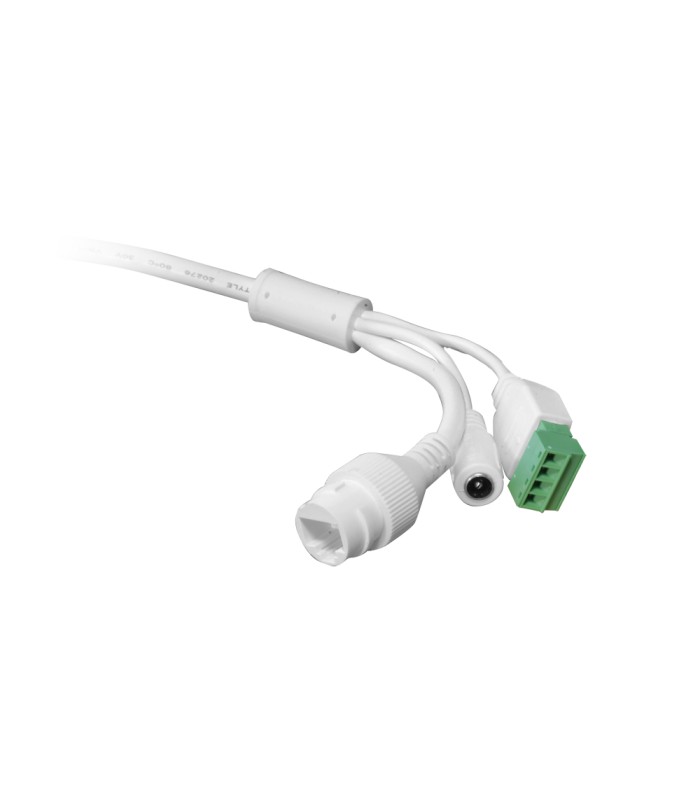

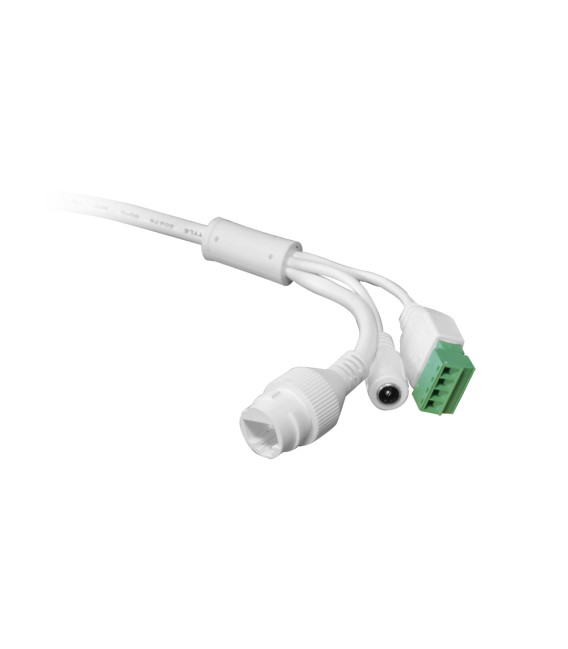

| Audio | Integrated microphone and speaker, 1 Input / 1 Output |
| Audio compression | G711A / U |
| Alarm | 1 Input / 1 Relay |
| Network interface | Ethernet 10 / 100M BaseT |

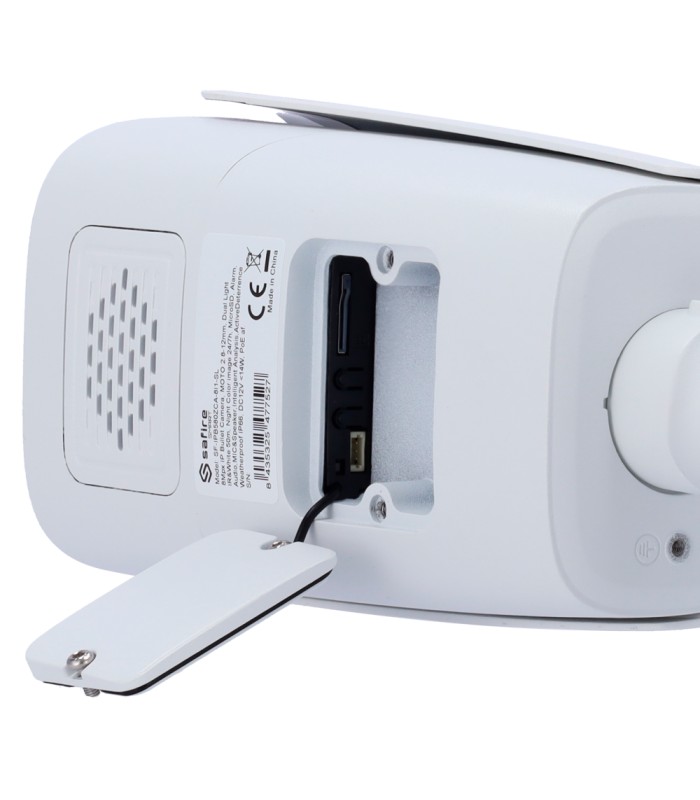

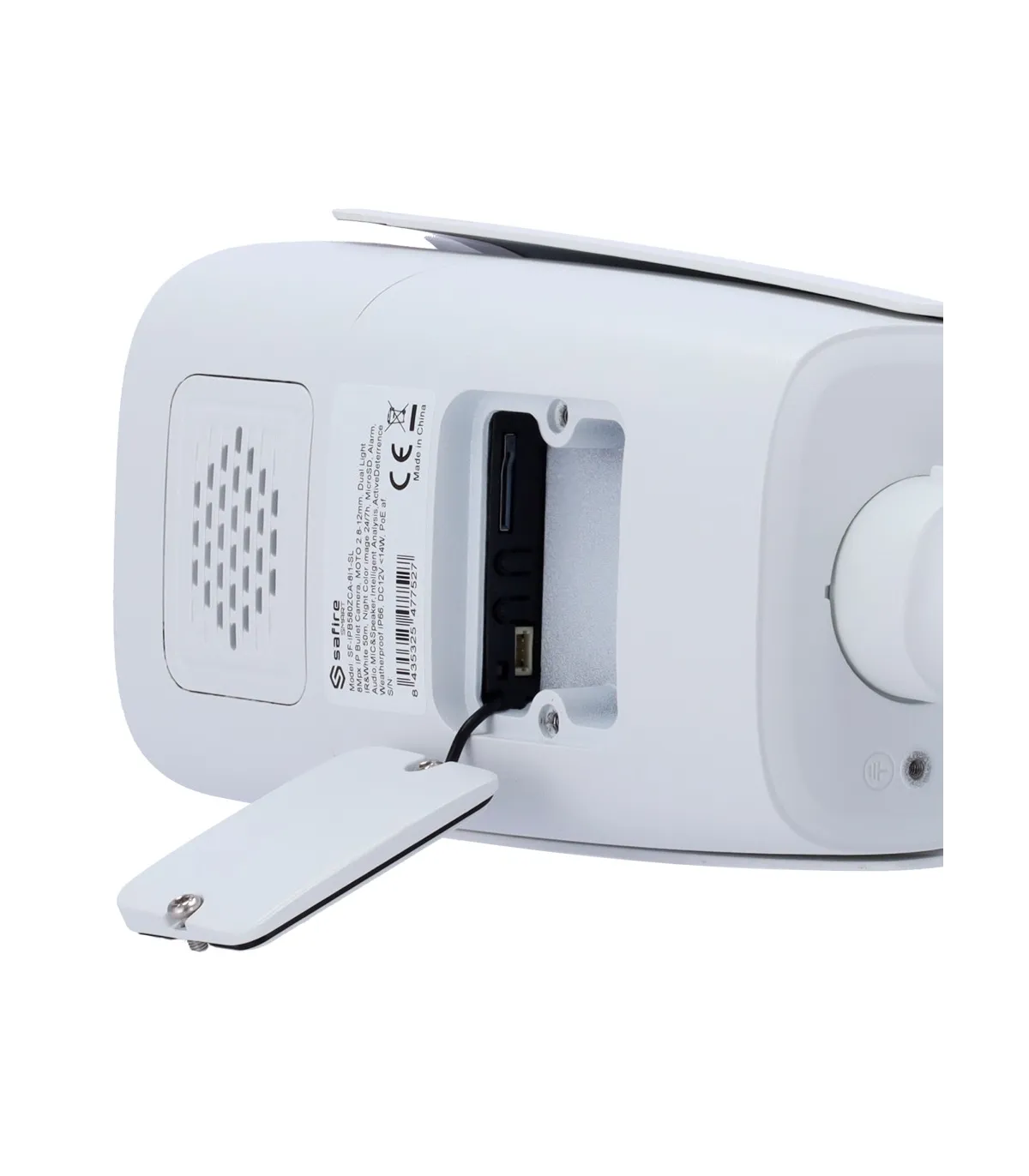

| Internal storage | microSD card up to 256GB |
| Remote Access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / 1000mA / 12 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 217.8 (Fo) × 80.5 (W) x 80.3 (H) mm |
| Weight | 680 g |
Contents
- Safire Smart I1 IP Bullet Camera
- Installation material
- Quick installation guide
