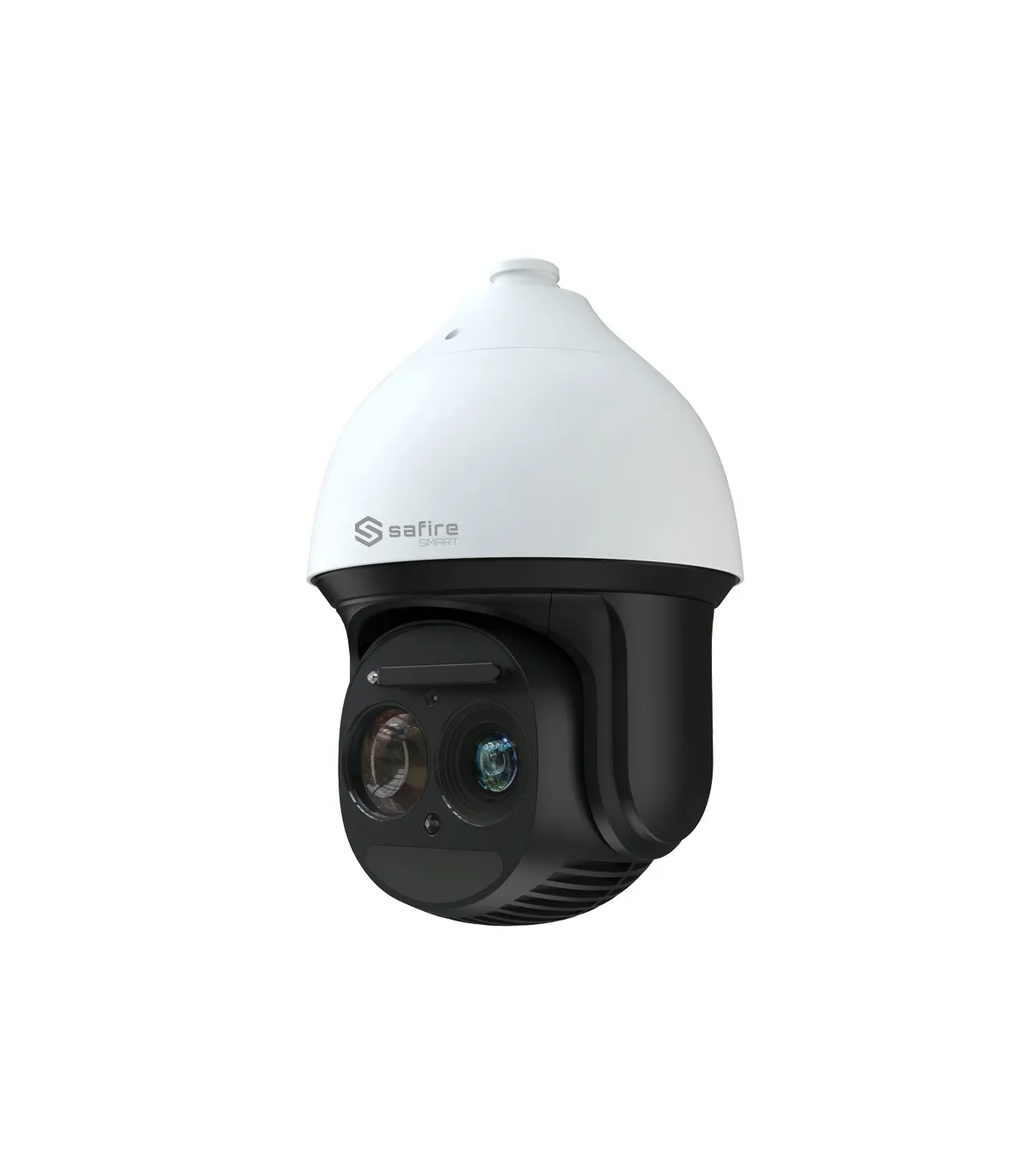

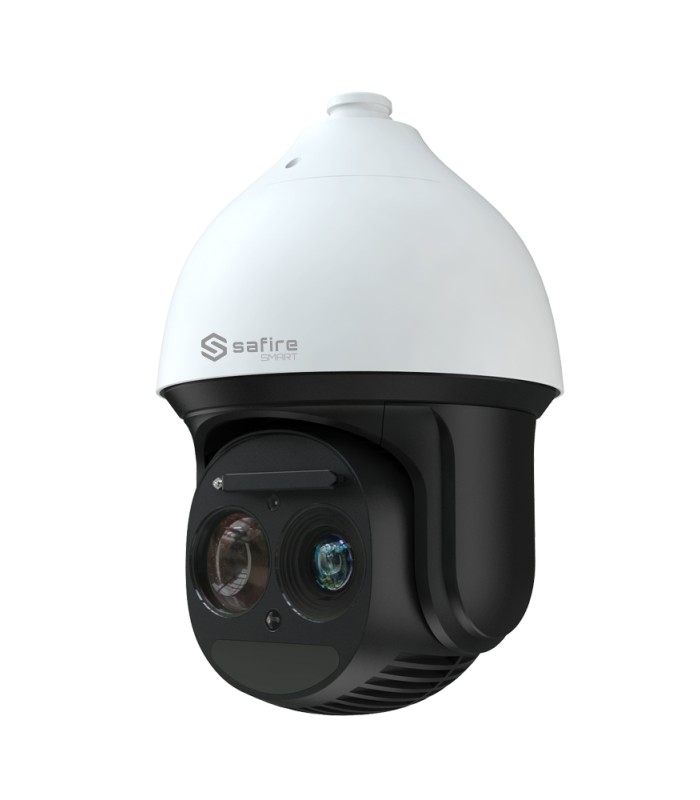

| Brand | Safire Smart | |
| Range | X1 with Artificial Intelligence and laser up to 500m | |
| Image Sensor | 1/1.8“ Progressive Scan CMOS | |
| Resolution | 4 Megapixel (2560x1440) | |
| Main Stream | 2560×1440, 2048x1536, 1920×1080,1280×720 | |
| Sub stream | 704x576, 480x240, 352x288 | |
| Minimum Illumination | Color: 0.005 Lux @(F1.5, AGC ON), 0 Lux with IR | |
| IR LED | Laser 800m, VCSEL Beam 2.6° - 70° | |
| Compression | H.265 / H.264 | |
| Optical Zoom | 37X | |
| Digital Zoom | 16X | |
| Lens | 5.6 - 208 mm | |
| FOV | H: 59.8º - 2.3º / V: 33.6º - 1.3º / D: 68.6º - 2.6º | |
| DORI | T: 2786 m (D), 1105 m (W), 557 m (R), 278 m (I) | |
| Electronic shutter | 1/1s~1/10,000s | |
| Day / Night | Removable ICR mechanical filter | |
| Image enhancements | BLC, HLC, WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI | |
| WDR | 120 dB | |
| Advanced Functions | Artificial intelligence based on human and vehicle classification on: Area intrusion, Line crossing, entry region, exit region. Facial recognition with face capture of up to 30 faces at a time time. | |
| Intelligent Autotracking | Intelligent Human and Vehicle Tracking (Manual / Auto) | |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -20°~180° auto flip to 90º | |
| Manual speed | Horizontal: 0.1° ~ 180° /s, Vertical: 0.1° ~150° /s | |
| Speed between Presets | Horizontal: 180° /s, Vertical: 150° /s | |
| Preset positions | 300 Preset, 8 Tours, 4 Patrols | |
| Internal storage | MicroSD card, Max 256 GB | |
| Video output | 1x CVBS BNC | |
| Audio | 1 Input / 1 Output | |
| Audio Compression | G.711 A/U | |
| Audio bit rate | 64 Kbps | |
| Alarms | 7 Input / 2 Relay | |
| Control PTZ | Via network access | |
| Network interface | Ethernet 10 / 100M BaseT | |
| Remote access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software | |
| Interoperability | ONVIF, PSIA, CGI | |
| Power | AC & DC 24 V, HiPoE IEEE802.3bt (Max. 50W with IR ON, Heater ON and Fan ON) | |
| Temp. operation | -40º C ~ +65º C | |
| Protection degree | IP67 / IK10 / Surge 6000V | |
| Dimensions (without support) | 435 mm (H) x 278 (Ø) mm | |
| Weight (without support) | 8800 g |
