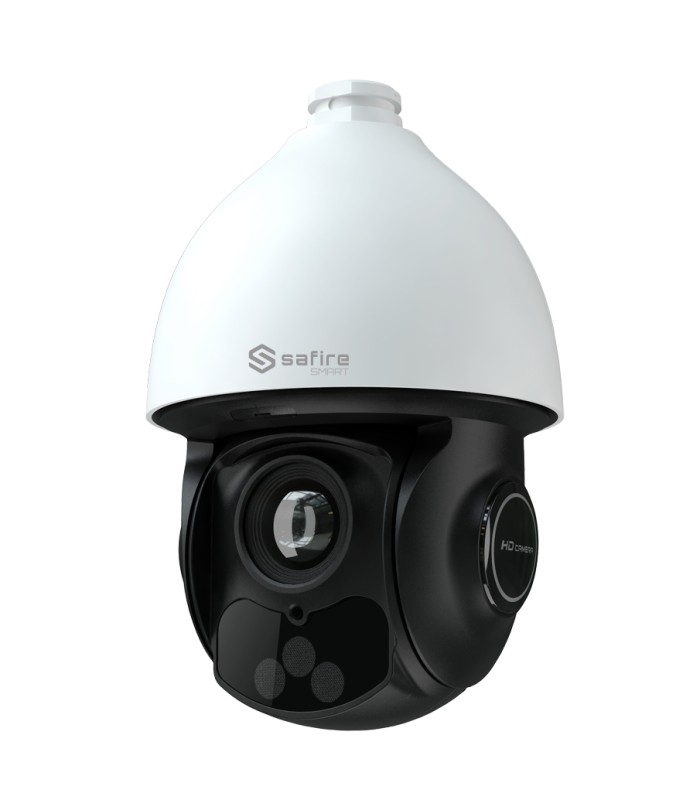

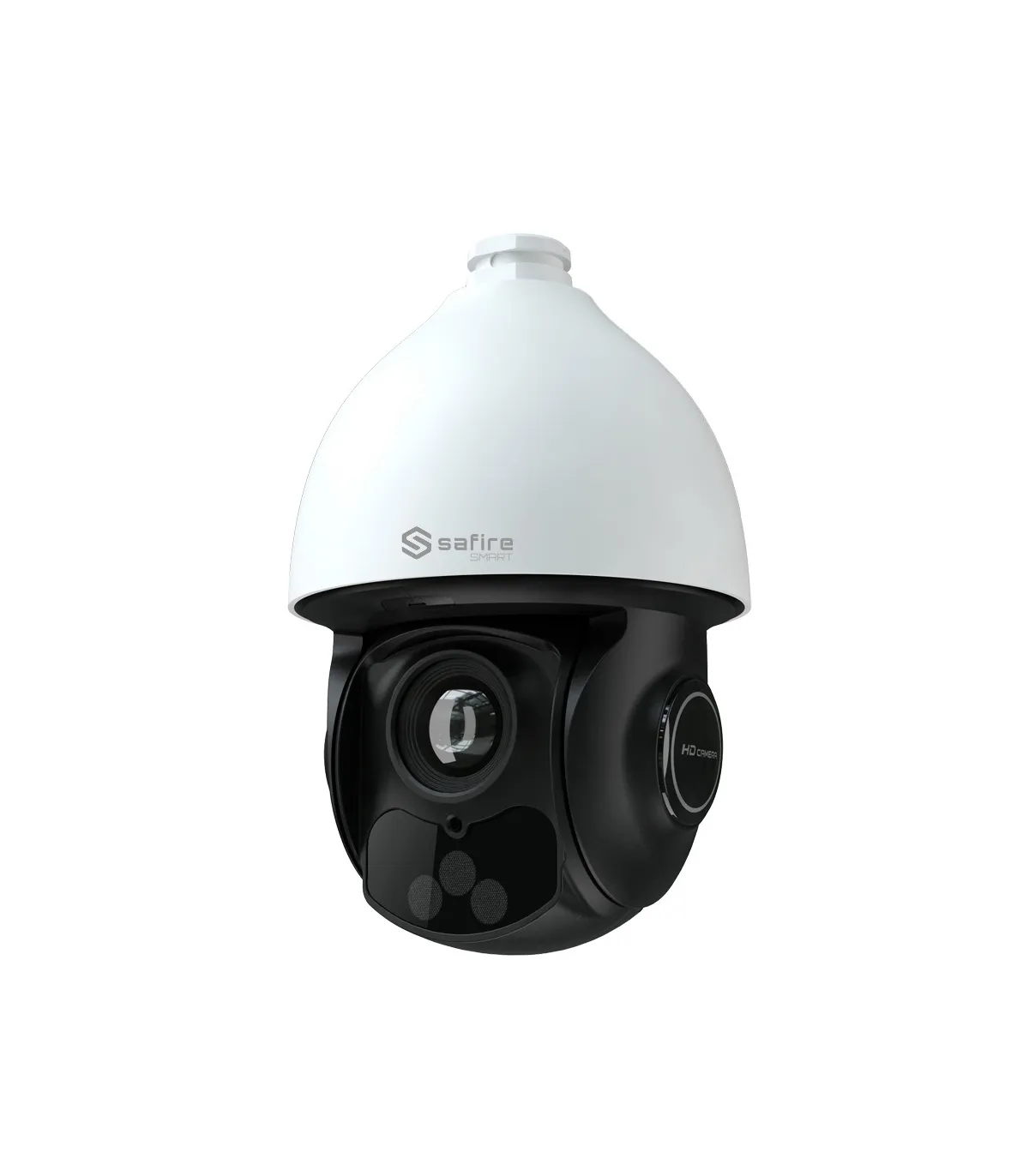

PTZ IP camera range I1 Artificial Intelligence SF-IPSD5032ITA-8I1
Brand: SAFIRE SMART
- Safire Smart
- IP PTZ camera range I1 Artificial Intelligence
- Resolution 8 Megapixel (3840x2160)
- 32X optical zoom | IR 200m
- Autotracking, human and vehicle | Alarms
- IP66 waterproofing | HiPoE (IEEE802.3bt)
I1 range IP PTZ camera with Artificial Intelligence SF-IPSD5032ITA-8I1
- Safire Smart
- I1 range with Artificial Intelligence
- IP PTZ camera
- 1/2.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 32X optical zoom
- 4.8 -154mm lens
- 0 Lux
- IR range 200 m
- H.265+ / H.264+ compression
- WDR
- 3DNR
- Artificial intelligence for human and vehicle classification
- Autotracking smart, human and vehicle tracking
- Audio
- Alarm
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- HiPoE (IEEE802.3bt)
- Waterproof IP66
- Support included
Technical specifications
| Brand | Safire Smart |
| Range | E1 with Artificial Intelligence |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Resolution | 8 Megapixel (3840x2160) |
| Main Stream | 3840× 2160, 2560× 1440, 1920× 1080, 1280× 960, 1280× 720 |
| Sub stream | 704x576, 640x480, 352x288 |
| Third Stream | 1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288 |
| Video Bit rate | 64Kbps ~ 16Mbps |
| Minimum lighting | Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR |
| IR LED | 200 m |
| Compression | H.265+/H.265/H.264+/H.264 |
| Optical Zoom | 32X |
| Digital Zoom | 16X |
| Lens | 4.8 - 154 mm |
| FOV | H: 61.3º - 2.18º / V: 36.9º - 1.22º / D: 68.4º - 2.5º |
| DORI | W: 138 m (D), 55 m (W), 28 m (R), 14 m (I) T: 3528 m (D), 1400 m (W), 700 m (R), 350 m (I) |
| Electronic shutter | 1/1s~1/10,000s |
| Day / Night | Removable ICR mechanical filter |
| Image enhancements | BLC, HLC, WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI |
| Advanced Functions | Artificial intelligence based on human and vehicle classification on: Area intrusion, Line crossing, entry region, exit region. Facial recognition with face capture of up to 15 faces at a time. |
| Intelligent Autotracking | Intelligent Human and Vehicle Tracking |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -5°~90° auto flip |
| Manual speed | Horizontal: 0.5° ~ 120° /s, Vertical: 0..5° ~120° /s |
| Speed between Presets | Horizontal: 150° /s, Vertical: 150° /s |
| Preset positions | 360 Preset, 8 Tours, 4 Patrols |
| Internal storage | MicroSD Card, Max 256 GB |
| Audio | 1 Input / 1 Output |
| Audio compression | G.711 A/U |
| Audio bit rate | 64 Kbps |
| Alarms | 1 Input / 1 Relay |
| PTZ Control | Through network access |
| Network interface | Ethernet 10 / 100M BaseT |
| Remote Access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF, PSIA, CGI |
| Power | DC 24 V, HiPoE (IEEE802.3bt) |
| Temp. operation | -40º C ~ +65º C |
| Protection degree | IP66 / Surge 6000V |
| Dimensions (without support) | 317 mm (H) x 196(Ø) mm |
| Weight (without support) | 3700 g |
Contents
- Safire Smart IP PTZ Camera E1
- Installation material
- Wall bracket
- Quick installation guide
