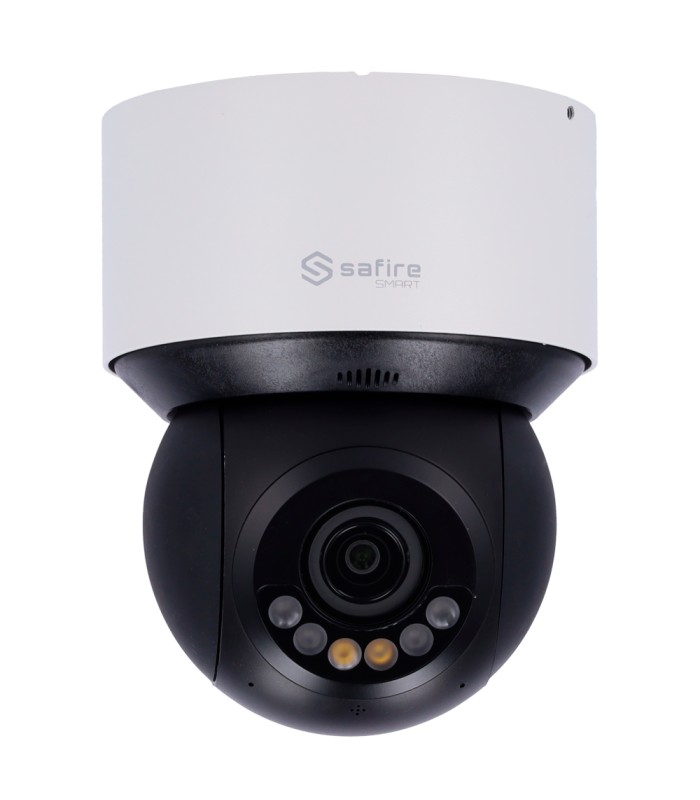

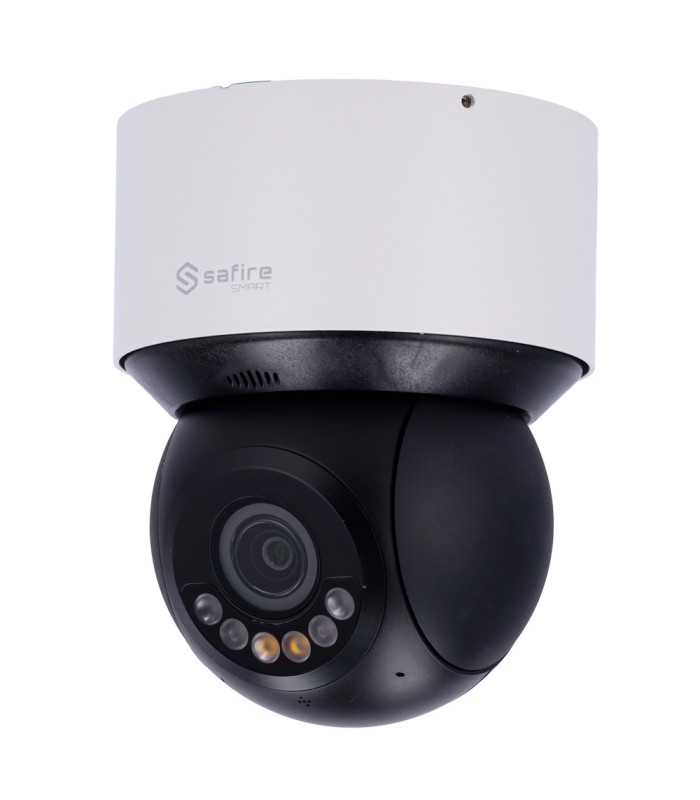

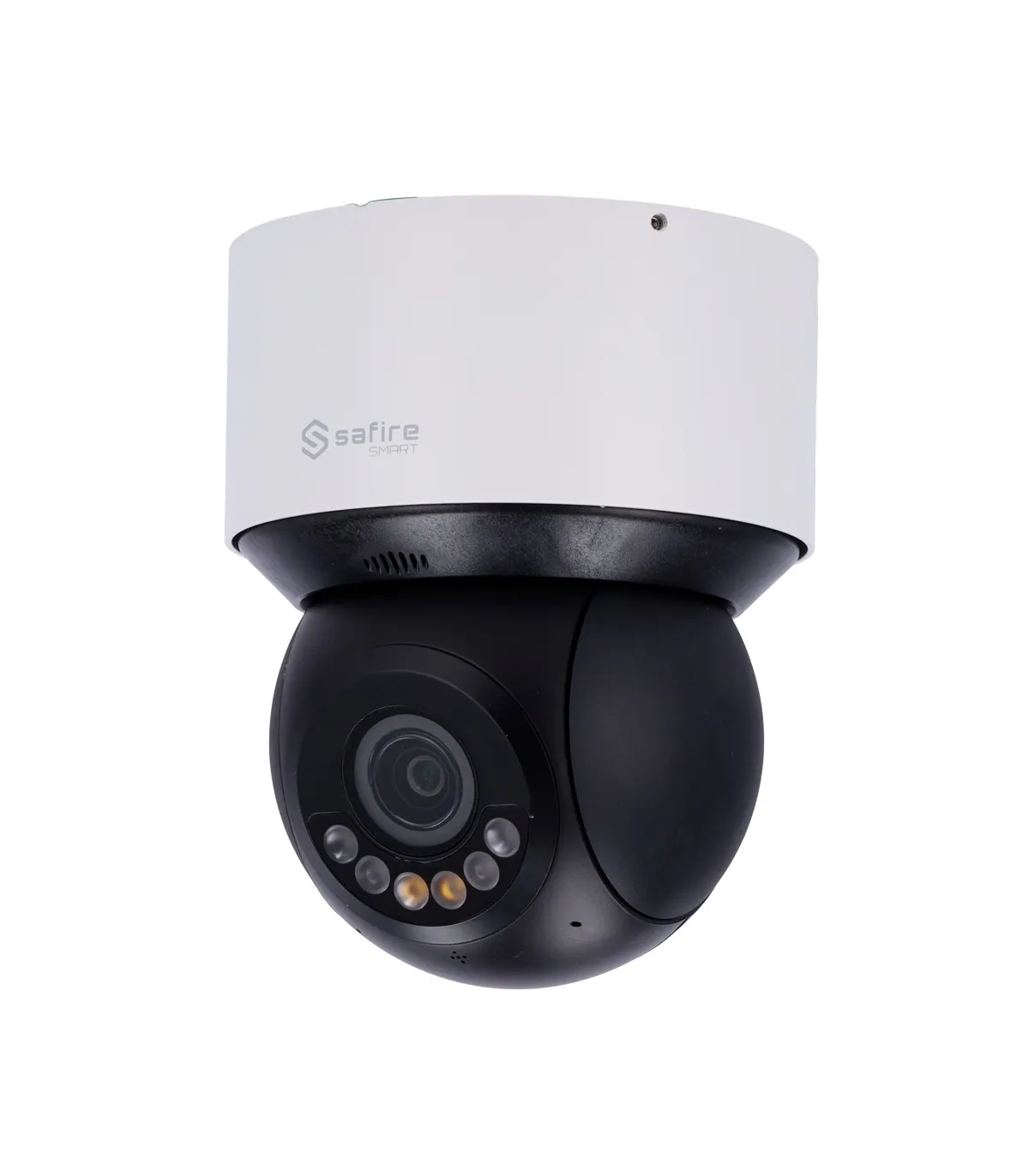

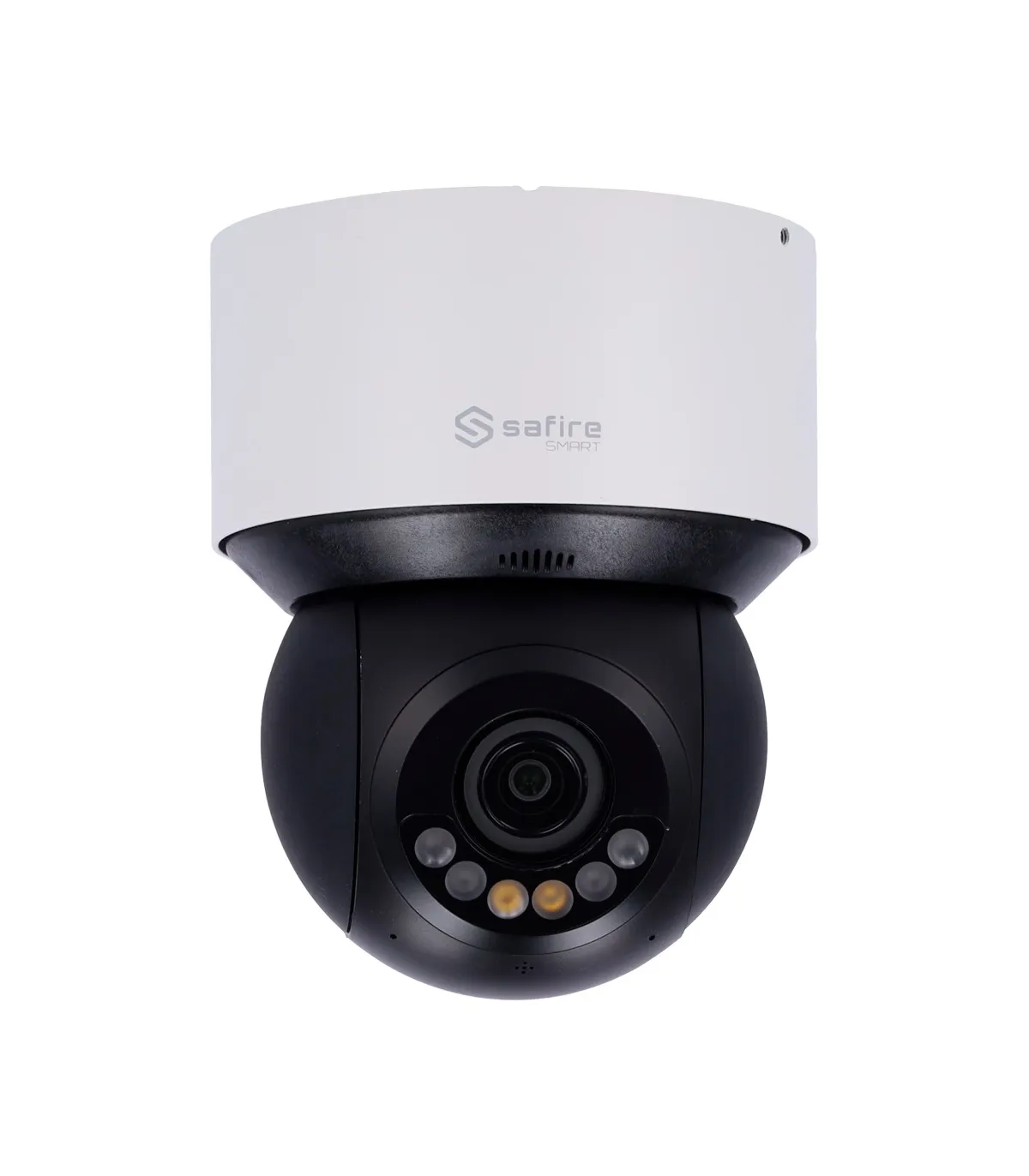

B1 range IP PTZ camera Artificial Intelligence SF-IPSD3004TA-4SB1-DL
Brand: SAFIRE SMART
- Safire Smart
- IP PTZ camera range B1 Artificial Intelligence
- Resolution 4 Megapixel (2560x1440)
- 4x optical zoom | Dual light: IR 50m White 30 m
- Autotracking, human and vehicle | Alarms
- IP66 waterproof & IK10 | PoE+ (IEEE802.3at)
B1 range IP PTZ camera Artificial Intelligence SF-IPSD3004TA-4SB1-DL
- Safire Smart
- Economic B1 range with Artificial Intelligence
- IP PTZ camera
- 1/2.7" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- 4X optical zoom
- 2.8-12 mm lens
- 0 Lux
- Dual light: IR range 50m & White Light 30m
- H.265+ / H.264+ compression
- WDR
- 3DNR
- Artificial Intelligence for classification of human and vehicle
- Smart autotracking, human and vehicle tracking
- microSD card up to 256GB
- Built-in Microphone and Speaker
- Two-way audio
- Alarm
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE+ (IEEE802.3af)
- Waterproof IP66
- Anti-vandal IK10
Technical specifications
| Brand | Safire Smart |
| Range | Economic B1 with artificial intelligence |
| Image sensor | 1/2.7“ Progressive Scan BSI |
| Resolution | 4 Megapixel (1560x1440) |
| Main Stream | (2560×1440, 2048×1536, 1920×1080, 1280×960, 1280×720) |
| Sub Stream | (704×576, 640×480, 352×288) |
| Third Stream | (1280×720, 704×576, 640×480, 352×288) |
| Bit rate | 64Kbps ~ 16Mbps |
| Minimum Illumination | Color: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR LED | Dual Light: IR up to 50m (850nm) & White LED up to 30m |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Zoom Optical | 4X |
| Digital Zoom | 16X |
| Lens | 2.8 - 12 mm |
| FOV | H: 97º - 31º / V: 51º - 18º / D: 115º - 36º |
| DORI | W: 68 m (D), 27 m (W), 14 m (R), 7 m (I) T: 207m (D), 82 m (W), 41 m (R), 21m (L) |
| Electronic shutter | 1/1s~1/10,000s |
| Day / Night | Removable ICR mechanical filter |
| Image enhancements | BLC, HLC, WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI |
| Advanced Features | Artificial intelligence based on human and vehicle classification on: Area intrusion, Line crossing, entry region, exit region |
| Active deterrence | Yes When detecting an area intrusion, the camera will follow the moving target, zoom in on the center screen, turn off the IR light, turn on a white light and play a warning sound until the object leaves the perimeter area |
| Autotracking Intelligent | Intelligent Human and Vehicle Tracking |
| Pan/Tilt Range | Horizontal: 355°, Vertical: -5°~90° auto flip |
| Manual speed | Horizontal: 0.1° ~ 80° /s, Vertical: 0.1° ~60° /s |
| Speed between Presets | Horizontal: 80° /s, Vertical: 60° /s |
| Preset positions | 300 Preset, 8 Tours, 4 Patrols |
| Internal storage | MicroSD card, Max 256 GB |
| Audio | 1 Input / 1 Output Built-in Microphone and Speaker (Two-way Audio) |
| Audio compression | G.711 A/U |
| Audio bit rate | 64 Kbps |
| Alarms | 1 Input / 1 Relay |
| PTZ control | Via network access |
| Network interface | Ethernet 10 / 100M BaseT |
| Remote Access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF, PSIA, CGI |
| Power | DC 12 V / 2A, PoE+ IEEE802.3at |
| Temp. operation | -40º C ~ +65º C |
| Temperature protection | Built-in temperature sensor, automatic shutdown in case of excess temperature |
| Degree of protection | Waterproof IP66 / Anti-vandal IK10 / Surge 6000V |
| Dimensions (without support) | 162 (H) x 130(Ø) mm |
| Weight (without stand) | 2000 g |
Contents
- Safire Smart B1 IP PTZ camera
- Installation material
- Quick installation guide
