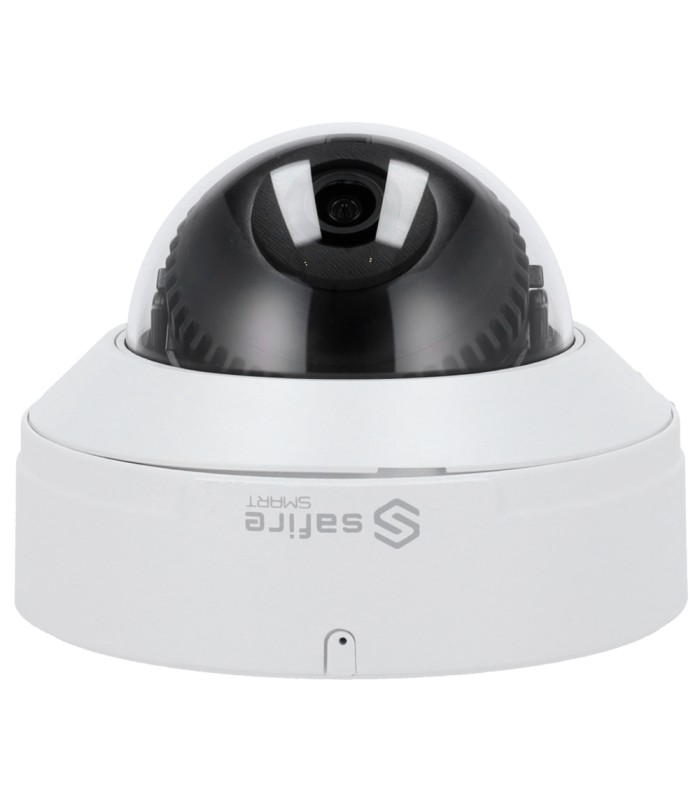

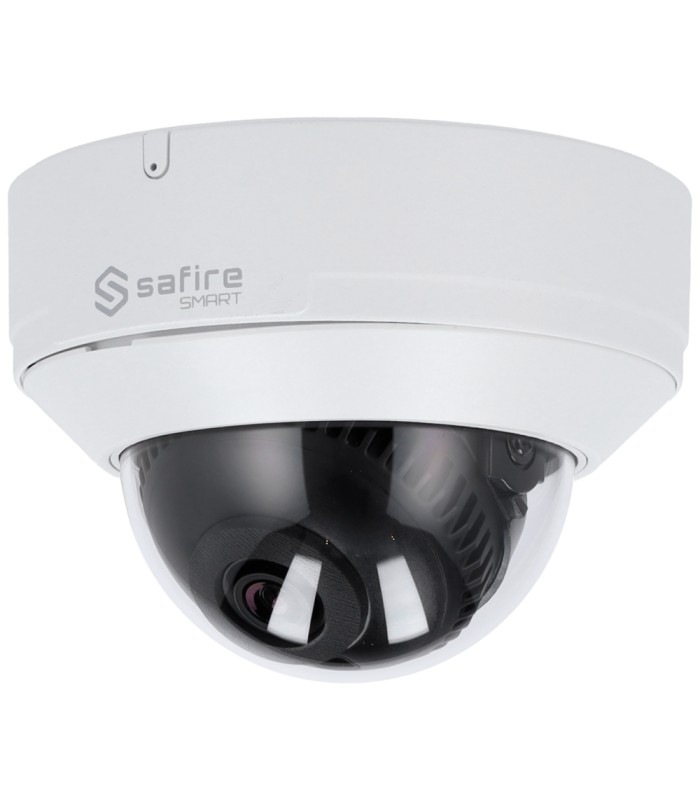

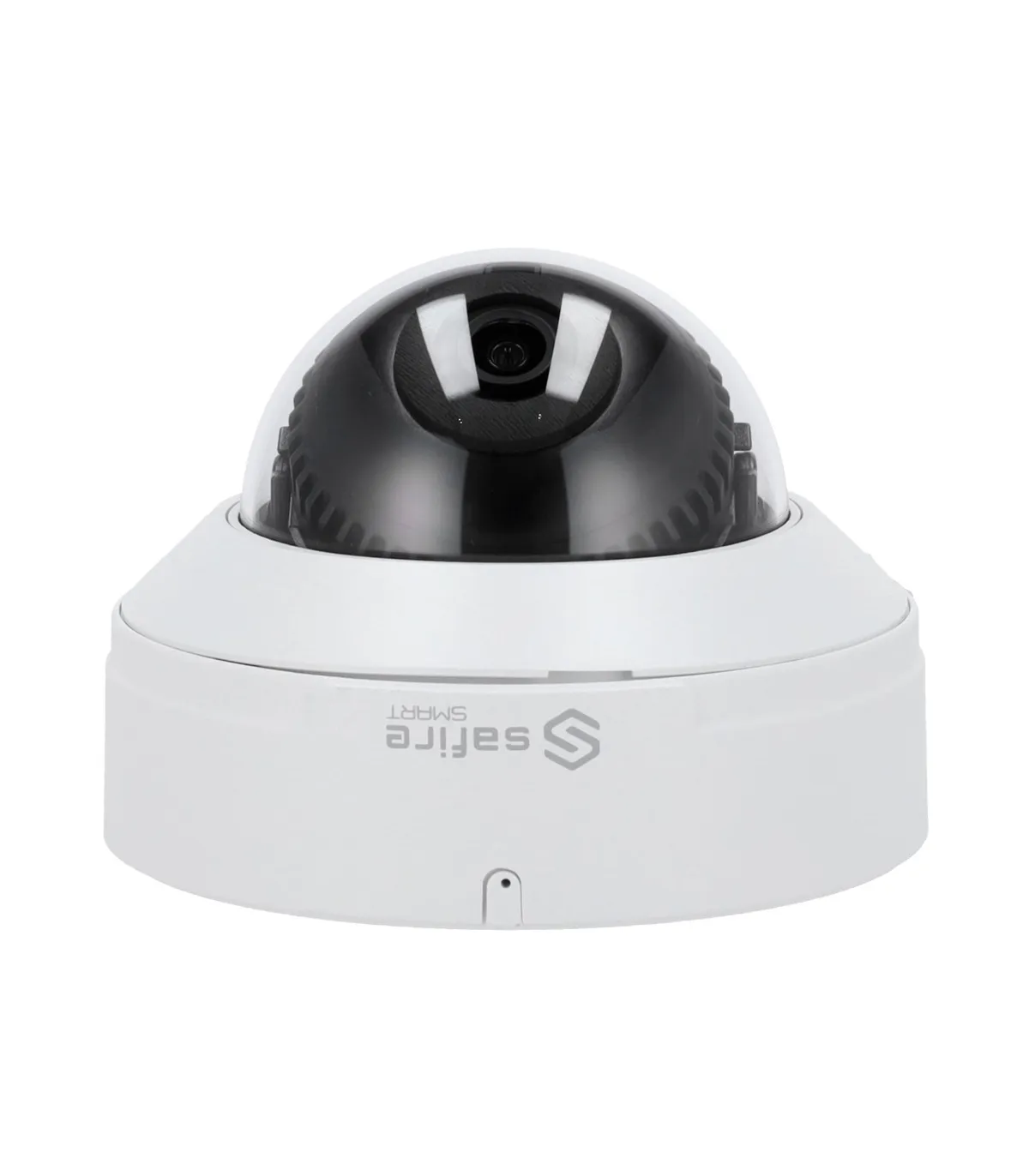

Advanced I1 AI range IP Dome Camera SF-IPD040A-6I1
Brand: SAFIRE SMART
- Safire Smart
- Advanced I1 AI range IP Dome Camera
- Resolution 6 Megapixel (3296×1856)
- 2.8 mm lens | Microphone | IR 30m
- Advanced AI: Human, vehicle and 2-wheeled vehicle
- IP67 waterproof & IK10 | PoE (IEEE802.3af)
IP Dome Camera I1 AI range Advanced SF-IPD040A-6I1
- Safire Smart
- I1 range
- IP Dome Camera
- 1/2.8" Progressive Scan CMOS
- 6 Megapixel (3296×1856)
- Lens 2.8 mm
- 0 Lux
- IR range 30 m
- H.265+ / H.264+ compression
- WDR
- 3DNR
- Built-in microphone
- Audio
- TrueSense: Human and vehicle classification
- WEB interface, CMS, Smartphone and NVR
- Compatible with ONVIF
- PoE (IEEE802.3af)
- 3 Axis
- Waterproof IP67
- Anti-vandal IK10
Technical specifications
| Brand | Safire Smart |
| Range | I1 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 6 Megapixel (3296×1856) |
| Minimum illumination | Color: 0.008 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 30 m |
| Day/night | Mechanical filter Removable ICR |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 30 FPS (6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P) |
| Extra Stream Rate | 30 FPS (720P, D1, VGA, 480x240) |
| Third Stream Rate | 30 FPS (D1, CIF, 480x240) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 12 Mbps |
| Optical | 2.8 mm |
| Angle of view (FOV) | H: 104°, V: 54.5°, D: 130° |
| DORI | 71 m (D), 28 m (W), 14 m (R), 7 m (L) |
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion Detection | Yes |
| Smart Features | Advanced artificial intelligence based on classification of human, vehicle and two-wheeler on: Area intrusion, Line crossing, entry region, exit region Other intelligent events: abandoned object, object removed, Video exceptions (scene change, video loss, ...) |

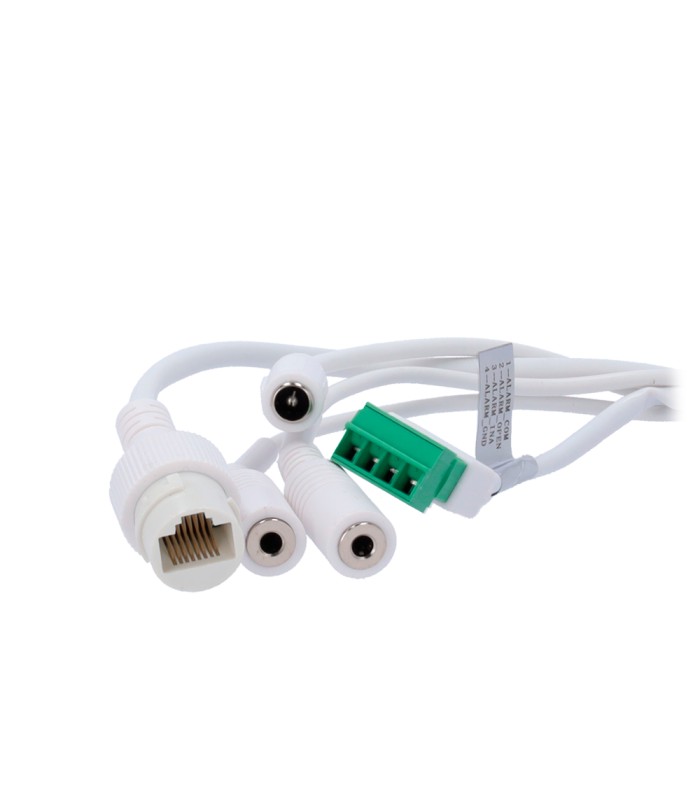

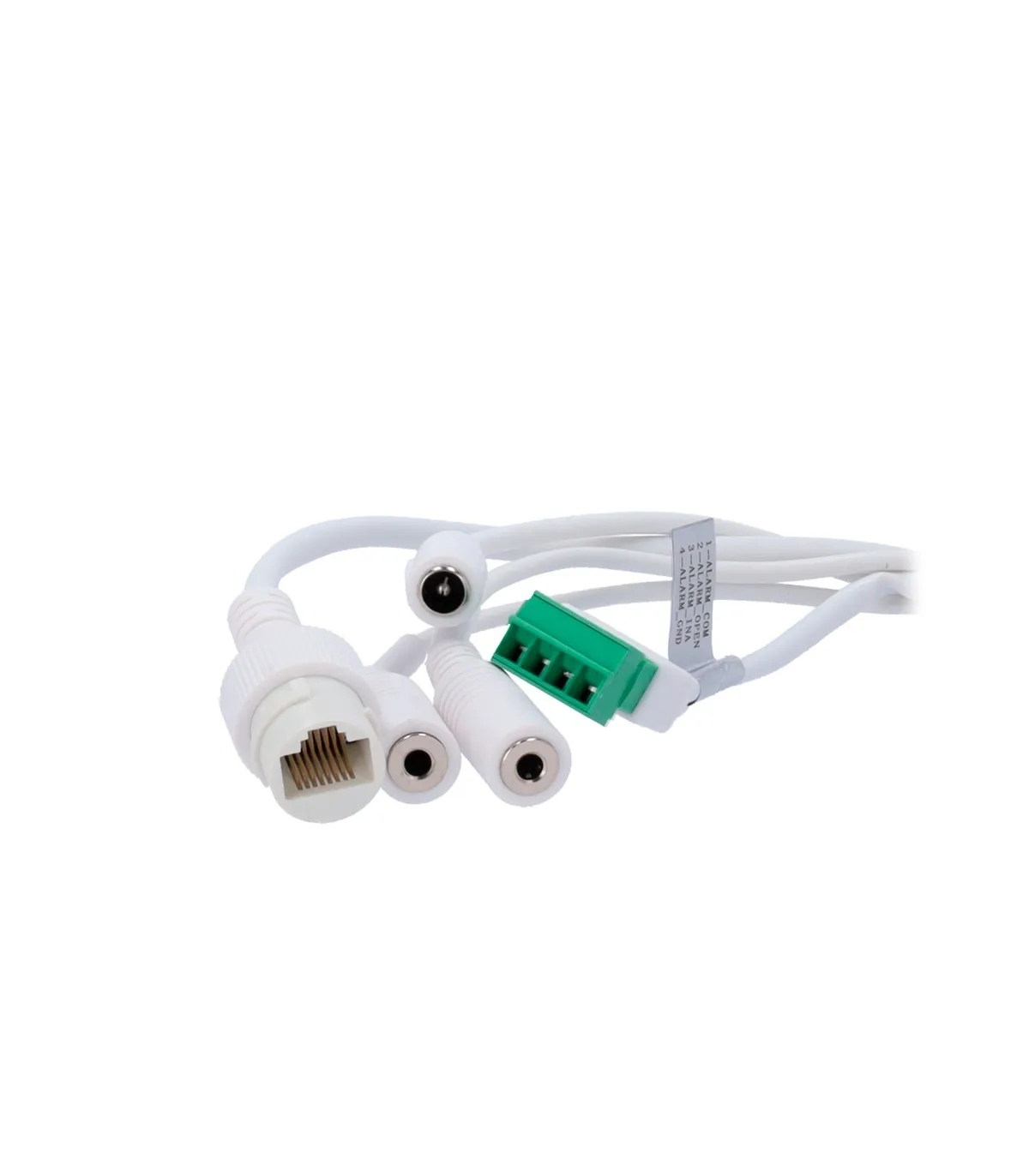

| Audio | 1 Input / 1 Output / Integrated microphone |
| Audio compression | |
| Remote Access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF, P2P |
| 3 Axis | Yes |
| Power | DC 12 V / 7.5 W max. / PoE IEEE802.3af |
| Protection degree | Waterproof IP67, Vandal-resistant IK10 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 119 (Ø) x 87.80 (H) mm |
| Weight | 640 g |
Contents
- Safire Smart I1 IP Dome Camera
- Installation material
- Quick installation guide
