| Brand | Safire Smart |
| Range | E1 |
| Sensor image | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Lighting minimum | Color: 0.02 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR and White Light Range | White LED up to 30 m IR LED up to 50 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 20 FPS (8Mpx) 30 FPS (6Mpx, 4Mpx, 2K, 1080P) |
| Extra Stream Rate | 25 FPS (720P, D1, VGA, 640x360, CIF, 480x240) |
| Third Stream Rate | 25 FPS (720P, D1, 640x360, CIF) |
| Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Bitrate | 64 Kbps ~ 12 Mbps |
| Optics | 2.8 mm |
| Angle of view (FOV) | H: 106°, V: 57°, D: 124° |
| DORI | 79 m (R), 32 m (W), 16 m (R), 8 m (L) |
| Image enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy mask, ROI |
| Motion detection | Yes |
| Smart Features | Artificial intelligence based on human and vehicle classification about: Area intrusion, Line crossing, entry region, exit region Other intelligent events: object abandoned, object removed, Video exceptions (scene change, video loss, ...) |
| Audio | 1 Input / Integrated Microphone |
| Audio compression | G711A / U |

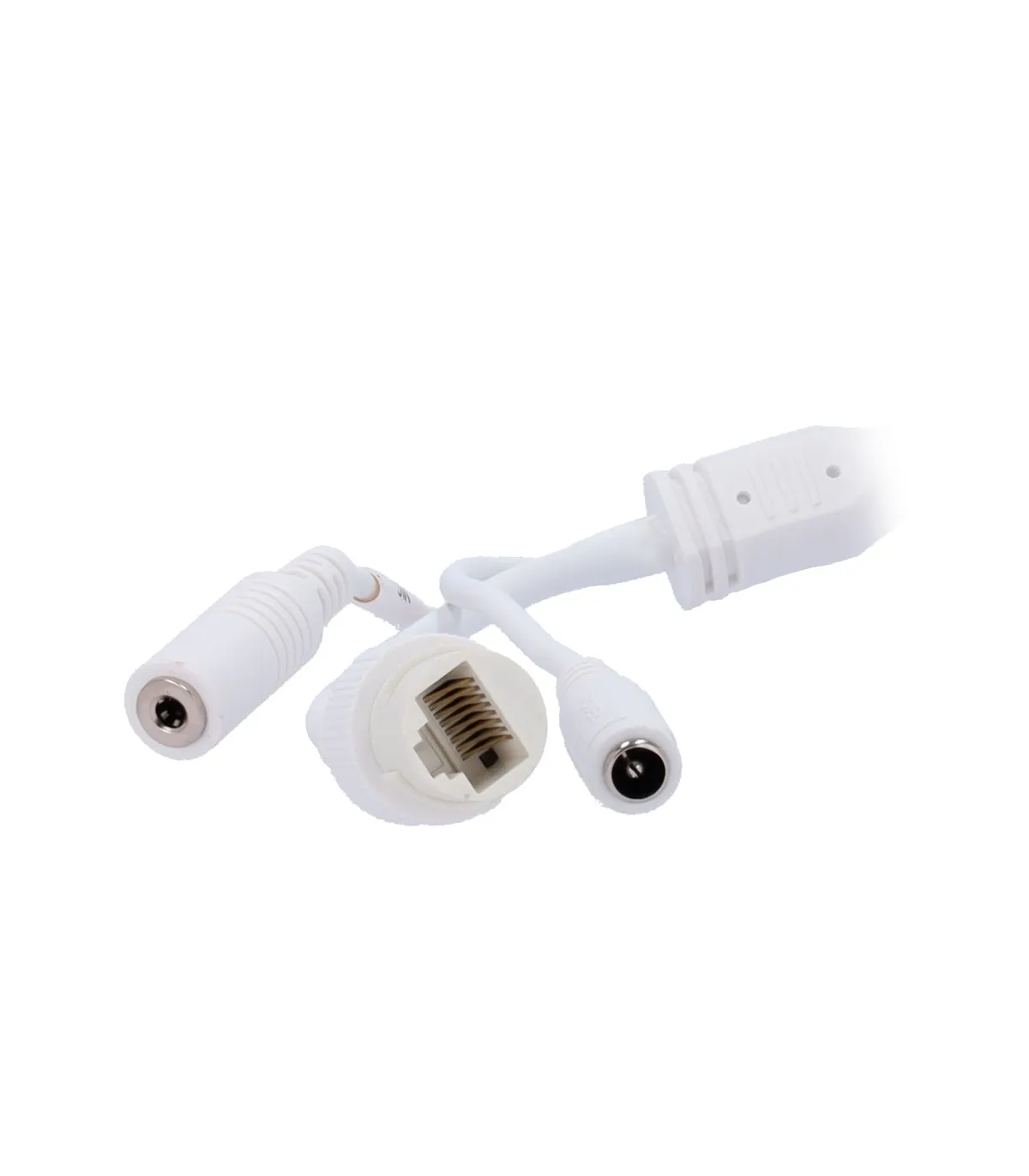

| Network interface | Ethernet 10 / 100M BaseT |
| Internal storage | MicroSD card up to 256GB |
| Remote access | Web browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| P2P | Yes |
| Power | DC 12 V / 12W max / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 80.5 (H) x 80.5 (W) x 217.8 (D) mm |
| Weight | 450 g |
