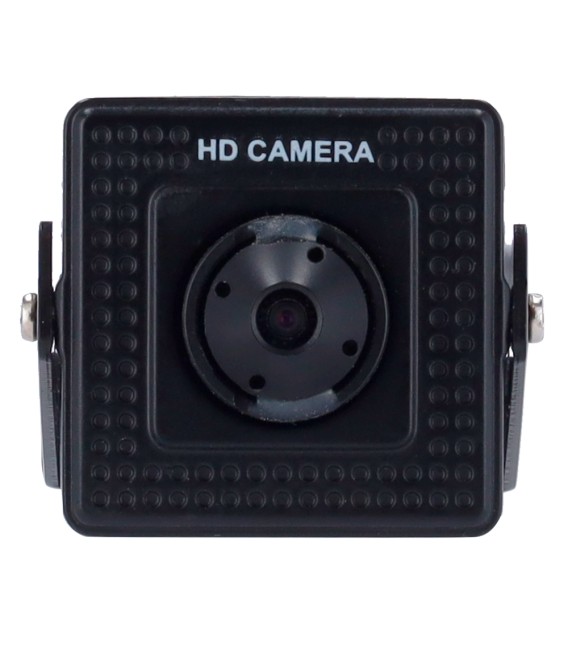

IP Pinhole Camera range I1 AI Advanced SF-IPPHOLE025A-2I1
Brand: SAFIRE SMART
- Safire Smart
- Advanced I1 AI range IP Pinhole Camera
- Resolution 2 Megapixel (1920x1080)
- 2.8 mm lens | Audio & Alarms
- Advanced AI: Perimeter, Face, Counting, Metadata
- PoE (IEEE802.3af)
I1 Advanced AI Range IP Pinhole Camera SF-IPPHOLE025A-2I1
- Safire Smart
- I1 Range with Advanced Artificial Intelligence

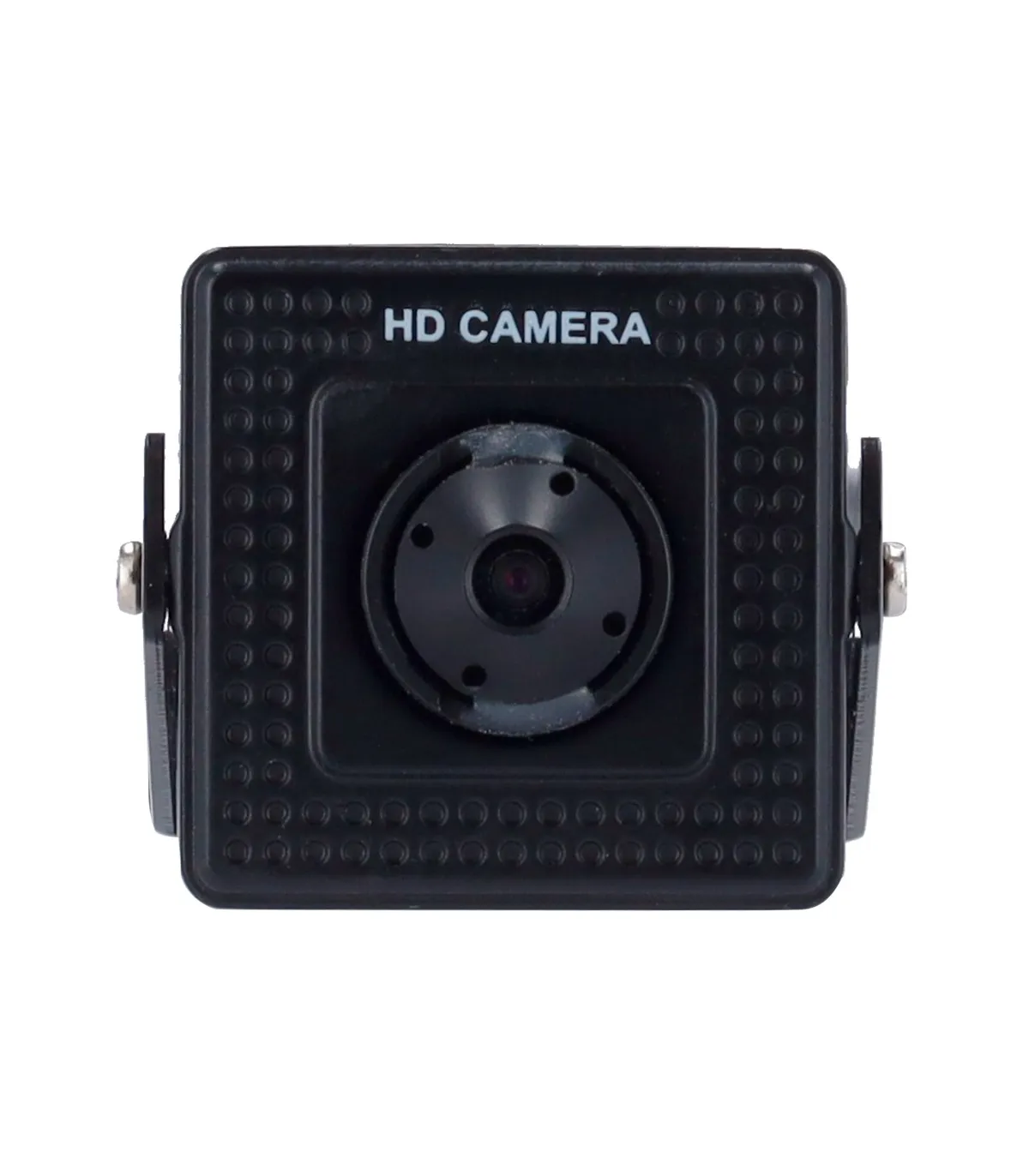

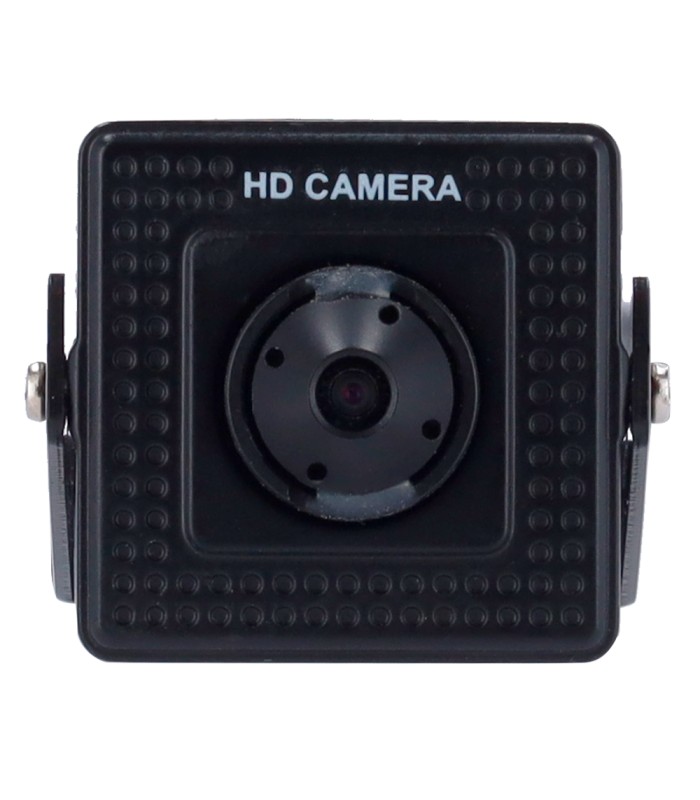

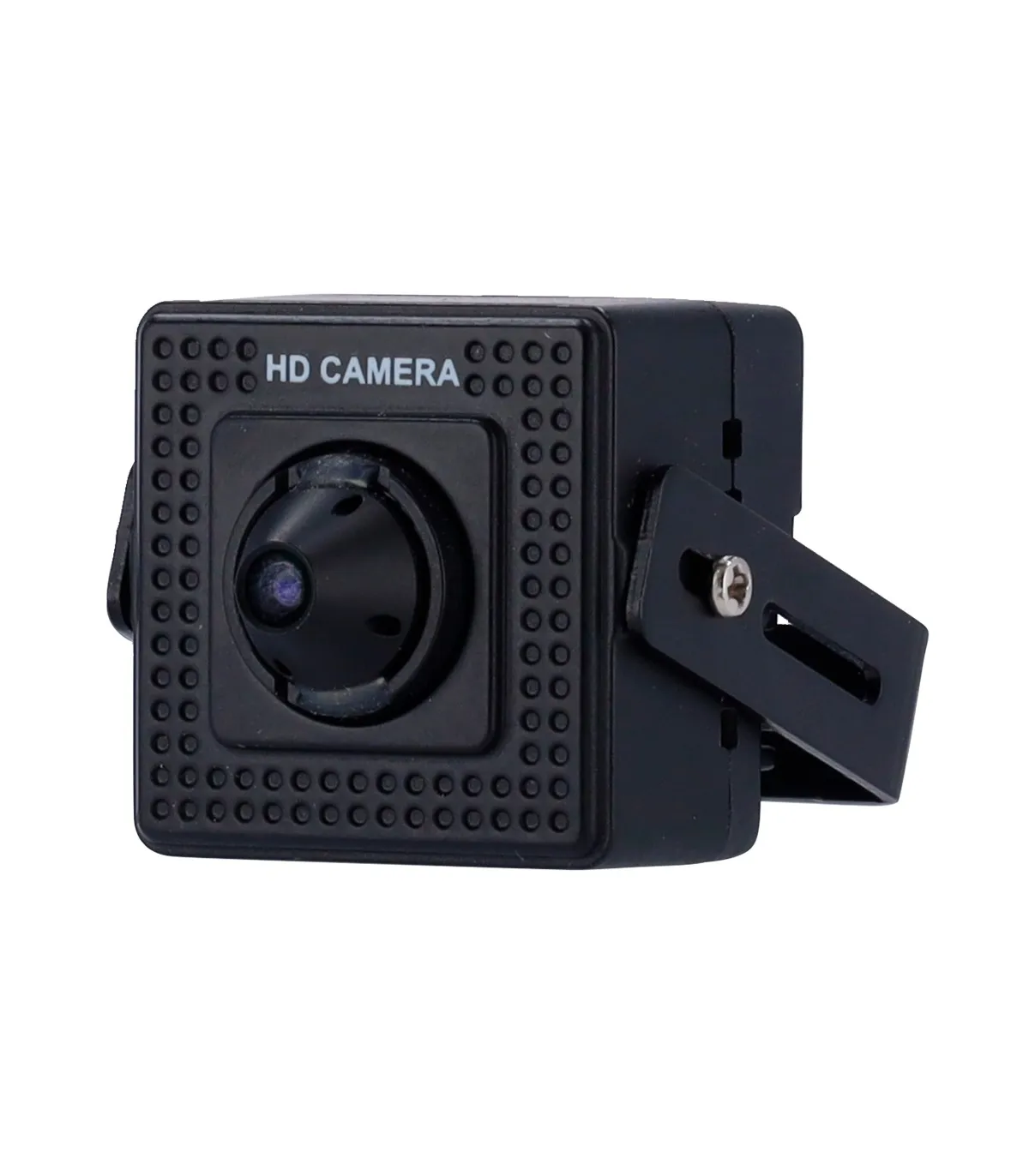

- Mini IP pinhole camera
- 1/2.8" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- 2.8 mm Lens
- 0 Lux
- H.265+ / H.264+ Compression
- WDR 120dB
- 3DNR
- Audio
- Alarms
- Advanced Artificial Intelligence: human, vehicle and non-motorized vehicle detection
- Capture Facial
- Heat map
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
Technical specifications
| Brand | Safire Smart |
| Range | I1 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Minimum illumination | Color: 0.05 Lux @(F2.2, AGC ON) |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 25 FPS (1080P, 720P), D1, CIF, 480x240 |
| Extra Stream Rate | 25 FPS (720P, D1, CIF) |
| Third Stream Rate | 25 FPS (D1, CIF, 480x240) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 6 Mbps |
| Optical | 2.8 mm |
| Angle of view (FOV) | H: 104°, V: 59°, D: 117° |
| DORI | 38 m (D), 15 m (W), 8 m (R), 4 m (L) |
| Image Enhancements | WDR 120dB, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, ROI |
| Motion Detection | Yes |
| Smart Functions | Advanced artificial intelligence based on classification of human, vehicle and non-motorized vehicle on: Area intrusion, Line crossing, entry region, exit region Facial detection and face capture Counting of people, vehicles and non-motorized vehicles motorized Other smart events: object abandoned, object removed, heat map |
| Exceptions | Scene change, blur detection and abnormal color detection |

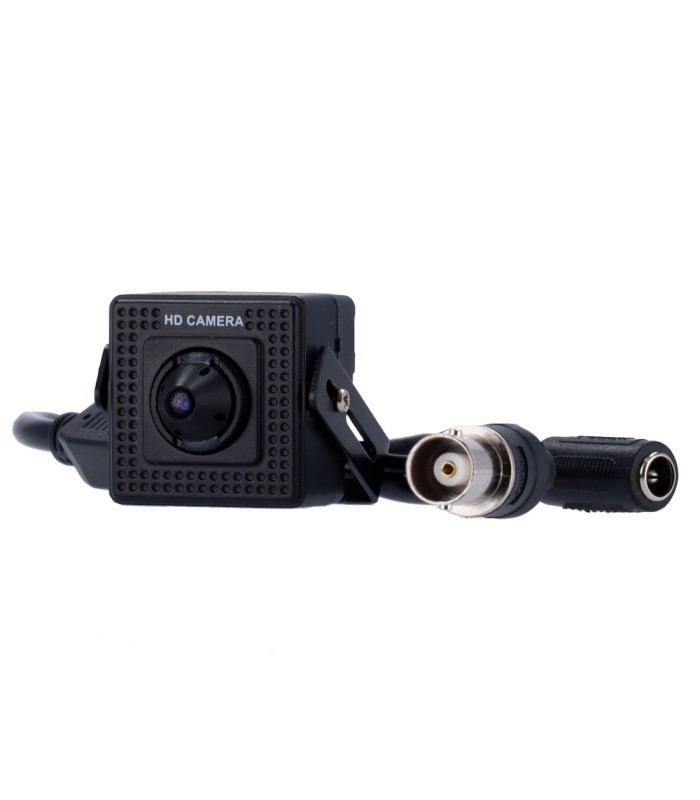

| Input video | BNC (For pinhole camera) |
| Audio | 1 Input (3.5mm) / 1 Output (3.5mm) |
| Compression audio | G711A / U |
| Alarms | 8 Input / 4 Relay |
| Network interface | Ethernet 10/100M BaseT |
| Internal storage | microSD card up to 256GB |
| Remote access | Web Browser, Safire Smartphone App Smart, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / 460 mA / 5.5 W max. / PoE IEEE802.3af |
| Protection degree | Not available |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C, < 95% |
| Dimensions | Chamber: 30.4 (Fo) x 31.6 (W) x 30.4 (H) mm Box: 108.5 (Fo) x 87.8 (W) x 28 (H) mm |
| Weight | Camera: 52.4 g Box: 271.4 g |
Contents

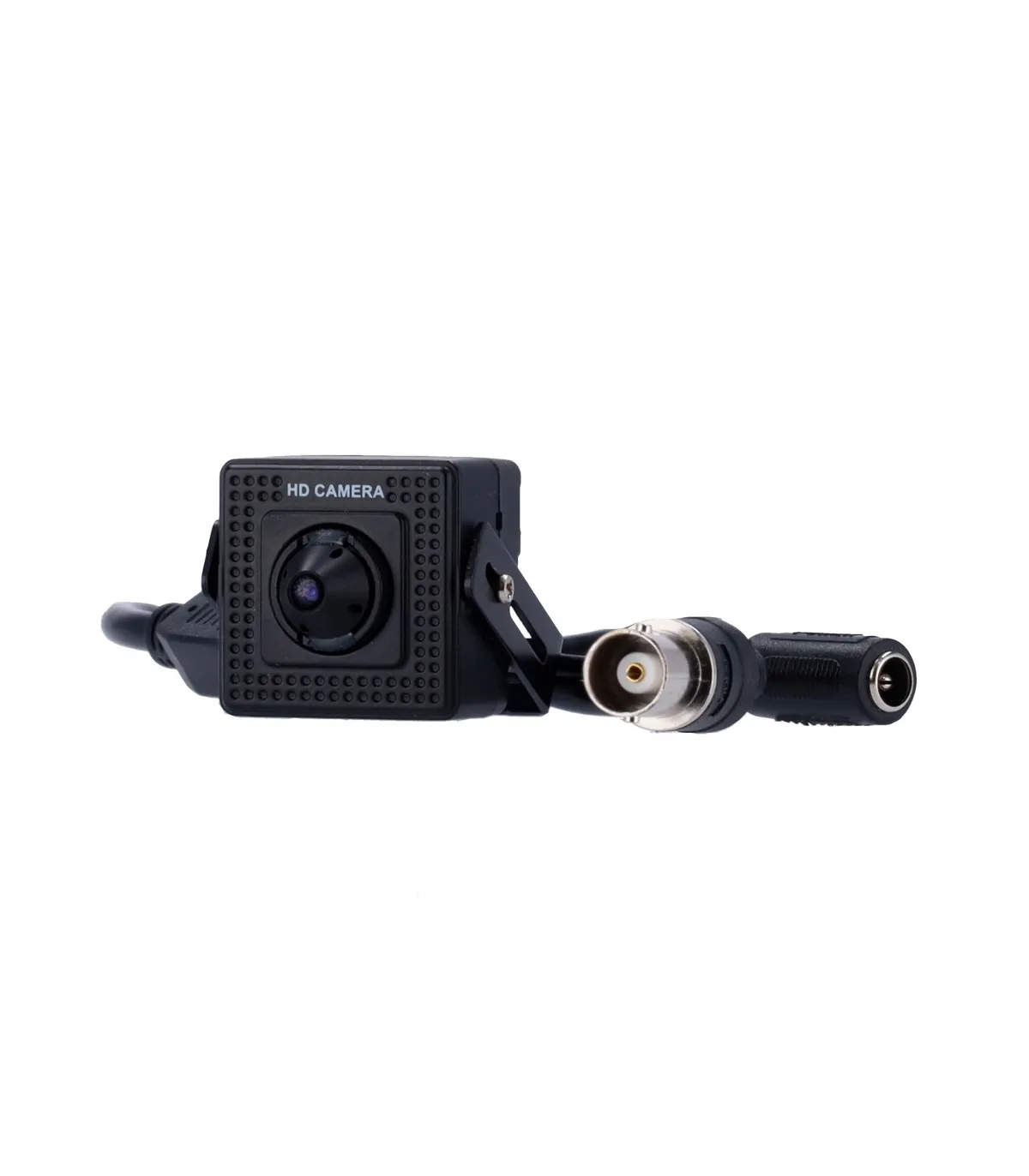

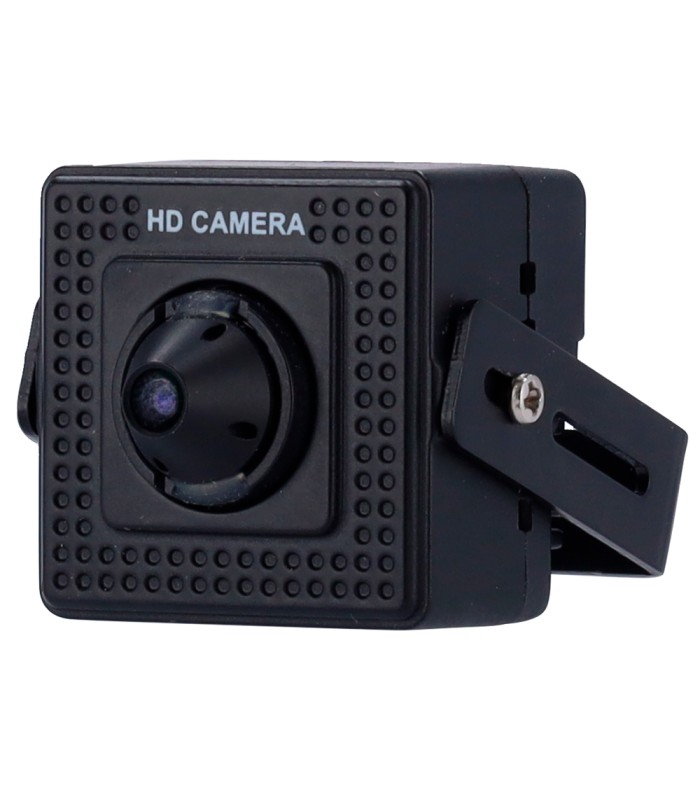

- IP Pinhole Camera Safire Smart I1

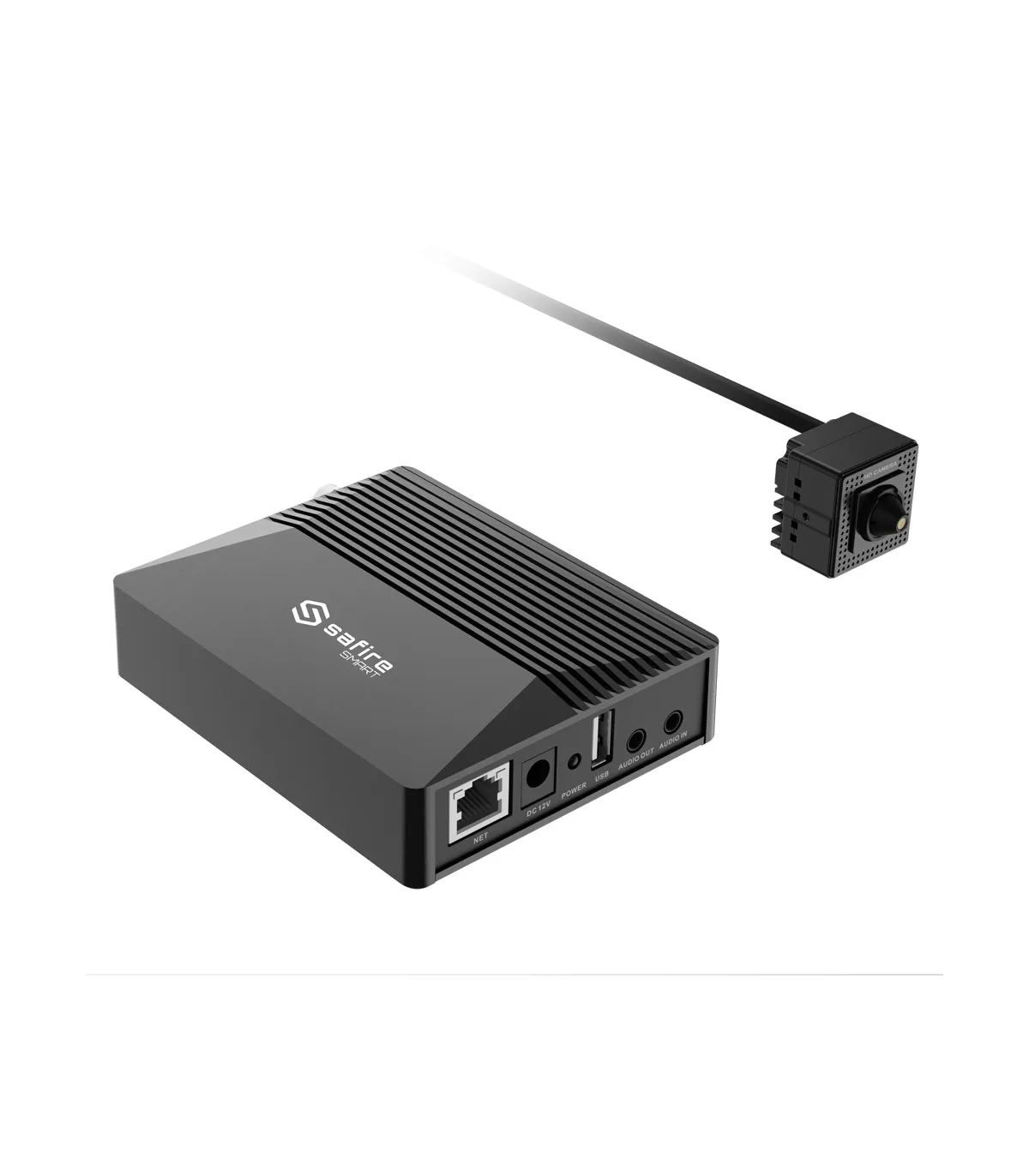

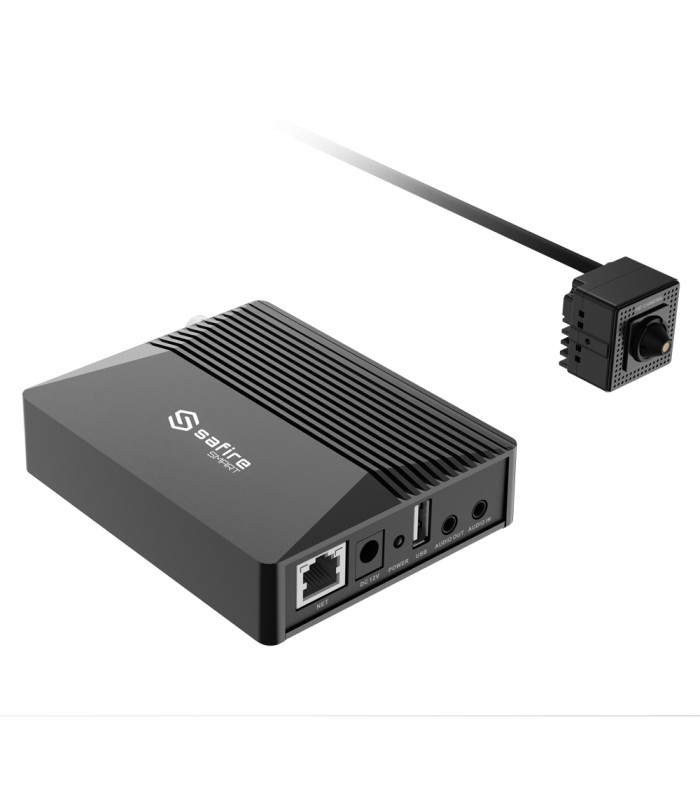

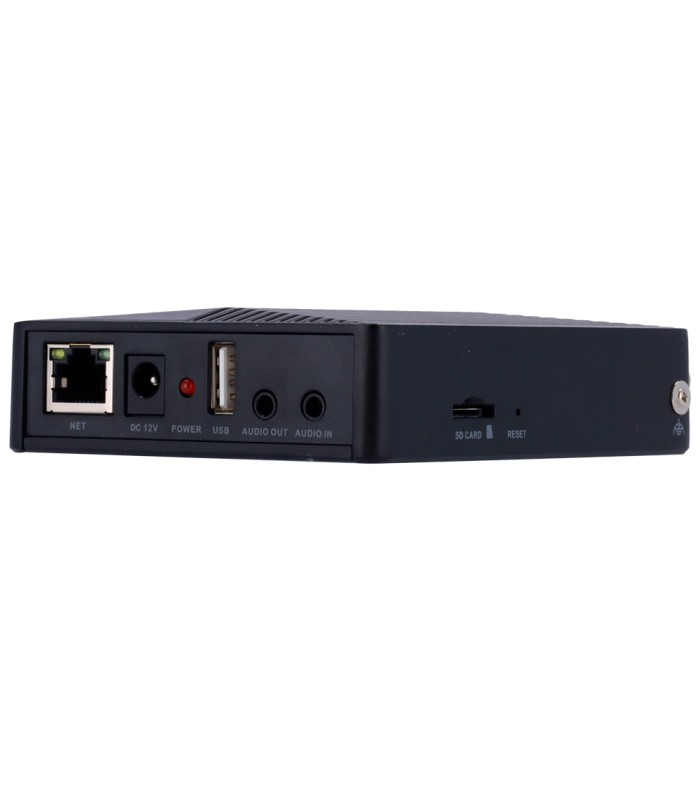

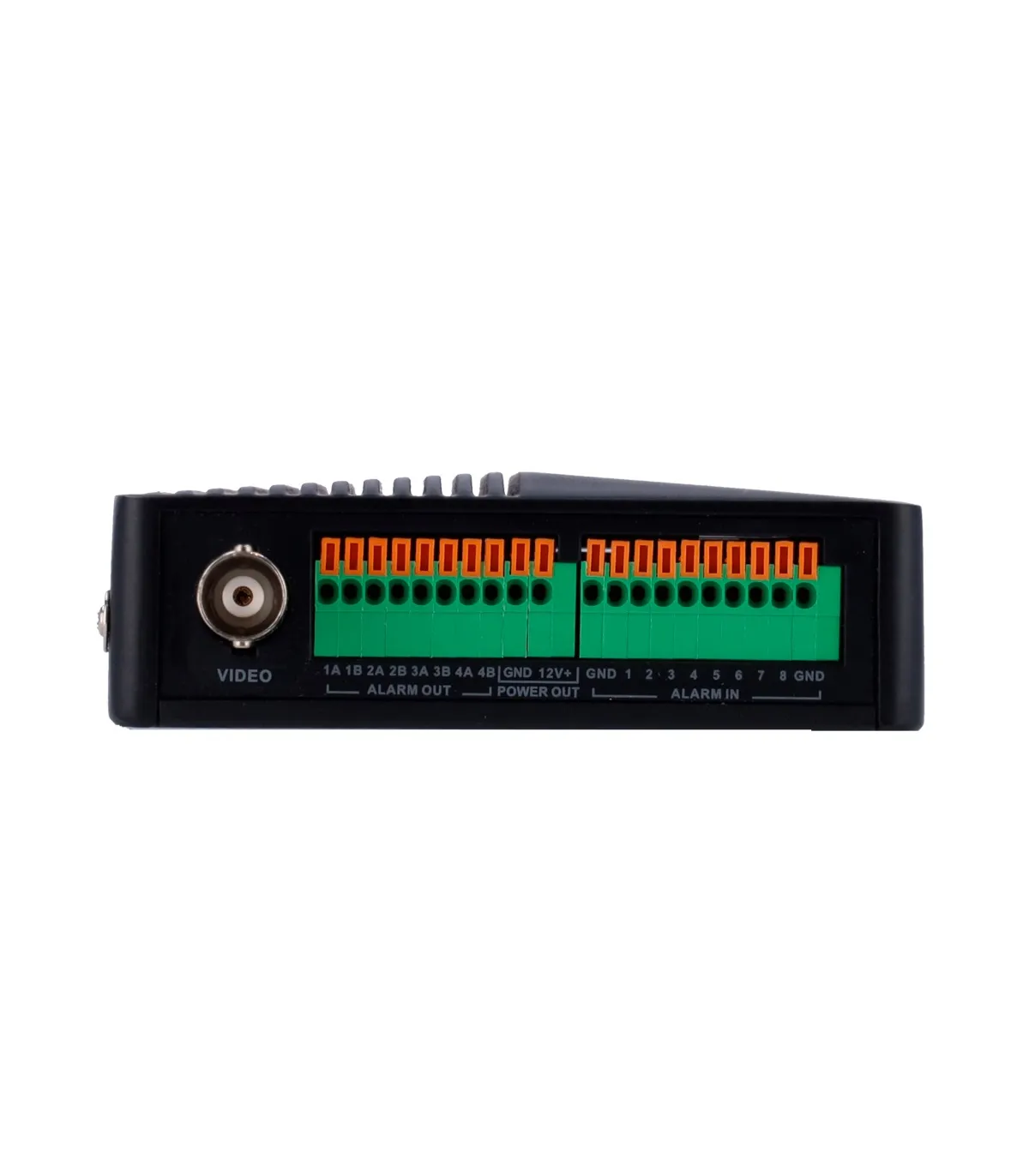

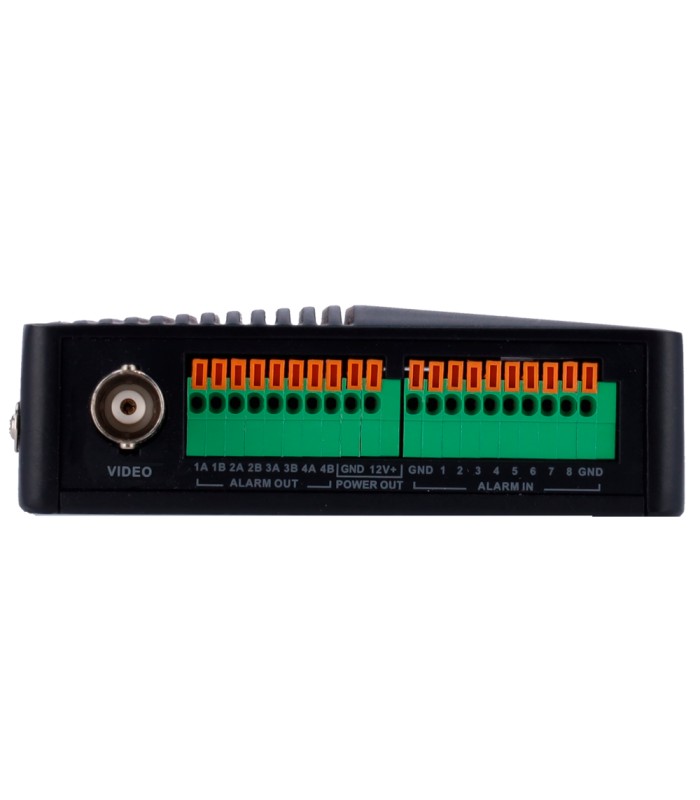

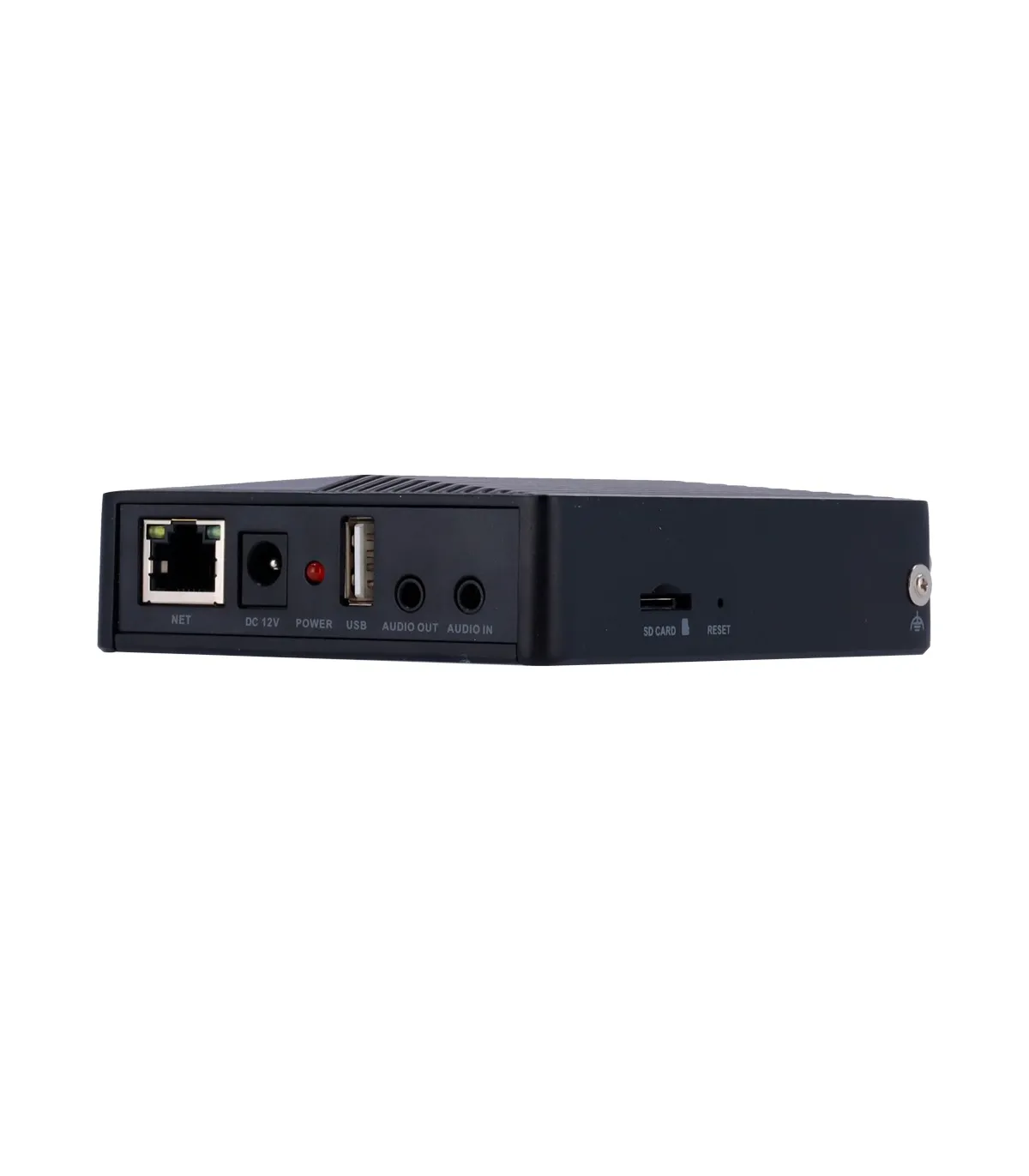

- IP distribution box with alarms for pinhole camera
- Installation material
- Quick installation guide
