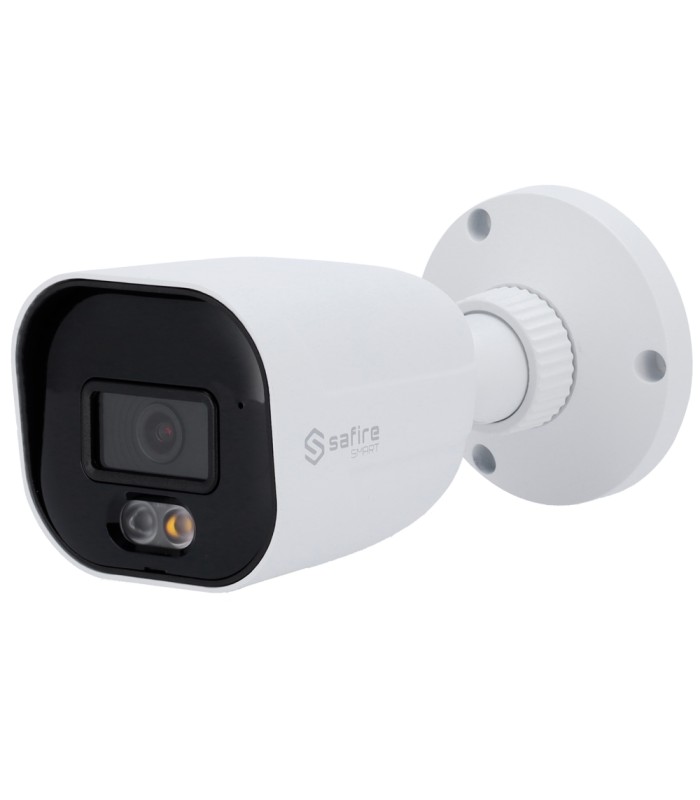

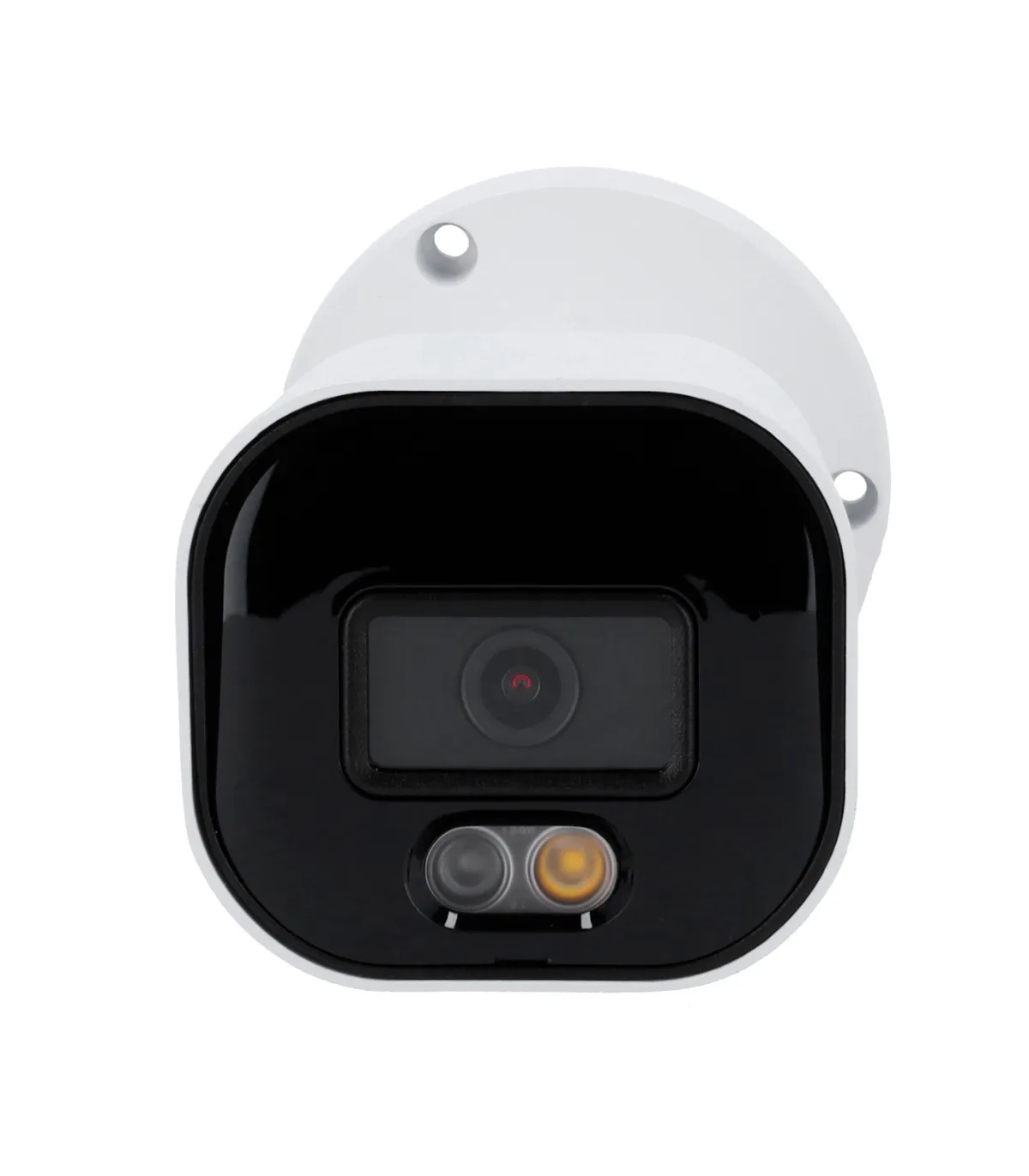

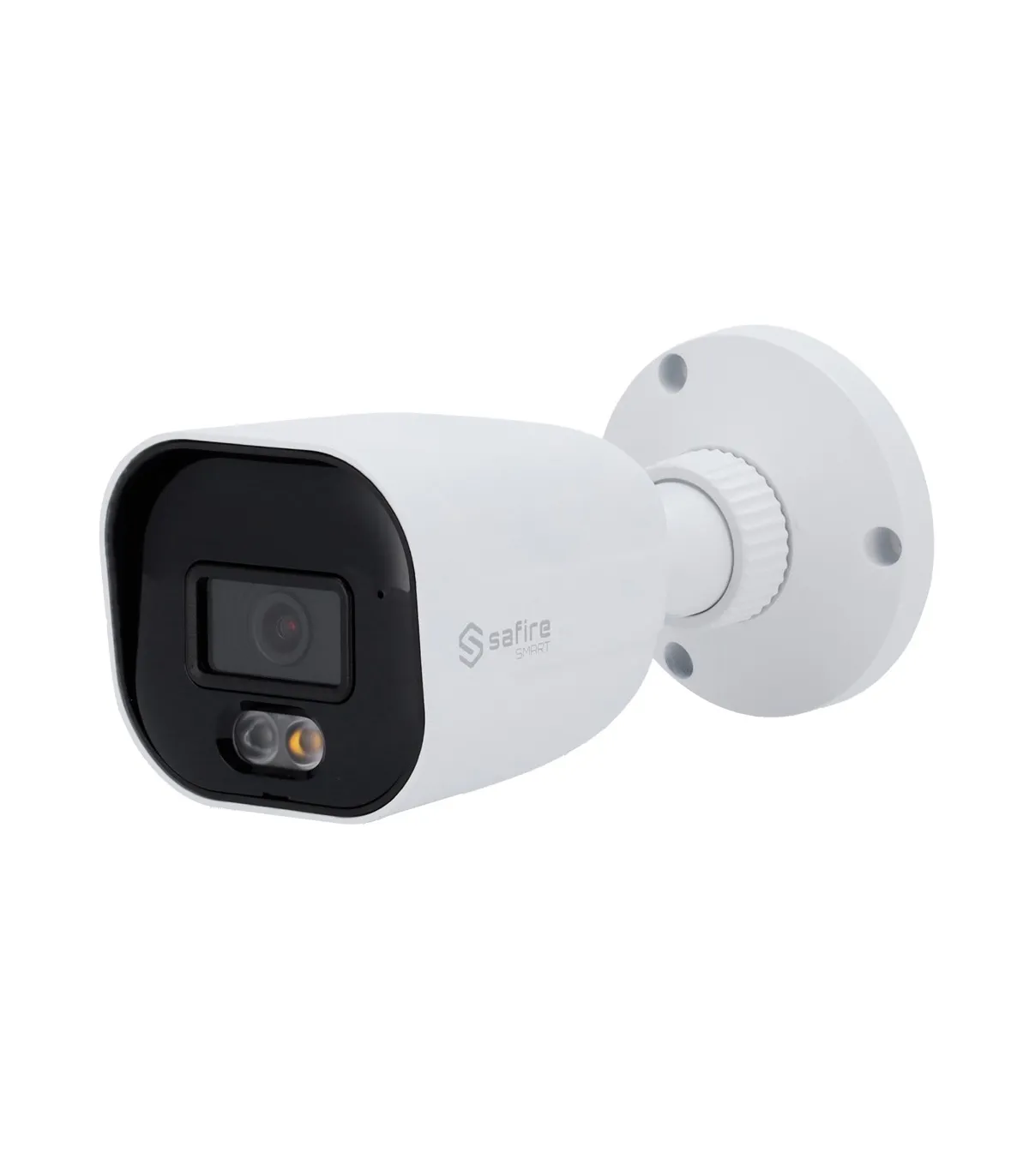

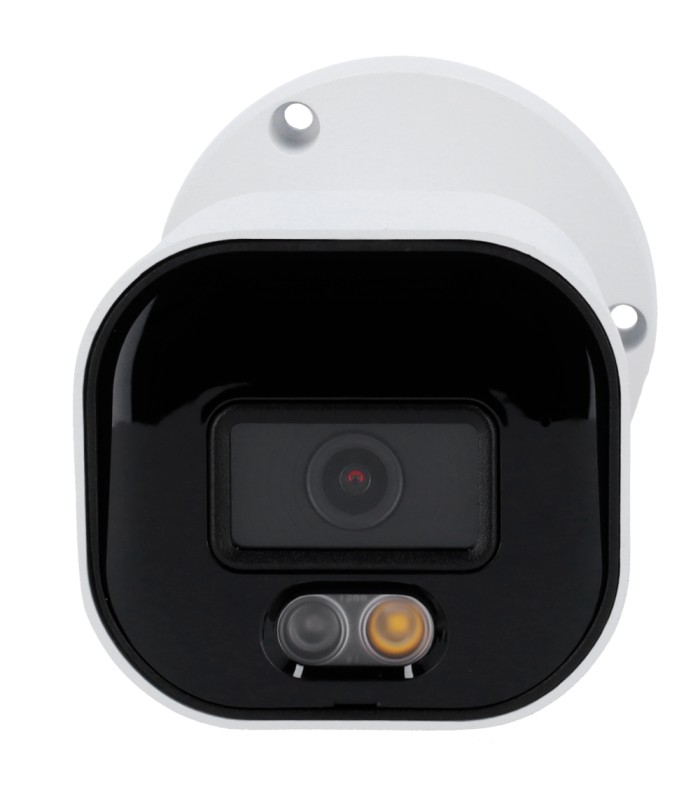

B1 range IP Bullet Camera with dual light SF-IPB080A-6B1-DL
Brand: SAFIRE SMART
- Safire Smart
- B1 range IP Bullet Camera with dual light
- Resolution 6 Megapixel (3200×1800)
- 2.8 mm lens | Integrated microphone
- Dual IR light + white LED up to 20m
- IP67 waterproofing | PoE (IEEE802.3af)
B1 range IP Bullet Camera with dual light SF-IPB080A-6B1-DL
- Safire Smart
- B1 range with dual light
- IP Bullet Camera
- 1/2.7" Progressive Scan CMOS
- 6 Megapixel (3200×1800)
- Lens 2.8 mm
- 0 Lux
- DualLight range 20 m
- Compression H.265+ / H.265 / H.264+ / H.264
- WDR
- 3DNR
- Integrated Microphone
- WEB, CMS, Smartphone and NVR interface
- Compatible with ONVIF
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | Safire Smart |
| Gamma | B1 with dual light |
| Image sensor | 1/2.7" Progressive Scan CMOS |
| Maximum resolution | 6 Megapixel (3200×1800) |
| Minimum illumination | Color: 0.008 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Dual Light | IR and White Light range: 20 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 20 FPS (6Mpx) 30 FPS (4Mpx, 1080P) |
| Extra Stream Rate | 30 FPS (720P, D1, CIF, 480×240) |
| Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Bitrate | 64 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Angle of view (FOV) | H: 110.5°, V: 57°, D: 131° |
| DORI | 60 m (R), 24 m (W), 12 m (R), 6 m (L) |
| Image enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy mask, ROI |
| Motion detection | Yes |
| Audio | Built-in microphone |
| Audio compression | G711A / U |
| Network interface | Ethernet 10 / 100M BaseT |
| Internal storage | MicroSD card up to 256GB |
| Remote access | Web browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / 6 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 75 (H) x 75 (W) x 167.6 (D) mm |
| Weight | 382 g |
Contents
- Safire Smart B1 IP Bullet Camera
- Installation material
- Quick installation guide
