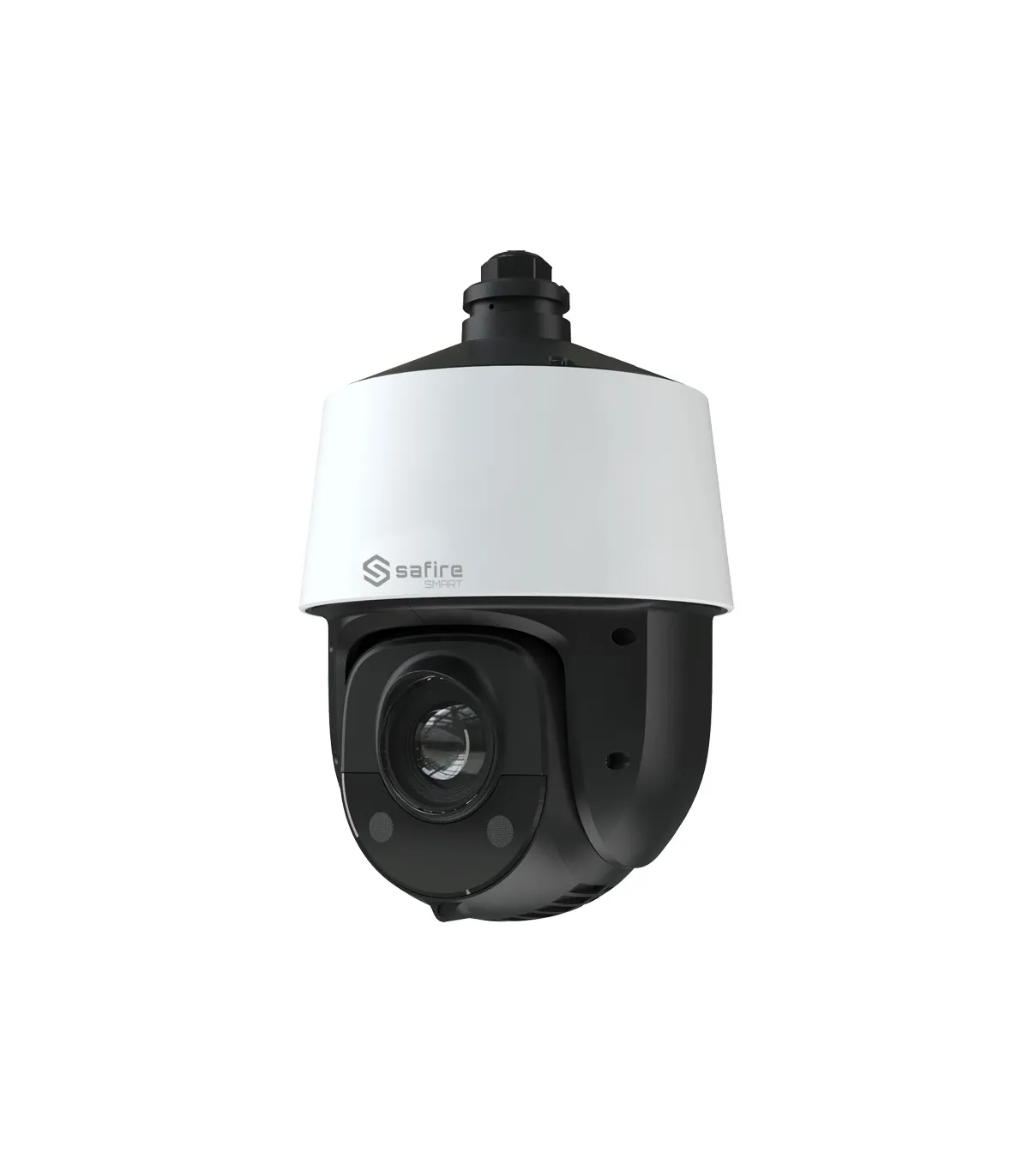

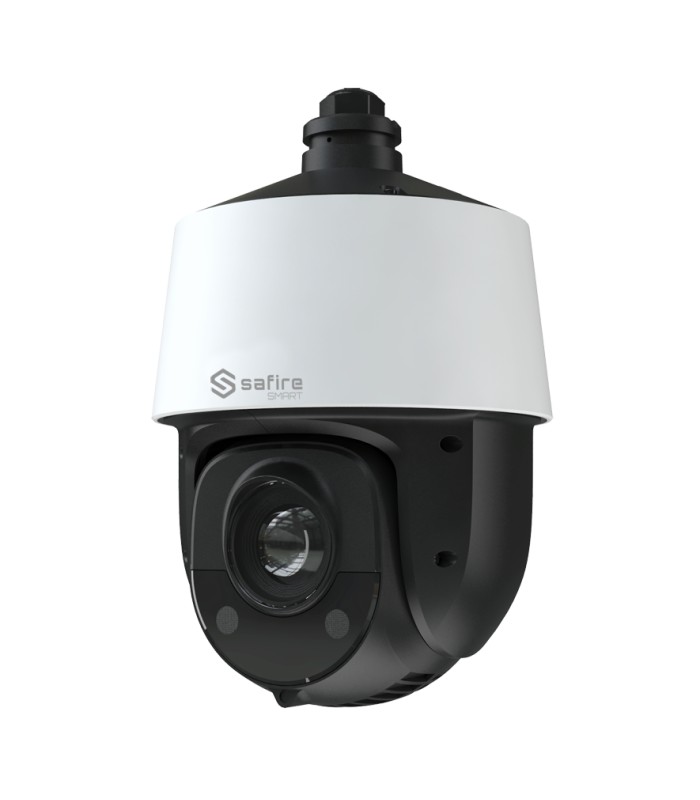

E1 range IP PTZ camera Artificial Intelligence SF-IPSD4015IT-2E1
Brand: SAFIRE SMART
- Safire Smart
- E1 range IP PTZ camera Artificial Intelligence
- Resolution 2 Megapixel (1920x1080)
- 15X optical zoom | IR 200m | WDR 120 dB
- Autotracking, human and vehicle
- IP66 waterproofing | PoE (IEEE802.3af)
E1 range IP PTZ camera with Artificial Intelligence SF-IPSD4015IT-2E1
- Safire Smart
- E1 range with Artificial Intelligence
- IP PTZ camera
- 1/2.8" Progressive Scan CMOS
- 2 Megapixel (1920X1080)
- 15X optical zoom
- Lens 5-75 mm
- 0 Lux
- IR range 200 m
- WDR 120 dB
- H.265 / H.264 compression
- WDR
- 3DNR
- Artificial Intelligence for classification of human and vehicle
- Smart autotracking, human and vehicle tracking
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP66
- Support included
Technical specifications
| Brand | Safire Smart |
| Range | E1 |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Resolution | 2 Megapixel (1920x1080) |
| Minimum Illumination | Color: 0.002 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR LED | 200m (850nm) |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Optical Zoom | 15X |
| Digital Zoom | 16X |
| Lens | 5 - 75 mm |
| FOV | H: 54º - 4º / V: 32º - 2.3º / D: 64.5º - 4.6º |
| DORI | W: 73 m (D), 29 m (W), 15 m (R), 7 m (L) T: 883 m (D), 350 m (W), 177 m (R), 88 m (L) |
| Electronic shutter | 1/1s~1/10,000s |
| Day / Night | Removable ICR mechanical filter |
| Image enhancements | BLC, HLC, WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI |
| WDR | 120 dB |
| Advanced Functions | Artificial intelligence based on human and vehicle classification on: Area intrusion, Line crossing, entry region, entry region output Other intelligent events: object abandoned, object removed, Video exceptions (scene change, video loss, ...) |
| Intelligent Autotracking | Intelligent Human and Vehicle Tracking |
| Pan/Tilt range | Horizontal: 360°, Vertical: -10°~90° auto flip |
| Manual speed | Horizontal: 0.1° ~ 80° /s, Vertical: 0.1° ~80° /s |
| Speed between Presets | Horizontal: 80° /s, Vertical: 80° /s |
| Preset positions | 360 Preset, 8 Tours, 4 Patrols |
| Internal storage | MicroSD Card, Max 256 GB |
| Audio | No available |
| Alarms | Not available |
| PTZ control | Through network access |
| Network interface | Ethernet 10 / 100M BaseT |
| Remote access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF, PSIA, CGI |
| Power | DC 12 V / 1A, PoE IEEE802.3af (Max. 12W) |
| Temp. operation | -30º C ~ +65º C |
| Protection degree | IP66 / Surge 6000V |
| Dimensions (without support) | 268 mm (H) x 173(Ø) mm |
| Weight (without support) | 2000 g |
Contents
- Safire Smart IP PTZ camera E1
- Installation material
- Wall bracket
- Quick installation guide
