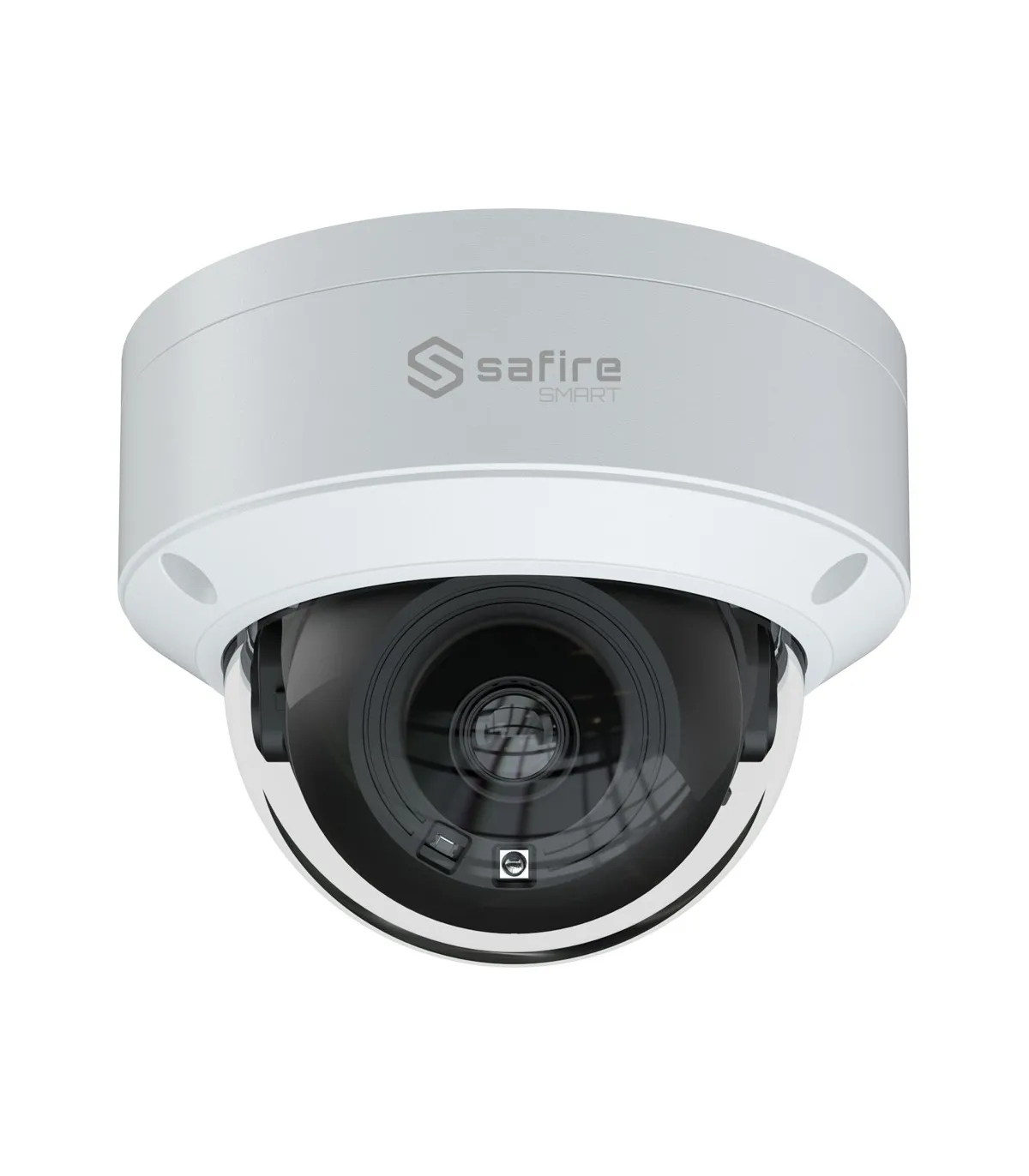

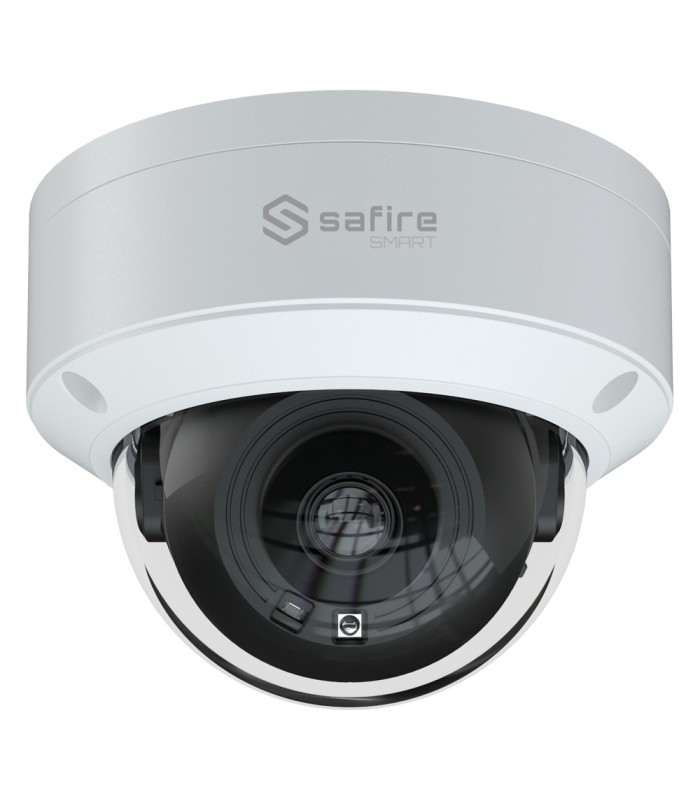

Economical B1 range IP Dome Camera SF-IPD040-4B1
Brand: SAFIRE SMART
- Safire Smart
- Economic B1 range IP Dome Camera
- Resolution 4 Megapixel (2566x1440)
- 2.8 mm lens | IR 30m
- VCA Rules
- Waterproof IP67 & IK10 | PoE (IEEE802.3af)
Affordable B1 range IP Dome Camera SF-IPD040-4B1
- Safire Smart
- Affordable B1 range
- IP Dome Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- 2.8 Lens mm
- 0 Lux
- IR range 30 m
- H.265 / H.264 Compression
- 3DNR
- Artificial Intelligence: Human and vehicle classification
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- 3 axis
- Waterproof IP67
- Vandal-resistant IK10
Technical specifications
| Brand | Safire Smart |
| Range | Economic B1 |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Minimum illumination | Color: 0.03 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 30 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 25 FPS (4Mpx, 3Mpx, 1080P, 720P) |
| Extra Stream Rate | 25 FPS (720P, D1, CIF) |
| Third Stream Rate | 25 FPS (D1, 480x240, CIF) |
| Compression | H.265 / H.264 |
| Bitrate | 64 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Angle of view (FOV) | H: 98°, V: 53°, D: 116° |
| DORI | 61 m (D), 24 m (W), 12 m (R), 6 m (L) |
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Function mirror, Privacy Mask, ROI |
| Motion Detection | Yes |
| Smart Features | VCA Rules: Area Intrusion, Line Crossing, Abandoned Object, Object removed, video exception (scene change) |
| Audio | No |
| Audio compression | G711A / U |
| Network interface | Ethernet 10 / 100M BaseT |
| Internal storage | No |
| Remote Access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| 3 Axis | Yes |
| Power | DC 12 V / 375 mA / < 4 W max. / PoE IEEE802.3af |
| Protection degree | Waterproof IP67, Vandal-resistant IK10 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 110 (Ø) × 83.3 (H) mm |
| Weight | 500 g |
Contents
- Safire Smart B1 IP Dome Camera
- Installation material
- Quick installation guide
