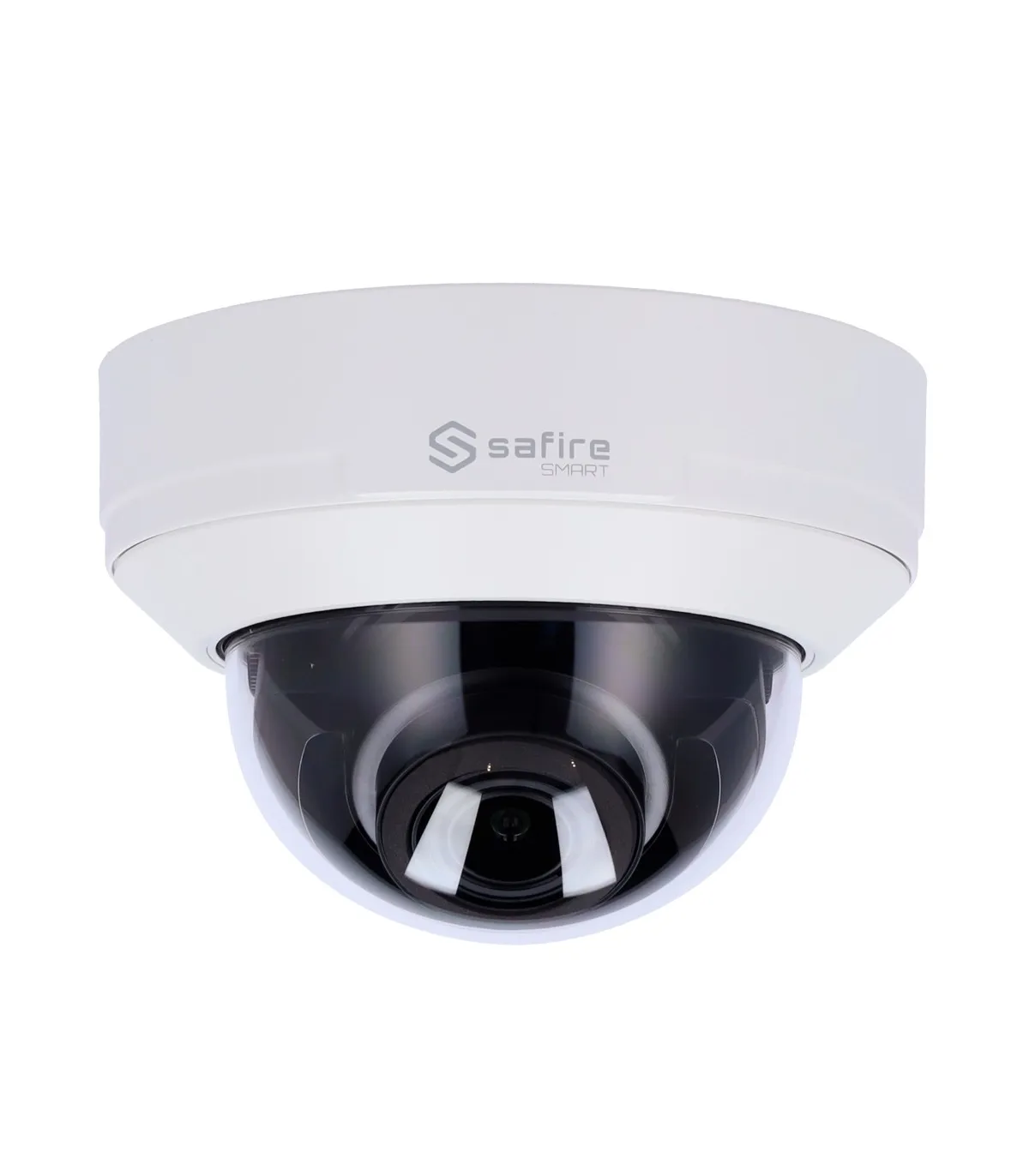

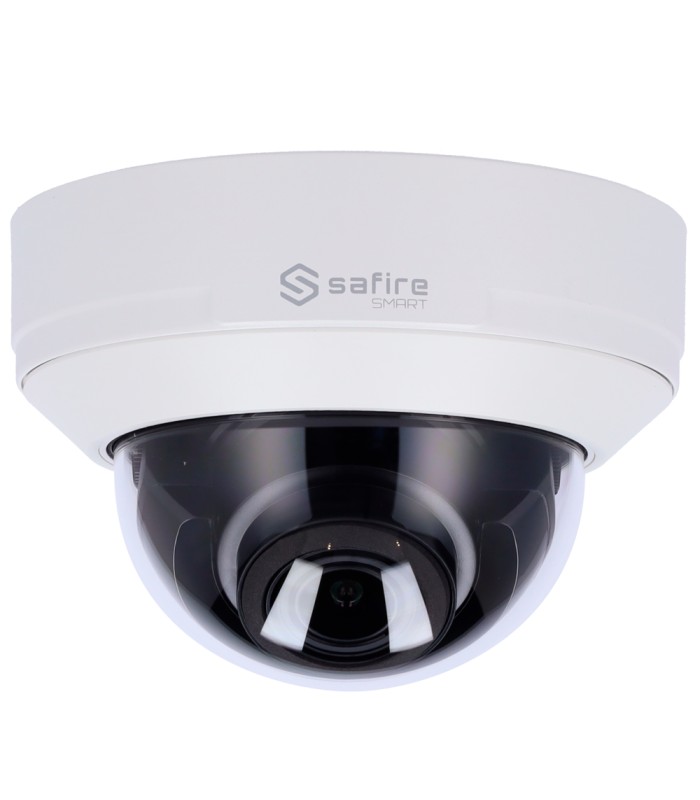

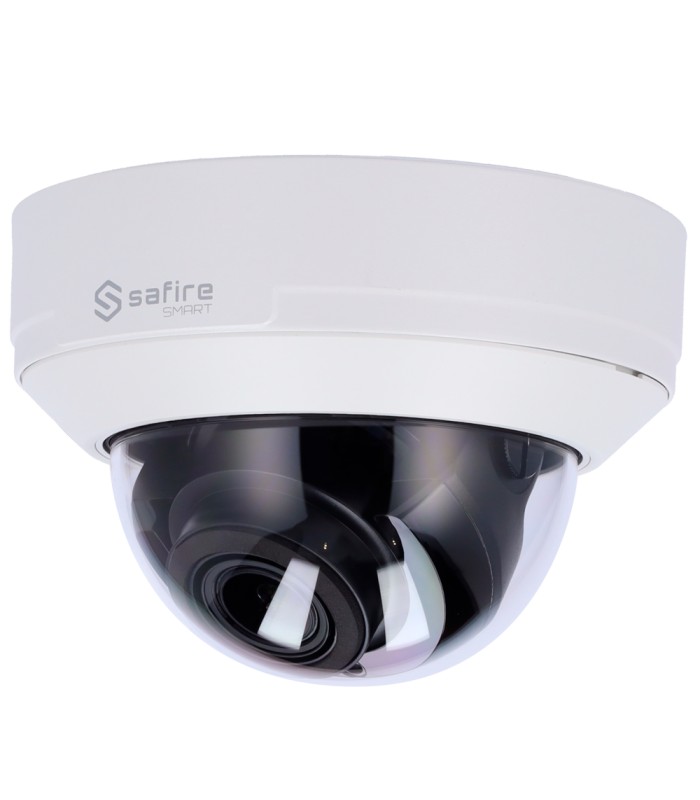

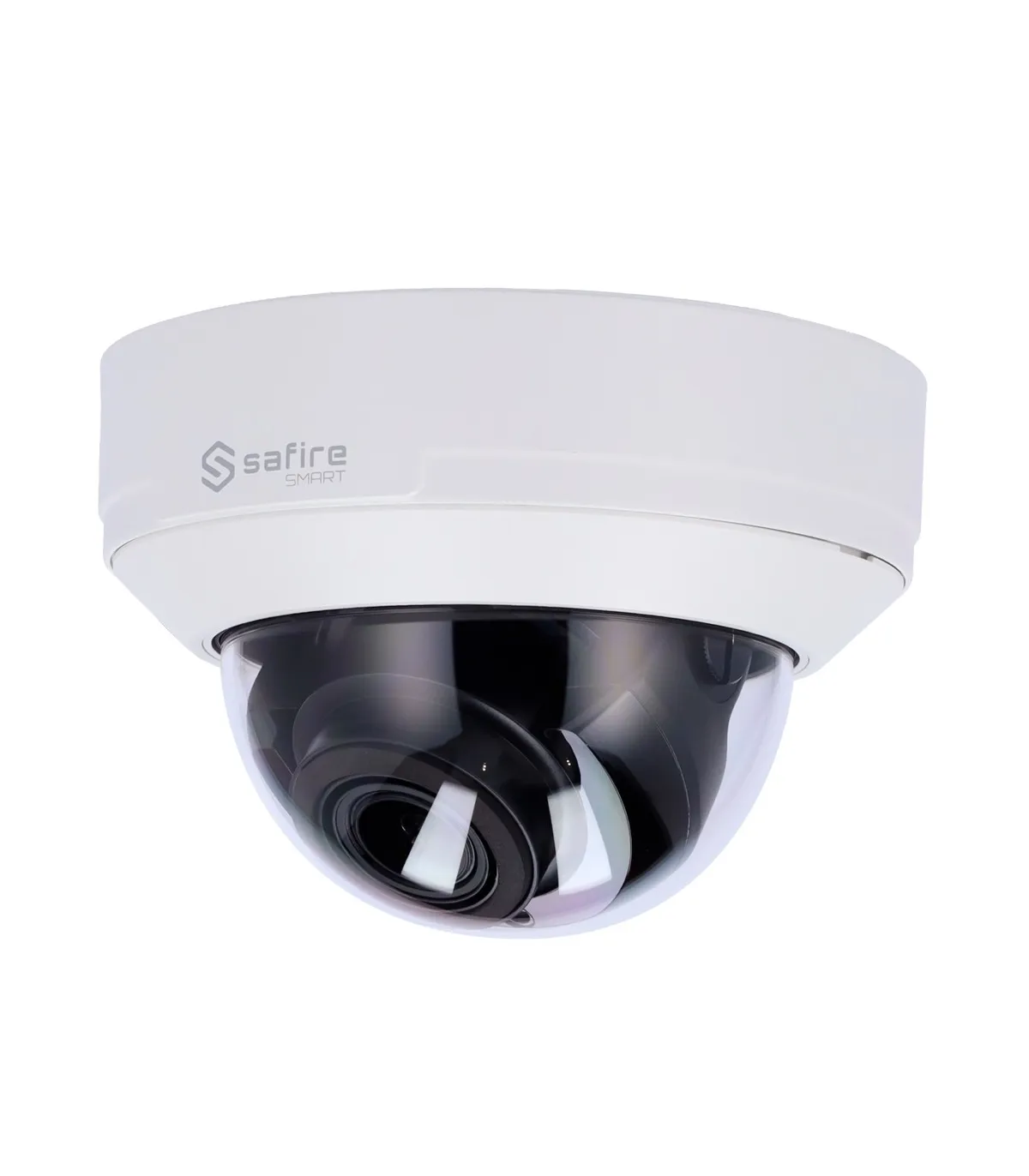

IP Dome Camera range I1 AI Advanced SF-IPD540ZA-6I1
Brand: SAFIRE SMART
- Safire Smart
- Advanced I1 AI range IP Dome Camera
- Resolution 6 Megapixel (3296×1856)
- Motorized Lens 2.8-12 mm | Microphone | IR 50m
- Advanced AI: Human, vehicle and 2-wheeled vehicle
- IP67 waterproofing | PoE (IEEE802.3af) |Alarm
IP Dome Camera I1 AI range Advanced SF-IPD540ZA-6I1
- Safire Smart
- I1 range
- IP Dome Camera
- 1/2.8" Progressive Scan CMOS
- 6 Megapixel (3296×1856)
- Motorized Lens 2.8-12 mm
- 0 Lux
- IR range 50 m
- Compression H.265+ / H.264+
- WDR
- 3DNR
- Built-in microphone
- Audio
- Alarm input / output
- MicroSD card up to 256GB
- TrueSense: Human and vehicle classification
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- 3 Axis
- Waterproof IP67
- Vandal-proof IK10
Technical specifications
| Brand | Safire Smart |
| Range | I1 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 6 Megapixel (3296×1856) |
| Minimum illumination | Color: 0.008 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 50 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 30 FPS (6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P) |
| Extra Stream Rate | 30 FPS (720P, D1, VGA, 480x240) |
| Third Stream Rate | 30 FPS (D1, CIF, 480x240) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 12 Mbps |
| Optics | Motorized 2.8-12 mm |
| Angle of view (FOV) | H: 108-36°, V: 57-20°, D: 129-42° |
| DORI | W: 66 m (D), 27 m (W), 13 m (R), 7m (I) T: 204 m (D), 82 m (W), 41 m (R), 20 m (I) |
| Image Enhancements | WDR (120dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion Detection | Yes |
| Smart Features | Advanced artificial intelligence based on classification of human, vehicle and two-wheeler on: Area intrusion, Line crossing, entry region, exit region Other intelligent events: abandoned object, object removed, Video exceptions (scene change, video loss, ...) |
| Audio | 1 Input / 1 Output / Integrated microphone |
| Alarms | 1 Input / 1 Relay |
| Audio compression | G711A / U |
| Network interface | Ethernet 10 / 100M BaseT |
| Internal storage | microSD card up to 256GB |
| Remote access | Web Browser, Safire Smart Smartphone App, Safire Smart PC Software VMS |
| Interoperability | ONVIF, P2P |
| 3 Axis | Yes |
| Power | DC 12 V / 10 W max. / PoE IEEE802.3af |
| Protection degree | Waterproof IP67, Vandal-resistant IK10 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 141 (Ø) x 100.2(H) mm |
| Weight | 910 g |
Contents
- Safire Smart I1 IP Dome Camera
- Installation material
- Quick installation guide
