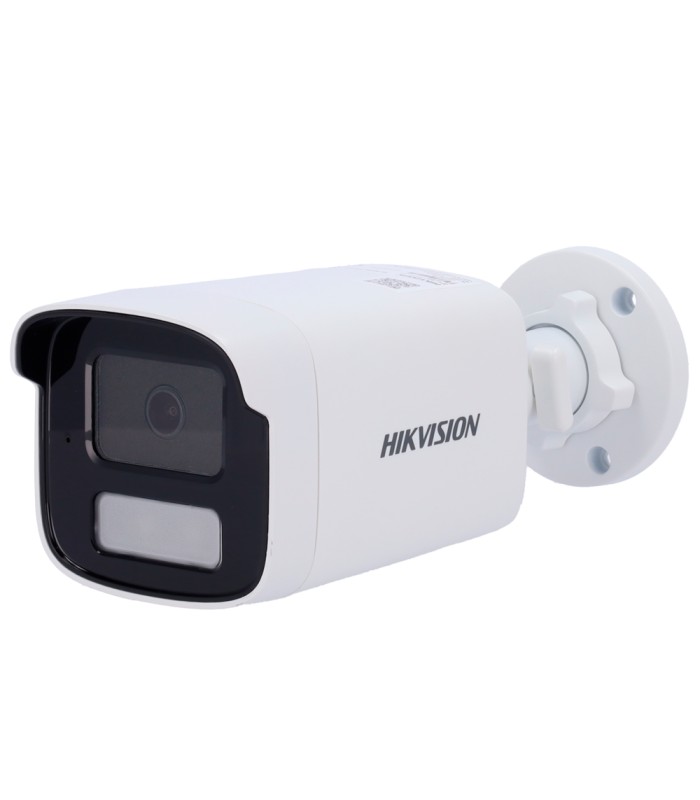

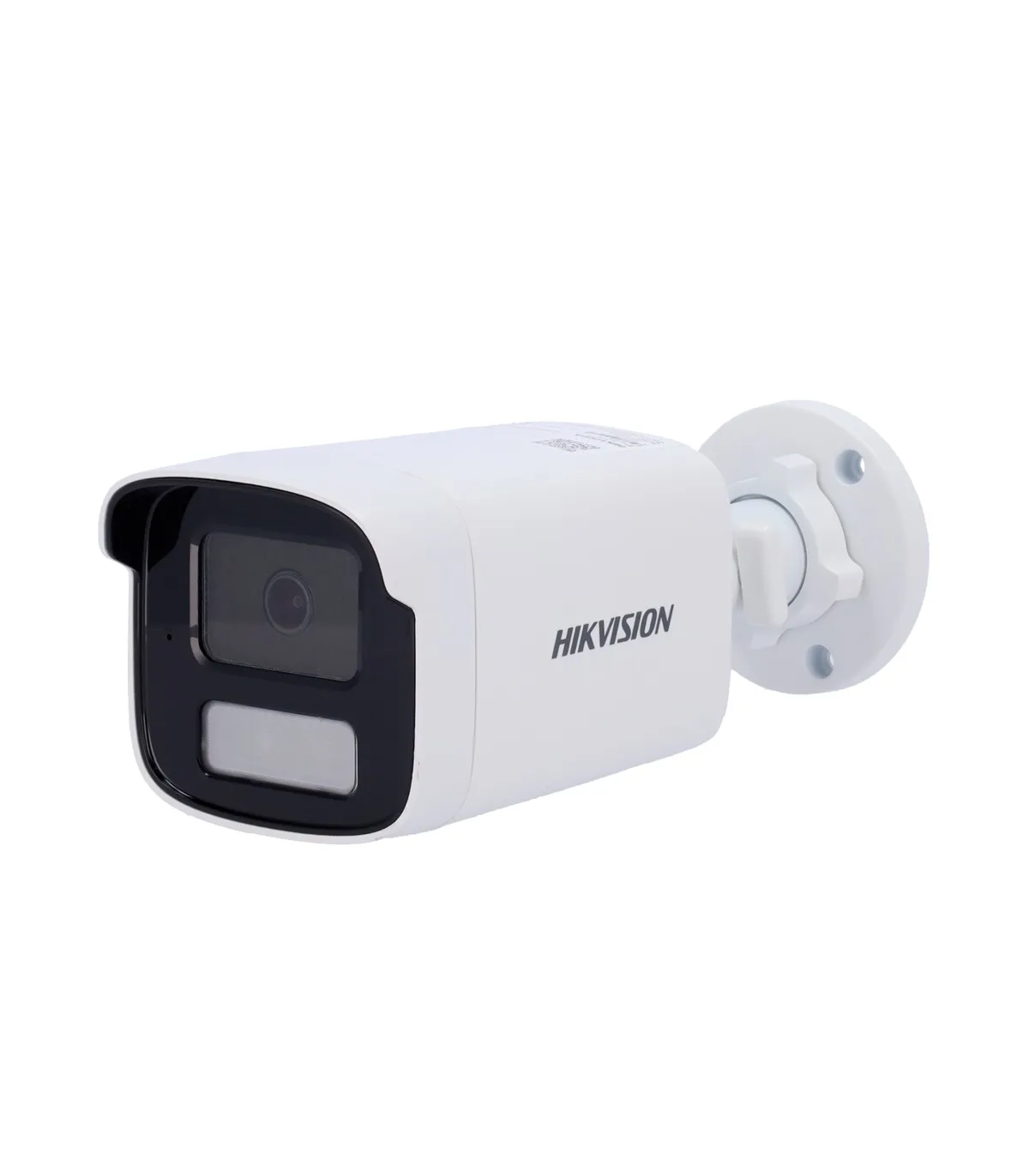

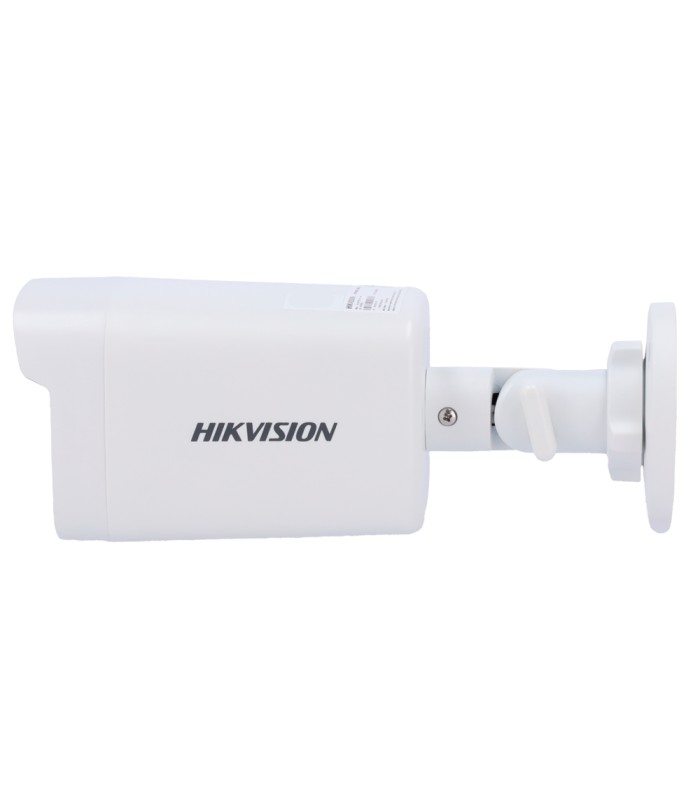

Hikvision DS-2CD1T83G2-LIUF(4mm) IP Bullet Camera
Brand: HIKVISION VALUE
- Hikvision IP Bullet Camera
- Value Range | microSD 512 GB
- 8 MP | 4.0 mm Lens
- IR 50 m | WDR 120 dB | Built-in Microphone
- PoE | H.265+| IP67 | Motion Detection 2.0
- WEB, CMS Software, Smartphone, and NVR
Hikvision DS-2CD1T83G2-LIUF(4mm) IP Bullet Camera
- Hikvision
- Value Range
- IP Bullet Camera
- 1/2.7" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 4 Lens mm
- 0 Lux
- Hybrid light: IR and White Light
- Hybrid light range 50 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion detection 2.0
- WDR (120 dB)
- 3D-DNR
- Microphone integrated
- MicroSD card slot up to 512 GB
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | HIKVISION |
| Range | Value |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Rate Main Stream | 12.5 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 12.5 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 4 mm |
| Viewing angle (FOV) | H: 90°, V: 49°, D: 108° |
| DORI | 102 m (D), 40 m (W), 20 m (R), 10 m (L) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR range 50 m |
| Supplementary lighting | Hybrid light: IR range 50 m White light range 50 m |
| Day/night | Removable ICR mechanical filter |
| Image enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Built-in microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |

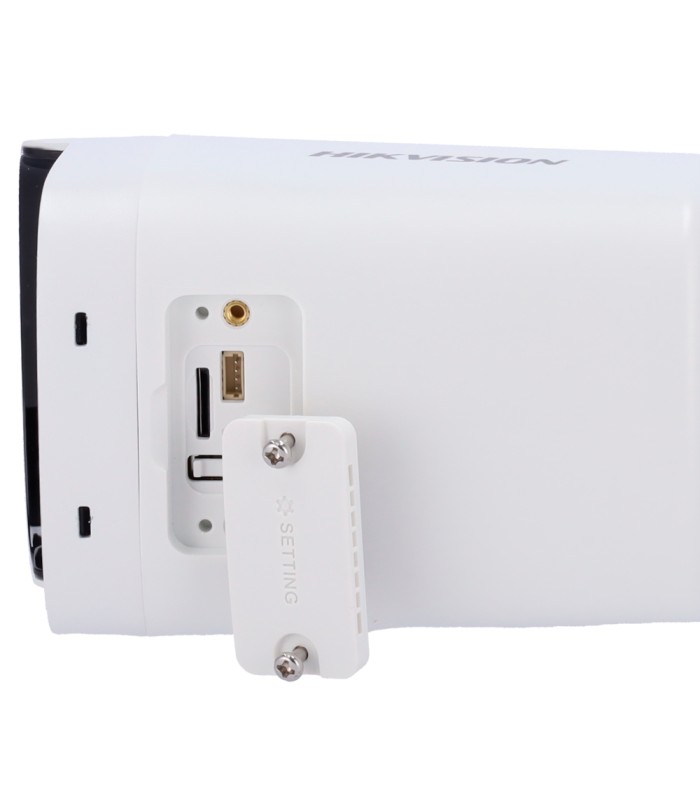

| Internal storage | MicroSD card slot up to 512 GB |

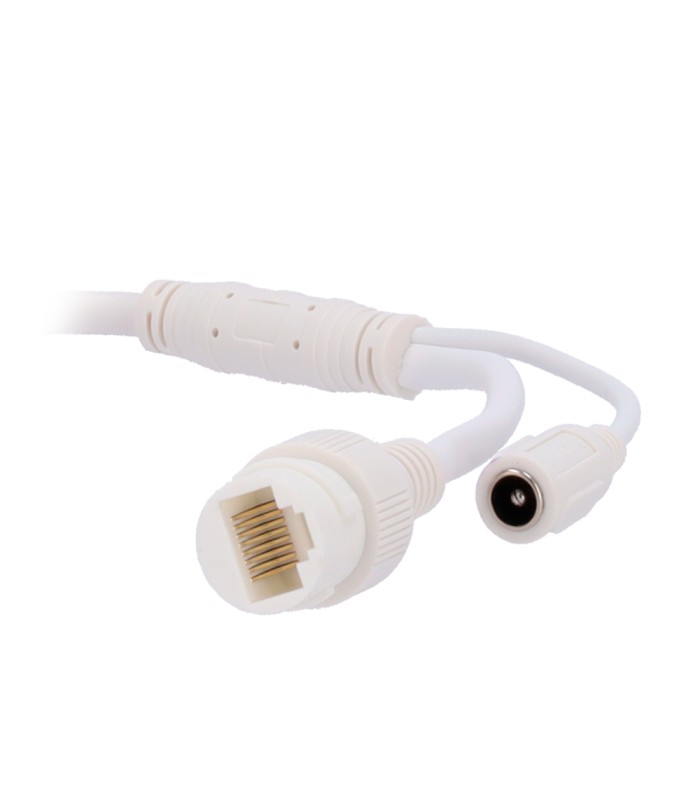

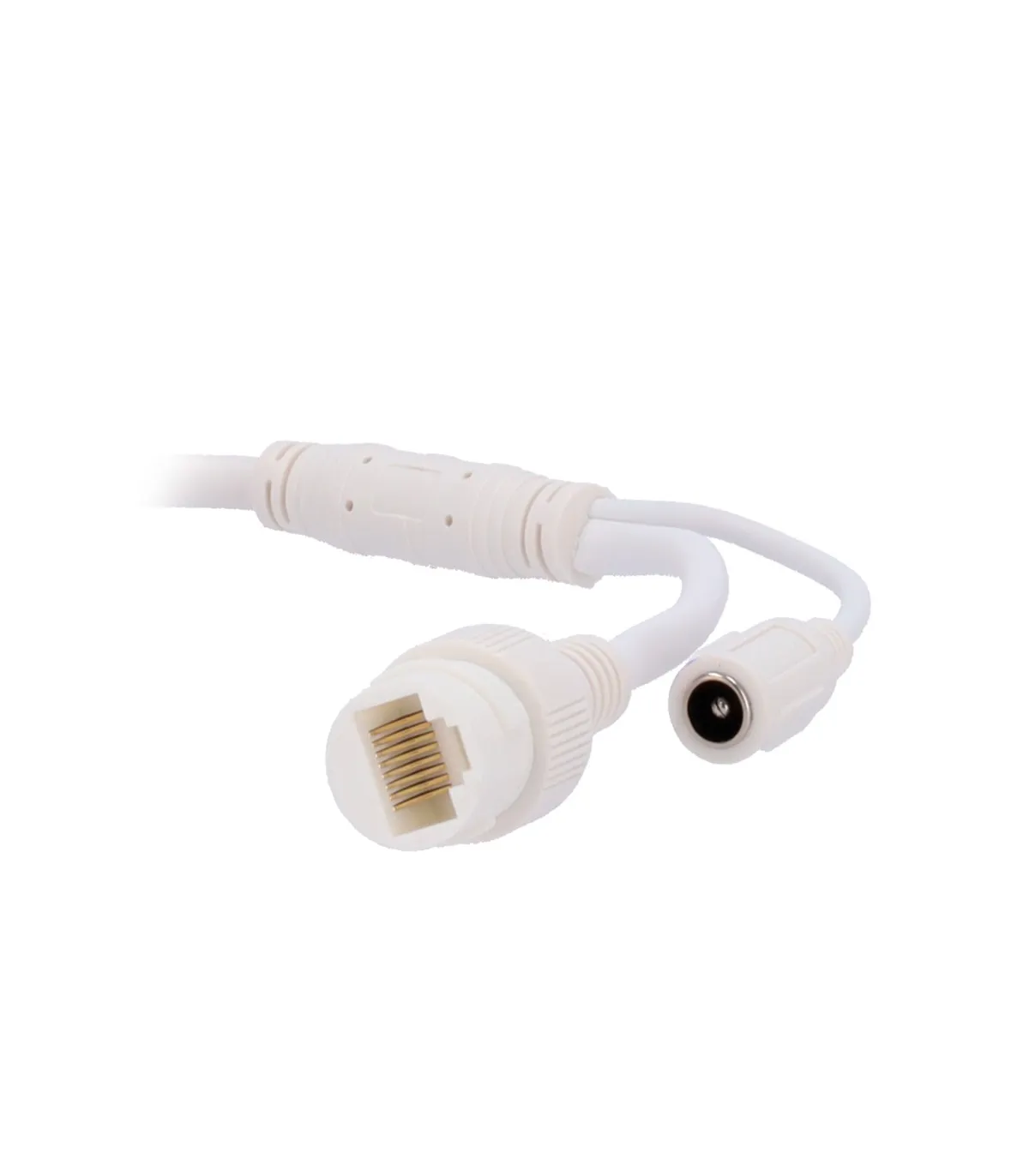

| Network interface | 1 RJ45 Ethernet 10 M/100 M self-adaptive |
| Remote access | Web Browser, Smartphone App Hik-Connect, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF (S, T and G profiles), ISAPI |
| Power | DC 12 V / 540 mA / 6.5 W max. PoE IEEE802.3af |
| Protection degree | Waterproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 80.7 mm (H) x 83.7 mm (W) x 205.6 mm (D) |
| Weight | 635 g |
Contents
- Hikvision Value IP Bullet Camera
- Installation material
- Instructions for use
| Brand | Hikvision |
| Type of camera | Bullet |
| Max. Resolution | 8 Megapixel (4K) |
| Technology | IP |
| PoE powered | PoE |
