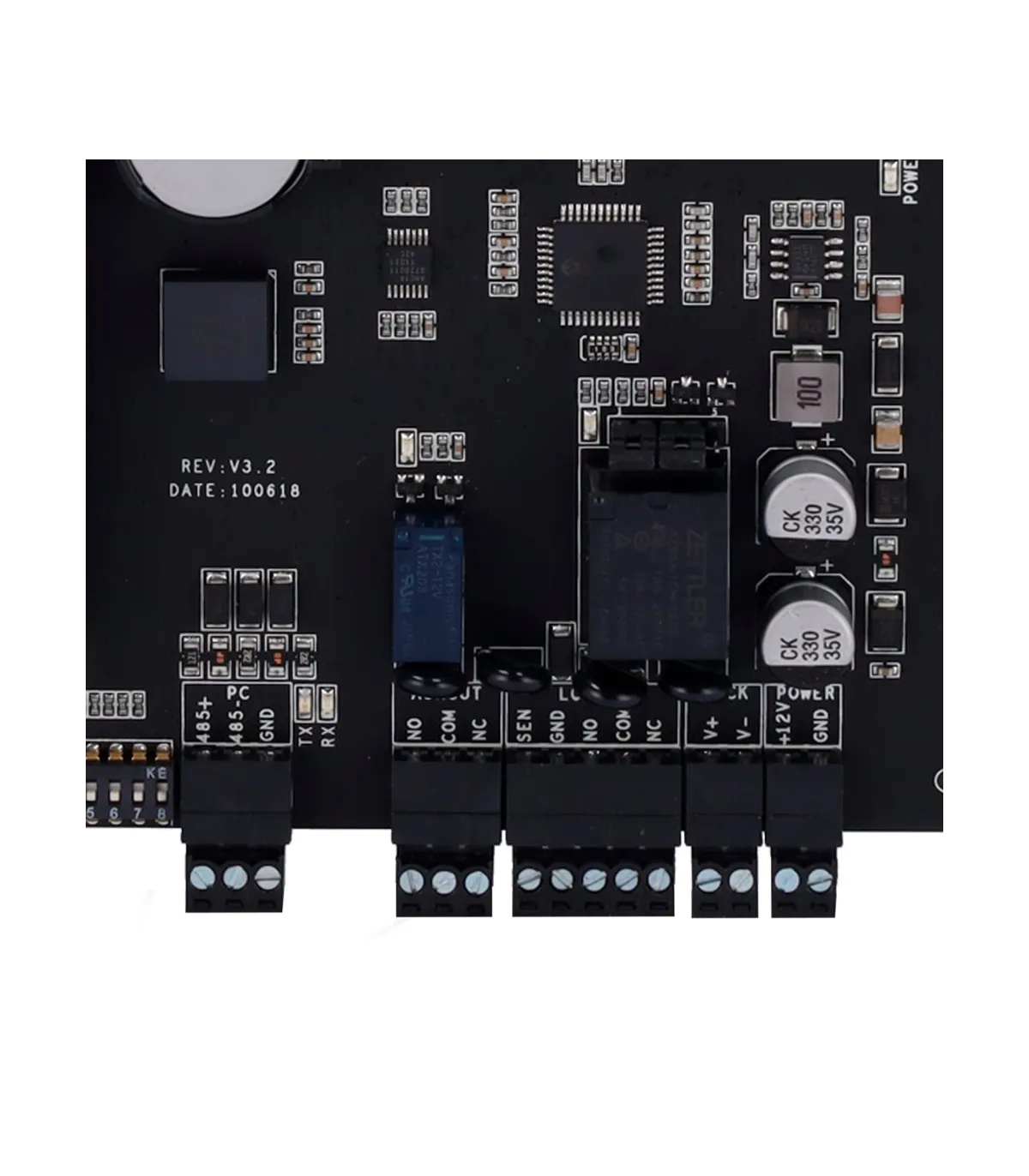

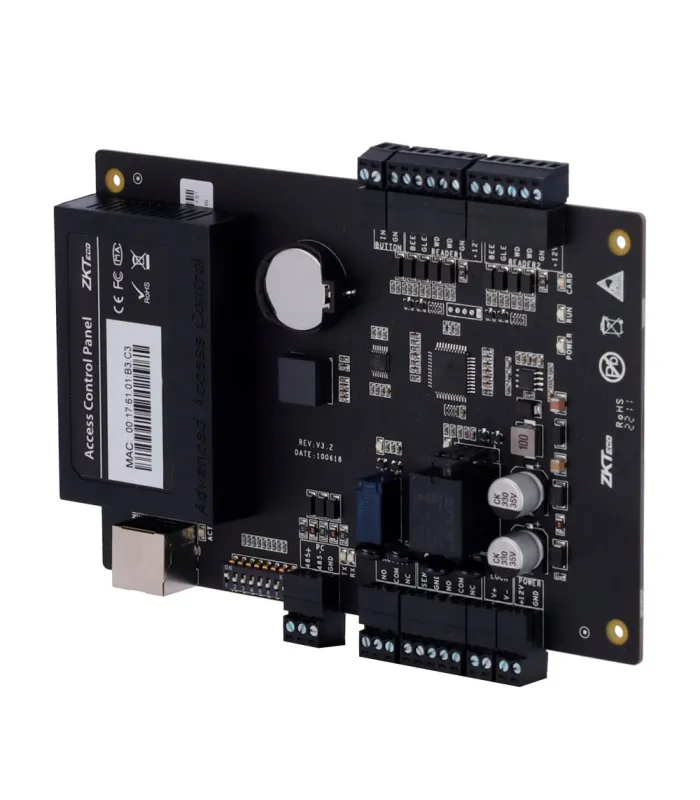

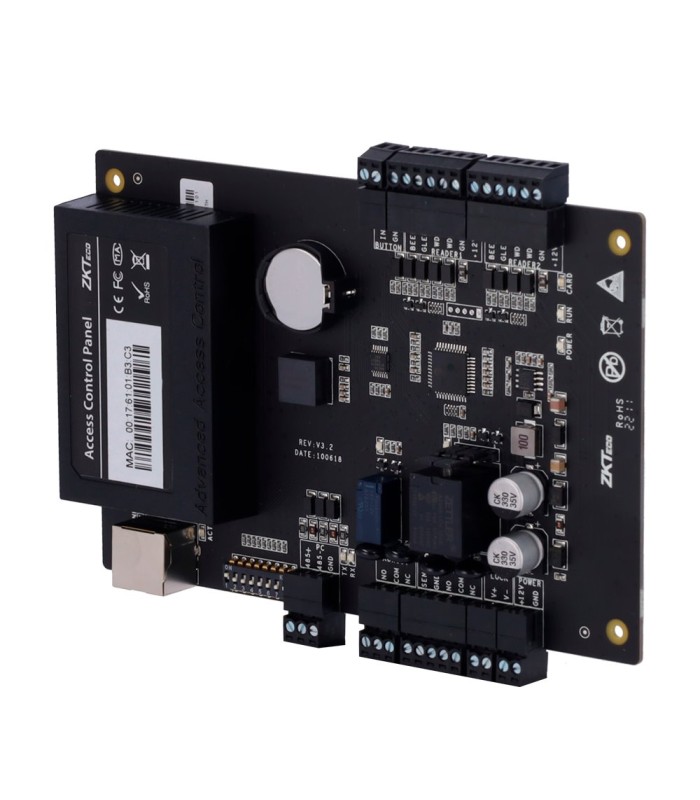

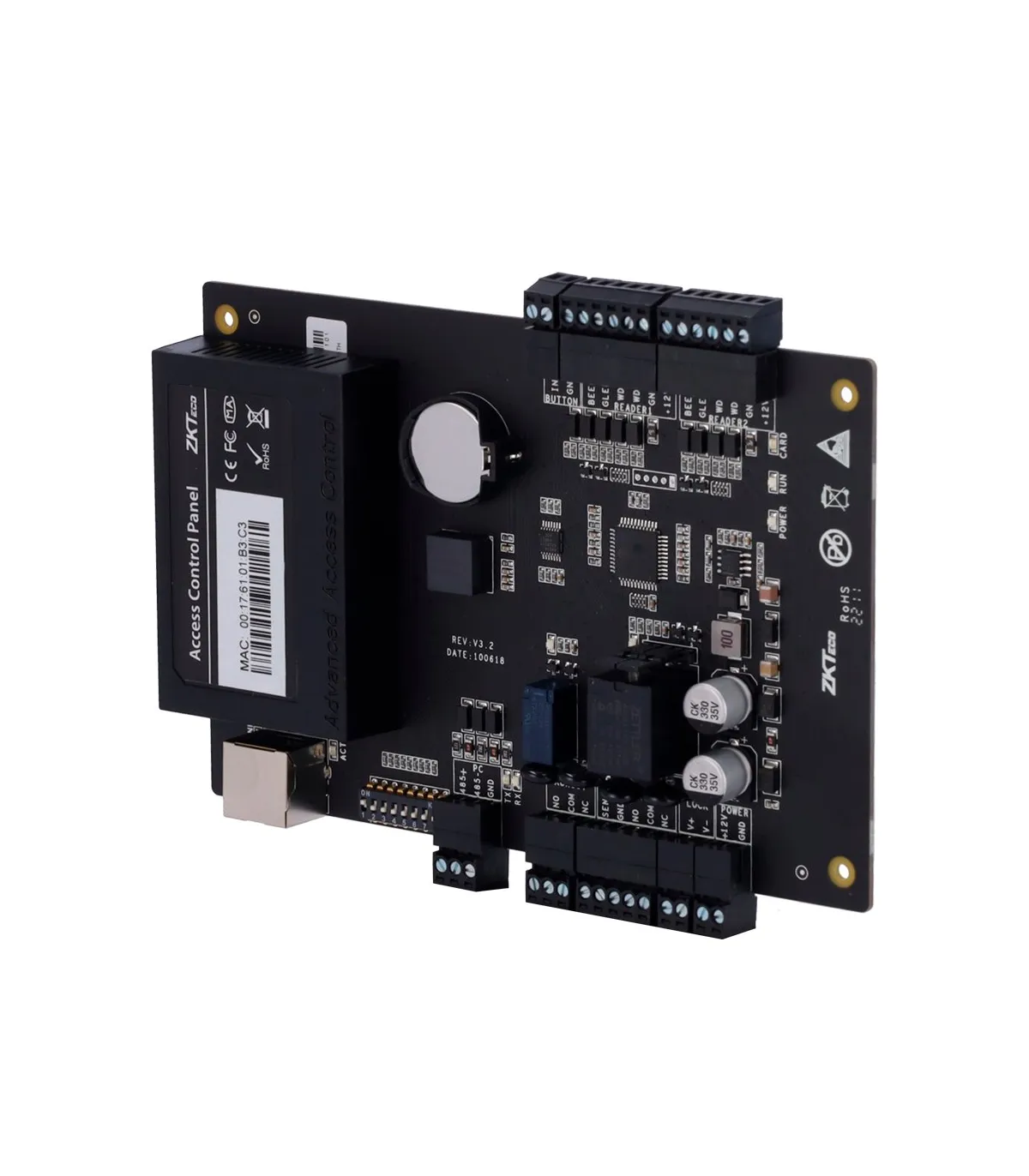

ZKTeco ZK-C3-100PRO Access Controller
- Access controller
- Card, QR, or PIN
- TCP/IP communication
- 2 Wiegand readers
- Relay output for 1 door
- ZKBioCV software for 5 doors/5 APP included
€100.49
Reference:
ZK-C3-100PRO
Brand:
Add to wishlist

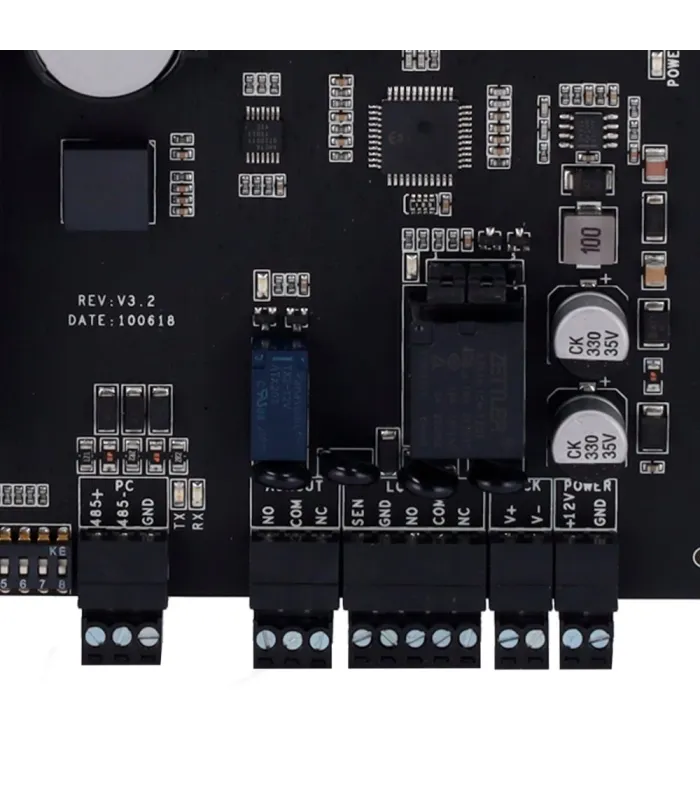

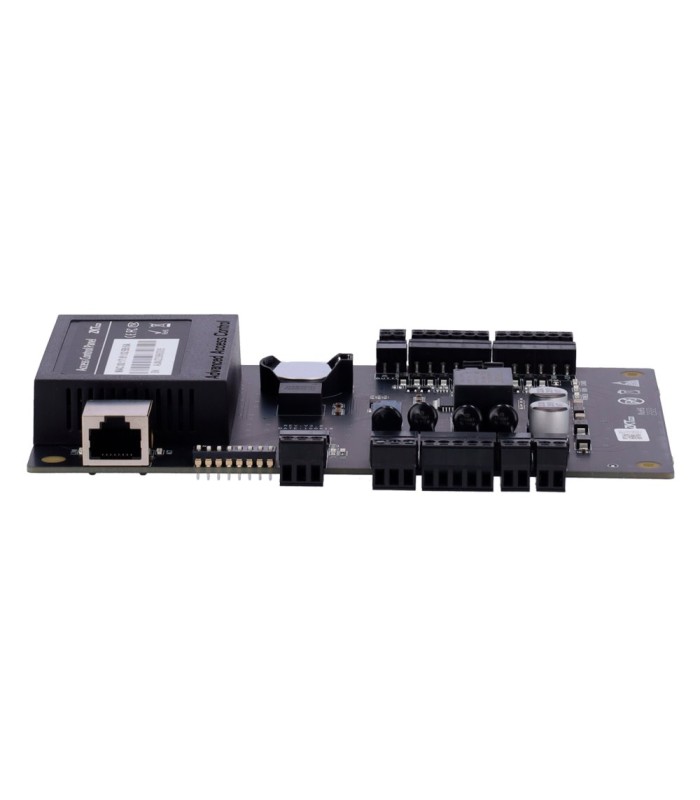

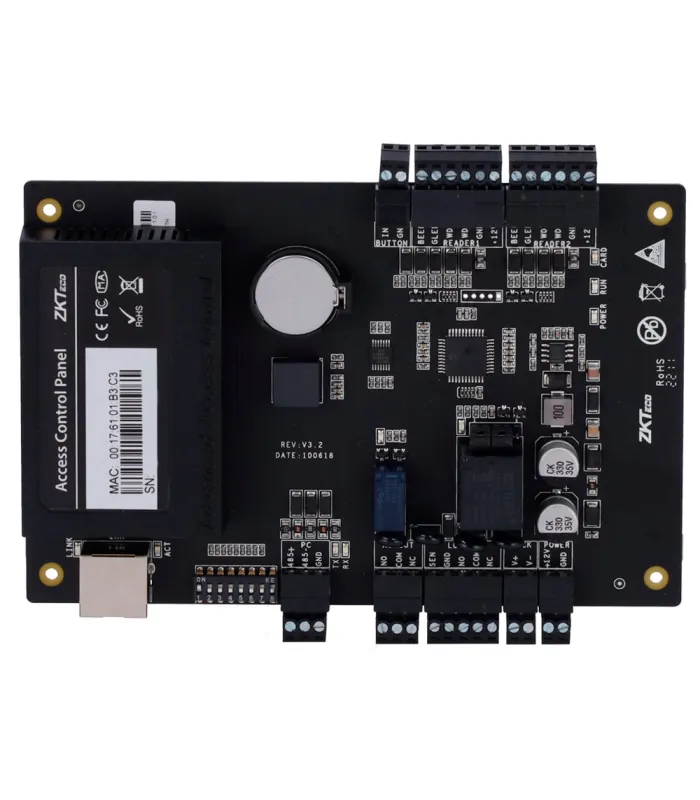

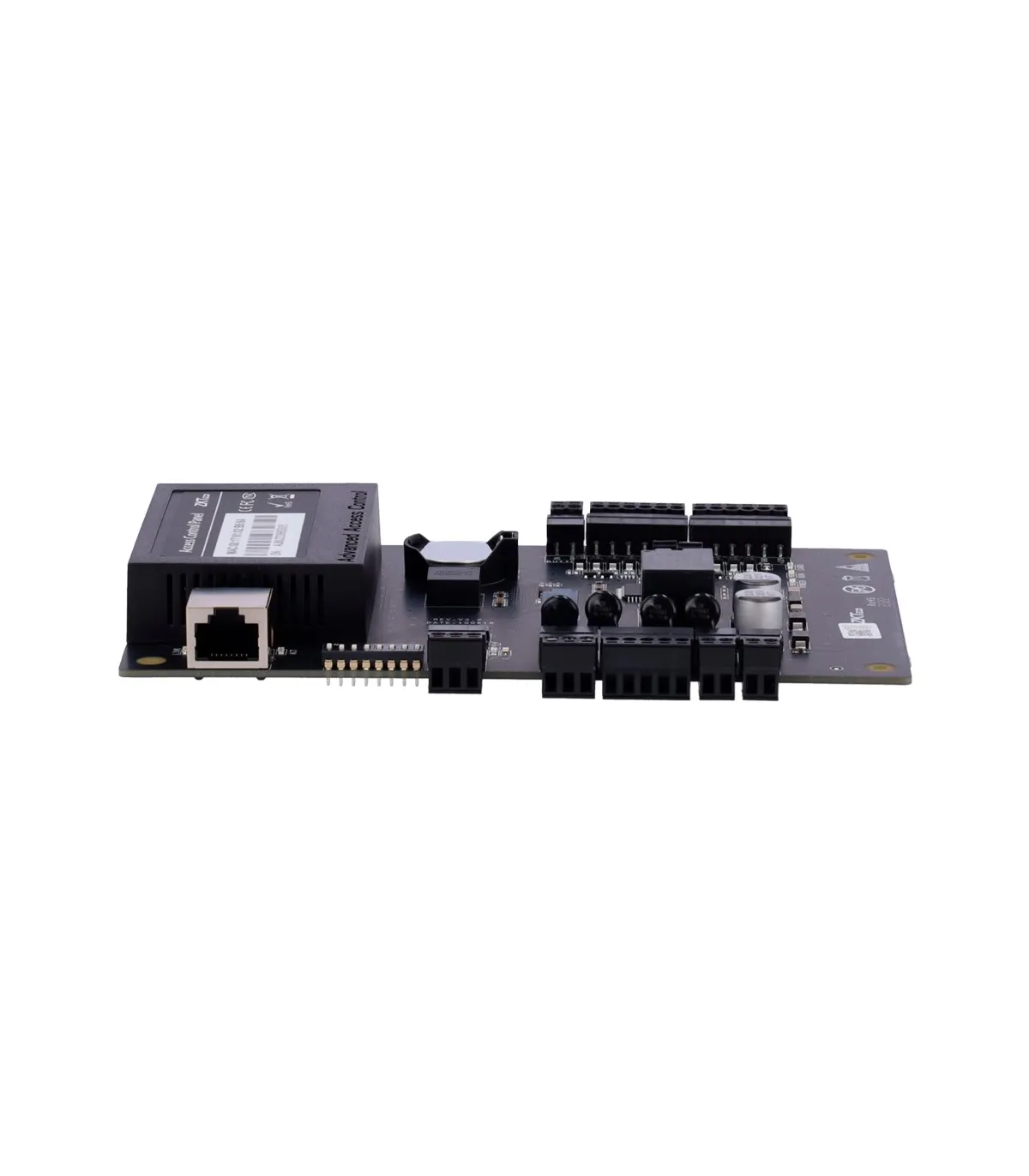

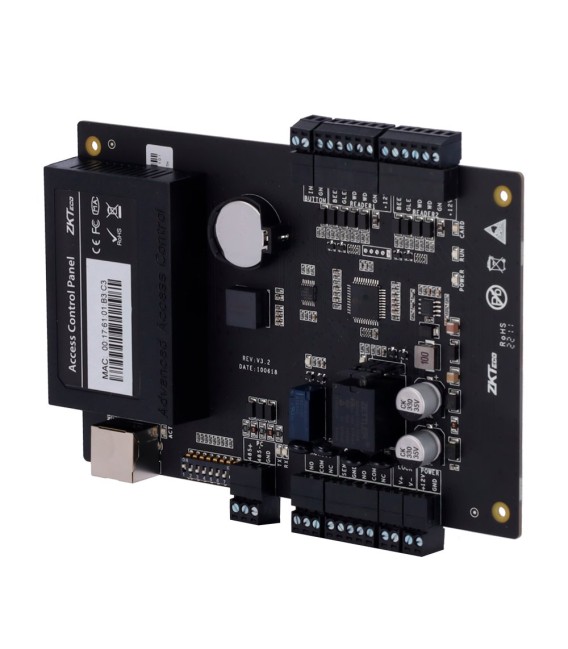

ZKTeco ZK-C3-100PRO Access Controller
- ZKTeco
- Access Controller
- 1-door Management
- Capacity of 30,000 users and 100,000 records

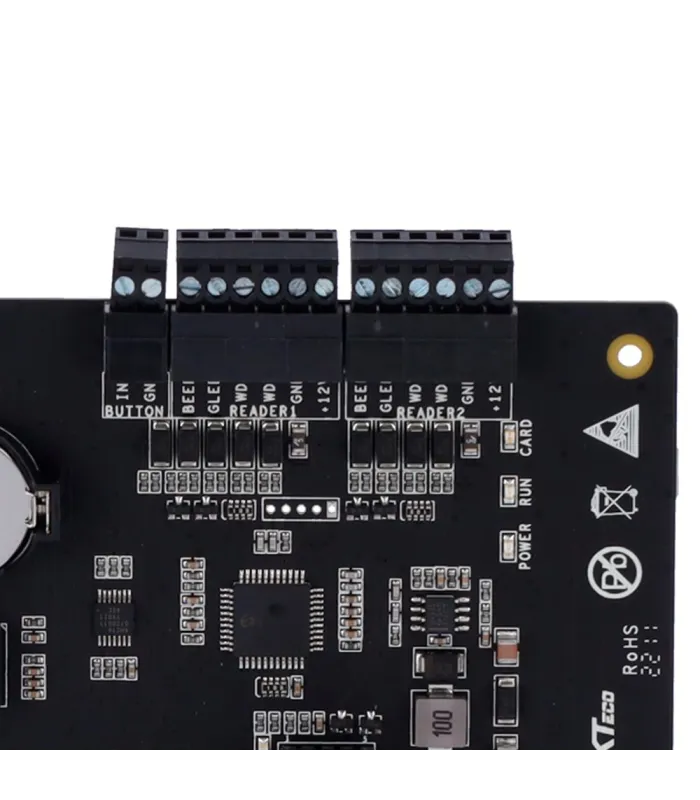

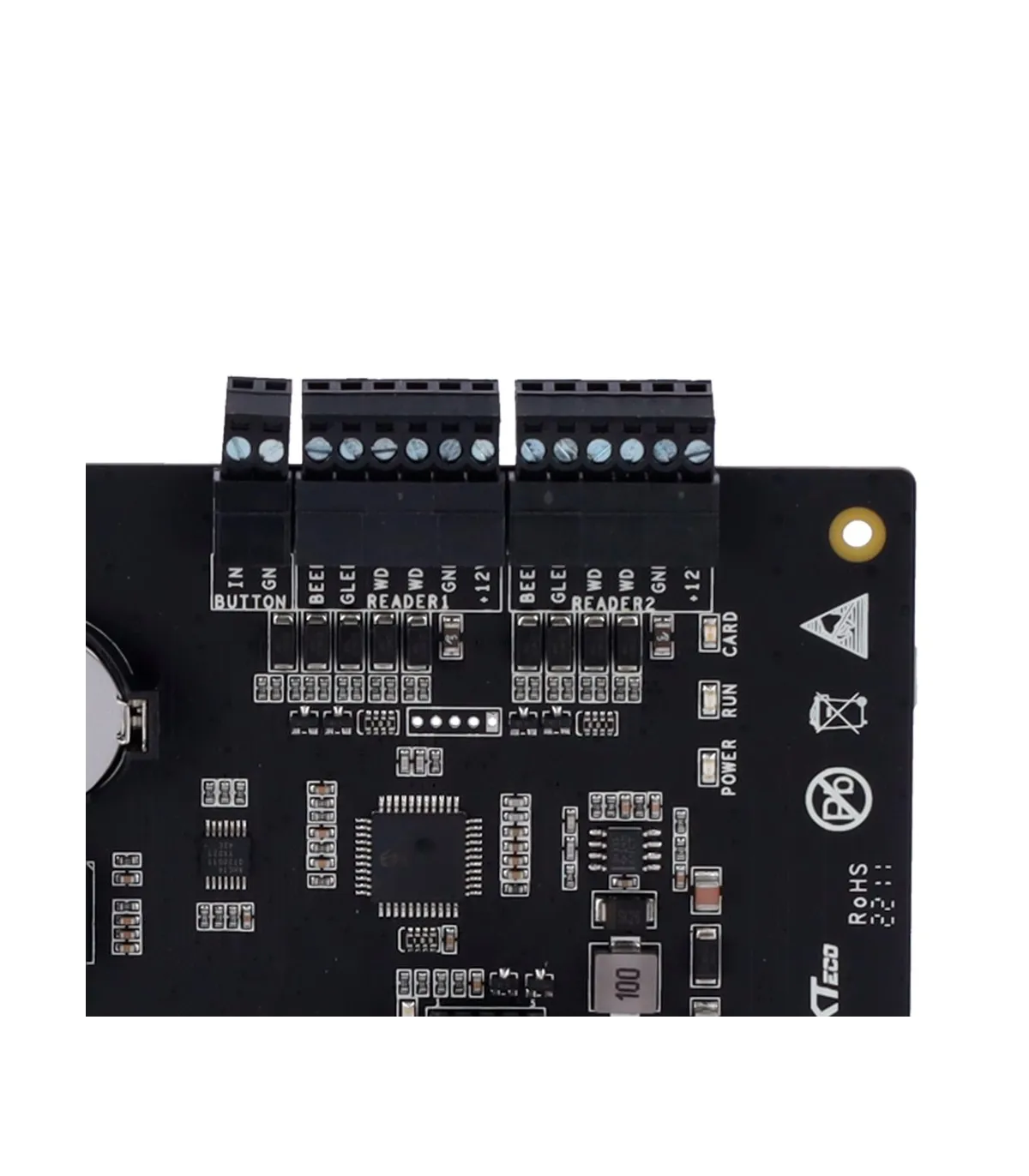

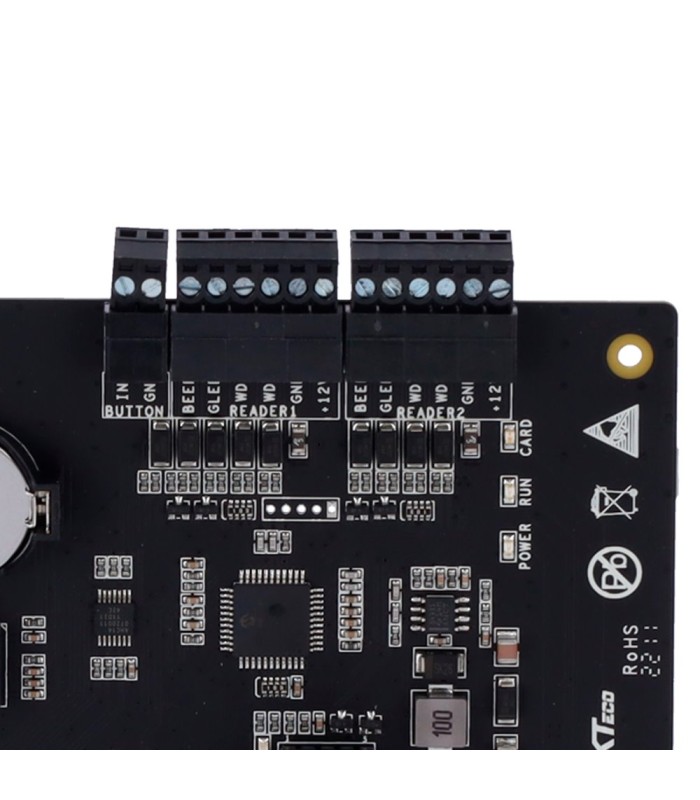

- Supports up to 2 Wiegand readers
- TCP/IP Communication

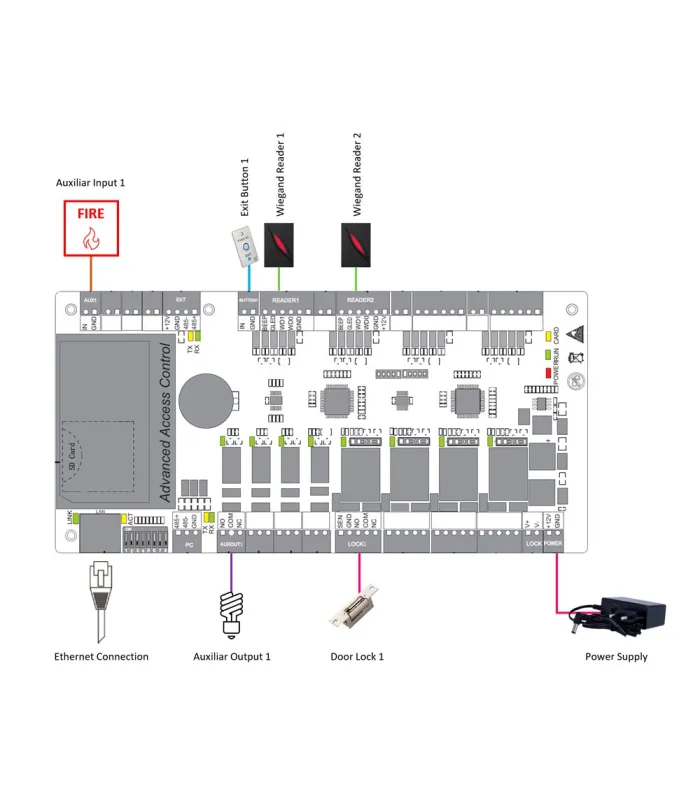

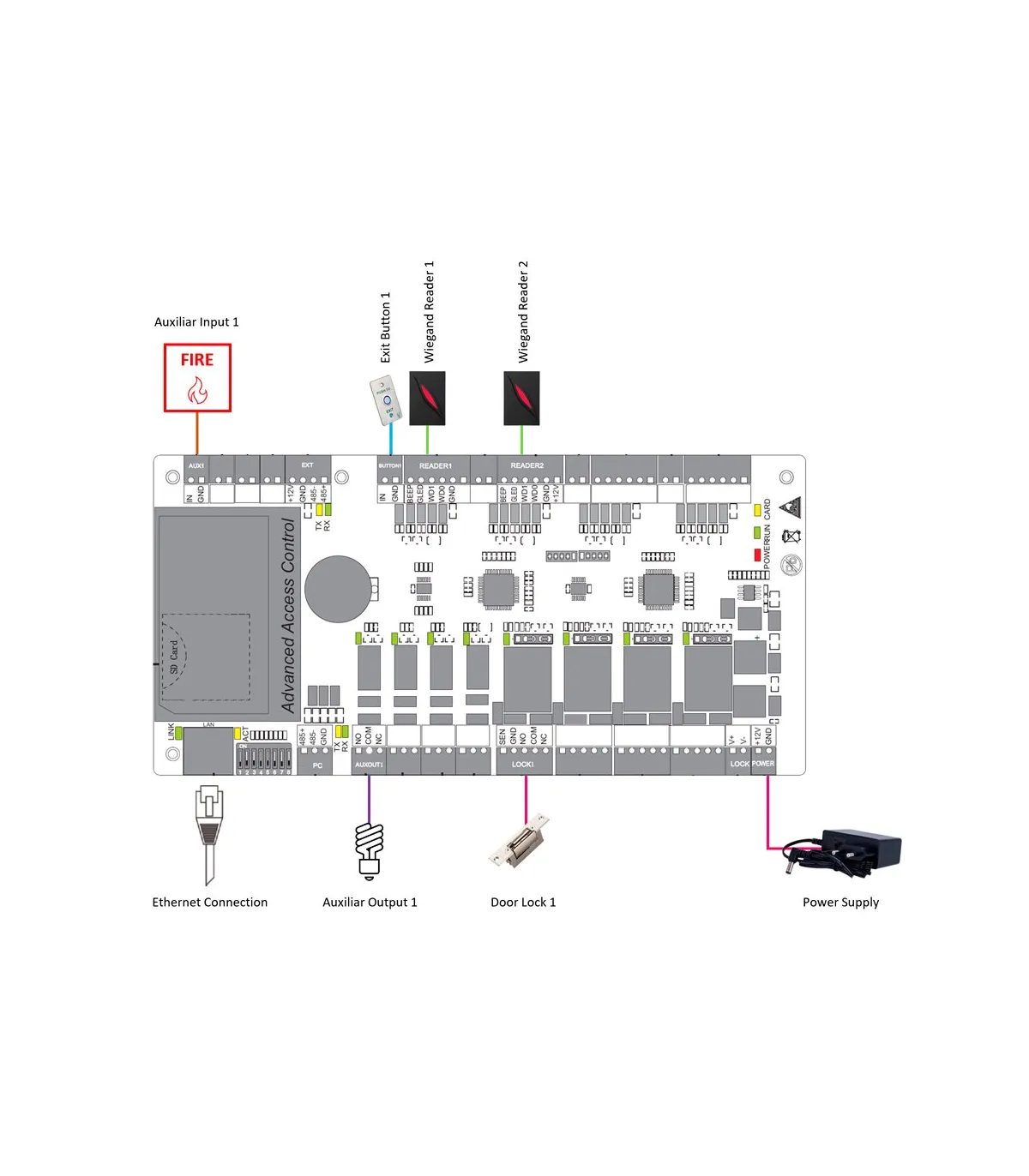

- 1 push button input, 1 door sensor, and 1 auxiliary input
- 1 relay output and 1 auxiliary output
- NO/NC relay configuration
- Advanced functions: sluice, anti-passback, multi-card, first card opening, and attendance control
- Free included ZK-BIOCV-5-5APP-PROMO software (5 doors / 1 admin APP / 5 user APP)
Technical Specifications
| Brand | ZKTeco |
| Model | GL-C3-PRO100 |
| Hardware CPU | 32bit MIPS CPU |
| Capacity | Up to 30,000 cards |
| Records | 100,000 records |
| Identification Modes | Card, QR, and/or password |
| Proximity Card | RFID EM 125 kHz and MF 13.56 MHz |
| PC Communication | TCP/IP and RS485 |
| Baud rate | 9,600 bps, 19,200 bps, 38,400 bps (recommended), and 57,600 bps |
| Outputs | 1 x relay output, 1 x auxiliary output, 1 x DC 12 V |
| Inputs | 2 x Wiegand 26/34, 1 x door sensor, 1 x push button, 1 x auxiliary, 1 x RS485 |
| Software | ZKBio CVSecurity (up to 5 doors / 1 admin APP / 5 user APP included for free) |
| Advanced Functions | Multi-door sluice, anti-passback, multi-card, first card opening, and attendance control |
| Power | DC 12 V / 1.5 A max. |
| Operating Temp | 0°C ~ +55°C |
| Dimensions | 145 (W) x 106 (H) mm |
| Weight | 300 g |
Content
- ZKTeco Access Controller
- Mounting Material
- User Manual
ZK-C3-100PRO
Data sheet
- Brand
- ZKTECO
- PoE powered
- Salida 12 VDC
Specific References
- EAN13
- 8435452808560
