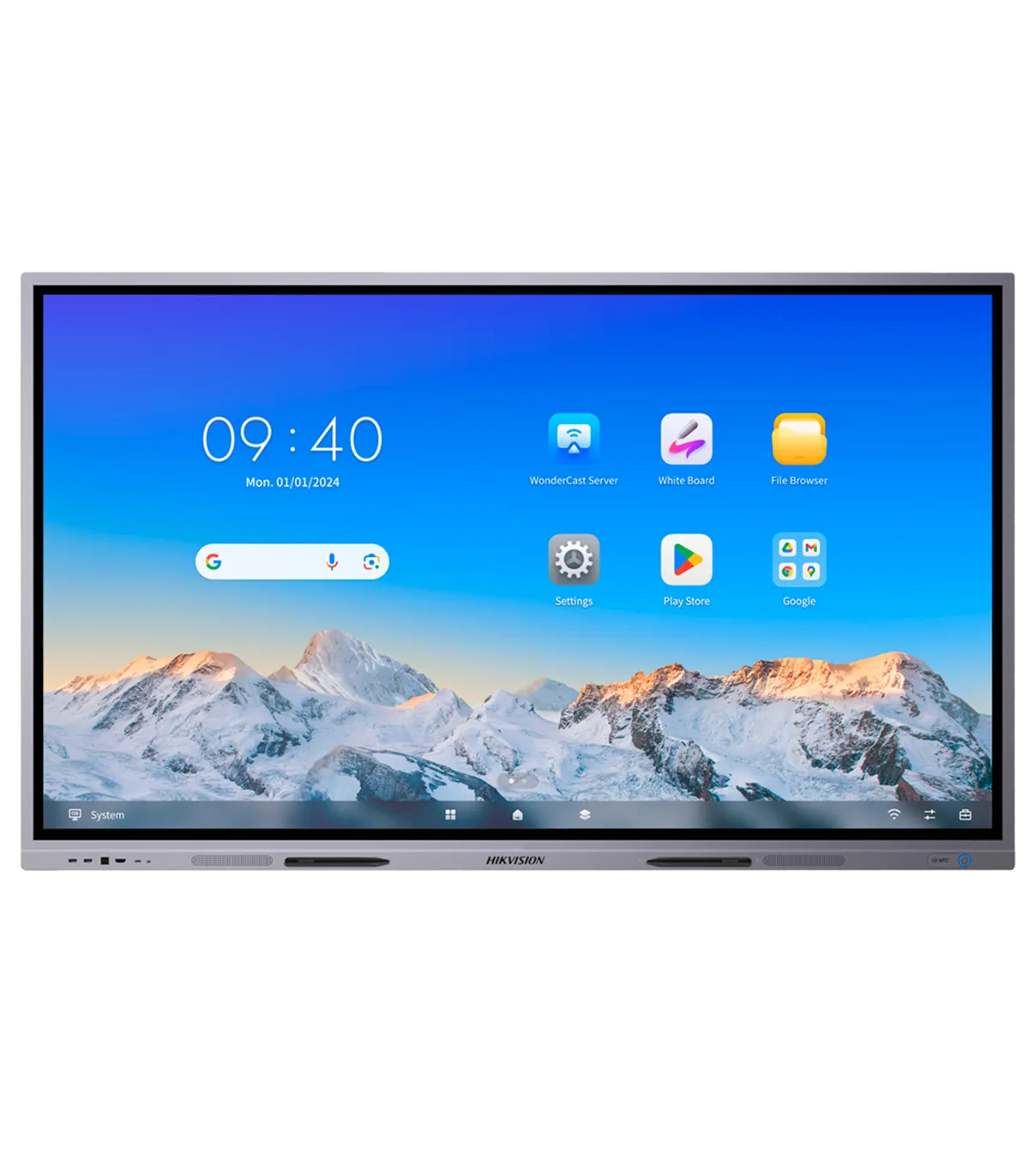

Hikvision 75-inch 4K Android 13 CCTV Monitor DS-D5C75RB/A(EDLA)
- 75" Interactive Monitor
- 4K Resolution
- Android 13
- EDLA Certification
- 8 GB RAM and 128 GB ROM
Description & Key Features: DS-D5C75RB/A(EDLA)
The DS-D5C75RB/A(EDLA) is an interactive display designed for seamless interaction with its software or connected PCs, enhancing collaboration, productivity, and user engagement. This 75-inch interactive monitor is ideal for educational institutions, corporate environments, and conference rooms, where real-time annotation and multi-device connectivity are essential. With its Google EDLA certification, it ensures high security and access to Google Play for downloading applications, making it a versatile solution for various needs.
An interactive display is a digital device with touch technology that allows direct interaction with its software or a PC (connected as a peripheral or via OPS), fostering collaboration, productivity, and active user participation. These displays integrate advanced functionalities, such as touch writing, real-time annotation tools, and connectivity with multiple devices, making them a versatile and adaptable solution for various needs.
Additionally, having the Google EDLA certification offers advantages such as high security, access to Google Play for downloading and using applications, and compatibility with various video conferencing tools, allowing the connection of peripherals for use, among other benefits, significantly enhancing the user experience.
- Interactive monitor 75"
- 4K resolution
- Android 13
- Google EDLA certification
- Brightness 400 cd/m2
- Processor 4x A76+4x A55
- 8 GB RAM
- 128 GB ROM
Specifications: DS-D5C75RB/A(EDLA)
General | |
| Brand | HIKVISION |
| Type | Interactive monitor |
| Size | 75" |
Panel | |
| Resolution | 3840x2160 |
| Refresh Rate | 60 Hz |
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m2 |
| Contrast | 5,000:1 (typical) 30,000:1 (dynamic) |
| Response Time | 5 ms |
| Backlight | DLED |
| Viewing Angle (horizontal / vertical) | 178º / 178º |
| Operation | 16/7 |
| Lifetime | 50,000 h |
Touch Technology | |
| Touch Technology | Infrared touch frame |
| Simultaneous Touches | 50 |
| Touch Accuracy | 1.5 mm |
| Touch Response Time | ≤ 2 ms |
Connectivity | |
| Inputs | HDMI 2.0 x3 VGA x1 DP 1.2 x1 Audio 3.5mm x1 USB-B 3.0 (touch) x3 USB-A 3.0 x4 USB-A 2.0 x1 USB-C 2.0 x2 (Supports DP 1.2 and charging functions 15 W on the rear and 65 W on the front) RS232 x1 RJ45 x2 OPS x1 |
| Outputs | HDMI 2.0 x1 Audio 3.5 mm x1 SPDIF x1 |
| Bluetooth | 5.1 |
| NFC | For wireless screen transmission on Android devices |
| WiFi | Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) Authentication protocols WEP, WPA, WPA2, PSK, and 802.1X EAP |
| Network | 1,000 Mbps |
System | |
| Operating System | Android 13.0 |
| Google EDLA Certification | Yes |
| Processor | 4x A76 (2.4 GHz) + 4x A55 (1.8 GHz) |
| GPU | Mail-G610 MC4 |
| RAM | 8 GB |
| ROM | 128 GB |
Audio and Video | |
| Speakers | 2x20 W + subwoofer 25 W |
Physical Appearance | |
| Brightness Sensor | Yes |
| Glass Hardness | 7 Mohs |
| Anti-Glare Glass | Yes |
| Front Buttons | Power On/Off |
| Dimensions | 1,713.23 (W) x 1,019.04 (H) x 82.5 (D) mm |
| VESA | 800x400 mm |
| Weight | 50.23 kg |
Power | |
| Power Supply | AC 100 ~ 240 V, 50/60 Hz |
| Power Consumption without OPS | 150 W |
Package Contents
- Interactive monitor
- Power cable (3 m)
- HDMI 2.0 cable (3.5 m)
- USB cable (for touch) (3 m)
- 2x Passive stylus
- Remote control
- Fixed wall mount
- User manual
Use Case
The DS-D5C75RB/A(EDLA) interactive monitor is perfectly suited for modern classrooms and corporate meeting spaces. In a classroom setting, teachers can utilize the real-time annotation feature to enhance lessons, allowing students to engage directly with the content displayed. This interactive monitor supports multi-device connectivity, enabling seamless integration with laptops and tablets, which is essential for collaborative projects. In corporate environments, the monitor's Google EDLA certification ensures secure access to applications, making it ideal for video conferencing and presentations. The 4K resolution provides crystal-clear visuals, enhancing the overall viewing experience. Furthermore, the monitor's robust connectivity options, including HDMI and USB-C, facilitate easy setup and plug-and-play functionality, allowing users to focus on their tasks without technical interruptions. Overall, the DS-D5C75RB/A(EDLA) is a versatile solution that meets the demands of both educational and professional settings.
