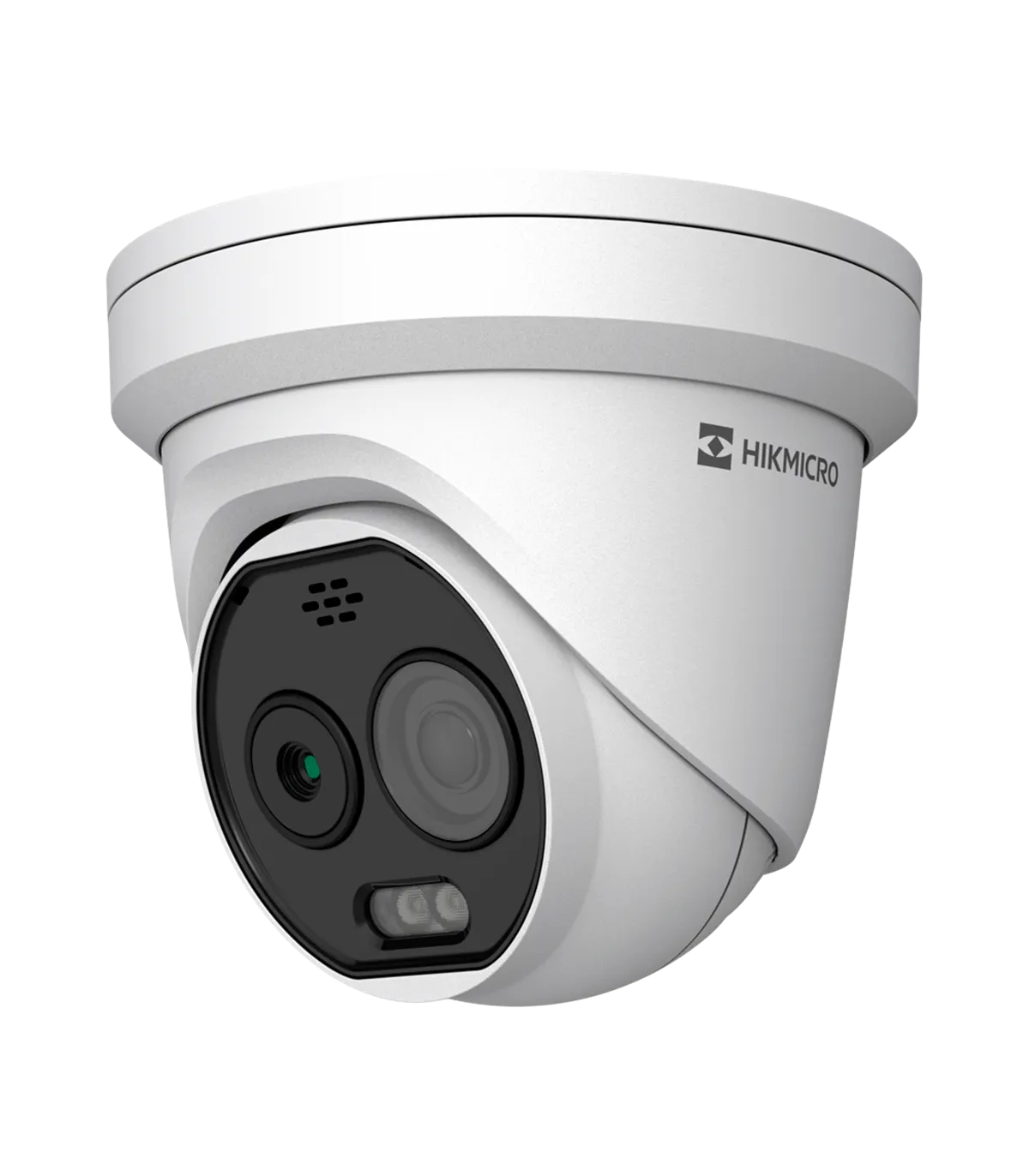

The HM-TD1228T-3/G1/T3A is a state-of-the-art dual IP thermal turret camera designed for advanced surveillance applications. This device excels in environments requiring precise temperature measurement and fire detection, making it ideal for industrial sites, warehouses, and outdoor areas. With its robust features, including a 256x192 thermal sensor and a wide temperature measurement range, it ensures reliable monitoring and security.
| Brand | Hikvision |
| Series | PRO Powered by GUANLAN Large Scale AI Model |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 256x192 |
| Detector Pitch | 12 μm |
| Thermal Sensitivity | ≤25mK (25°C, F1.0) |
| Spectral Range | 8~14 μm |
| Thermal Measurement Range | -20~650ºC / ±2ºC |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 5 Megapixel (2688x1944) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688×1944, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 3.6mm (Thermal) / 4.3mm (Visible) |
| Field of View | Thermal: 50° (H), 37.3° (V) Visible: 84° (H), 43.1° (V) |
| DORI | Person: 150m (D), 38m (R), 19m (I) Vehicle: 460m (D), 112m (R), 56m (I) |
| VCA Ranges | Person: 36m Vehicle: 90m Temperature Measurement (Object 0.2x0.2m): 11.7m Temperature Measurement (Object 1x1m): 58.3m Fire Detection (Object 0.5x0.5m): 25.8m Smoke Detection (Object 0.5x0.5): 12.9m Smoker Detection: 5.4m |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 1 input / 2 relays |
| Deterrent Alarm | Integrated speaker and flash in the camera |
| Internal Storage | MicroSD card slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | 12VDC ± 25% 24VDC ± 25% PoE (802.3at, class 4) |
| Power Consumption | 12VDC ± 25%: 0.85A to 1.42A, max. 12.8W 24VDC ± 25%: 0.43A to 0.71A, max. 12.8W PoE (802.3at, class 4): 42.5V to 57V, 0.22A to 0.3A, max. 12.8W |
| Operating Temperature | -40º C ~ +65º C |
| Protection Grade | IP67 waterproof, 6000V surge protection |
| Dimensions | Ø 138.3mm x 123.1mm |
| Weight | 940g |
The HM-TD1228T-3/G1/T3A thermal camera is ideally suited for deployment in high-security environments such as industrial facilities and critical infrastructure sites. For instance, an installer can set up this camera to monitor a warehouse where temperature fluctuations could indicate potential fire hazards. With its advanced fire detection capabilities, the camera can trigger alarms and alert personnel before a situation escalates. Additionally, the remote monitoring feature allows security teams to access live feeds via a smartphone app or web interface, ensuring constant vigilance. The camera's IP67 waterproof rating guarantees durability in outdoor settings, while its surge protection enhances reliability against electrical disturbances. Overall, the HM-TD1228T-3/G1/T3A provides a comprehensive solution for proactive security management.
