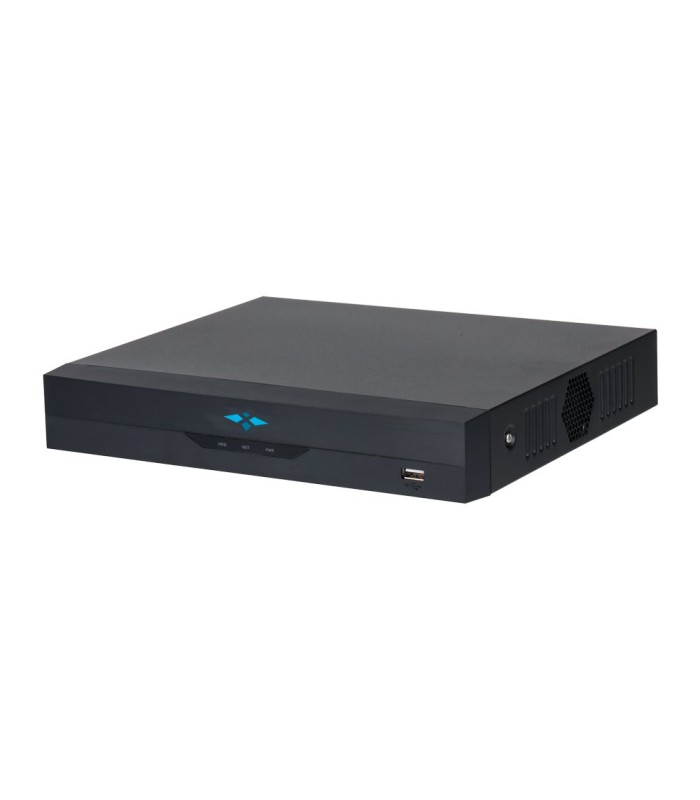

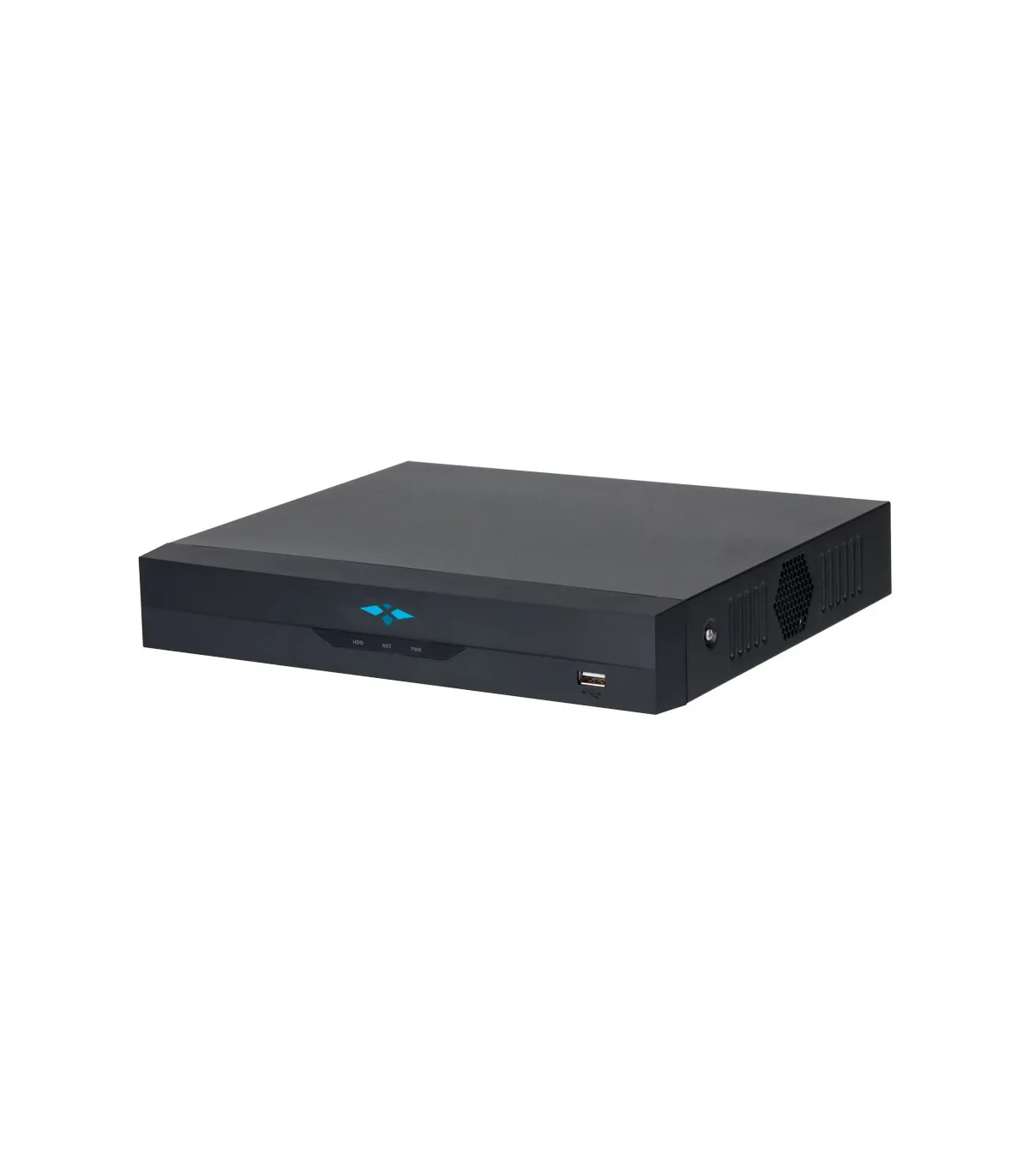

X-Security WizSense AI IP Recorder XS-NVR2108-4AI
Brand: X-SECURITY
- X-Security WizSense AI IP Recorder
- 8 CH IP video
- Maximum recording resolution 12 Mpx
- Bandwidth 80 Mbps
- Full HD HDMI and VGA output
X-Security WizSense AI XS-NVR2108-4AI IP Recorder
- X-Security
- NVR Recorder for IP cameras
- 8 CH
- Supported bandwidth 80 Mbps
- Maximum resolution 12 Mpx
- Smart H.265/H.265/Smart H.264/H.264 Compression
- VGA and HDMI FullHD output
- Perimeter protection support
- SMD Plus
- Facial detection and recognition
- Audio
- 1 HDD
- 2 USB ports
- RJ45 10/100 Base T
- WEB, CMS (DSS/PSS), Smartphone, and NVR interface
- ONVIF compatible
Technical Specifications
| Brand | X-SECURITY |
| IP Camera Inputs | LAN Port up to 8 channels |
| Video Outputs | 1 HDMI Full HD, 1 VGA |
| Bidirectional Audio | 1 input, 1 output, RCA |
| Video Compression Format | Smart H.265 / H.265 / Smart H.264 / H.264 |
| Decoding Capacity | AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps |
| Total Bandwidth | 80 Mbps record |
| Recording Resolution | 12MP / 8MP /5MP / 4MP / 3MP / 2MP / 720p / D1 |
| SMD Plus per camera | 6-channel SMD Plus (AI per camera): detects tripwires and intrusion of people or vehicles; Filters false alarms caused by leaves, raindrops, and brightness changes |
| SMD Plus per device | 4 |
| AI per camera | Face detection; facial recognition; perimeter protection; SMD Plus |
| AI per device | Face detection; facial recognition; perimeter protection; SMD Plus |
| AI Perimeter Performance per device (number of channels) | 1 |
| AI Perimeter Performance per camera (number of channels) | 4 |
| Face Detection | 6 attributes: Gender, age group (6), glasses, expressions (8), mouth mask, beard |
| AI Face Detection Performance per device (1080P) (number of channels) | 1 (up to 12 facial images/second) |
| AI Face Detection Performance per camera (number of channels) | 5 |
| Facial Recognition | Up to 10 facial databases with 5,000 images |
| AI Facial Recognition Performance per device (1080P) (number of channels) | 1 (up to 4 facial images/second) |
| AI Facial Recognition Performance per camera (number of channels) | 5 |
| ONVIF | ONVIF (Profile T; Profile S; Profile G); .CGI; SDK |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 2x USB 2.0 (Mouse and backup) /1 RJ45 10/100M (Ethernet) |
| Remote Access | Browser, Mobile phone app, or PSS software |
| Power Supply | DC 12 V / 1.5 A |
| Dimensions | 47.6 (H) x 260 (W) x 232.7 (D) mm / 810 Kg (without HDD) |
Content
- X-SECURITY NVR Recorder
- Mouse
- Ethernet Cable
- AC/DC Adapter 12 V / 1.5 A
- User Manual
- CD with manual and software
