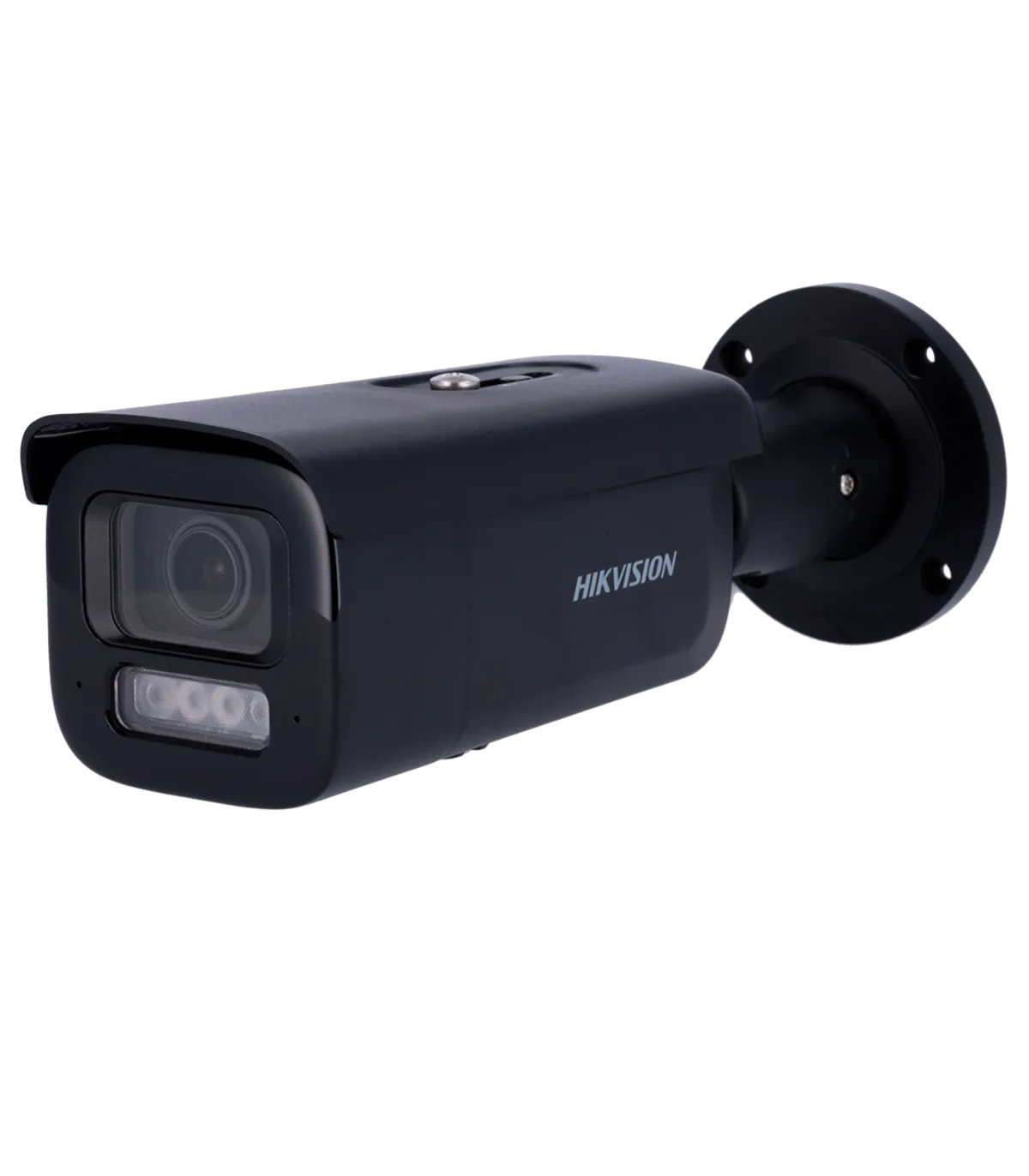

The DS-2CD2683G2-LIZS2U(2.8-12mm)/BLACK is a high-performance IP Bullet Camera designed for advanced surveillance applications. With its 8 Megapixel resolution, this camera captures detailed images, making it ideal for monitoring large areas in both residential and commercial settings. Its varifocal motorized lens allows for flexible installation and precise adjustments, ensuring optimal coverage. The camera features hybrid illumination technology, providing visibility in complete darkness, making it a reliable choice for 24/7 security.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * The Third Stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 106.5~30.2°, V: 55.7~17°, D: 128.5~34.7° |
| DORI | 88.3~289.7 m (D), 35~114.9 m (O), 17.7~57.9 m (R), 8.8~29 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Illumination | Hybrid light: IR range 60 m White light range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1080 mA / 13 W max. PoE+ IEEE802.3at |
| Protection Rating | IP67 waterproof IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 94.2 mm (H) x 97.9 mm (W) x 332.8 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø screw spacing 89 mm / 4 screws |
| Weight | 1531 g |
| Color | Black |
The DS-2CD2683G2-LIZS2U(2.8-12mm)/BLACK is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential properties. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. The hybrid illumination feature ensures that even in low-light conditions, the camera delivers clear images, enhancing security. Additionally, the motion detection capabilities, combined with AcuSense technology, allow for precise identification of human and vehicle movements, significantly reducing false alarms. This makes it an excellent choice for busy areas where accurate monitoring is crucial. Furthermore, the camera's remote access functionality enables users to monitor live feeds from their smartphones or computers, providing peace of mind and flexibility. With its robust IP67 waterproof and IK10 vandal-proof ratings, the camera is built to withstand harsh environmental conditions, ensuring reliable performance year-round.
