€24.80
Access reader
EM card and PIN access
LED and acoustic indicator
Wiegand 26/34
Compatible with Hikvision controllers
Suitable for outdoor use IP65

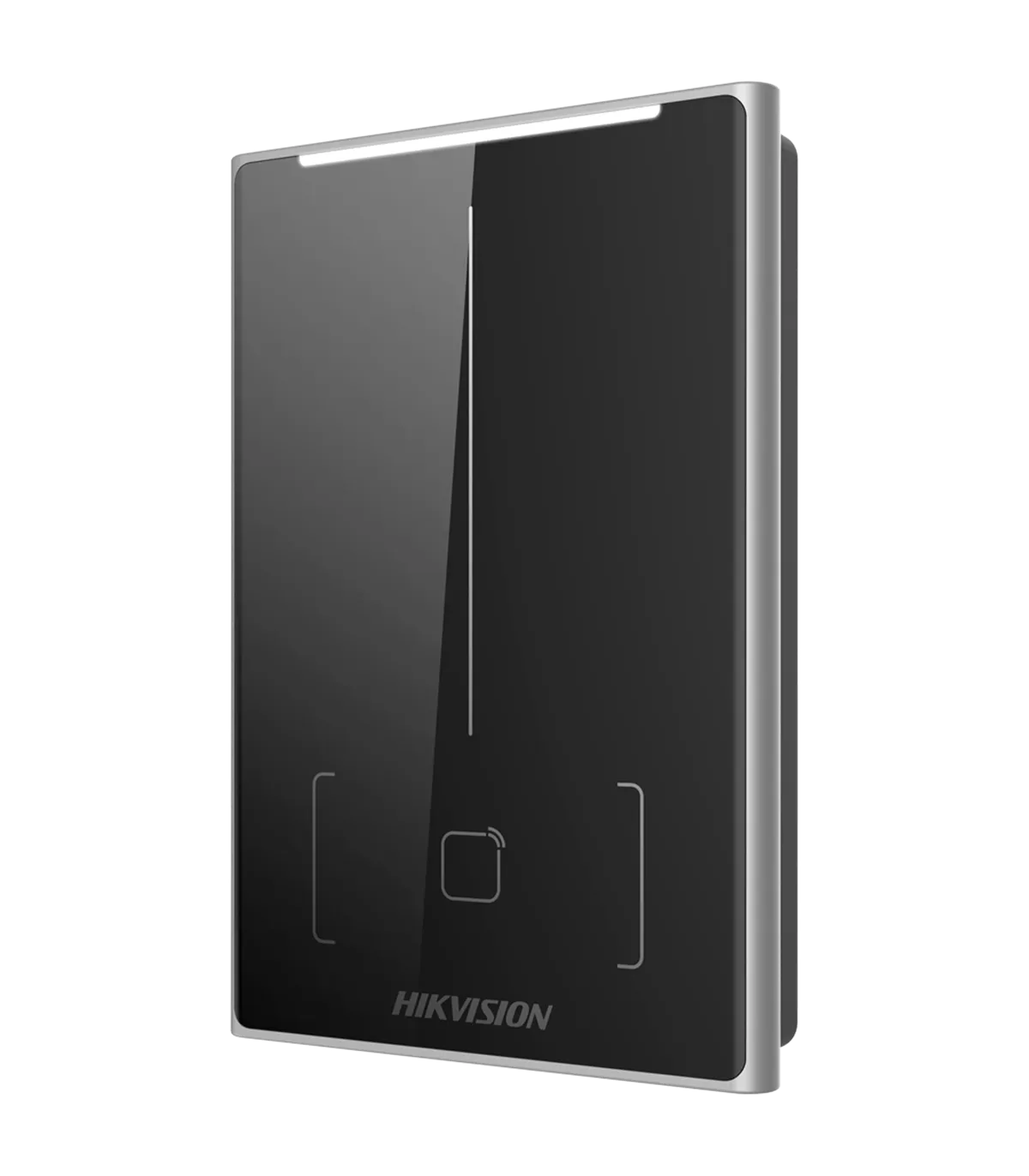

Hikvision MF DESFire Wiegand RS485 Outdoor Access Reader IP65 DS-K1109DB
- Access Reader
- MF DESFire Card Access
- LED and Acoustic Indicator
- Wiegand 26/34 | RS485
- Compatible with Hikvision Controllers
- Outdoor Suitable IP65
€80.91
Reference:
DS-K1109DB
Brand:
Add to wishlist
An access reader is used to identify users who wish to access a system protected by an access controller. It transmits the credential information, with the controller deciding how to act.
This reader allows identification through cards or key fobs using MF technology at 13.56 MHz and MF DESFire at 13.56 MHz.
The connection to the controllers is made via Wiegand or RS485. These protocols enable a secure connection for outdoor installation with an IP65 rating.
- Hikvision
- Access reader for controller
- Access via MF DESFire card and Bluetooth (supported only with HikCentral and HikConnect Teams)
- LED signaling indicator and acoustic alert
- Wiegand 26/34 and RS485
- Suitable for outdoor use IP65
- Compatible with Hikvision controllers
Specifications: DS-K1109DB
| Brand | Hikvision |
| Model | DS-K1109DB |
| Card reading distance | < 5 cm |
| Identification modes | Card (MF DESFire 13.56 MHz) Bluetooth (supported only with HikCentral and HikConnect Teams via HikCentral Mobile APP and HikConnect APP) |
| Outputs | RS485, Wiegand 26/34, buzzer for status indication, tamper |
| Compatibility | Hikvision controllers DS-K2800 Series and DS-K2600T Series |
| Power supply | DC 12 V / 500 mA max. |
| Protection rating | Suitable for outdoor use IP65 |
| Operating temperature | -40 ºC ~ +65 ºC |
| Dimensions | 125 (W) x 85 (H) x 18 (D) mm |
| Weight | 300 g |
Package Contents
- Hikvision card reader
- Mounting materials
- User instructions
DS-K1109DB
Data sheet
- Brand
- HIKVISION
- Compatible models
- SF-TAG-DS,SF-TAG-DS,SF-TAG-DS,AJ-TAG-B
Specific References
- EAN13
- 6931847187163
