Lector acceso Hikvision tarjeta MF DESFire PIN apto exterior IP65 DS-K1109DKB

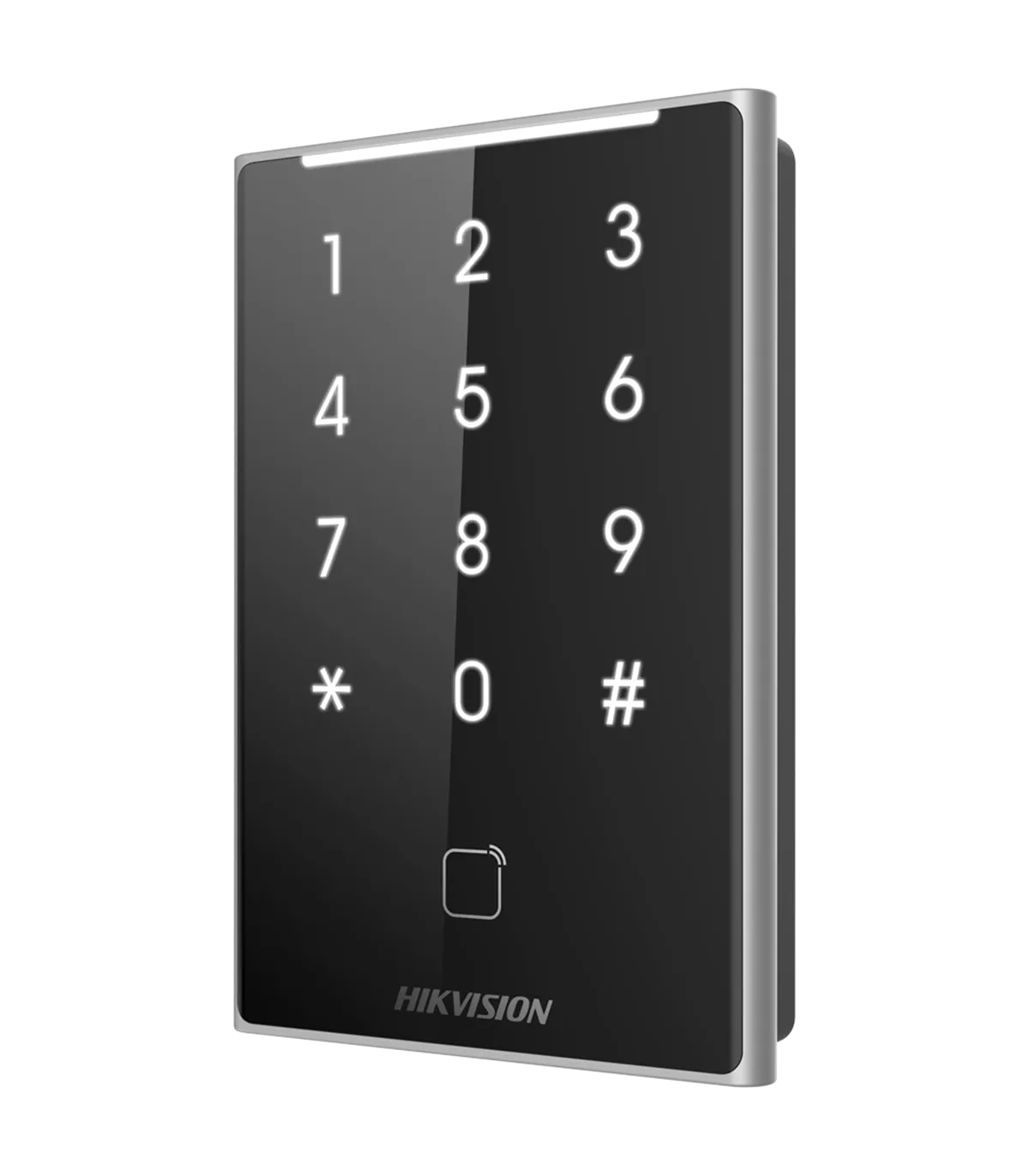

Hikvision MF DESFire Card Access Reader Outdoor IP65 DS-K1109DKB

Hikvision Access Control Terminal with Fever Detection, Mask Recognition and Facial Recognition DS-K1TA70MI-T
  • Access Reader
  • Access via MF DESFire Card and PIN
  • LED and Acoustic Indicator
  • Wiegand 26/34 | RS485
  • Compatible with Hikvision Controllers
  • Suitable for Outdoor Use IP65
Read moreShow less
€92.66
In stock - Ships in 24/48h
Reference:
DS-K1109DKB
Brand:
Hikvision
Add to wishlist
Description

An access reader is used to identify users who wish to access a system protected by an access controller. It transmits the credential information, with the controller deciding how to act.

This reader allows identification through cards or key fobs with MF technology at 13.56 MHz and MF DESFire at 13.56 MHz, as well as a keypad for numeric codes.

The connection to the controllers is made via Wiegand or RS485. These protocols enable a secure connection for outdoor installation with an IP65 rating.

  • Hikvision
  • Access reader for controller
  • Access via MF DESFire card, Bluetooth (supported only with HikCentral and HikConnect Teams), and password
  • LED signaling indicator and acoustic alert
  • Wiegand 26/34 and RS485
  • Suitable for outdoor use IP65
  • Compatible with Hikvision controllers

Specifications: DS-K1109DKB

BrandHikvision
ModelDS-K1109DKB
Card reading distance< 5 cm
Identification modesCard (MF DESFire 13.56 MHz) and password
Bluetooth (supported only with HikCentral and HikConnect Teams via HikCentral Mobile APP and HikConnect APP)
OutputsRS485, Wiegand 26/34, buzzer for status indication, tamper
CompatibilityHikvision DS-K2800 Series and DS-K2600T Series controllers
Power supplyDC 12 V / 500 mA max.
Protection ratingSuitable for outdoor use IP65
Operating temperature-40 ºC ~ +65 ºC
Dimensions125 (W) x 85 (H) x 18 (D) mm
Weight300 g

Package Contents

  • Hikvision card reader
  • Mounting materials
  • User instructions
Read moreShow less
Product Details
DS-K1109DKB

Data sheet

Brand
HIKVISION
Compatible models
SF-TAG-DS,SF-TAG-DS,SF-TAG-DS,AJ-TAG-B

Specific References

EAN13
6931847187194
